Product Description

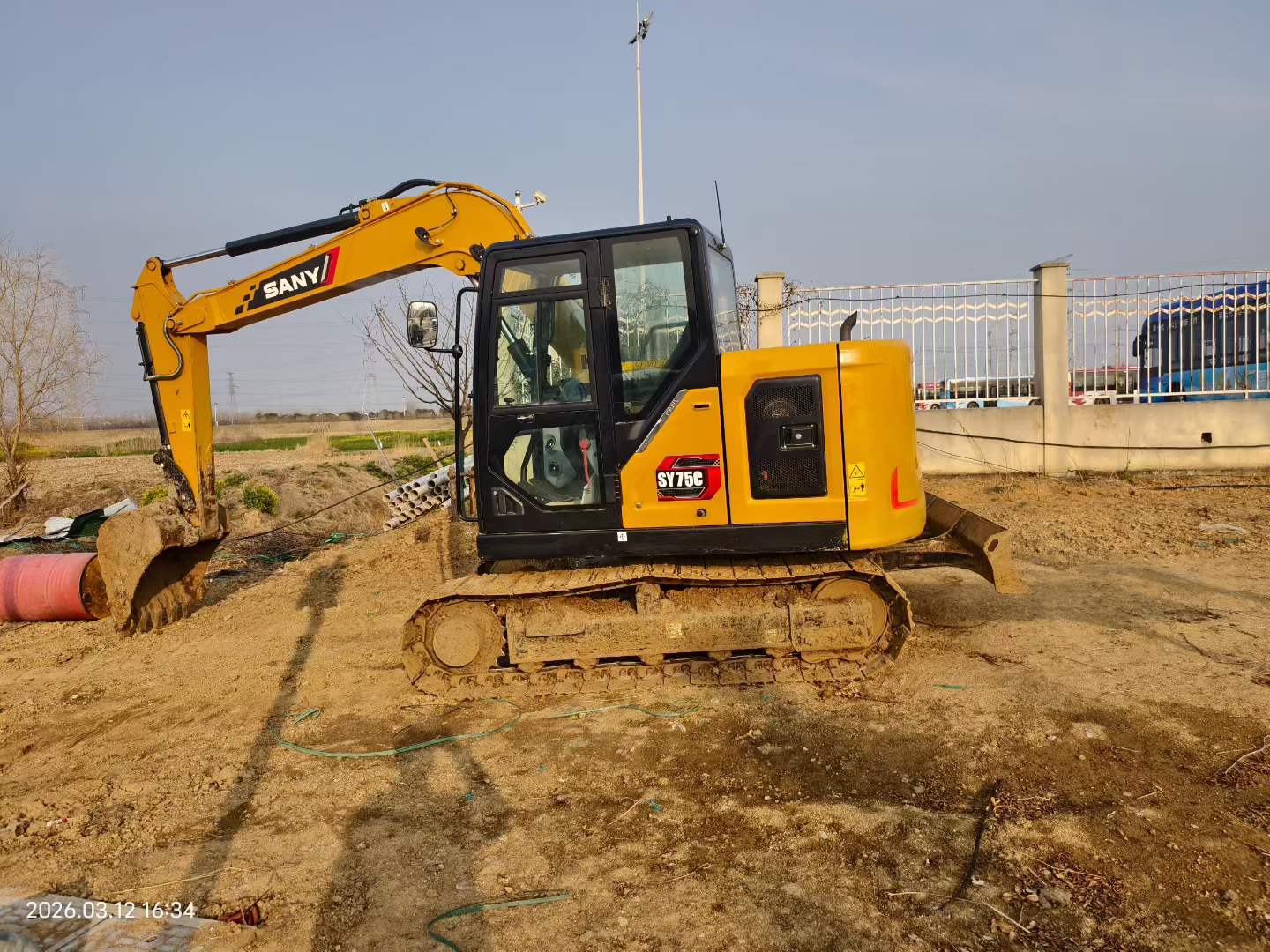

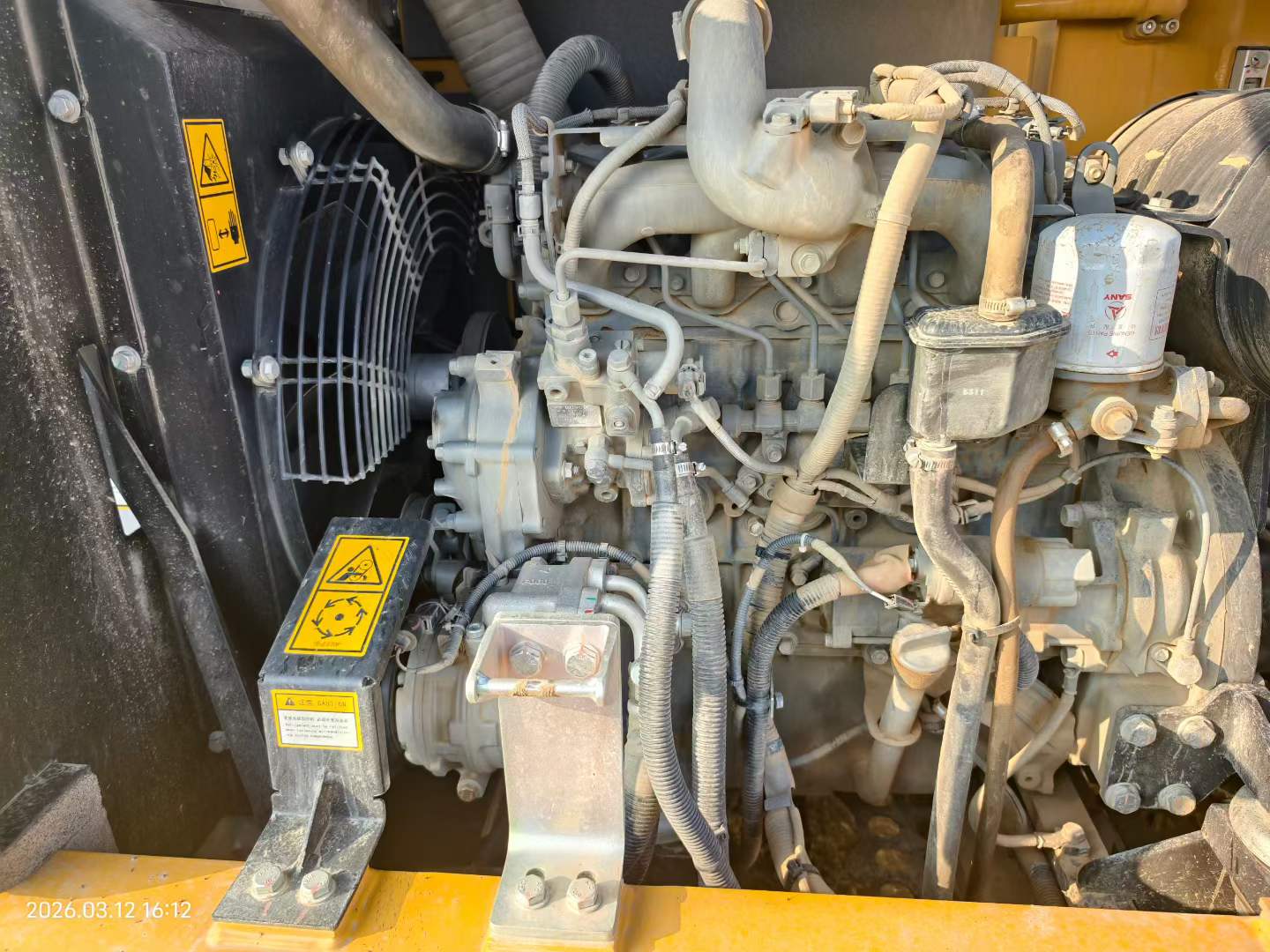

Built for compact job sites demanding full-size performance, this 2025 Sany SY70C excavator arrives from Nanjing ready to tackle foundation work, utility installation, and material handling without delay. Powered by a water-cooled V2607-DI-T-ET06e engine delivering 45.4 kW at 2400 rpm, this 6,800 kg machine combines a 51 kN bucket digging force with a maximum excavation depth of 4,065 mm—specifications that handle trenching, grading, and demolition across residential and commercial projects.
- 7-ton working capacity with 0.28 m³ backhoe bucket
- Maximum digging height of 7,010 mm for efficient loading operations
- 70% climbing ability and 33 kPa ground pressure for varied terrain
- 150 L fuel tank and 120 L hydraulic reservoir support extended shifts
- Compact transport dimensions (6,120 × 2,140 × 2,645 mm) simplify mobilization
Traditional power configuration ensures straightforward maintenance. Dual travel speeds (4.2/2.4 km/h) provide precision positioning and rapid repositioning between dig zones. Currently located in Jiangsu Province, this China-manufactured excavator ships globally with complete documentation for immediate deployment.
| Specifications | Value |
|---|---|
| No. | 1029596 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 6800 |
| Bucket capacity (m³) | 0.12~0.32 (0.28) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | V2607-DI-T-ET06e |
| Rated power (kw/rpm) | 45.4/2400 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 217/1600 |
| Displacement (L) | 2.615 |
| Ground specific pressure (Kpa) | 33 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 51 |
| Rod digging force (kN) | 36 |
| Travel speed (km/h) | 4.2/2.4 |
| Fuel Tank (L) | 150 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 10 |
| Total transport length (mm) | 6120 |
| Total transport width (mm) | 2140 |
| Total transport height (mm) | 2645 |
| Track plate width (mm) | 400 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 42 |
| Maximum excavation height (mm) | 7010 |
| Maximum unloading height (mm) | 5110 |
| Maximum vertical digging depth (mm) | 3335 |
| Maximum effective digging depth (mm) | 4065 |
