2018 Sany SY750H

1/4

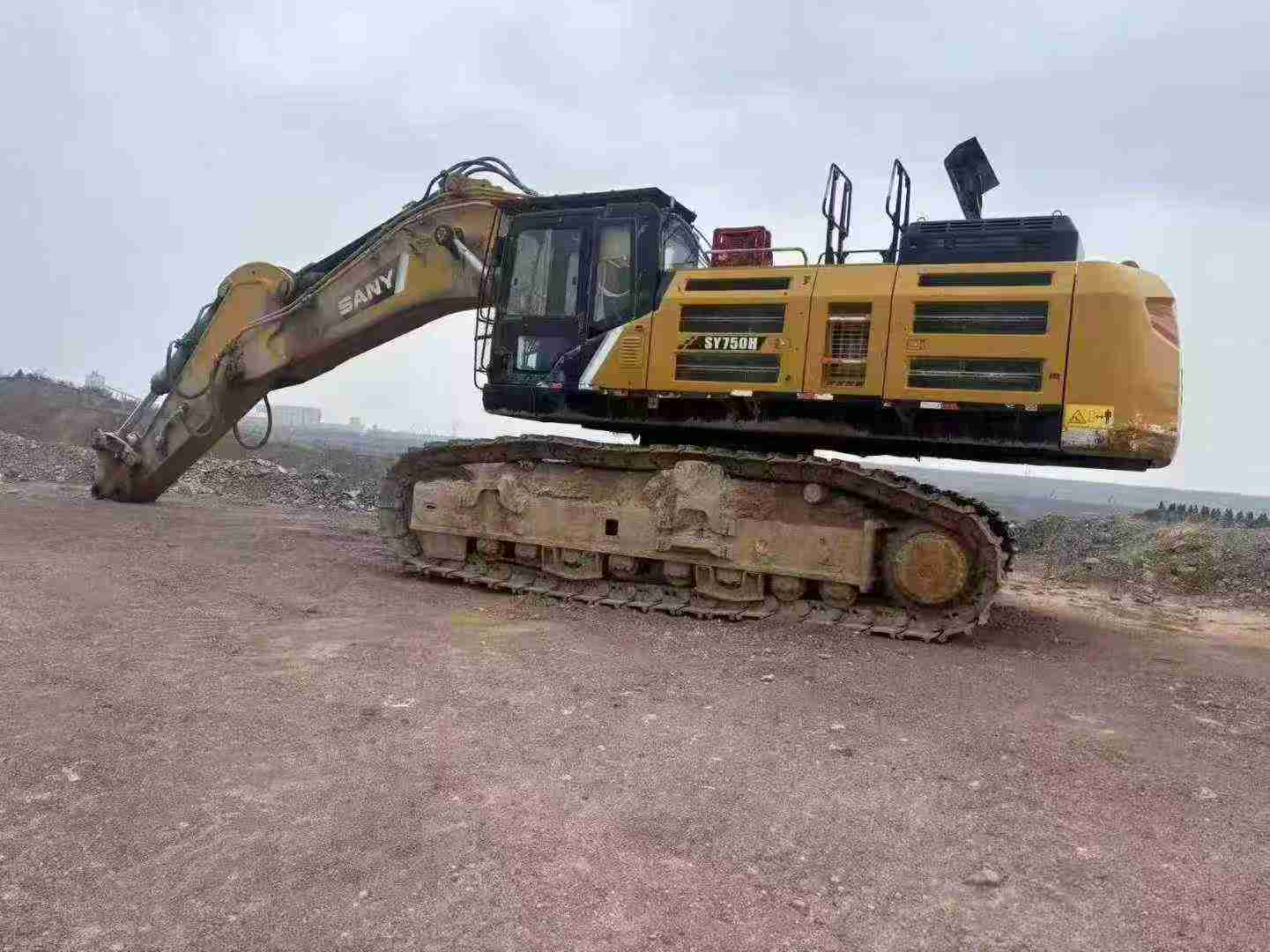

Used Sany SY750H Excavator 2018 Model / 1

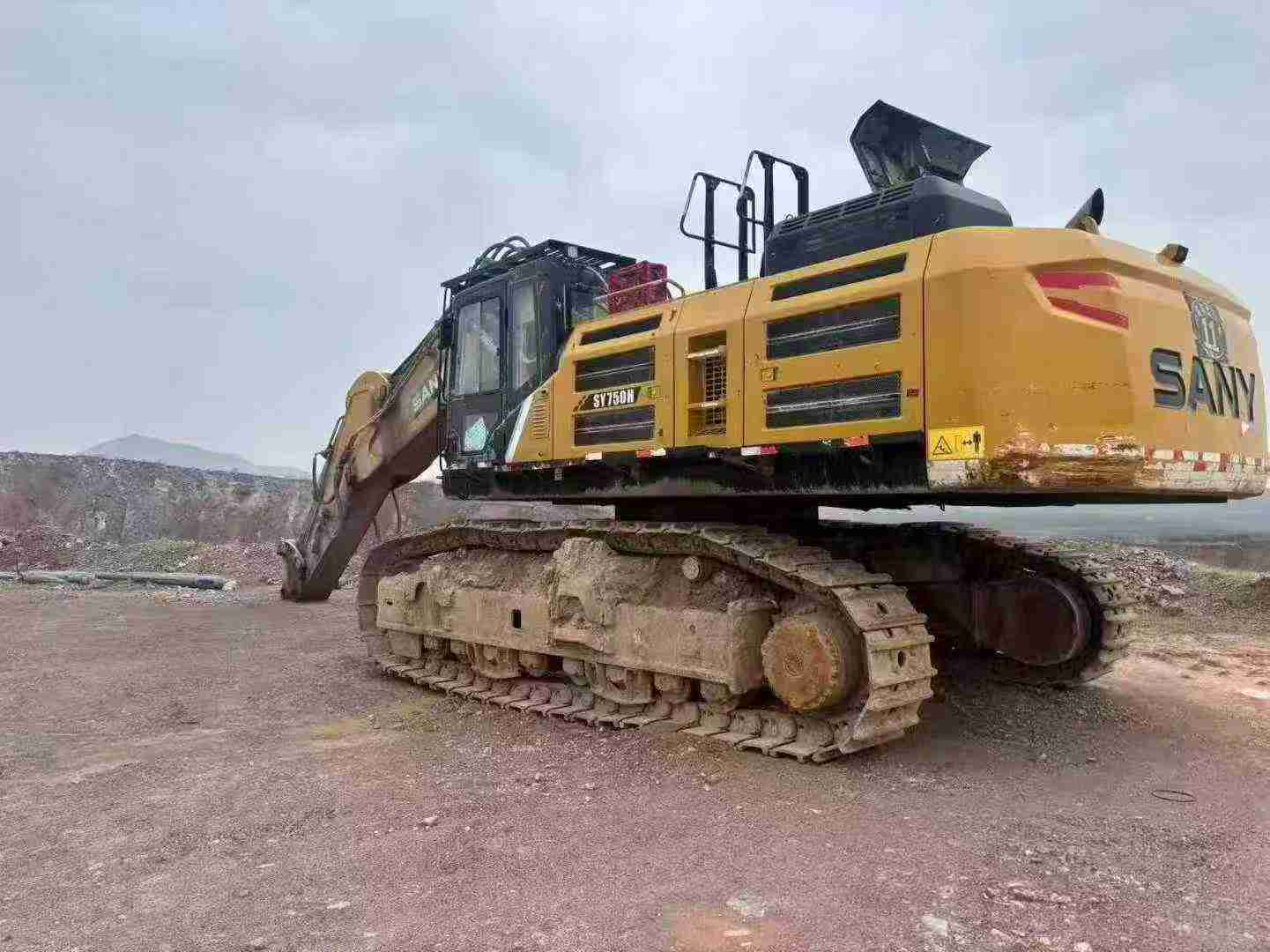

Used Sany SY750H Excavator 2018 Model / 2

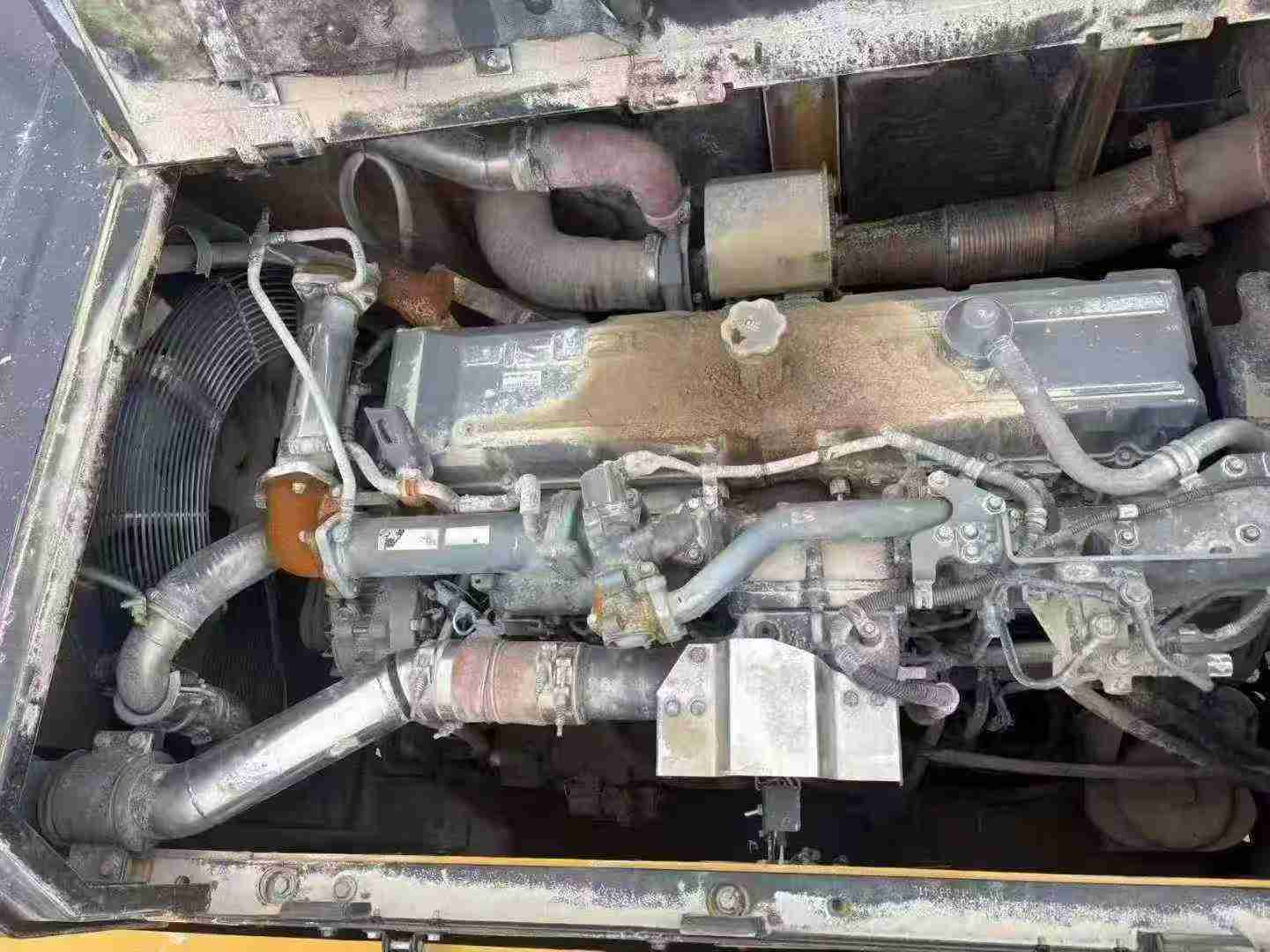

Used Sany SY750H Excavator 2018 Model / 3
Used Sany SY750H Excavator 2018 Model / 4

Product Description

Expand your fleet capacity with this proven 2018 Sany SY750H excavator, currently located in Sichuan Luzhou. Built for high-volume earthmoving operations, this 75-ton workhorse delivers 377 kW of rated power and a robust 402 kN bucket digging force, making it ideal as a backup unit during peak project periods or simultaneous job sites. With a maximum digging reach of 12,050 mm and depth capability to 7,620 mm, this machine matches the performance profile contractors depend on for large-scale excavation work.

  • Working weight: 76,200 kg with 4.6-5.6 m³ bucket capacity
  • Reliable traditional powerplant: 377 kW at 1,800 rpm
  • Maximum digging height: 11,200 mm for loading applications
  • 70% climbing ability handles challenging terrain
  • 7.3 rpm rotation speed maintains cycle efficiency
  • Transport dimensions: 12,865 mm (L) × 4,320 mm (W) × 4,855 mm (H)

Manufactured in China to Sany's engineering standards, this backhoe-configured excavator integrates seamlessly into existing heavy equipment fleets. Contractors requiring immediate production capacity will appreciate the operational readiness and familiar control layout this model provides.

SpecificationsValue
No.1024510
Tonnage (tons)75
Working weight (kg)76200
Bucket capacity (m³)4.6-5.6
powerTraditional power
manufacturerMade in China
bucketbackhoe
Rated power (kw/rpm)377/1800
Ground specific pressure (Kpa)110
Rotation speed (rpm)7.3
Climbing ability (%)70
Bucket digging force (kN)402
Rod digging force (kN)345
Travel speed (km/h)4.5/2.9
Total transport length (mm)12865
Total transport width (mm)4320
Total transport height (mm)4855
Full cab height (mm)3800
Minimum ground clearance (mm)880
Minimum turning radius of front working device (mm)5520
Back end turning radius (mm)4220
Onboard width (mm)3460
Total track length (mm)5865
Track gauge (mm)3380/2780
Track plate width (mm)650
Track ground length (mm)4650
Maximum height at minimum turning radius (mm)9780
Maximum digging radius (mm)12050
Maximum digging depth (mm)7620
Maximum excavation height (mm)11200
Maximum unloading height (mm)7250
Maximum vertical digging depth (mm)4320
see more

Overview

No.1024510

Brand Name:

Sany

Model Number:

SY750H

Year:

2018

Location:

Sichuan China

Pub Date:
