Product Description

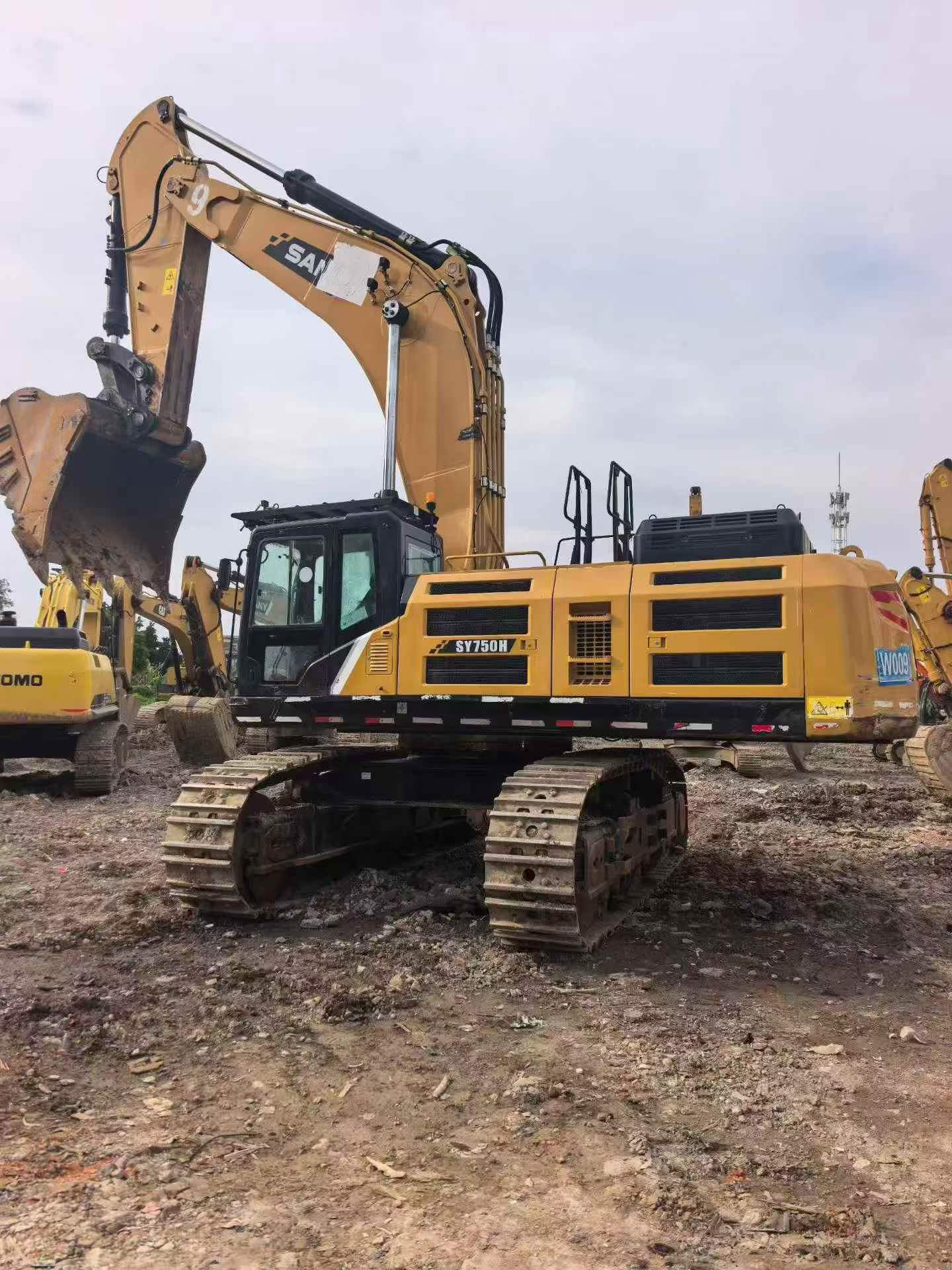

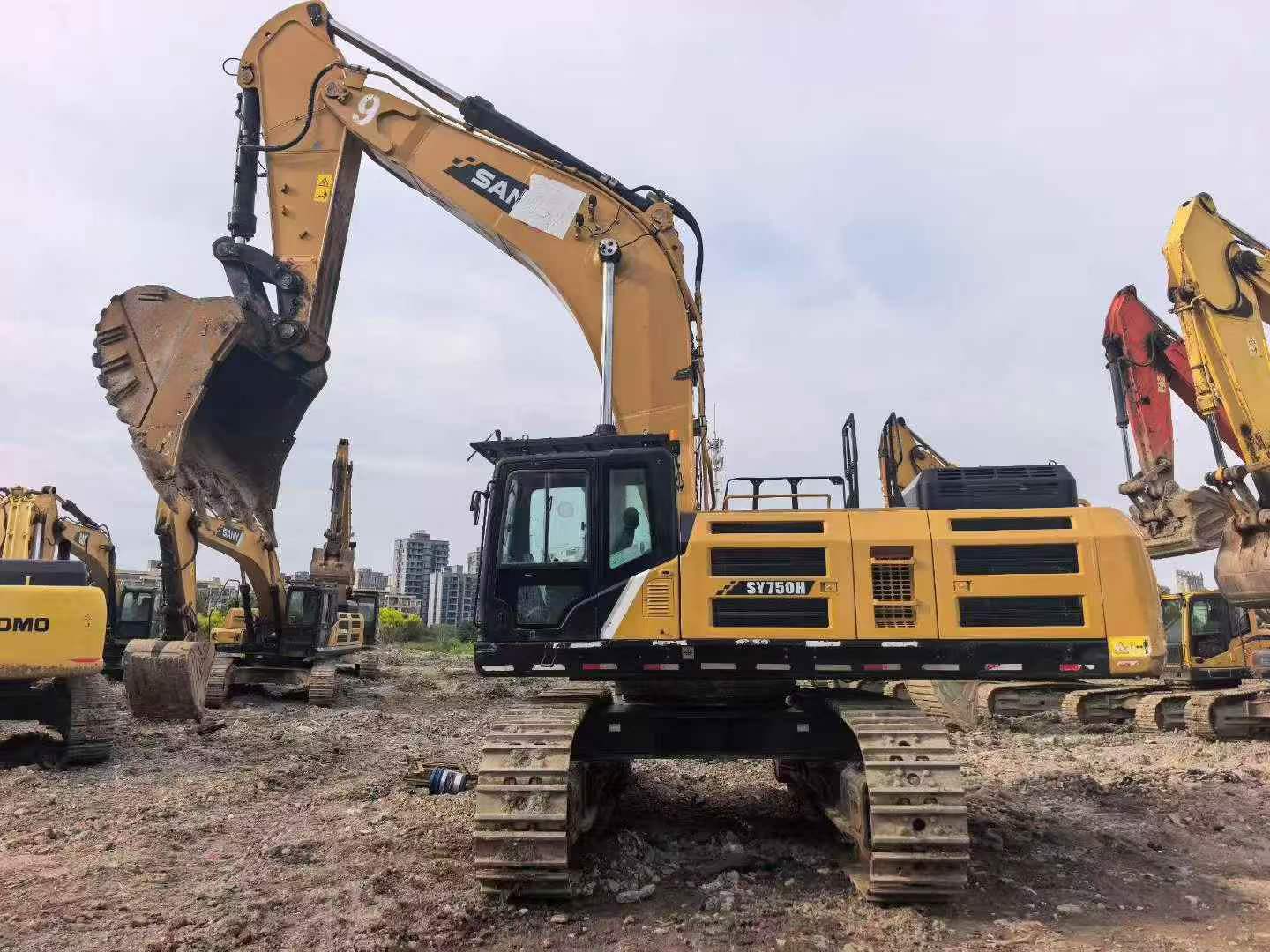

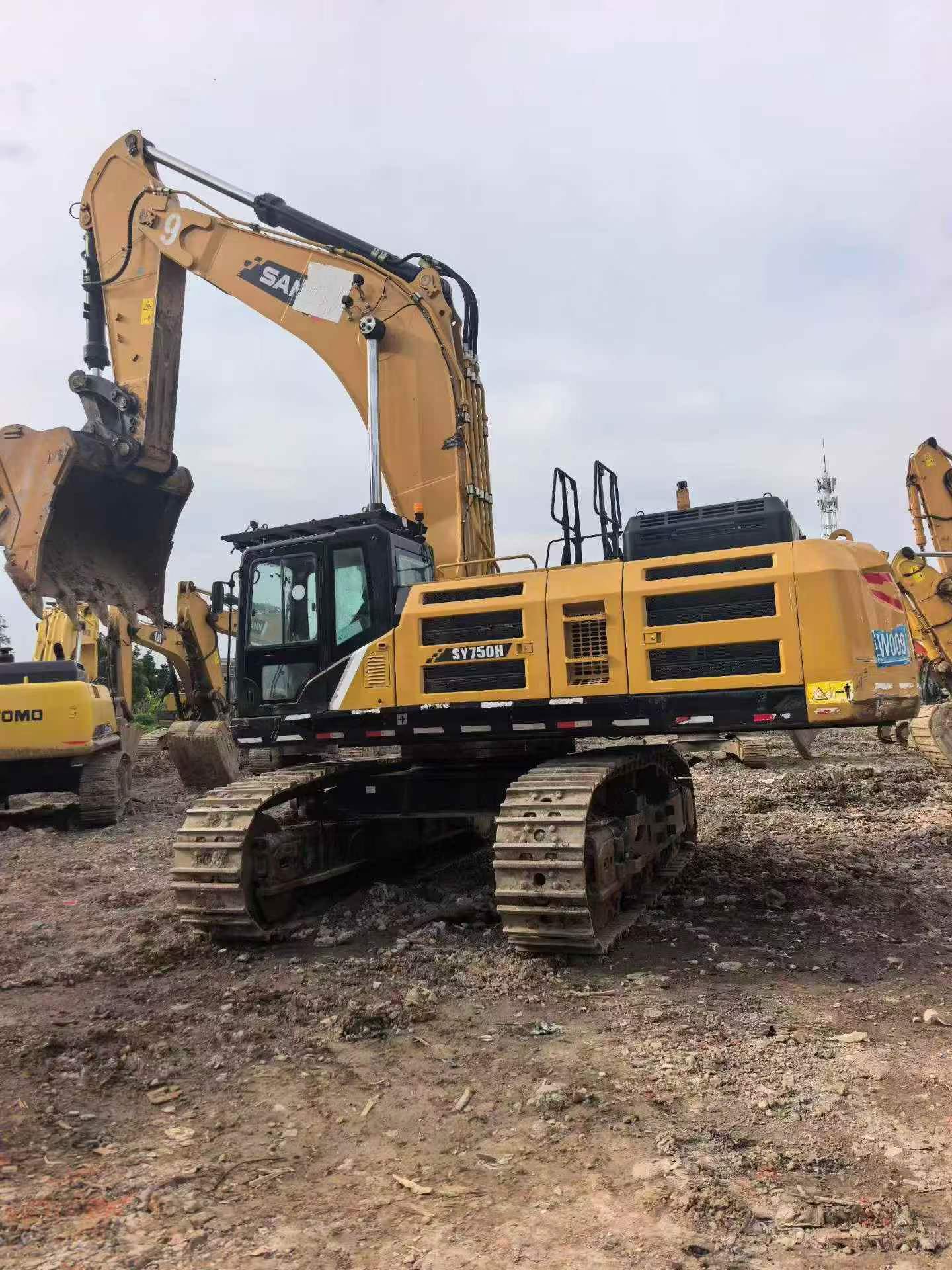

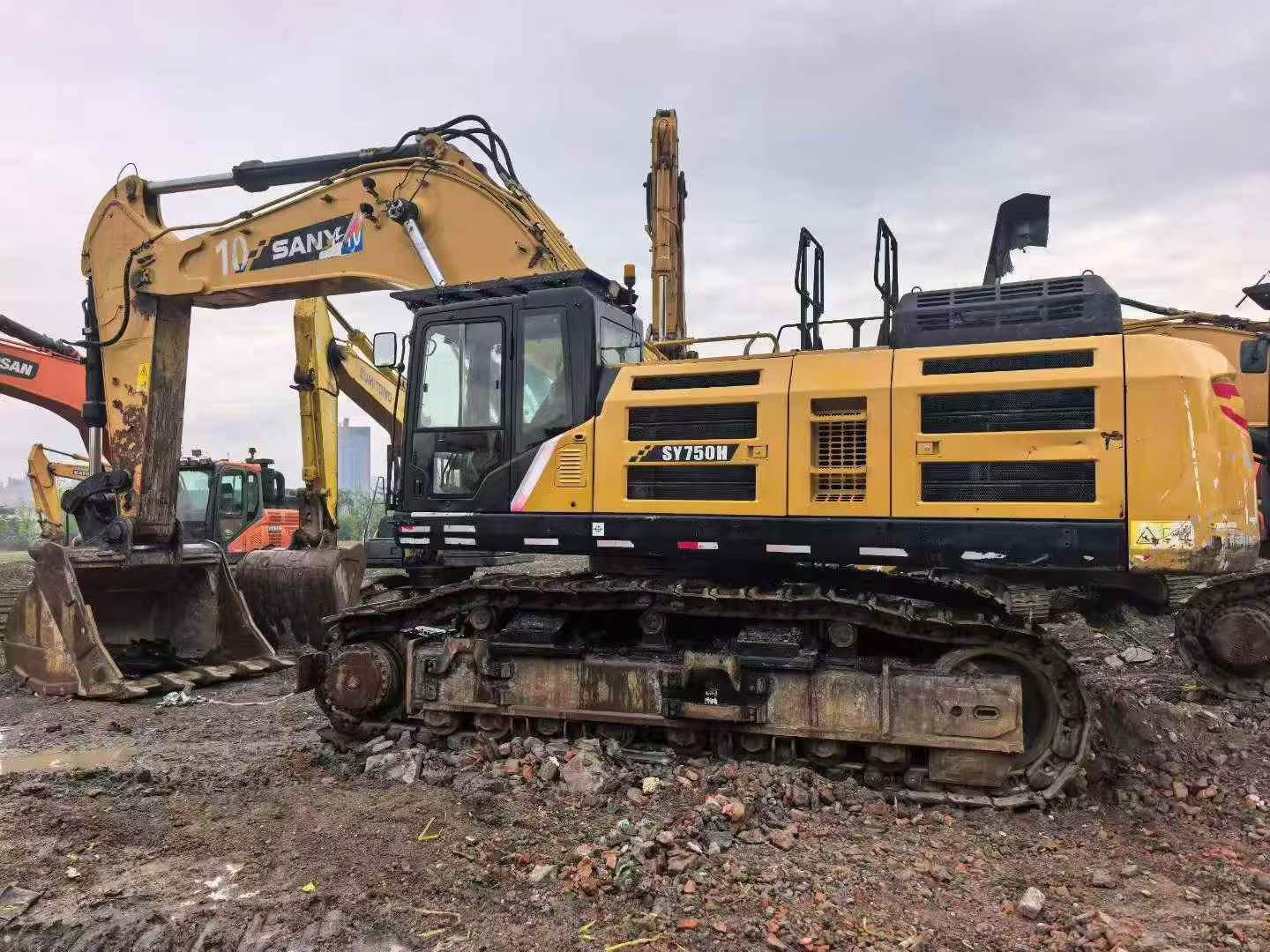

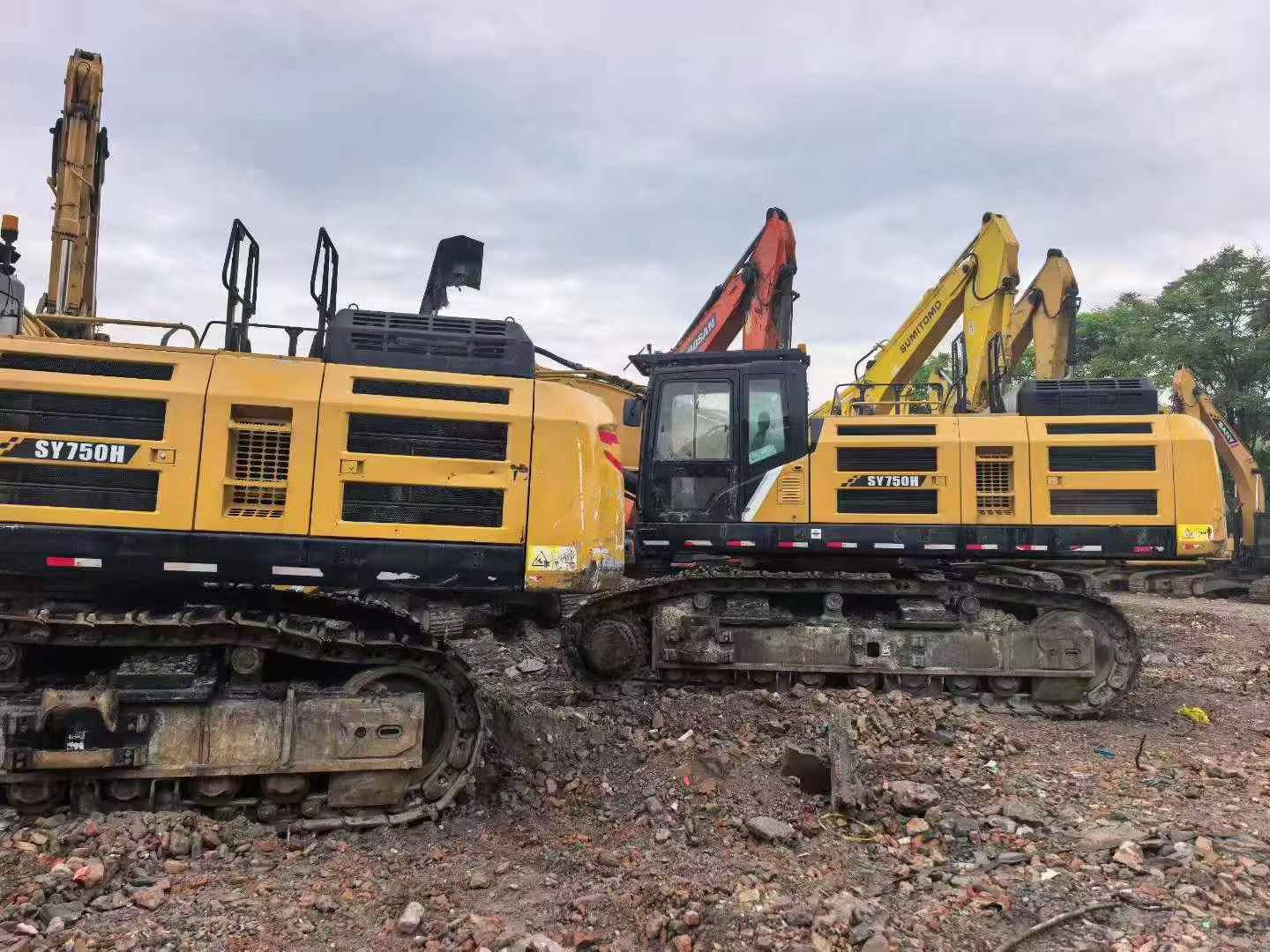

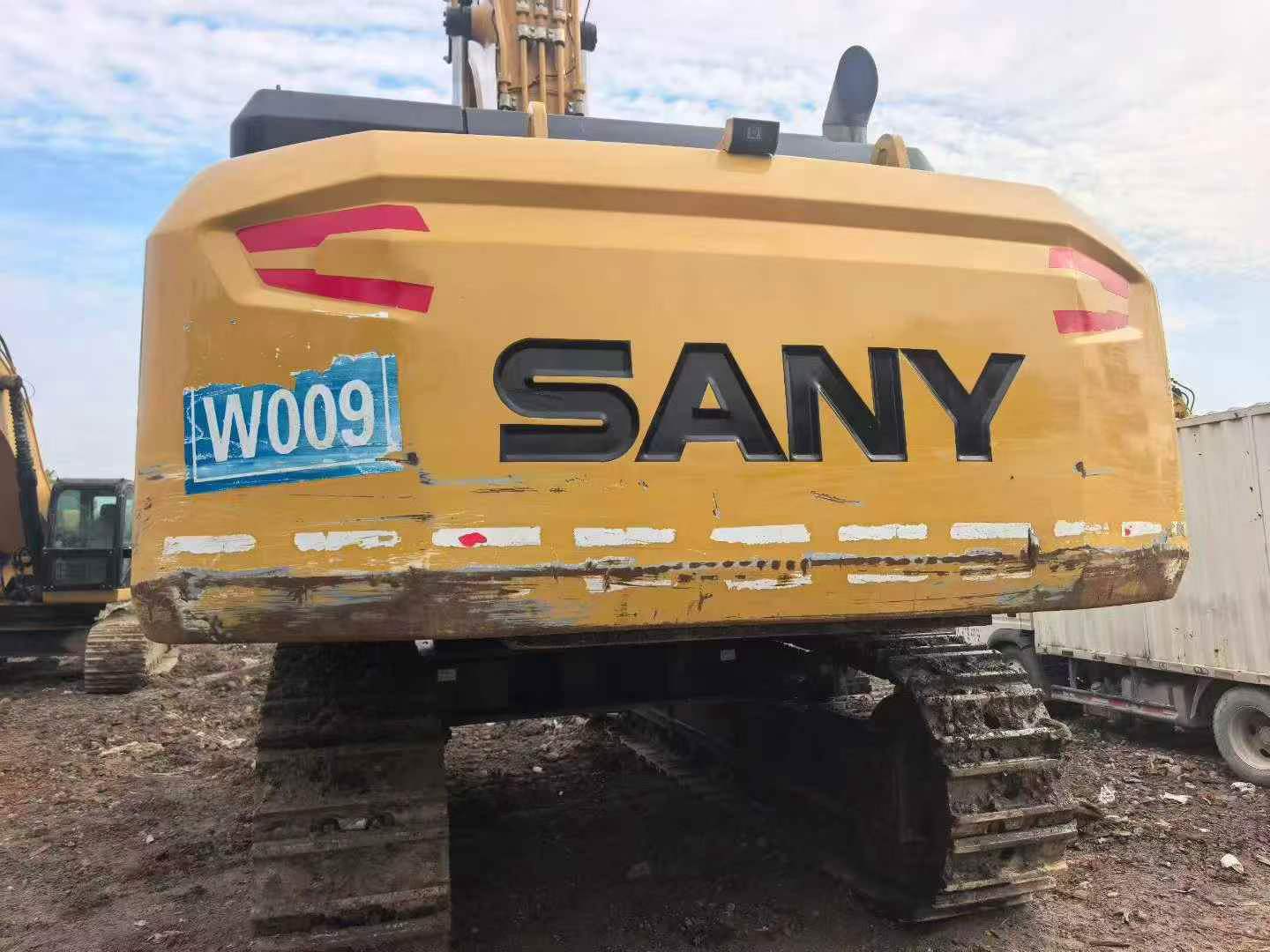

Discover the power and reliability of the 2021 Sany SY750H, a top-tier excavator designed for heavy-duty applications. Located in Zhejiang, China, this used machine is an excellent choice for construction, mining, and large-scale earthmoving projects. Built with durability and efficiency in mind, the SY750H delivers high performance and low maintenance, making it a cost-effective solution for your industrial needs.
- Year: 2021
- Brand: Sany
- Model: SY750H
- Location: Zhejiang, China
| Specifications | Value |
|---|---|
| No. | 1058011 |
| Tonnage (tons) | 75 |
| Working weight (kg) | 76200 |
| Bucket capacity (m³) | 4.6-5.6 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 377/1800 |
| Ground specific pressure (Kpa) | 110 |
| Rotation speed (rpm) | 7.3 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 402 |
| Rod digging force (kN) | 345 |
| Travel speed (km/h) | 4.5/2.9 |
| Total transport length (mm) | 12865 |
| Total transport width (mm) | 4320 |
| Total transport height (mm) | 4855 |
| Full cab height (mm) | 3800 |
| Minimum ground clearance (mm) | 880 |
| Minimum turning radius of front working device (mm) | 5520 |
| Back end turning radius (mm) | 4220 |
| Onboard width (mm) | 3460 |
| Total track length (mm) | 5865 |
| Track gauge (mm) | 3380/2780 |
| Track plate width (mm) | 650 |
| Track ground length (mm) | 4650 |
| Maximum height at minimum turning radius (mm) | 9780 |
| Maximum digging radius (mm) | 12050 |
| Maximum digging depth (mm) | 7620 |
| Maximum excavation height (mm) | 11200 |
| Maximum unloading height (mm) | 7250 |
| Maximum vertical digging depth (mm) | 4320 |
