Product Description

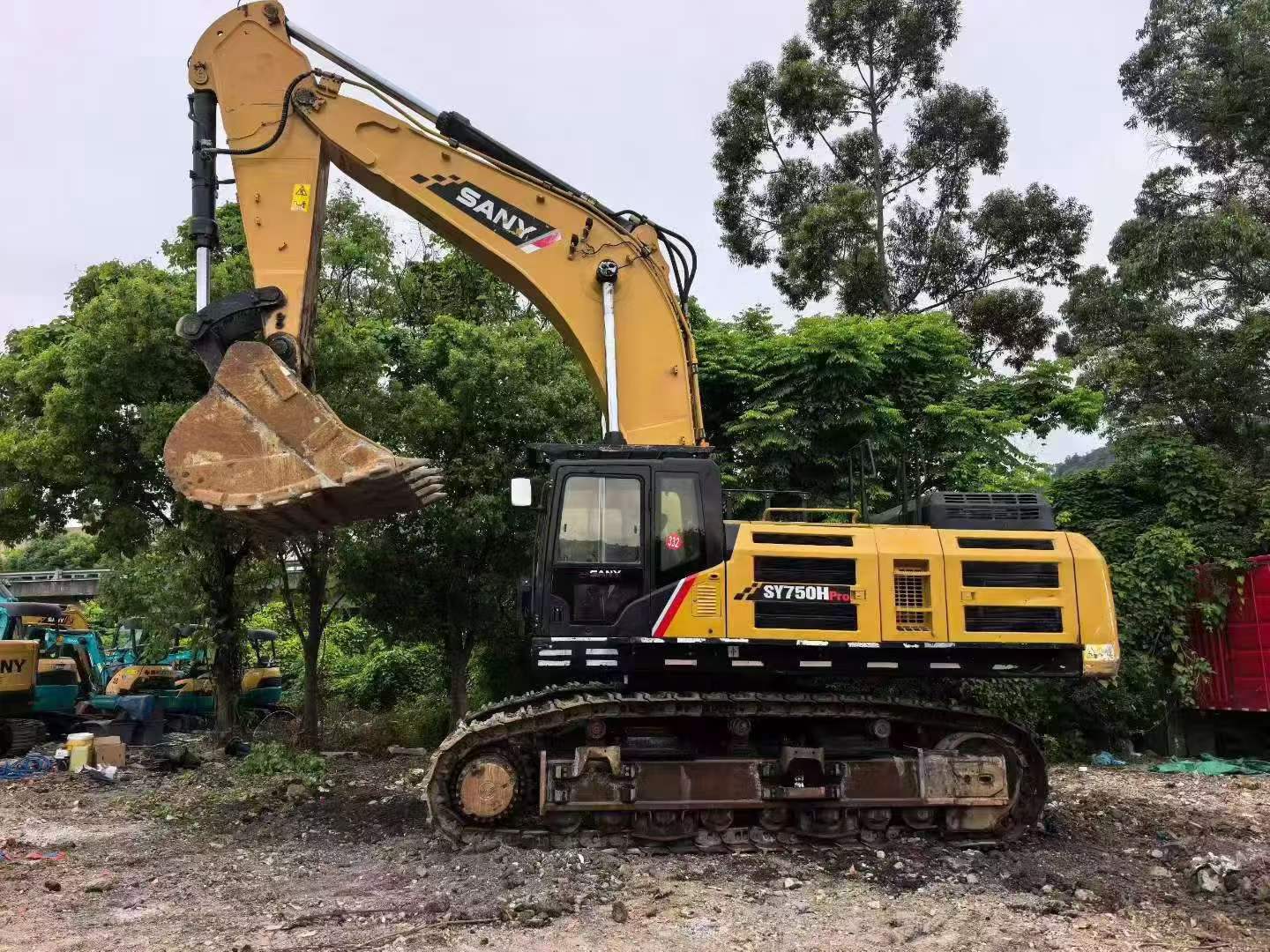

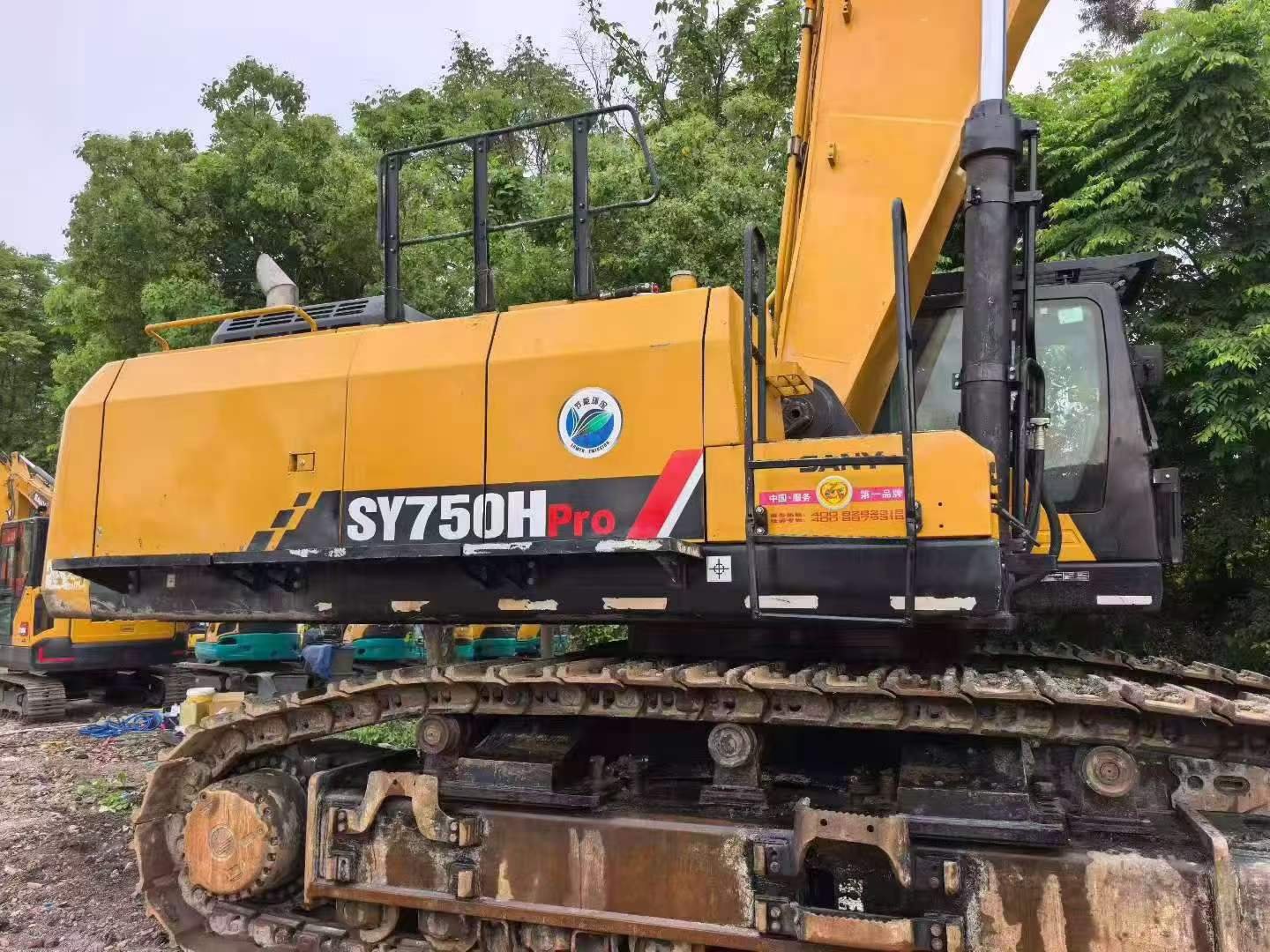

Discover the robust performance and reliability of the 2021 Sany SY750H, a premium heavy machine currently available in Zhejiang, China. This excavator is designed for demanding construction and mining applications, offering exceptional digging power and efficiency. Built with durability in mind, the SY750H features a sturdy structure and advanced hydraulic systems, ensuring long-term productivity and minimal downtime.
- Year: 2021
- Brand: Sany
- Model: SY750H
- Location: Zhejiang, China
| Specifications | Value |
|---|---|
| No. | 1119394 |
| Tonnage (tons) | 75 |
| Working weight (kg) | 76200 |
| Bucket capacity (m³) | 4.6-5.6 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 377/1800 |
| Ground specific pressure (Kpa) | 110 |
| Rotation speed (rpm) | 7.3 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 402 |
| Rod digging force (kN) | 345 |
| Travel speed (km/h) | 4.5/2.9 |
| Total transport length (mm) | 12865 |
| Total transport width (mm) | 4320 |
| Total transport height (mm) | 4855 |
| Full cab height (mm) | 3800 |
| Minimum ground clearance (mm) | 880 |
| Minimum turning radius of front working device (mm) | 5520 |
| Back end turning radius (mm) | 4220 |
| Onboard width (mm) | 3460 |
| Total track length (mm) | 5865 |
| Track gauge (mm) | 3380/2780 |
| Track plate width (mm) | 650 |
| Track ground length (mm) | 4650 |
| Maximum height at minimum turning radius (mm) | 9780 |
| Maximum digging radius (mm) | 12050 |
| Maximum digging depth (mm) | 7620 |
| Maximum excavation height (mm) | 11200 |
| Maximum unloading height (mm) | 7250 |
| Maximum vertical digging depth (mm) | 4320 |
