Product Description

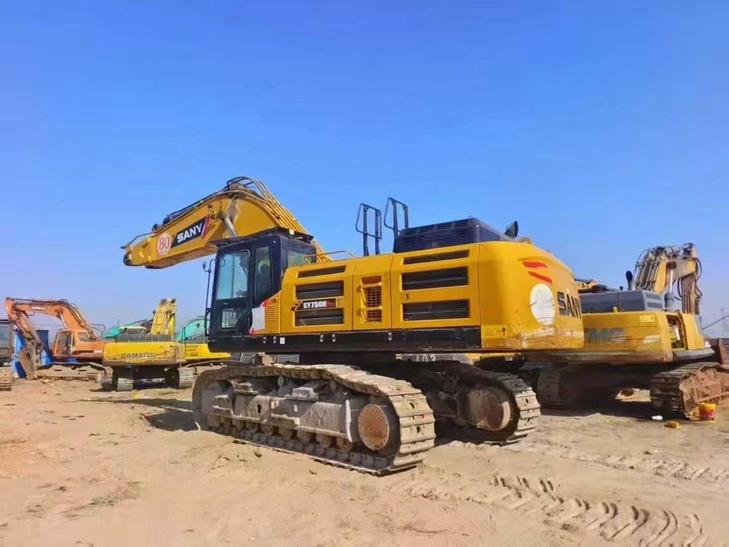

With a robust 75-ton working weight and a powerful 377 kW engine, this 2022 Sany SY750H excavator is designed for immediate deployment in demanding construction sites. Equipped with a backhoe bucket capacity ranging from 4.6 to 5.6 m³, it excels in digging, grading, and demolition tasks. Built in China, this machine features a ground pressure of 110 Kpa, ensuring stability on various terrains. Its 4.5 km/h travel speed and 70% climbing ability make it versatile for different site conditions. The SY750H boasts a maximum digging depth of 7620 mm and a maximum unloading height of 7250 mm, making it an indispensable tool for heavy-duty operations.
- Bucket capacity: 4.6-5.6 m³
- Rated power: 377 kW at 1800 rpm
- Ground specific pressure: 110 Kpa
- Travel speed: 4.5/2.9 km/h
- Maximum digging depth: 7620 mm
- Maximum unloading height: 7250 mm
| Specifications | Value |
|---|---|
| No. | 1020226 |
| Tonnage (tons) | 75 |
| Working weight (kg) | 76200 |
| Bucket capacity (m³) | 4.6-5.6 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 377/1800 |
| Ground specific pressure (Kpa) | 110 |
| Rotation speed (rpm) | 7.3 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 402 |
| Rod digging force (kN) | 345 |
| Travel speed (km/h) | 4.5/2.9 |
| Total transport length (mm) | 12865 |
| Total transport width (mm) | 4320 |
| Total transport height (mm) | 4855 |
| Full cab height (mm) | 3800 |
| Minimum ground clearance (mm) | 880 |
| Minimum turning radius of front working device (mm) | 5520 |
| Back end turning radius (mm) | 4220 |
| Onboard width (mm) | 3460 |
| Total track length (mm) | 5865 |
| Track gauge (mm) | 3380/2780 |
| Track plate width (mm) | 650 |
| Track ground length (mm) | 4650 |
| Maximum height at minimum turning radius (mm) | 9780 |
| Maximum digging radius (mm) | 12050 |
| Maximum digging depth (mm) | 7620 |
| Maximum excavation height (mm) | 11200 |
| Maximum unloading height (mm) | 7250 |
| Maximum vertical digging depth (mm) | 4320 |
