Product Description

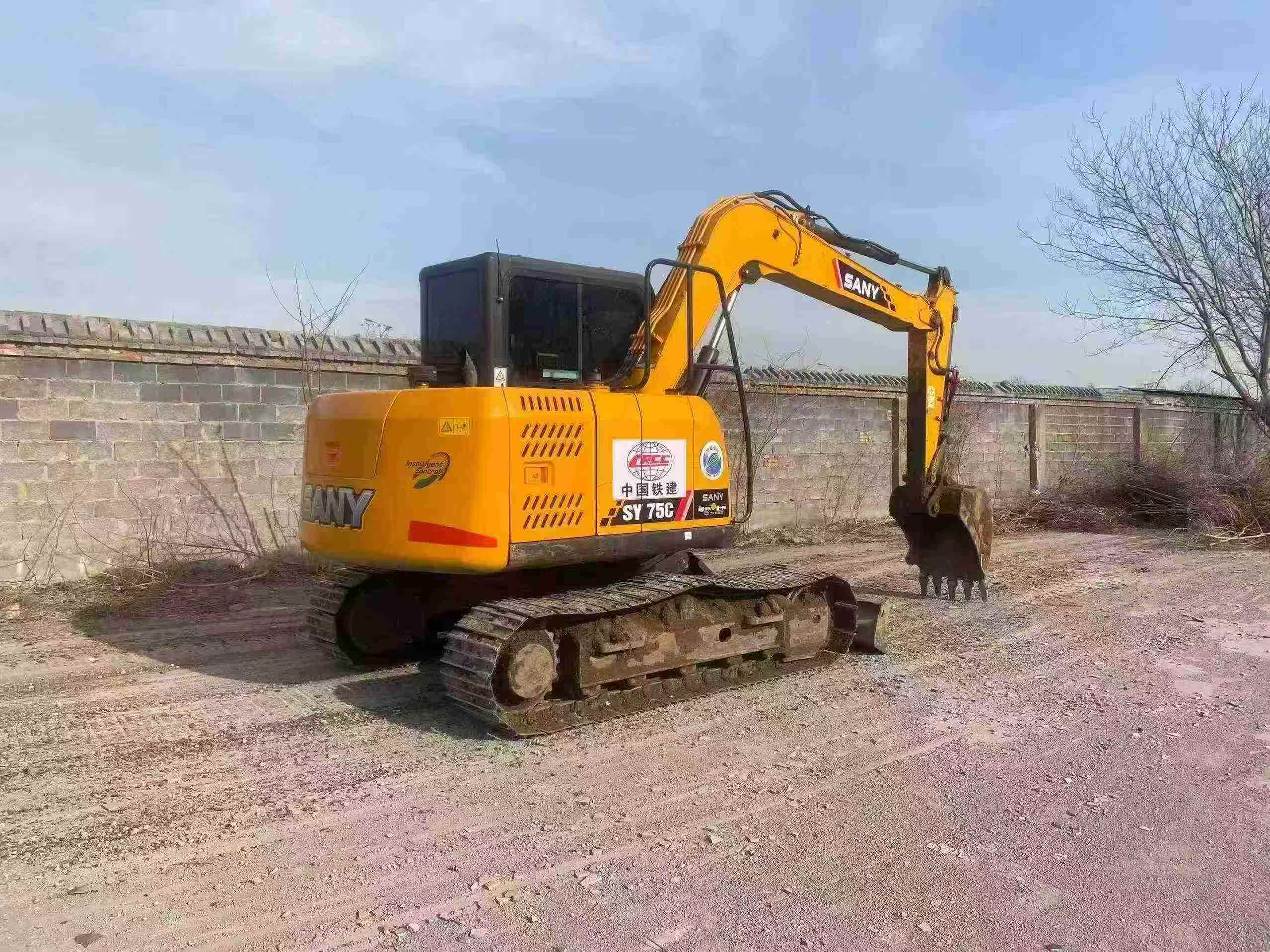

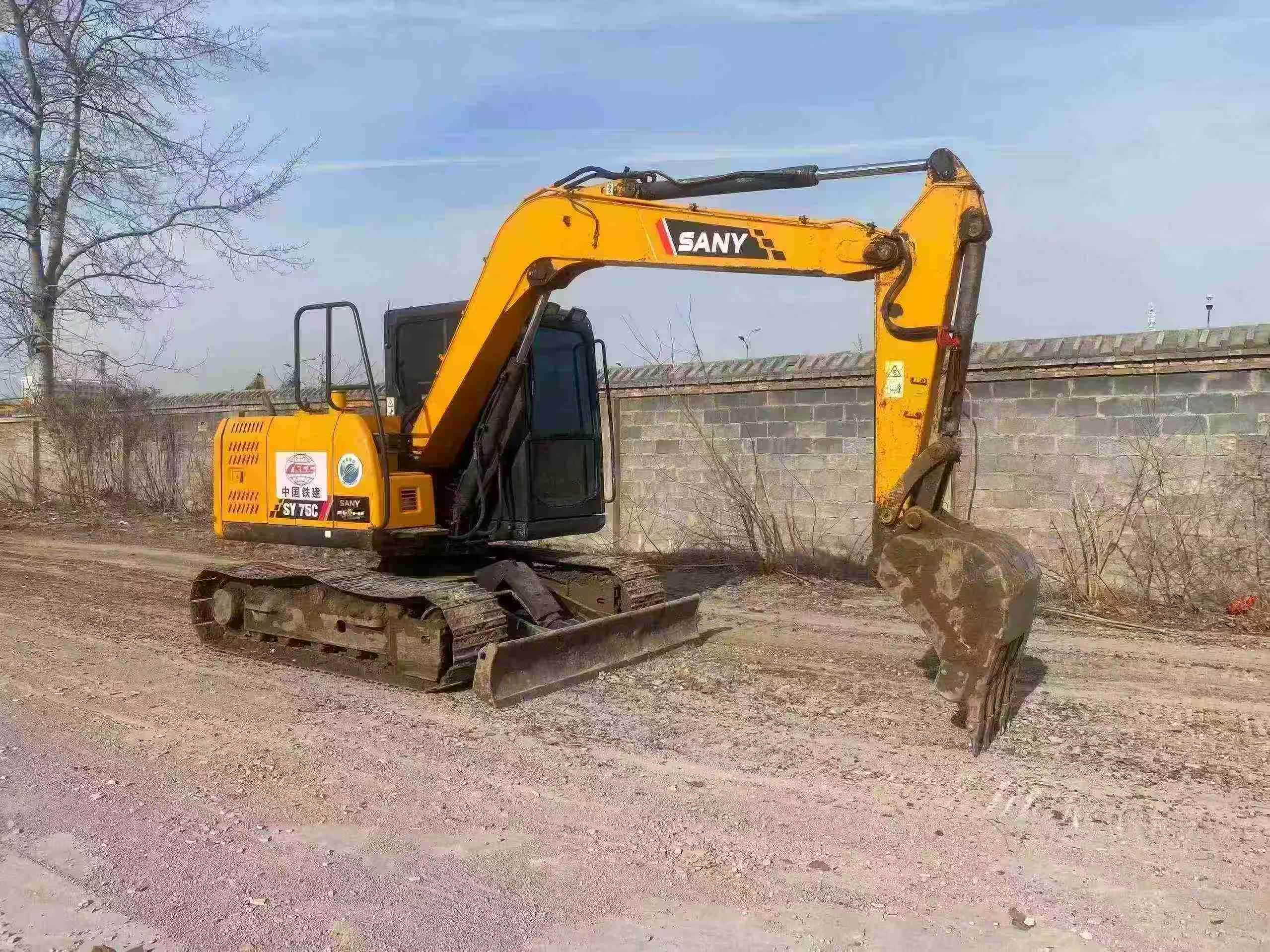

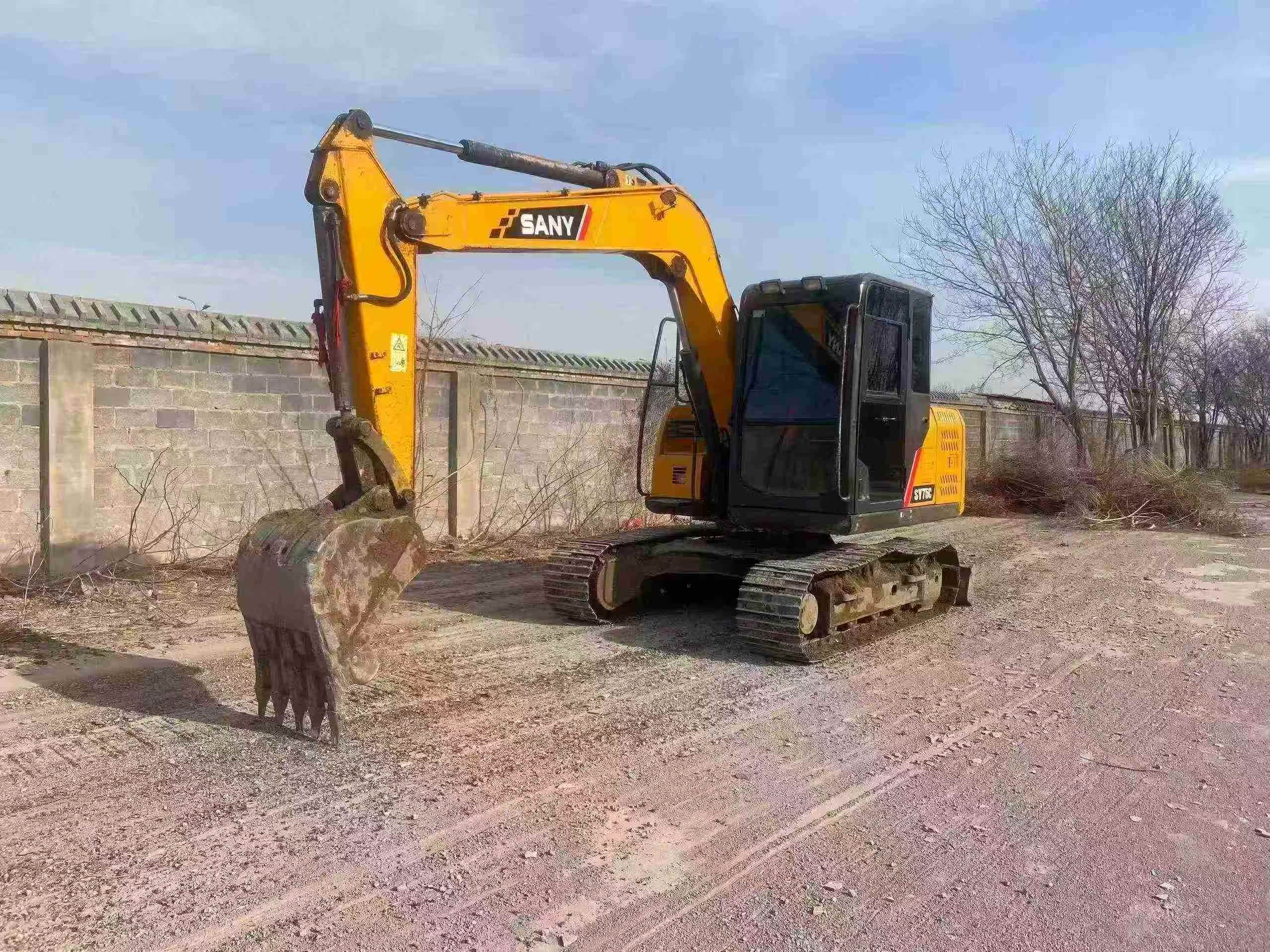

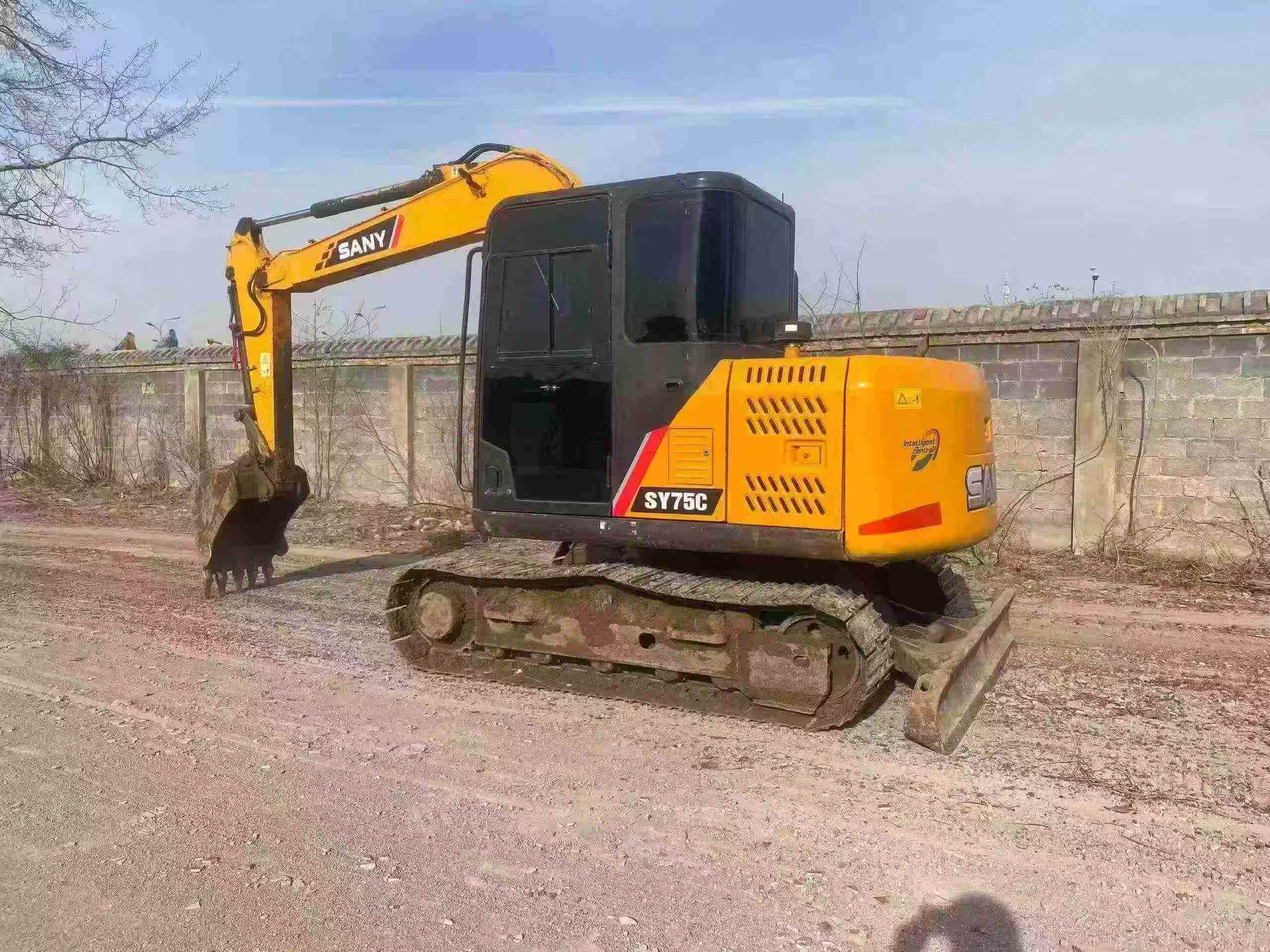

Available now in 河北, this 2016 Sany SY75C compact excavator eliminates factory wait times and delivers immediate productivity to your jobsite. Operating at 7 tons with a robust Isuzu AU-4LE2X engine producing 43kW of rated power, this machine combines proven reliability with rapid deployment capabilities. Fast delivery from our 河北 location means your project timeline stays on track without the delays of new equipment orders.
Built for versatile performance, the SY75C features a 0.12-0.32 m³ bucket capacity and impressive digging specifications: 6240mm maximum reach, 4020mm digging depth, and 56kN bucket digging force. The water-cooled four-cylinder engine delivers 200 N.m maximum torque while maintaining efficient fuel consumption from its 150L tank. Compact transport dimensions of 6120mm length and 2220mm width enable quick mobilization between sites across 河北 and surrounding regions.

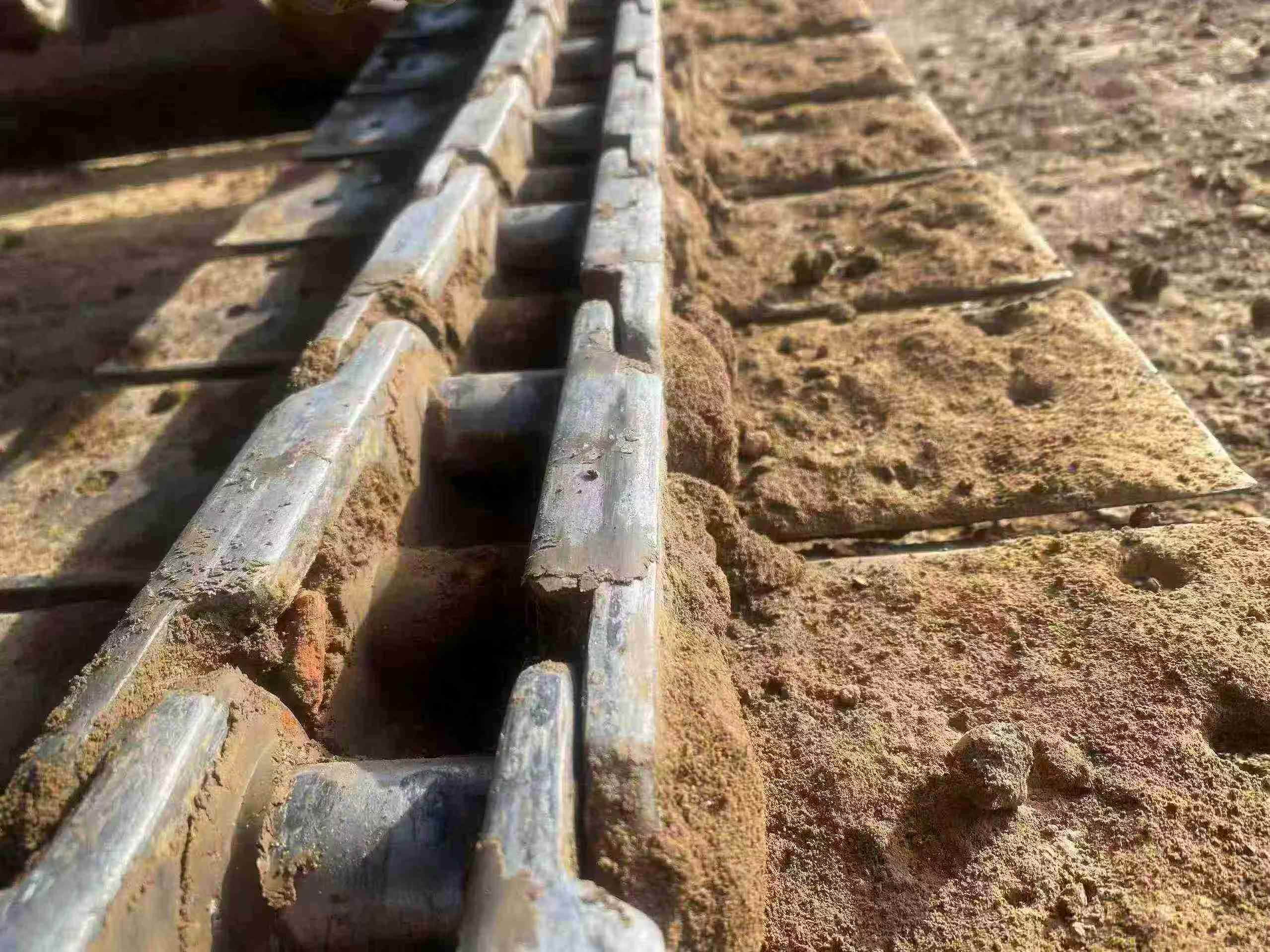

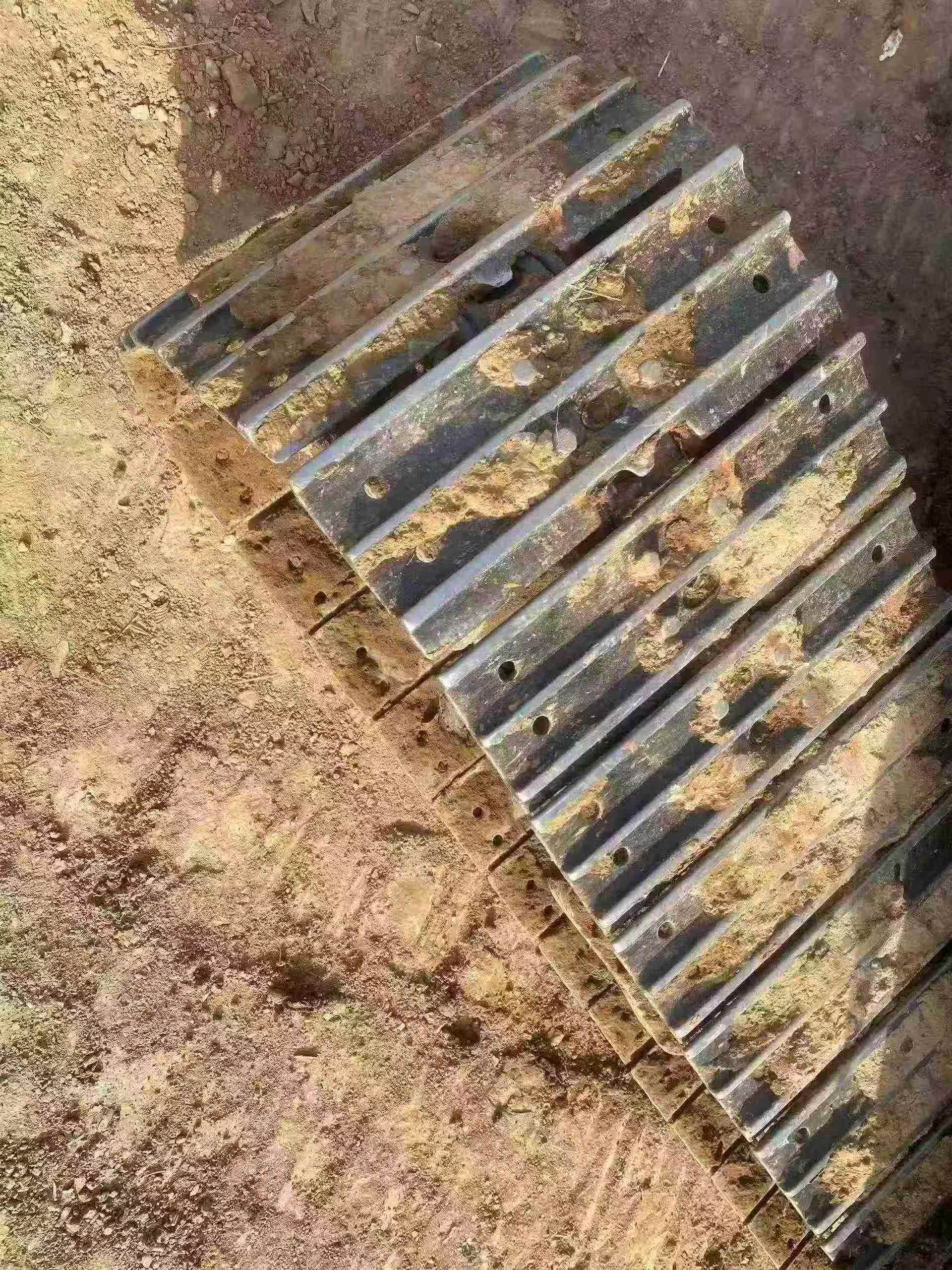

- Working weight: 7,280 kg with 450mm track plates
- Travel speed: 4.4/2.4 km/h for efficient repositioning
- Climbing ability: 70% (35°) grade capability
- Rotation speed: 11.5 rpm for smooth operation
- Ready for immediate dispatch from 河北
Skip the factory lead times. Secure this field-r
| Specifications | Value |
|---|---|
| No. | 1008792 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7280 |
| Bucket capacity (m³) | 0.12~0.32 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Isuzu AU-4LE2X |
| Rated power (kw/rpm) | 43/2200 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 200/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.179 |
| Ground specific pressure (Kpa) | 33 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 56 |
| Rod digging force (kN) | 38 |
| Travel speed (km/h) | 4.4/2.4 |
| Fuel Tank (L) | 150 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 9.5 |
| Total transport length (mm) | 6120 |
| Total transport width (mm) | 2220 |
| Total transport height (mm) | 2720 |
| Minimum ground clearance (mm) | 380 |
| Back end turning radius (mm) | 1800 |
| Total track length (mm) | 2820 |
| Track gauge (mm) | 1750 |
| Track plate width (mm) | 450 |
| Track ground length (mm) | 2195 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 39 |
| Maximum digging radius (mm) | 6240 |
| Maximum digging depth (mm) | 4020 |
| Maximum excavation height (mm) | 7060 |
| Maximum unloading height (mm) | 5155 |
| Maximum vertical digging depth (mm) | 3290 |
| Bulldozer lift or depth (mm) | 350/360 |
