Product Description
With a robust 7-ton capacity, the Sany SY75C-8 excavator, manufactured in 2012, is an ideal addition to any busy contractor's fleet. Located in 贵州, this unit boasts a 6800 kg working weight and a 0.28 m³ bucket capacity, making it suitable for a variety of excavation tasks. Equipped with a reliable Isuzu CC-4JG1PAC engine, it delivers 40 kW of power at 2100 rpm, ensuring consistent performance on the job site.
- Backhoe bucket designed for versatile digging operations
- Water-cooled engine for efficient heat dissipation
- Ground specific pressure of 28 Kpa, minimizing ground disturbance
- Travel speed ranging from 2.6 to 4.2 km/h for maneuverability
- Maximum digging depth of 4060 mm and maximum digging radius of 6250 mm
- Compact dimensions: 6000 mm total transport length, 2220 mm width, and 2620 mm height
This excavator offers a climbing ability of 70% / 35°, making it capable of handling challenging terrains. Its hydraulic system, with a main pump flow of 149 l/min, ensures smooth and powerful operation. The Sany SY75C-8 is a dependable choice for contractors looking to enhance their fleet with a reliable and versatile machine.
| Specifications | Value |
|---|---|
| No. | 1020726 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 6800 |
| Bucket capacity (m³) | 0.28 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

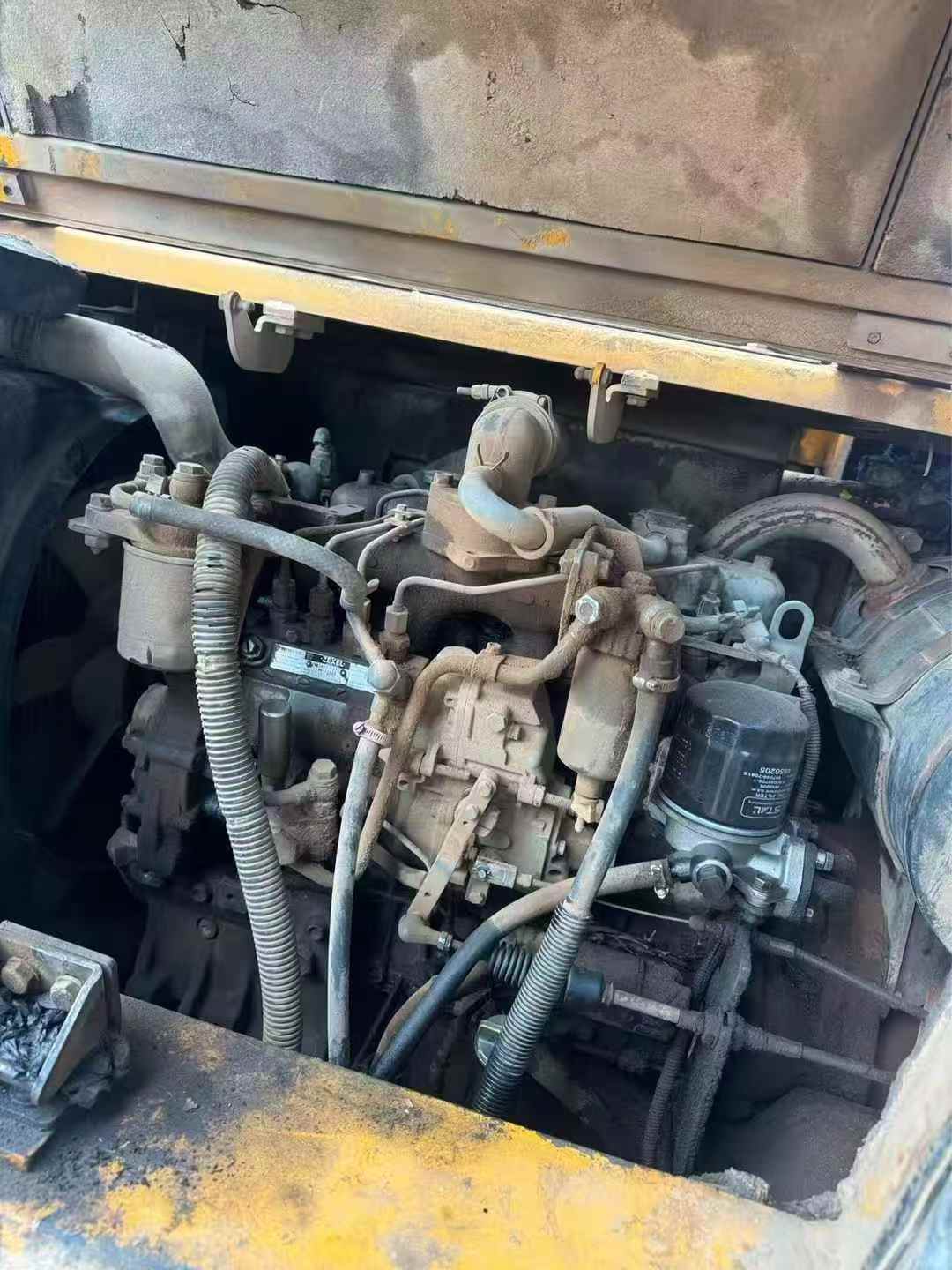

| Engine type | Isuzu CC-4JG1PAC |
| Rated power (kw/rpm) | 40/2100 |
| Cooling mode | water-cooling |
| Ground specific pressure (Kpa) | 28 |
| Rotation speed (rpm) | 10.9 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 49 |
| Rod digging force (kN) | 35 |
| Travel speed (km/h) | 2.6-4.2 |
| Maximum flow of main pump (l/min) | 149 |
| Traveling Hydraulic Circuit (Mpa) | 26 |
| Rotary Hydraulic Circuit (Mpa) | 21.6 |
| Control Hydraulic Circuit (Mpa) | 3.6 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 6000 |
| Total transport width (mm) | 2220 |
| Total transport height (mm) | 2620 |
| Full cab height (mm) | 2620 |
| Minimum ground clearance (mm) | 355 |
| Back end turning radius (mm) | 1720 |
| Total track length (mm) | 2710 |
| Track gauge (mm) | 1750 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2220 |
| Track ground length (mm) | 2170 |
| Maximum digging radius (mm) | 6250 |
| Maximum digging depth (mm) | 4060 |
| Maximum excavation height (mm) | 7070 |
| Maximum unloading height (mm) | 5110 |
| Maximum vertical digging depth (mm) | 3410 |
| Bulldozer lift or depth (mm) | 390 |
