HOME>>Sany>>Sany SY75C-8

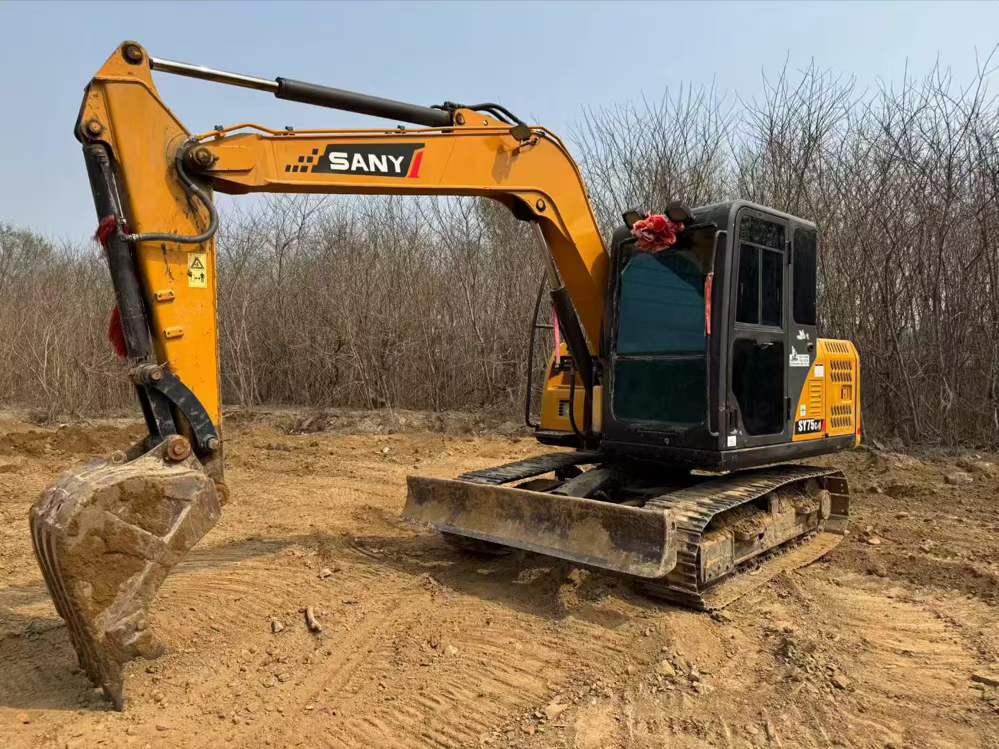

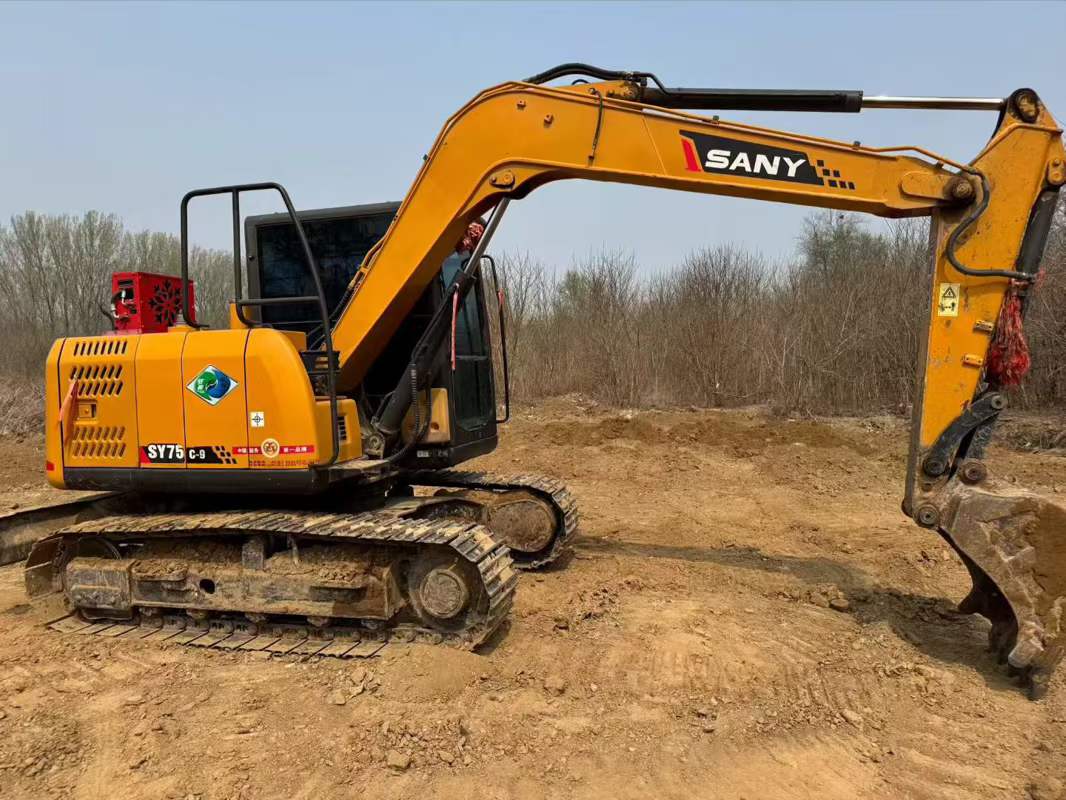

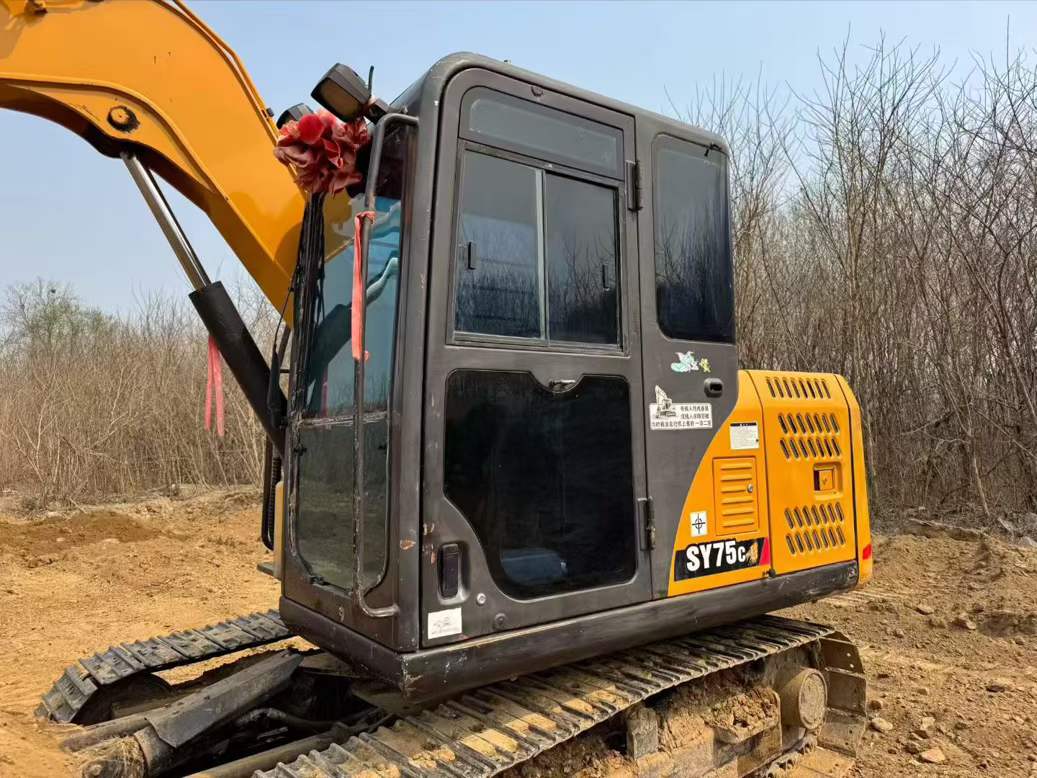

2013 Sany SY75C-8

1/9
Buy Sany SY75C-8 Used Excavator / 1
Buy Sany SY75C-8 Used Excavator / 2
Buy Sany SY75C-8 Used Excavator / 3
Buy Sany SY75C-8 Used Excavator / 4
Buy Sany SY75C-8 Used Excavator / 5
Buy Sany SY75C-8 Used Excavator / 6
Buy Sany SY75C-8 Used Excavator / 7
Buy Sany SY75C-8 Used Excavator / 8
Buy Sany SY75C-8 Used Excavator / 9

Product Description

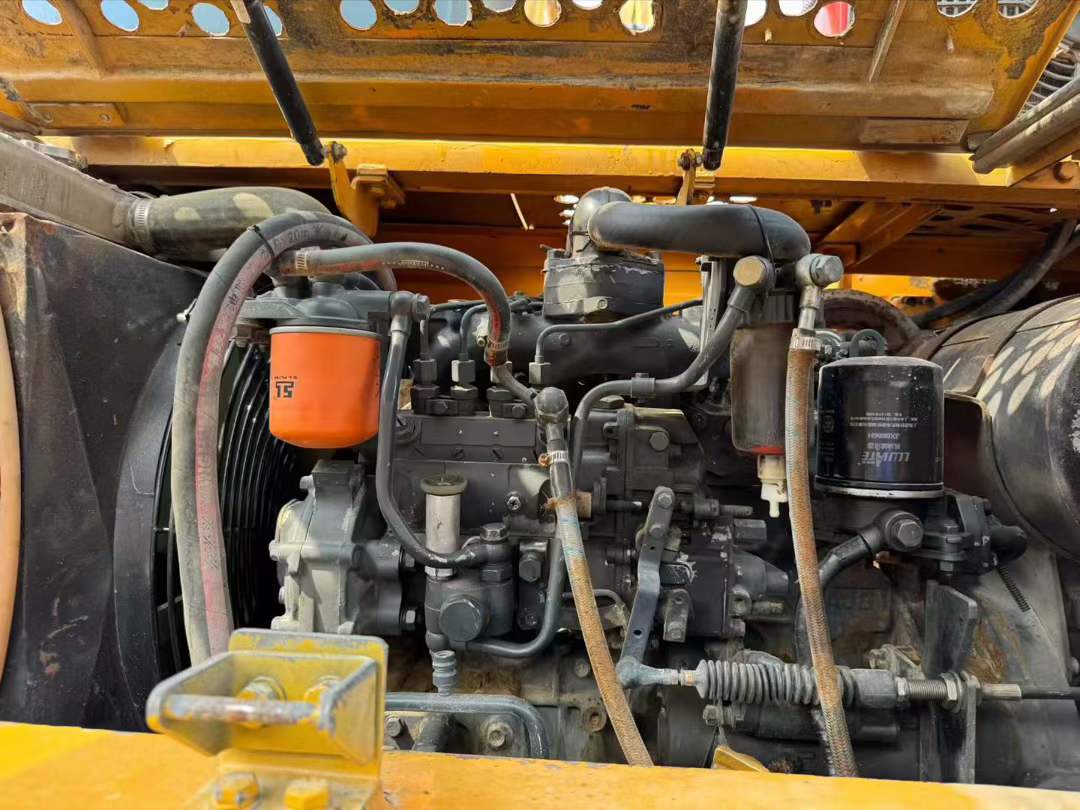

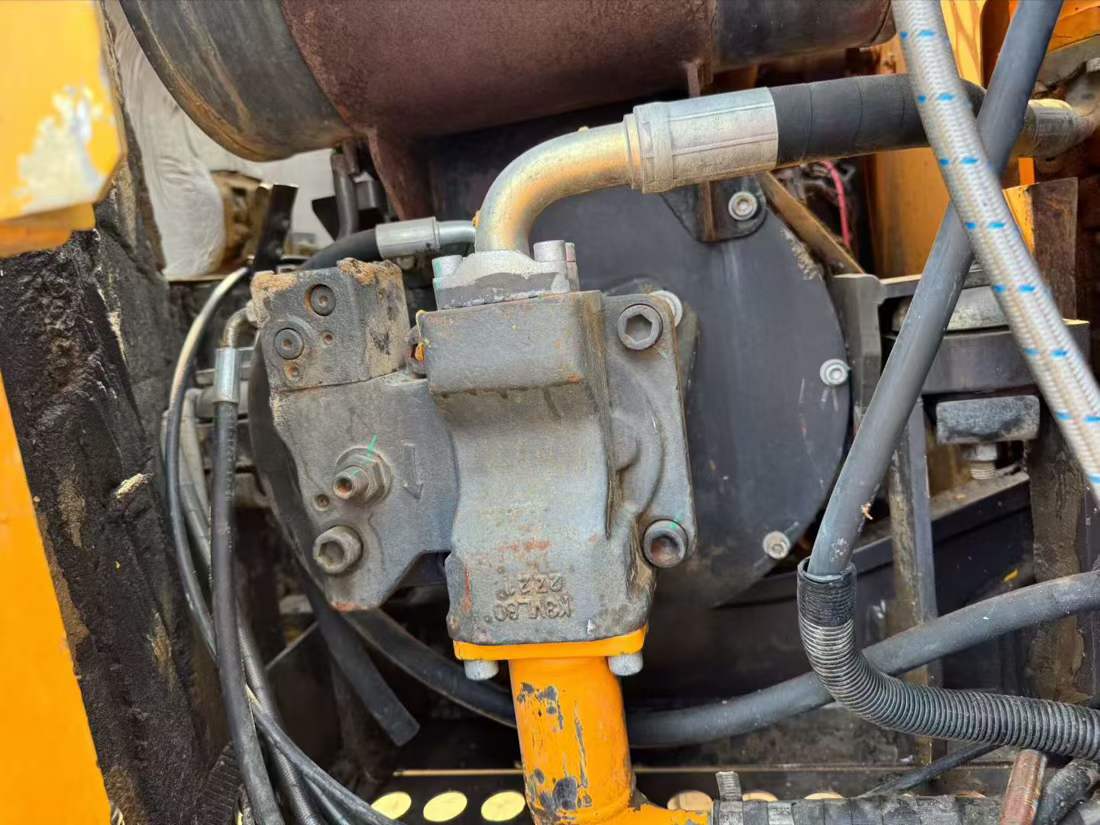

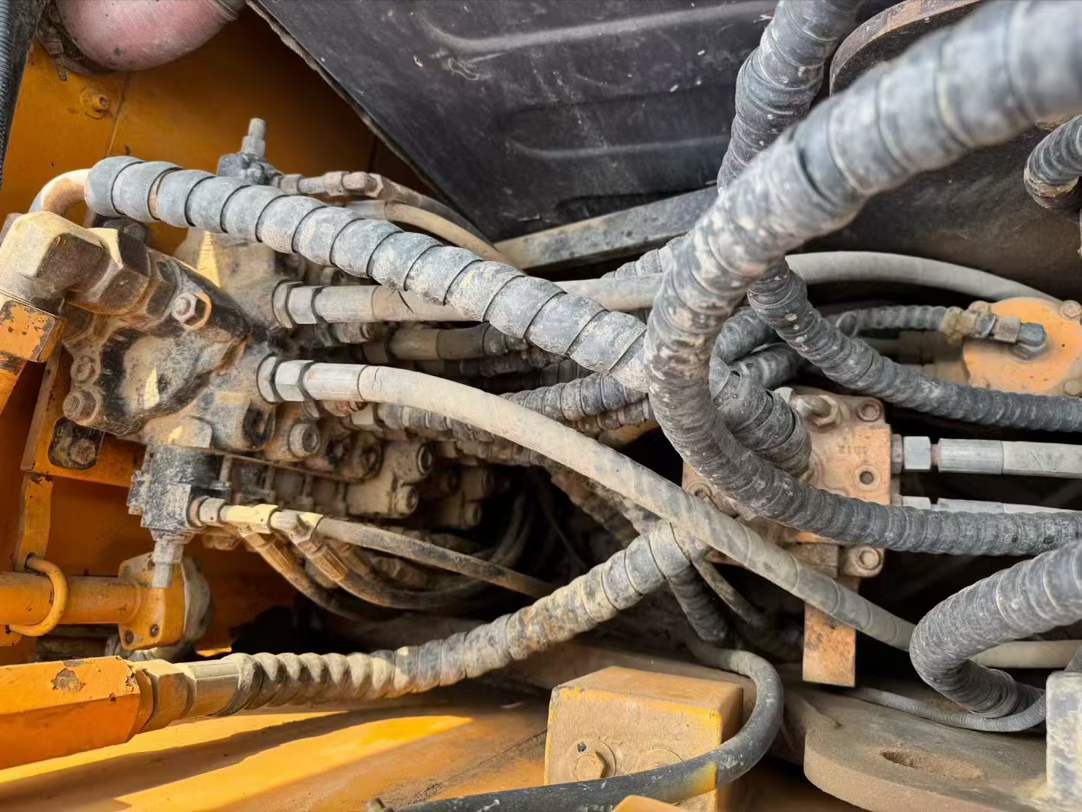

Engineered with precision, this 2013 Sany SY75C-8 mini excavator delivers reliable 7-ton performance through proven Isuzu CC-4JG1PAC power. Rated at 40kW/2100rpm with water-cooling technology, the engine drives a robust hydraulic system featuring 149 l/min main pump flow and optimized circuit pressures—26 MPa traveling, 21.6 MPa rotary—ensuring smooth, responsive operation across demanding jobsites.

Compact dimensions (6000mm transport length, 2220mm width) combine with impressive reach capabilities: 6250mm maximum digging radius and 4060mm digging depth. The 0.28m³ backhoe bucket generates 49kN digging force, while the arm produces 35kN, tackling tough excavation tasks efficiently. With 70% gradeability, 2.6-4.2 km/h travel speed, and only 355mm ground clearance, this Chinese-manufactured machine balances agility with stability.

Key specifications include:

  • Operating weight: 6800kg with 28 Kpa ground pressure
  • Maximum excavation height: 7070mm; unloading height: 5110mm
  • 10.9 rpm rotation speed with 1720mm rear swing radius
  • 390mm bulldozer blade range for versatile grading

Currently located in Beijing, this SY75C-8 represents Sany's commitment to engineering excelle

SpecificationsValue
No.1044513
Tonnage (tons)7
Working weight (kg)6800
Bucket capacity (m³)0.28
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeIsuzu CC-4JG1PAC
Rated power (kw/rpm)40/2100
Cooling modewater-cooling
Ground specific pressure (Kpa)28
Rotation speed (rpm)10.9
Climbing ability (%)70% / 35 °
Bucket digging force (kN)49
Rod digging force (kN)35
Travel speed (km/h)2.6-4.2
Maximum flow of main pump (l/min)149
Traveling Hydraulic Circuit (Mpa)26
Rotary Hydraulic Circuit (Mpa)21.6
Control Hydraulic Circuit (Mpa)3.6
Hydraulic crushing pipeline is standardno
Total transport length (mm)6000
Total transport width (mm)2220
Total transport height (mm)2620
Full cab height (mm)2620
Minimum ground clearance (mm)355
Back end turning radius (mm)1720

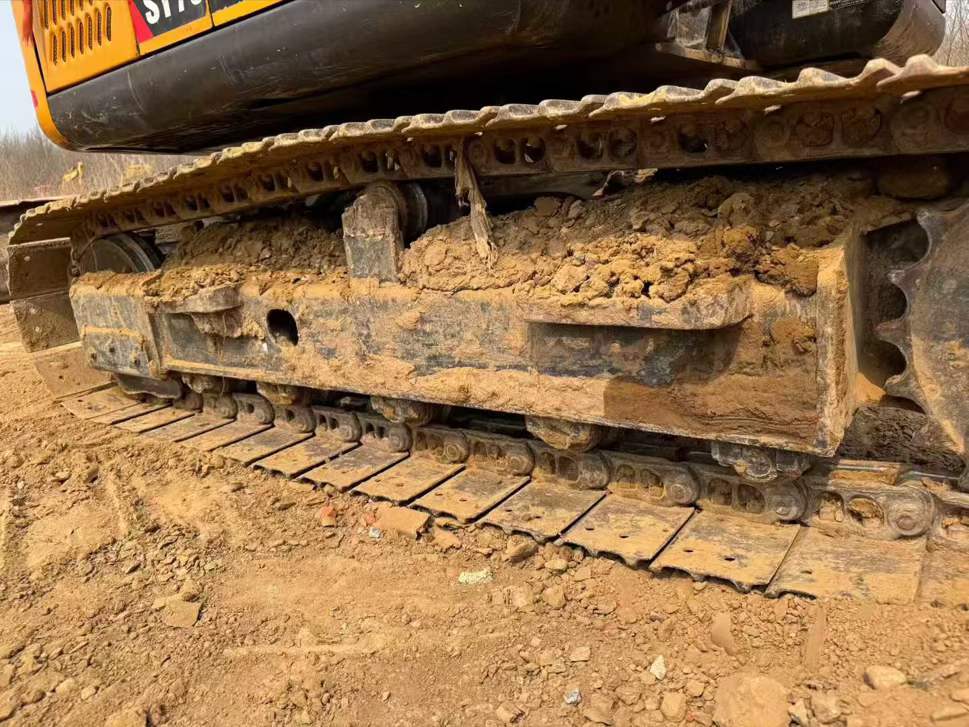

Total track length (mm)2710
Track gauge (mm)1750
Track plate width (mm)450
Total track width (mm)2220
Track ground length (mm)2170
Maximum digging radius (mm)6250
Maximum digging depth (mm)4060
Maximum excavation height (mm)7070
Maximum unloading height (mm)5110
Maximum vertical digging depth (mm)3410
Bulldozer lift or depth (mm)390
see more

Overview

No.1044513

Brand Name:

Sany

Model Number:

SY75C-8

Year:

2013

Location:

Peking China

Pub Date
