Product Description

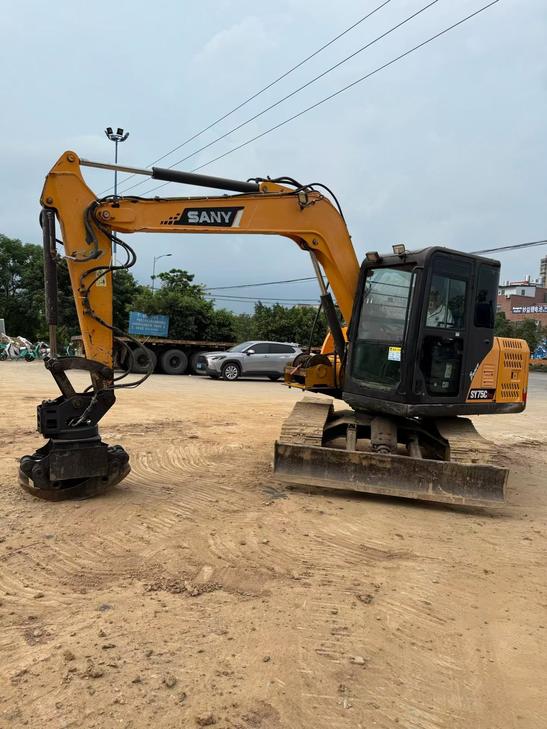

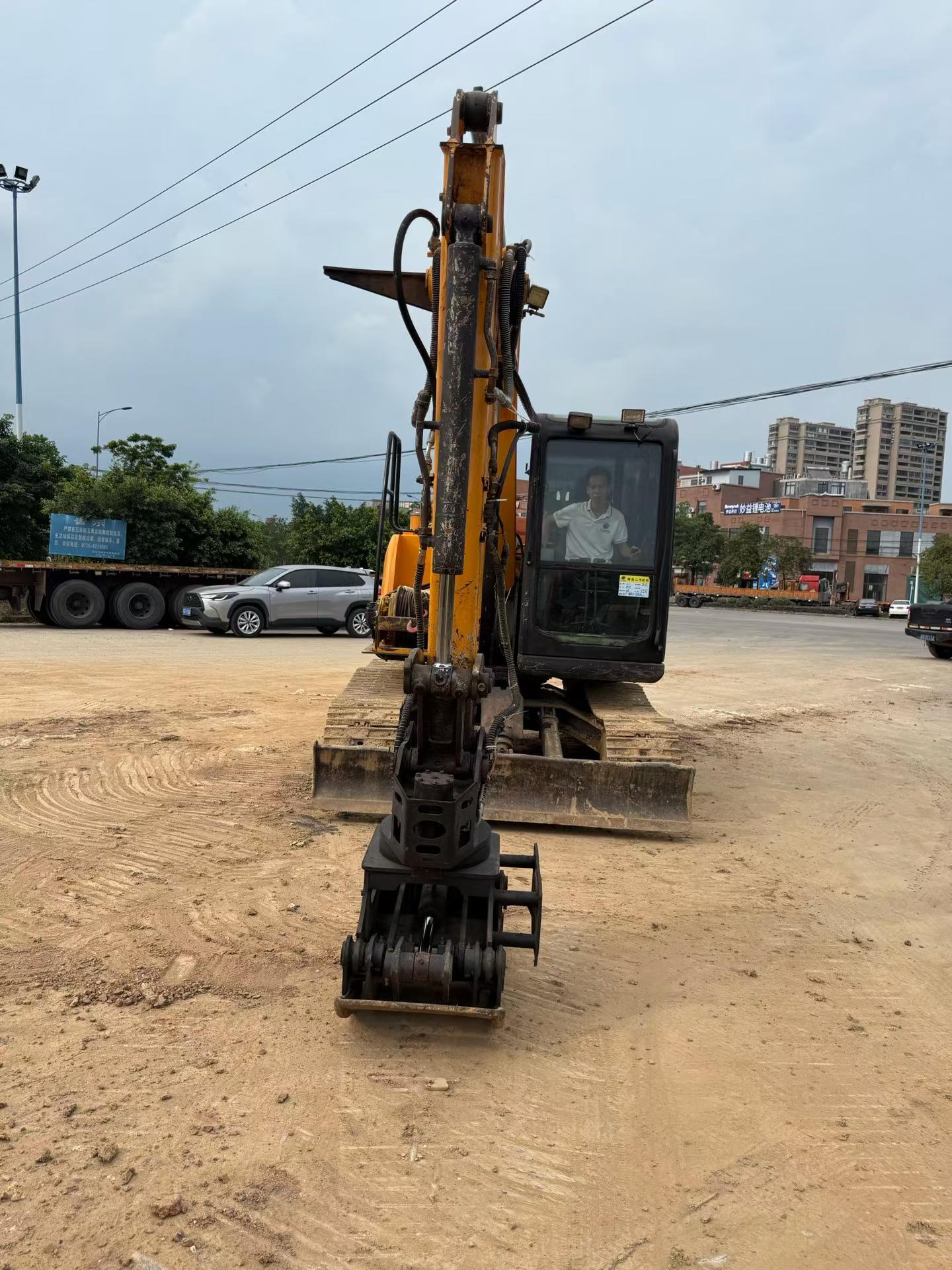

This 2015 Sany SY75C-8 mini excavator is available from Guangxi, China. The machine comes equipped with a grapple attachment and winch system, expanding its versatility for material handling and lifting operations. With approximately 9 years of service, this compact excavator offers reliable performance for construction, landscaping, and utility projects.
The SY75C-8 is known for its maneuverability in confined spaces while delivering solid digging power. The included grapple and winch enhance operational flexibility, making it suitable for demolition work, forestry applications, and general earthmoving tasks.
- Year: 2015
- Model: Sany SY75C-8
- Location: Guangxi, China
- Attachments: Grapple, winch system
- Condition: Used, operational
This machine represents a cost-effective solution for contractors seeking a compact excavator with auxiliary equipment already installed. Inspection welcome.
| Specifications | Value |
|---|---|
| No. | 1075109 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 6800 |
| Bucket capacity (m³) | 0.28 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Isuzu CC-4JG1PAC |
| Rated power (kw/rpm) | 40/2100 |
| Cooling mode | water-cooling |
| Ground specific pressure (Kpa) | 28 |
| Rotation speed (rpm) | 10.9 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 49 |
| Rod digging force (kN) | 35 |
| Travel speed (km/h) | 2.6-4.2 |
| Maximum flow of main pump (l/min) | 149 |
| Traveling Hydraulic Circuit (Mpa) | 26 |
| Rotary Hydraulic Circuit (Mpa) | 21.6 |
| Control Hydraulic Circuit (Mpa) | 3.6 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 6000 |
| Total transport width (mm) | 2220 |
| Total transport height (mm) | 2620 |
| Full cab height (mm) | 2620 |
| Minimum ground clearance (mm) | 355 |
| Back end turning radius (mm) | 1720 |
| Total track length (mm) | 2710 |
| Track gauge (mm) | 1750 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2220 |
| Track ground length (mm) | 2170 |
| Maximum digging radius (mm) | 6250 |
| Maximum digging depth (mm) | 4060 |
| Maximum excavation height (mm) | 7070 |
| Maximum unloading height (mm) | 5110 |
| Maximum vertical digging depth (mm) | 3410 |
| Bulldozer lift or depth (mm) | 390 |
