Product Description

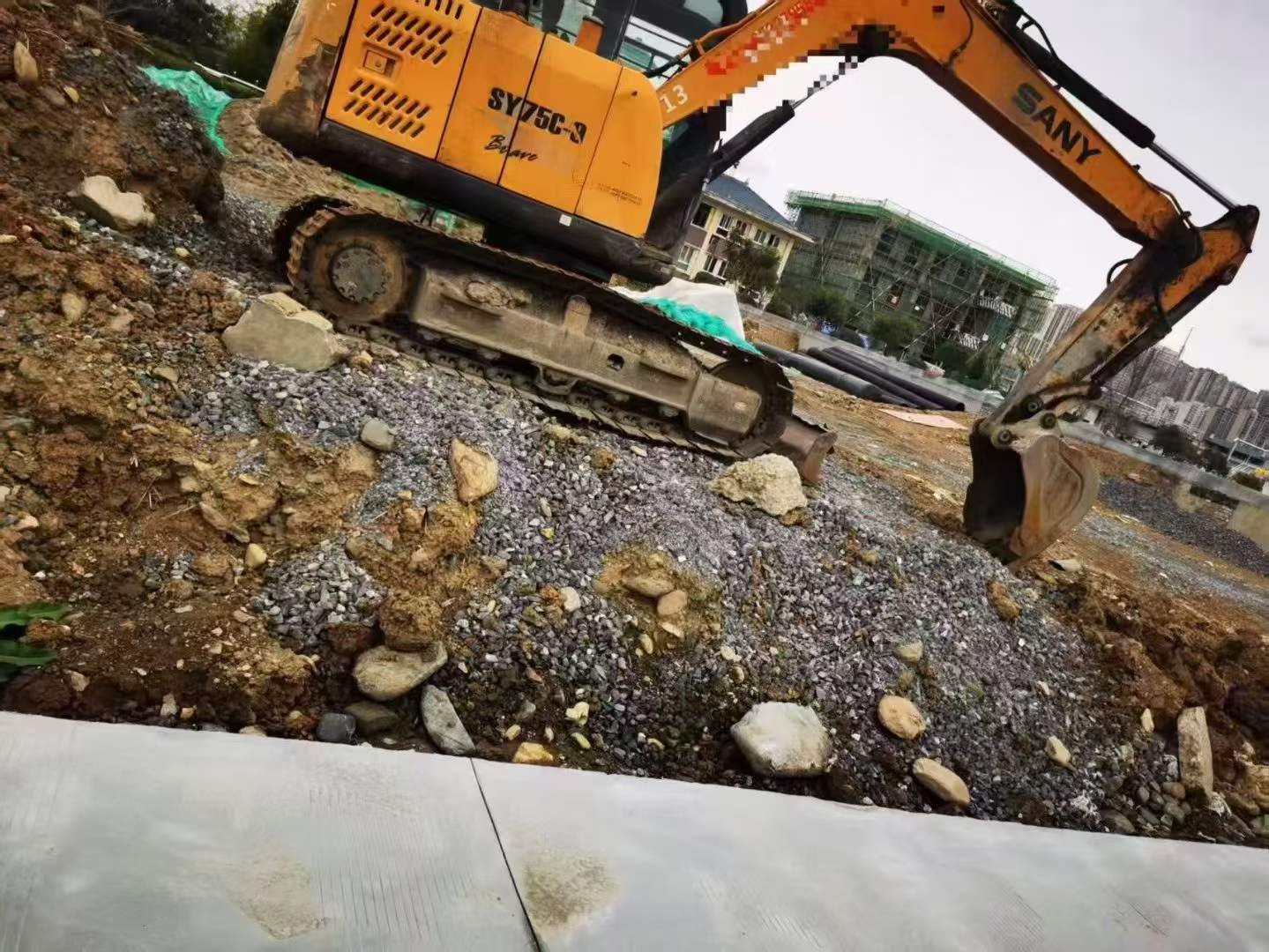

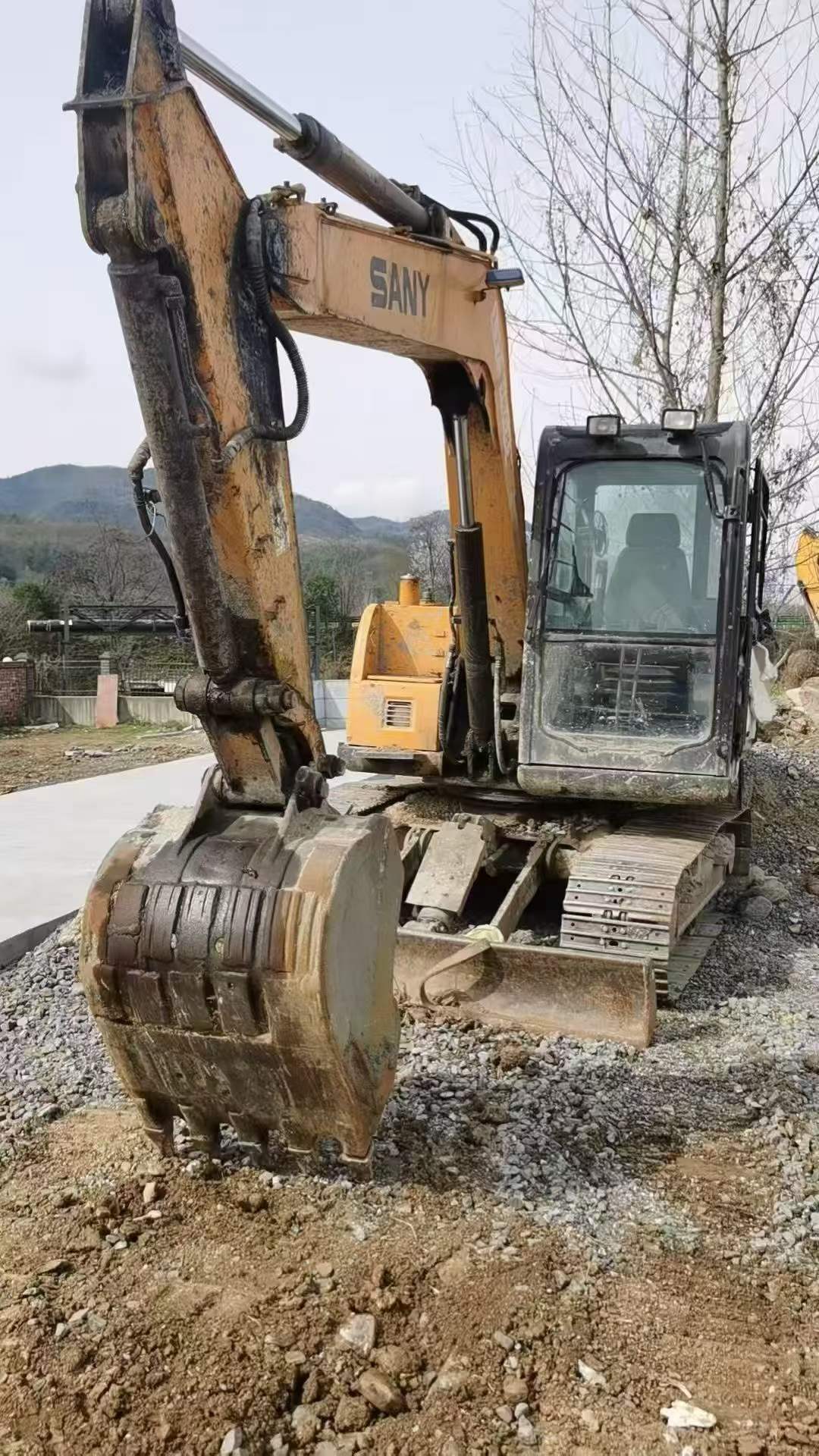

Proven performance meets practical value in this 2016 Sany SY75C-8 compact excavator, currently located in Maoming, Guangdong. Operating at 7 tons with a 6,800 kg working weight, this machine delivers reliable productivity through its Isuzu CC-4JG1PAC engine generating 40 kW at 2,100 rpm. Sany's established position as a leading Chinese manufacturer ensures readily available replacement parts and strong aftermarket support—critical factors when investing in used equipment. With 49 kN bucket digging force, 6,250 mm maximum reach, and 4,060 mm digging depth, this excavator handles diverse applications from utility work to light demolition.
- Engine: Isuzu CC-4JG1PAC, water-cooled, 40 kW rated power
- Capacity: 0.28 m³ bucket, 7-ton operating class
- Performance: 70% grading ability, 10.9 rpm rotation speed
- Dimensions: 6,000 mm transport length, 2,220 mm width, compact footprint
- Hydraulics: 149 L/min main pump flow, 26 MPa traveling circuit
- Value Advantage: Sany's global dealer network supports long-term parts availability and resale confidence
| Specifications | Value |
|---|---|
| No. | 1021505 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 6800 |
| Bucket capacity (m³) | 0.28 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Isuzu CC-4JG1PAC |
| Rated power (kw/rpm) | 40/2100 |
| Cooling mode | water-cooling |
| Ground specific pressure (Kpa) | 28 |
| Rotation speed (rpm) | 10.9 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 49 |
| Rod digging force (kN) | 35 |
| Travel speed (km/h) | 2.6-4.2 |
| Maximum flow of main pump (l/min) | 149 |
| Traveling Hydraulic Circuit (Mpa) | 26 |
| Rotary Hydraulic Circuit (Mpa) | 21.6 |
| Control Hydraulic Circuit (Mpa) | 3.6 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 6000 |
| Total transport width (mm) | 2220 |
| Total transport height (mm) | 2620 |
| Full cab height (mm) | 2620 |
| Minimum ground clearance (mm) | 355 |
| Back end turning radius (mm) | 1720 |
| Total track length (mm) | 2710 |
| Track gauge (mm) | 1750 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2220 |
| Track ground length (mm) | 2170 |
| Maximum digging radius (mm) | 6250 |
| Maximum digging depth (mm) | 4060 |
| Maximum excavation height (mm) | 7070 |
| Maximum unloading height (mm) | 5110 |
| Maximum vertical digging depth (mm) | 3410 |
| Bulldozer lift or depth (mm) | 390 |
