Product Description
With a working weight of 6800 kg and a bucket capacity of 0.28 m³, the 2016 Sany SY75C-8 excavator, located in 山东菏泽, offers robust performance for a variety of construction tasks. Powered by an Isuzu CC-4JG1PAC engine, delivering 40 kW at 2100 rpm, this machine ensures reliable and efficient operation. Water-cooled for optimal performance, it features a ground specific pressure of 28 Kpa, enhancing stability on various terrains. The backhoe bucket, with a digging force of 49 kN, handles tough materials with ease. Traveling at speeds up to 4.2 km/h, the SY75C-8 is agile and versatile. The full cab height of 2620 mm provides excellent visibility, while the minimum ground clearance of 355 mm ensures smooth navigation over rough surfaces. Built for precision and control, this excavator is a dependable choice for operators seeking a balance of power and maneuverability.
| Specifications | Value |
|---|---|
| No. | 1023247 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 6800 |
| Bucket capacity (m³) | 0.28 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

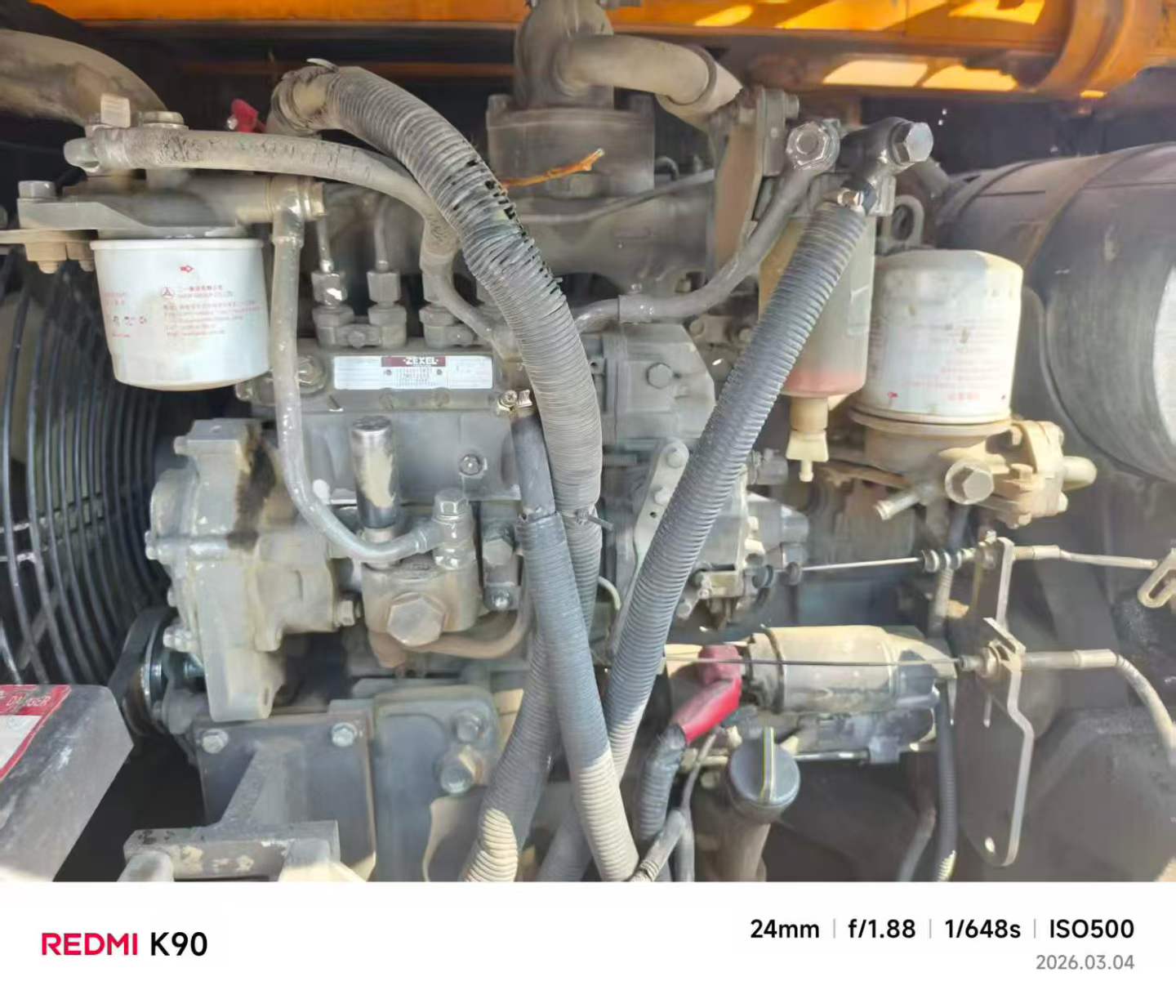

| Engine type | Isuzu CC-4JG1PAC |
| Rated power (kw/rpm) | 40/2100 |
| Cooling mode | water-cooling |
| Ground specific pressure (Kpa) | 28 |
| Rotation speed (rpm) | 10.9 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 49 |
| Rod digging force (kN) | 35 |
| Travel speed (km/h) | 2.6-4.2 |
| Maximum flow of main pump (l/min) | 149 |
| Traveling Hydraulic Circuit (Mpa) | 26 |
| Rotary Hydraulic Circuit (Mpa) | 21.6 |
| Control Hydraulic Circuit (Mpa) | 3.6 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 6000 |
| Total transport width (mm) | 2220 |
| Total transport height (mm) | 2620 |
| Full cab height (mm) | 2620 |
| Minimum ground clearance (mm) | 355 |
| Back end turning radius (mm) | 1720 |
| Total track length (mm) | 2710 |
| Track gauge (mm) | 1750 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2220 |
| Track ground length (mm) | 2170 |
| Maximum digging radius (mm) | 6250 |
| Maximum digging depth (mm) | 4060 |
| Maximum excavation height (mm) | 7070 |
| Maximum unloading height (mm) | 5110 |
| Maximum vertical digging depth (mm) | 3410 |
| Bulldozer lift or depth (mm) | 390 |
