Product Description

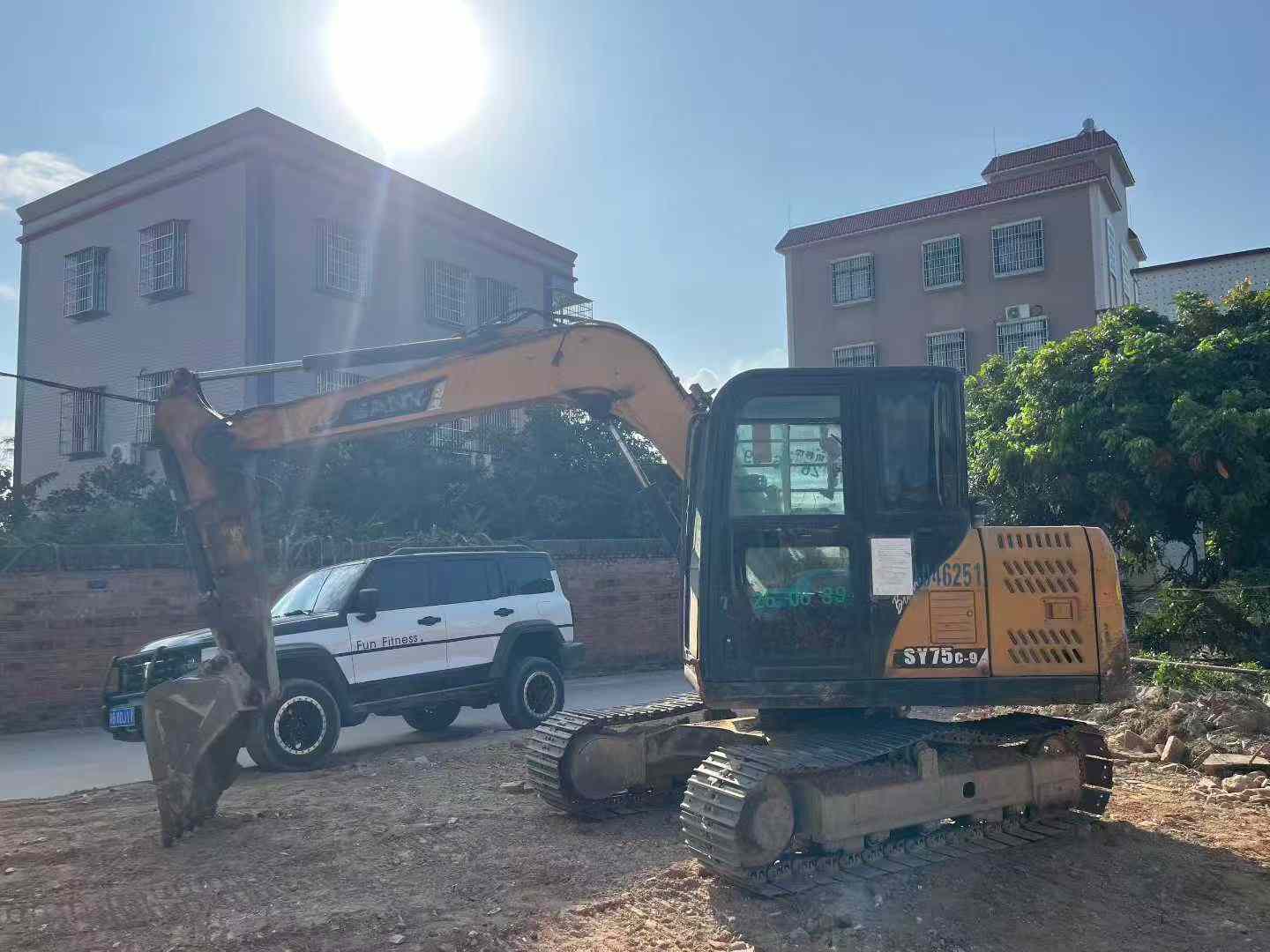

Expand your operational capacity with this 2016 Sany SY75C-8 mini excavator, currently available in Maoming, Guangdong. Built for contractors managing multiple job sites simultaneously, this 7-ton workhorse delivers reliable performance when your primary fleet is stretched thin. Powered by an Isuzu CC-4JG1PAC engine producing 40kW at 2100 rpm, it combines fuel efficiency with consistent output across extended shifts.
Engineered for versatility in confined spaces, this unit offers a maximum digging depth of 4,060mm and a reach of 6,250mm—ideal for utility work, foundation prep, and landscaping tasks. The compact 2,220mm transport width allows easy maneuvering between sites, while the 0.28m³ bucket capacity maintains productivity without sacrificing agility. Water-cooled operation ensures thermal stability during continuous use.
- Operating weight: 6,800kg with optimal stability
- Bucket digging force: 49kN for tough soil conditions
- Travel speed: 2.6–4.2 km/h for efficient repositioning
- 70% gradeability (35°) for challenging terrain
- 1,720mm rear turning radius minimizes workspace requirements
Ready to deploy as your next fleet addition with proven Chinese manufacturi
| Specifications | Value |
|---|---|
| No. | 1026439 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 6800 |

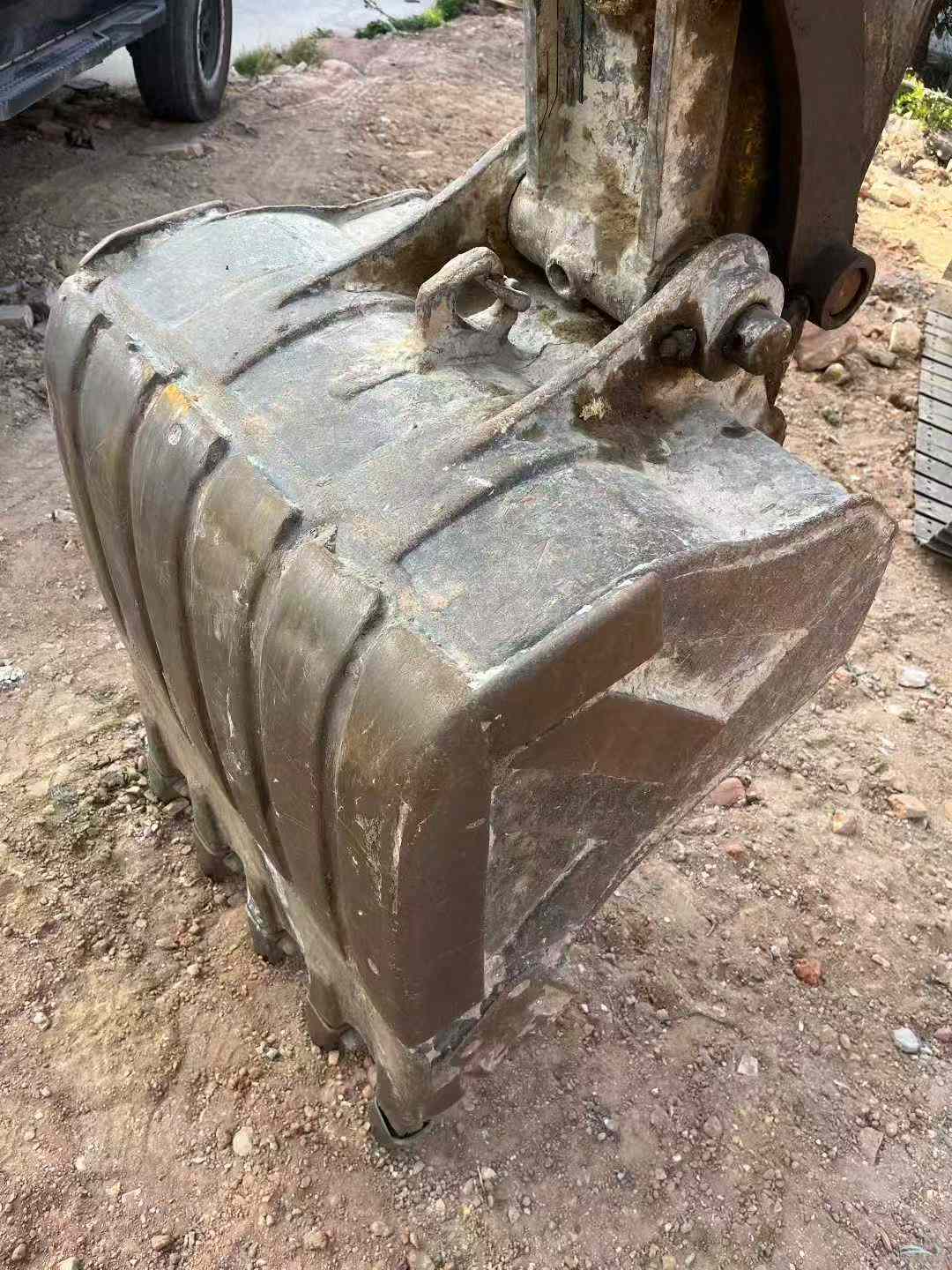

| Bucket capacity (m³) | 0.28 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

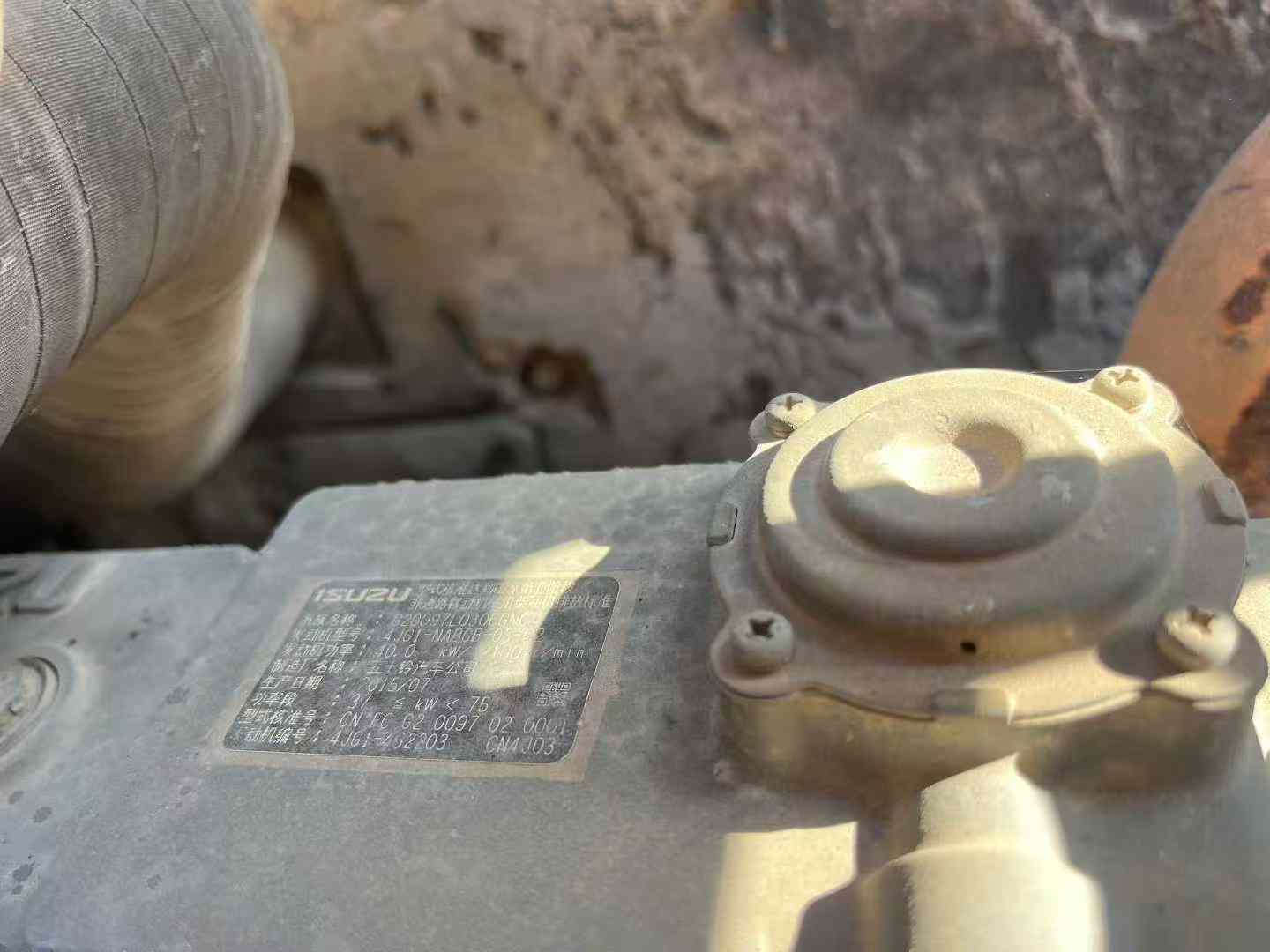

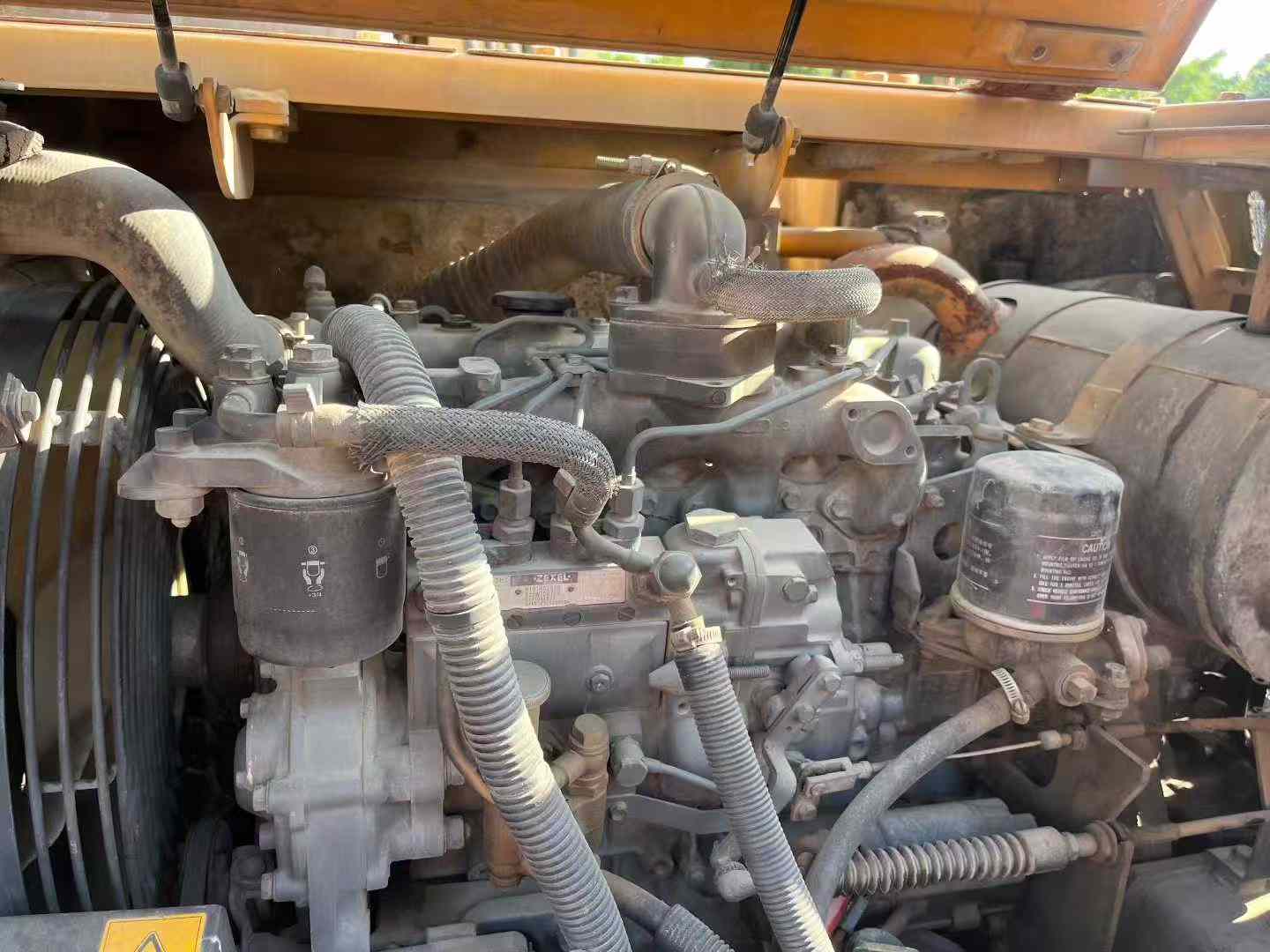

| Engine type | Isuzu CC-4JG1PAC |
| Rated power (kw/rpm) | 40/2100 |
| Cooling mode | water-cooling |
| Ground specific pressure (Kpa) | 28 |
| Rotation speed (rpm) | 10.9 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 49 |
| Rod digging force (kN) | 35 |
| Travel speed (km/h) | 2.6-4.2 |
| Maximum flow of main pump (l/min) | 149 |
| Traveling Hydraulic Circuit (Mpa) | 26 |
| Rotary Hydraulic Circuit (Mpa) | 21.6 |
| Control Hydraulic Circuit (Mpa) | 3.6 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 6000 |
| Total transport width (mm) | 2220 |
| Total transport height (mm) | 2620 |
| Full cab height (mm) | 2620 |
| Minimum ground clearance (mm) | 355 |
| Back end turning radius (mm) | 1720 |
| Total track length (mm) | 2710 |
| Track gauge (mm) | 1750 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2220 |
| Track ground length (mm) | 2170 |
| Maximum digging radius (mm) | 6250 |
| Maximum digging depth (mm) | 4060 |
| Maximum excavation height (mm) | 7070 |
| Maximum unloading height (mm) | 5110 |
| Maximum vertical digging depth (mm) | 3410 |
| Bulldozer lift or depth (mm) | 390 |
