Product Description

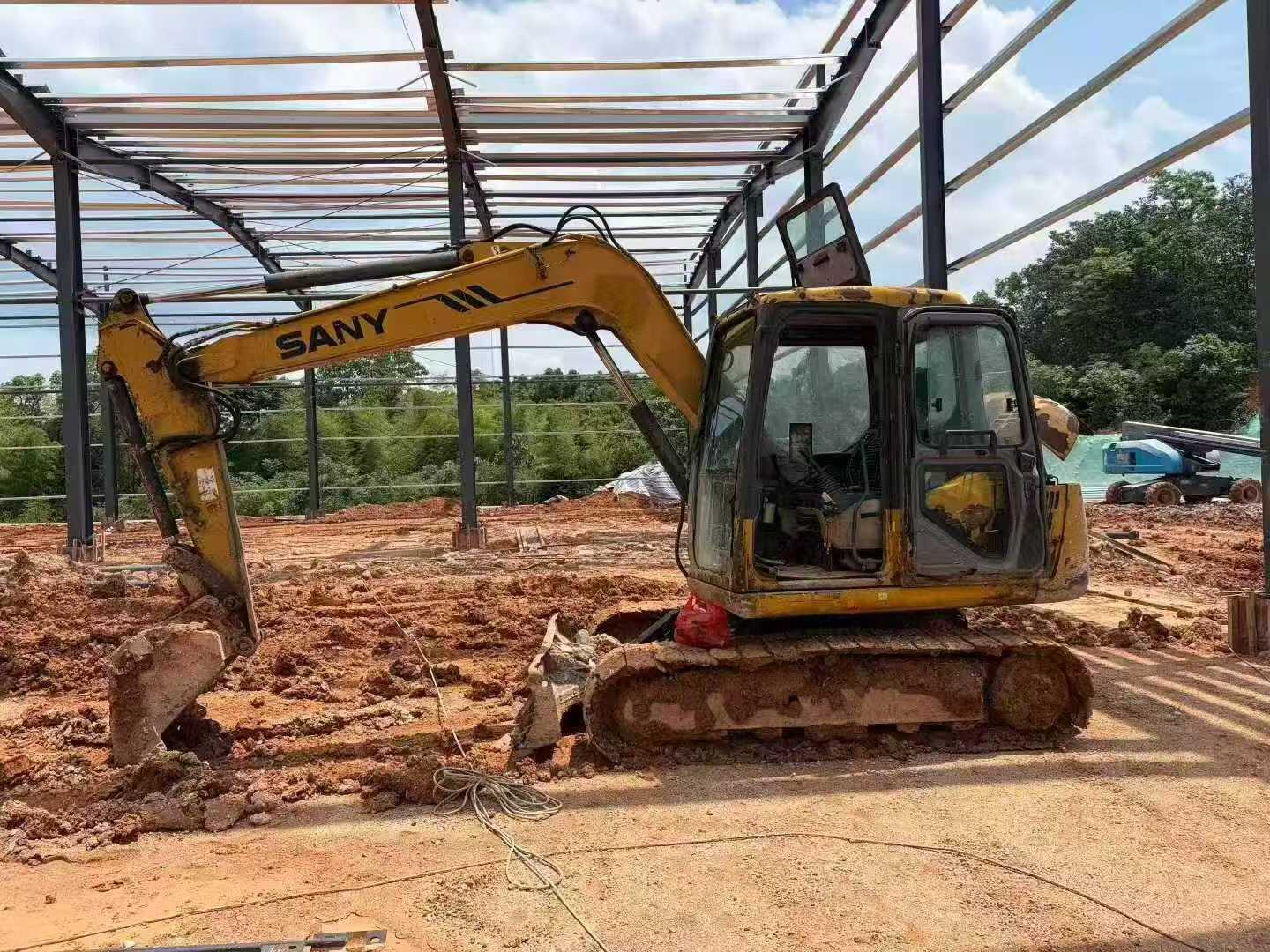

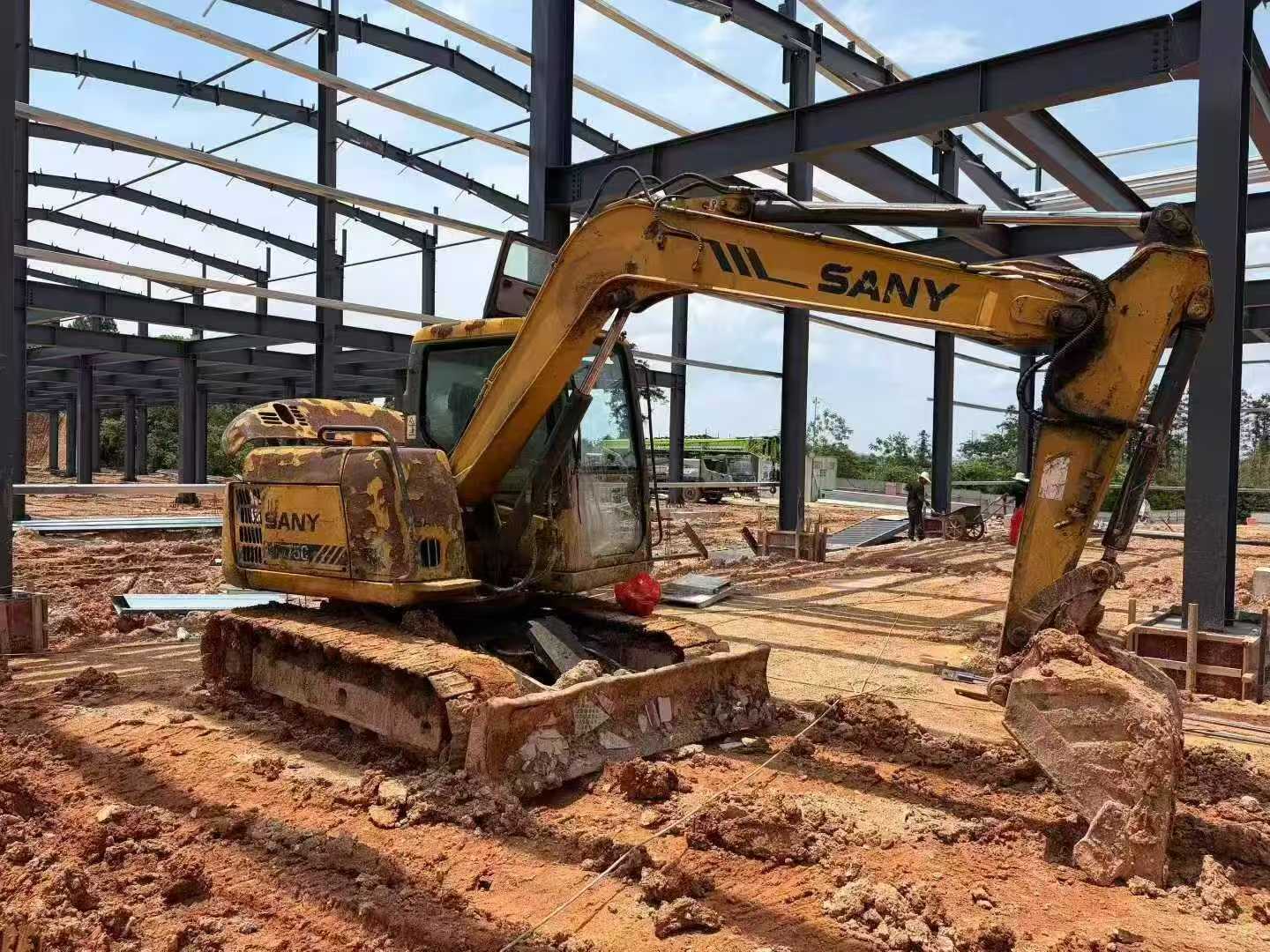

This 2020 Sany SY75C-8 mini excavator is available for immediate shipment from Hunan, China. The SY75C-8 represents Sany's reliable 7.5-ton class compact excavator, engineered for versatility in construction, landscaping, and utility applications. With its proven hydraulic system and fuel-efficient engine, this machine delivers consistent performance in confined job sites where maneuverability is essential.
Key features of the SY75C-8 include:
- Compact dimensions for urban and residential projects
- Robust undercarriage designed for extended service life
- Operator-friendly cab with ergonomic controls
- Efficient fuel consumption reducing operational costs
- Sany's established parts and service network
This used unit offers an economical entry point into quality excavation equipment. Suitable for contractors seeking dependable machinery with proven field performance. Contact us for current pricing and shipping arrangements to your location.
| Specifications | Value |
|---|---|
| No. | 1074383 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 6800 |
| Bucket capacity (m³) | 0.28 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

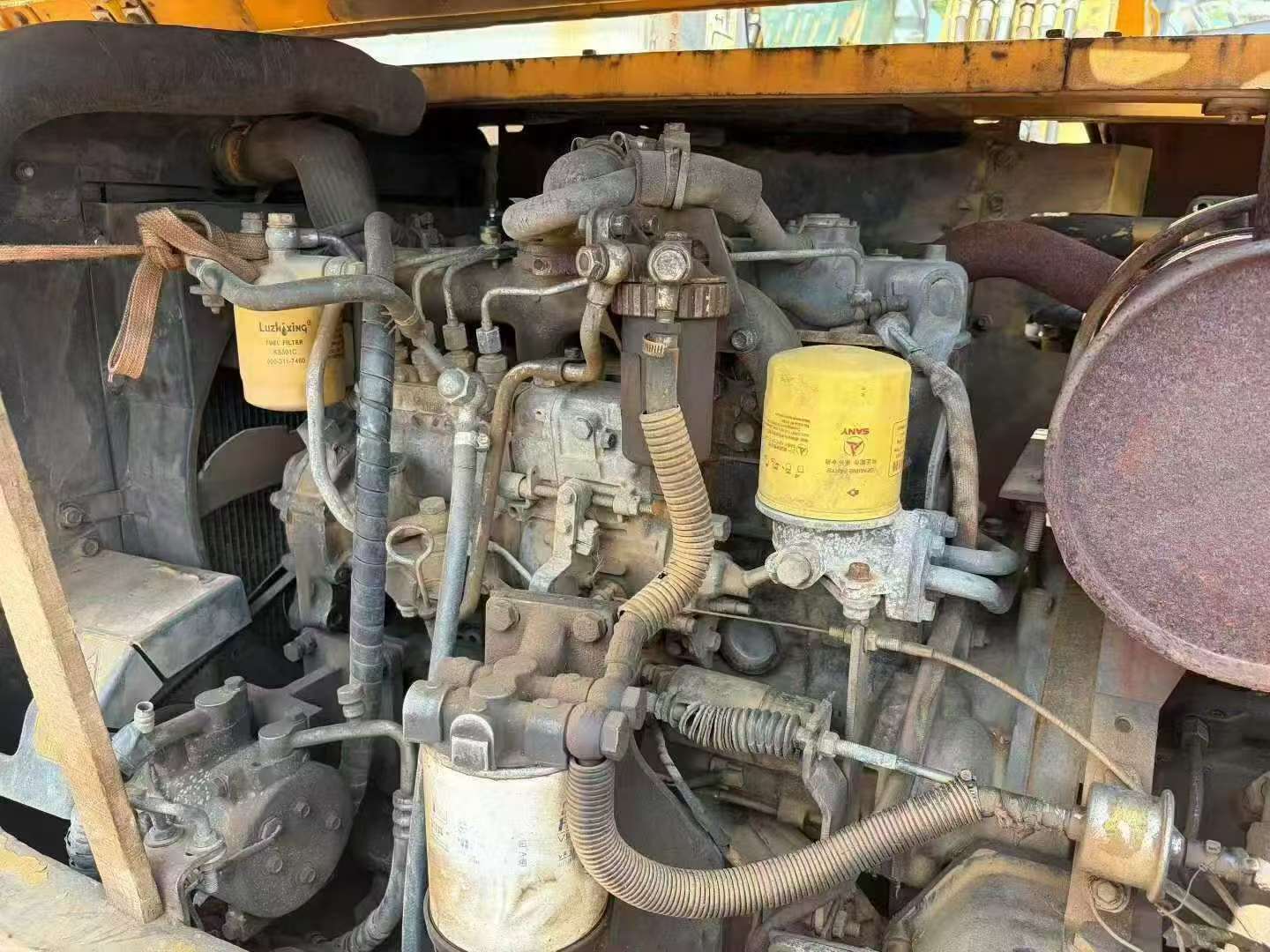

| Engine type | Isuzu CC-4JG1PAC |
| Rated power (kw/rpm) | 40/2100 |
| Cooling mode | water-cooling |
| Ground specific pressure (Kpa) | 28 |
| Rotation speed (rpm) | 10.9 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 49 |
| Rod digging force (kN) | 35 |
| Travel speed (km/h) | 2.6-4.2 |
| Maximum flow of main pump (l/min) | 149 |
| Traveling Hydraulic Circuit (Mpa) | 26 |
| Rotary Hydraulic Circuit (Mpa) | 21.6 |
| Control Hydraulic Circuit (Mpa) | 3.6 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 6000 |
| Total transport width (mm) | 2220 |
| Total transport height (mm) | 2620 |
| Full cab height (mm) | 2620 |
| Minimum ground clearance (mm) | 355 |
| Back end turning radius (mm) | 1720 |
| Total track length (mm) | 2710 |
| Track gauge (mm) | 1750 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2220 |
| Track ground length (mm) | 2170 |
| Maximum digging radius (mm) | 6250 |
| Maximum digging depth (mm) | 4060 |
| Maximum excavation height (mm) | 7070 |
| Maximum unloading height (mm) | 5110 |
| Maximum vertical digging depth (mm) | 3410 |
| Bulldozer lift or depth (mm) | 390 |
