Product Description

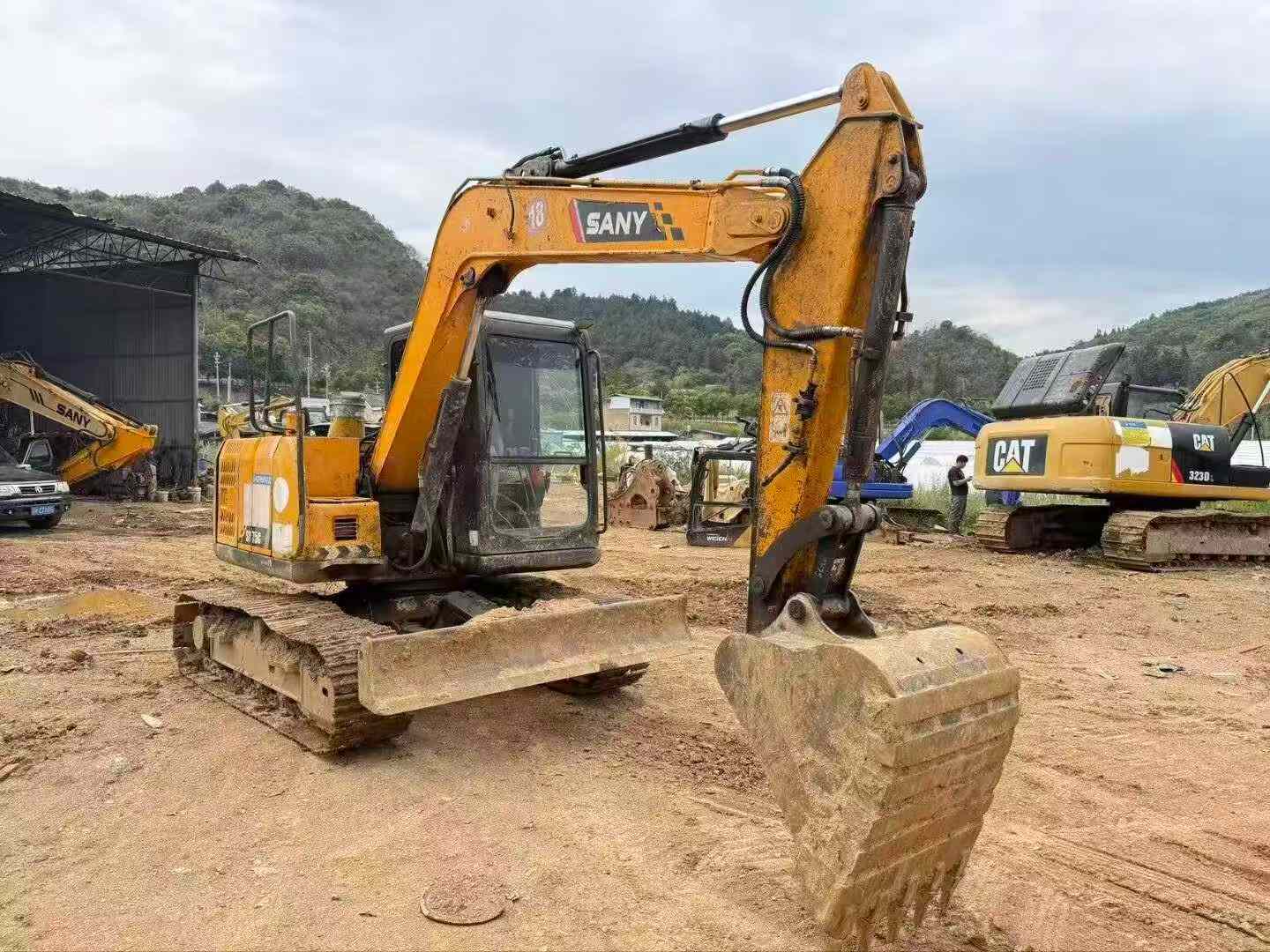

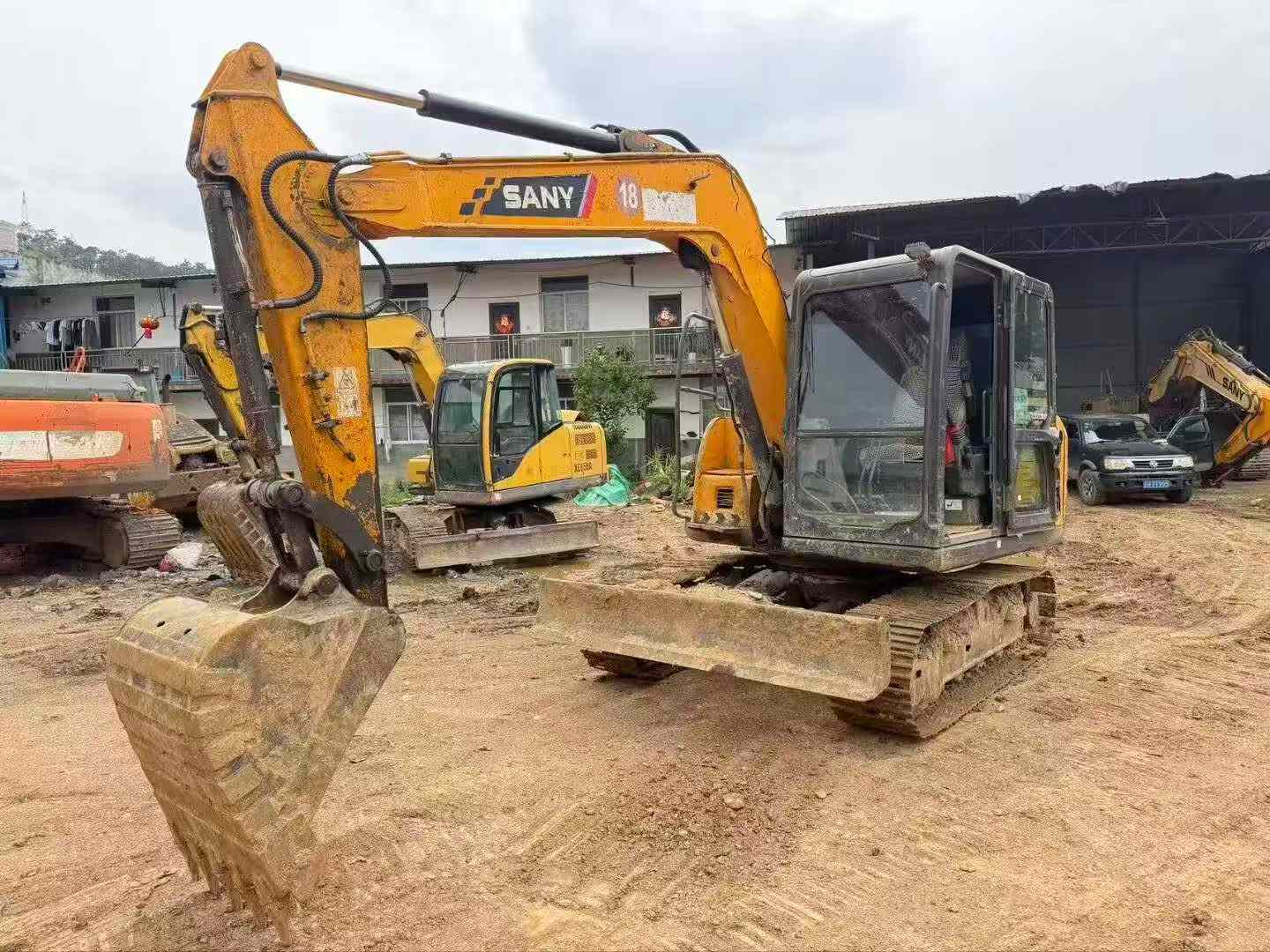

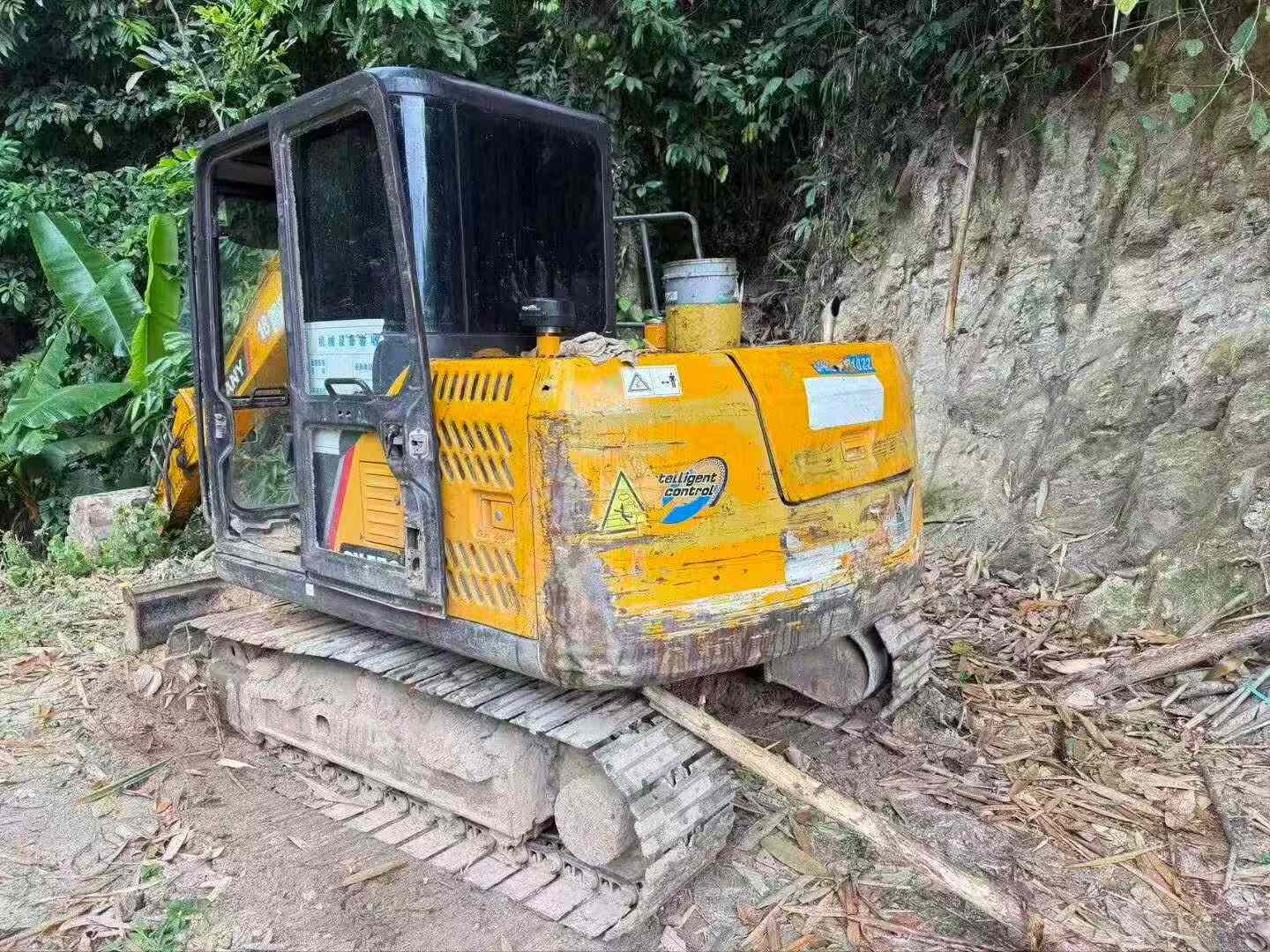

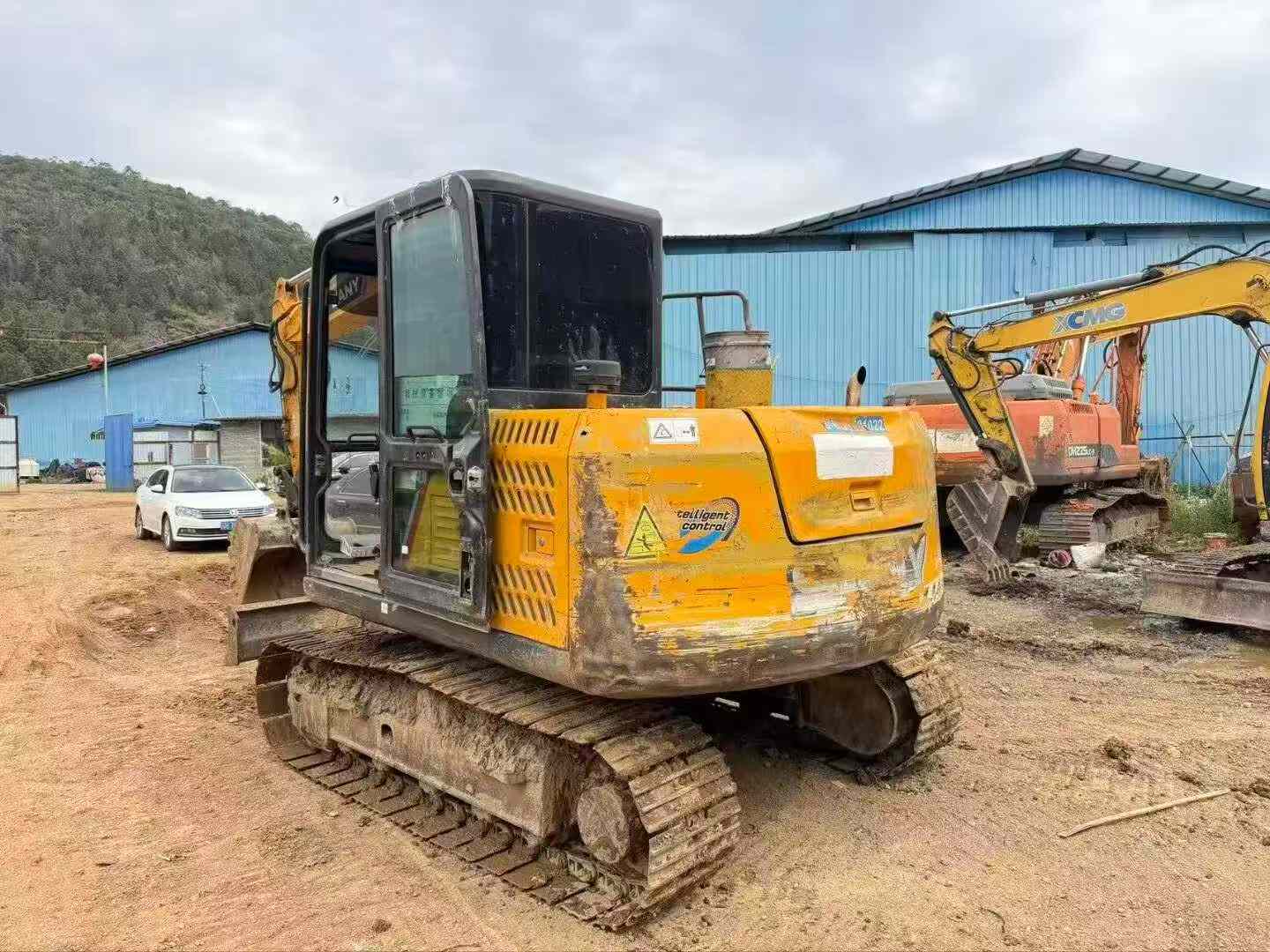

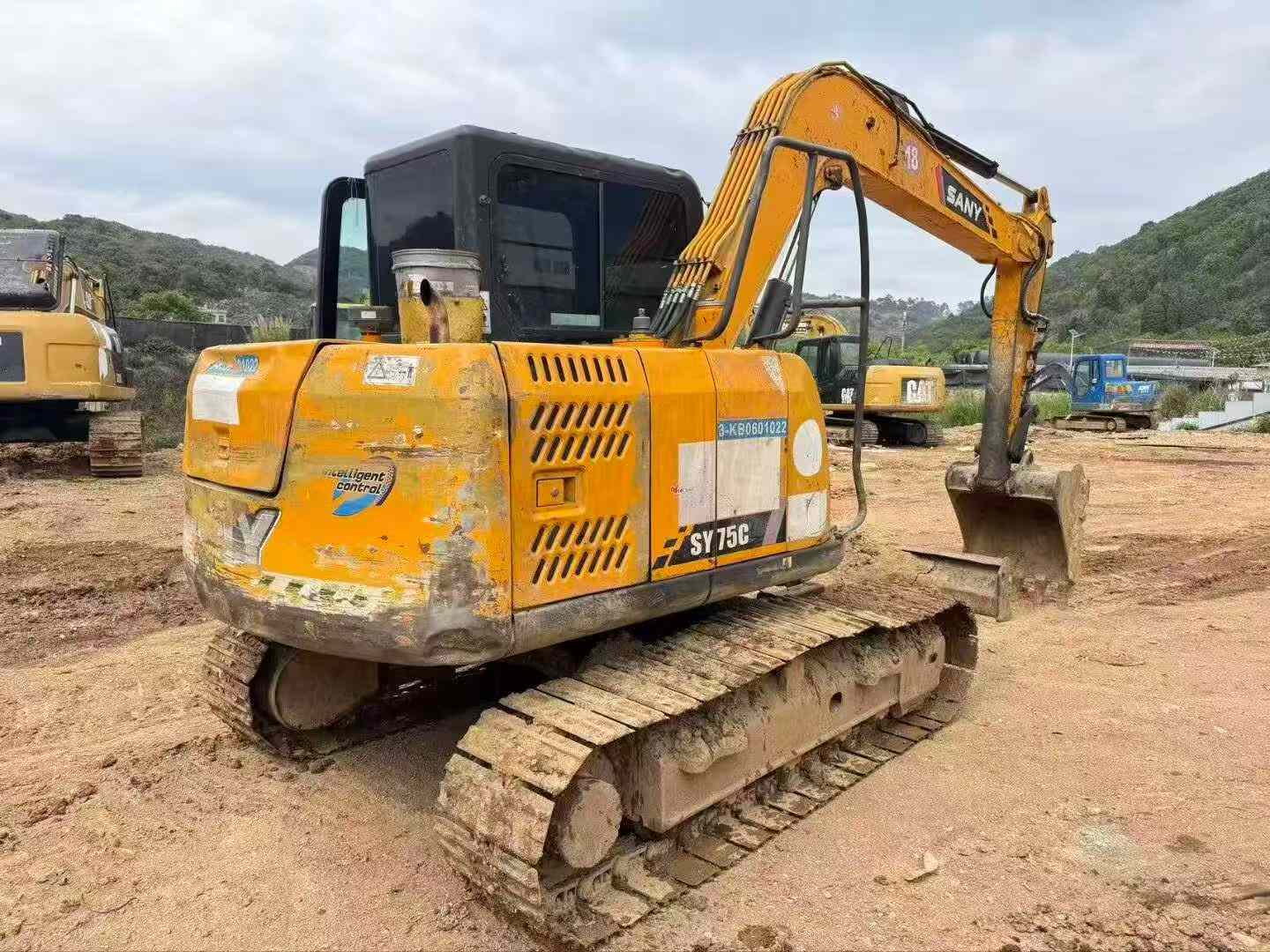

This 2020 Sany SY75C-8 mini excavator is available from a direct source in Sichuan, China. As part of Sany's proven C-series, this compact machine offers reliable performance for construction, landscaping, and infrastructure projects requiring maneuverability in confined spaces.
The SY75C-8 combines efficient hydraulic systems with robust build quality, making it suitable for demanding work environments. This unit represents an opportunity to acquire dependable equipment from one of China's leading heavy machinery manufacturers at a competitive price point.
- Year of Manufacture: 2020
- Model: Sany SY75C-8
- Category: Mini Excavator
- Current Location: Sichuan Province, China
- Availability: Direct source
Ideal for contractors and rental fleets seeking cost-effective excavation solutions. Contact us for detailed specifications, inspection reports, and export assistance to your destination.
| Specifications | Value |
|---|---|
| No. | 1086499 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 6800 |
| Bucket capacity (m³) | 0.28 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

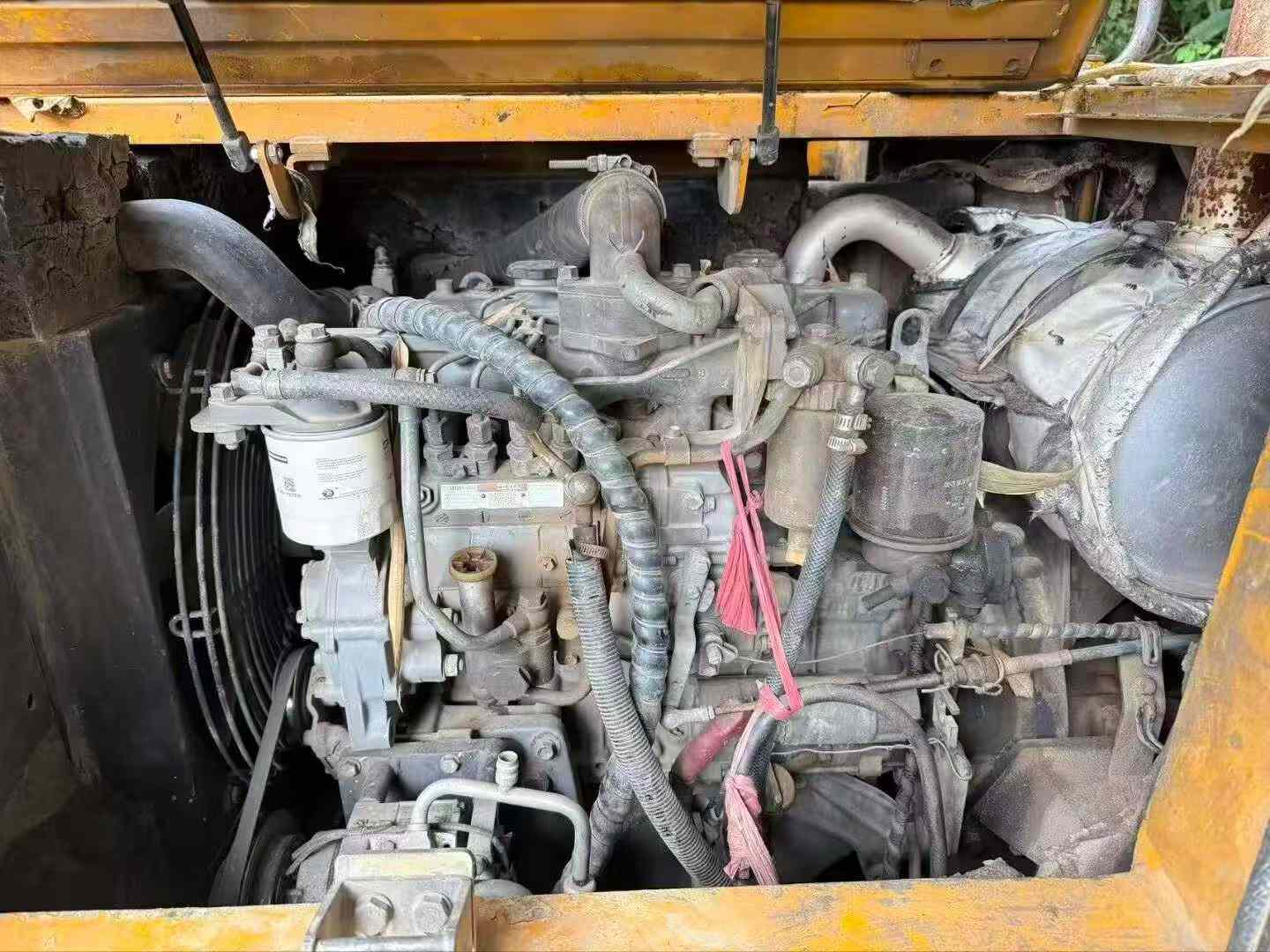

| Engine type | Isuzu CC-4JG1PAC |
| Rated power (kw/rpm) | 40/2100 |
| Cooling mode | water-cooling |
| Ground specific pressure (Kpa) | 28 |
| Rotation speed (rpm) | 10.9 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 49 |
| Rod digging force (kN) | 35 |
| Travel speed (km/h) | 2.6-4.2 |

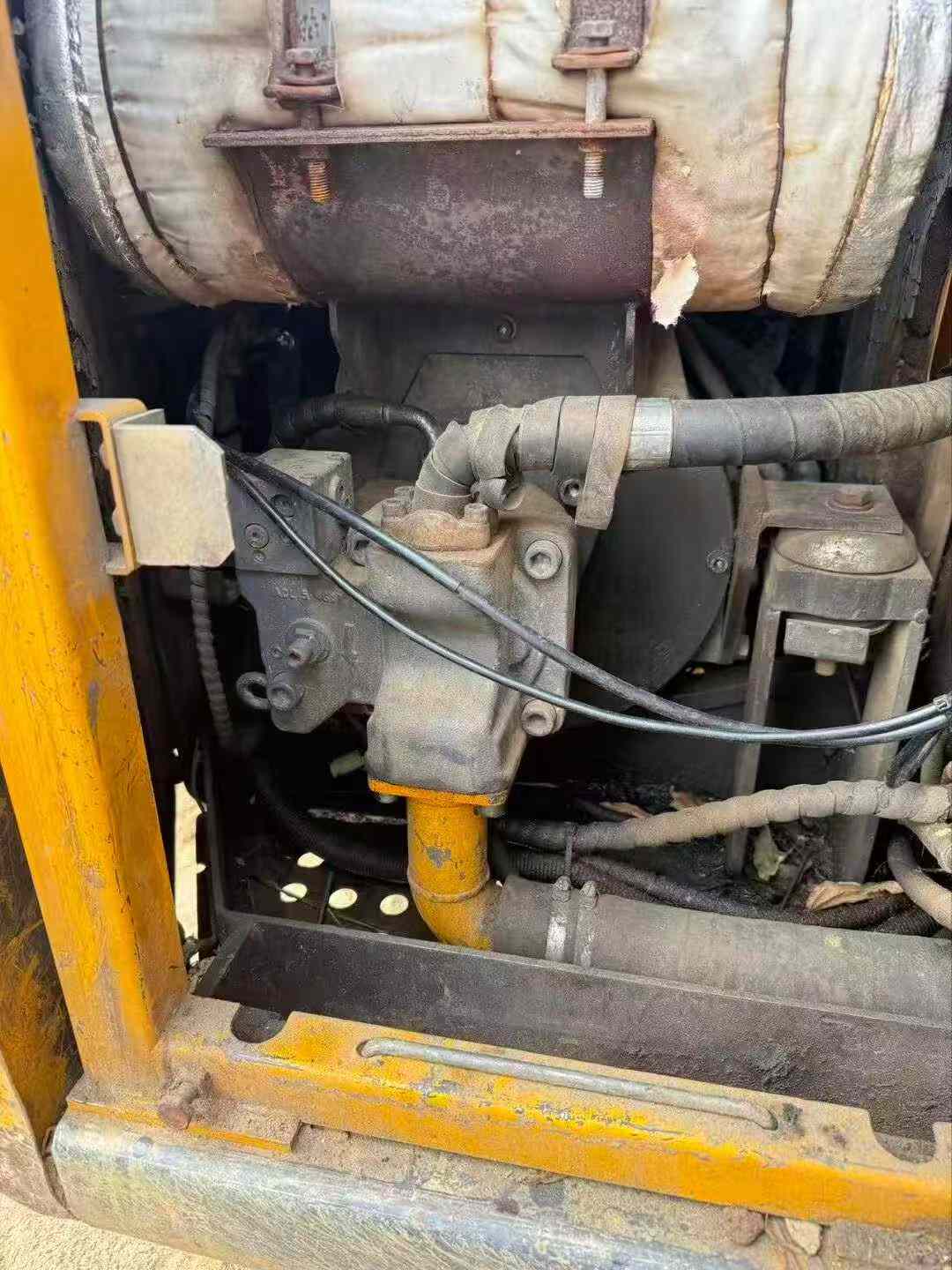

| Maximum flow of main pump (l/min) | 149 |
| Traveling Hydraulic Circuit (Mpa) | 26 |
| Rotary Hydraulic Circuit (Mpa) | 21.6 |
| Control Hydraulic Circuit (Mpa) | 3.6 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 6000 |
| Total transport width (mm) | 2220 |
| Total transport height (mm) | 2620 |
| Full cab height (mm) | 2620 |
| Minimum ground clearance (mm) | 355 |
| Back end turning radius (mm) | 1720 |
| Total track length (mm) | 2710 |
| Track gauge (mm) | 1750 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2220 |
| Track ground length (mm) | 2170 |
| Maximum digging radius (mm) | 6250 |
| Maximum digging depth (mm) | 4060 |
| Maximum excavation height (mm) | 7070 |
| Maximum unloading height (mm) | 5110 |
| Maximum vertical digging depth (mm) | 3410 |
| Bulldozer lift or depth (mm) | 390 |
