Product Description
Proven in demanding conditions since 2016, this Sany SY850C excavator demonstrates exceptional durability with its robust 82-ton operating weight and powerful 343kW engine. Engineered for heavy-duty applications, this machine delivers consistent performance through its water-cooled BB-6WGIXQA-02 engine and dual hydraulic pumps providing 2 x 494 l/min flow capacity. With an impressive 4.5m³ bucket capacity and 430kN bucket digging force, this workhorse tackles the toughest excavation challenges with proven reliability.
- Maximum Digging Reach: 12,364mm for extended operational range
- Digging Depth: 7,240mm maximum depth capability
- Climbing Performance: 70% (35°) gradient ability on challenging terrain
- Hydraulic Power: 360kN arm force for efficient material handling
- Operational Stability: 104kPa ground pressure with 650mm track plates
Currently located in Putian, Fujian, this traditionally-powered excavator represents outstanding value for contractors requiring dependable performance. Built to withstand rigorous site conditions, the SY850C combines Chinese manufacturing quality wi
| Specifications | Value |
|---|---|
| No. | 1029723 |
| Tonnage (tons) | 85 |
| Working weight (kg) | 82000 |
| Bucket capacity (m³) | 4.5 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

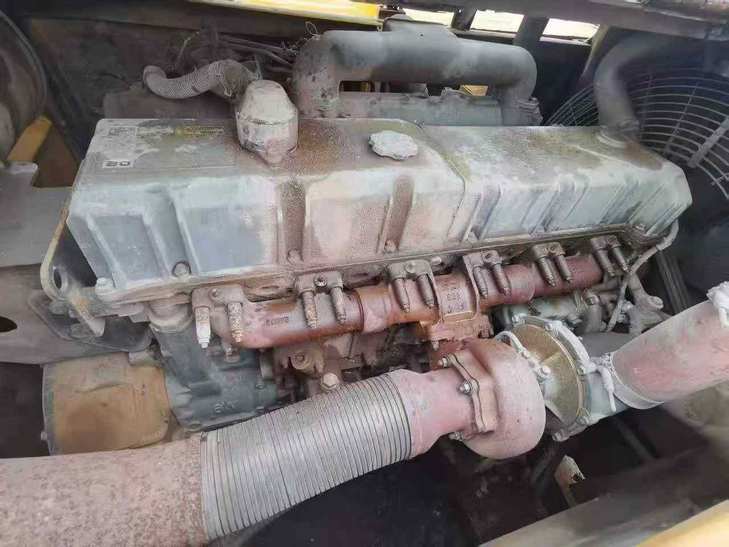

| Engine type | BB-6WGIXQA-02 |
| Rated power (kw/rpm) | 343/1800 |
| Cooling mode | water-cooling |
| Ground specific pressure (Kpa) | 104 |
| Rotation speed (rpm) | 6.8 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 430 |
| Rod digging force (kN) | 360 |
| Travel speed (km/h) | 2.8/4.1 |
| Maximum flow of main pump (l/min) | 2 x 494 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 28.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 13440 |
| Total transport width (mm) | 4150 |
| Total transport height (mm) | 5068 |
| Full cab height (mm) | 3722 |
| Minimum ground clearance (mm) | 860 |
| Back end turning radius (mm) | 4500 |
| Total track length (mm) | 6330 |
| Track gauge (mm) | 3500 |
| Track plate width (mm) | 650 |
| Total track width (mm) | 4150 |
| Track ground length (mm) | 5020 |
| Maximum digging radius (mm) | 12364 |
| Maximum digging depth (mm) | 7240 |
| Maximum excavation height (mm) | 11786 |
| Maximum unloading height (mm) | 7815 |
| Maximum vertical digging depth (mm) | 6815 |
| Bulldozer lift or depth (mm) | There is no |
