Product Description
Built for serious excavation projects, this 2016 Sany SY870H delivers 87 tons of stable power with exceptional operator control. Equipped with a 377 kW engine and 78,600 kg working weight, this backhoe excavator handles demanding tasks across construction and mining sites. Operators benefit from superior visibility in the full cabin, positioned 3,795 mm above ground, enabling precise maneuvering around jobsites. The machine's 114 kPa ground pressure ensures stability on varied terrain while maintaining a 70% climbing ability for challenging gradients.
- Maximum digging reach: 11,703 mm with 7,247 mm depth capability
- Bucket digging force: up to 469 kN for tough material penetration

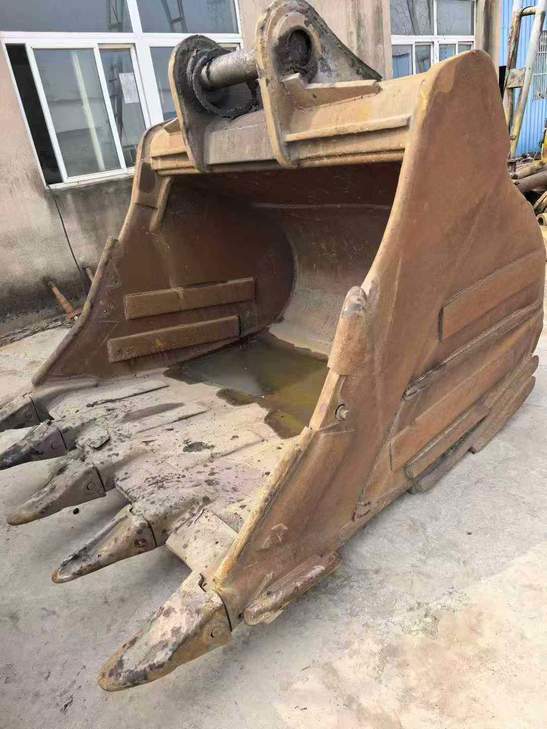

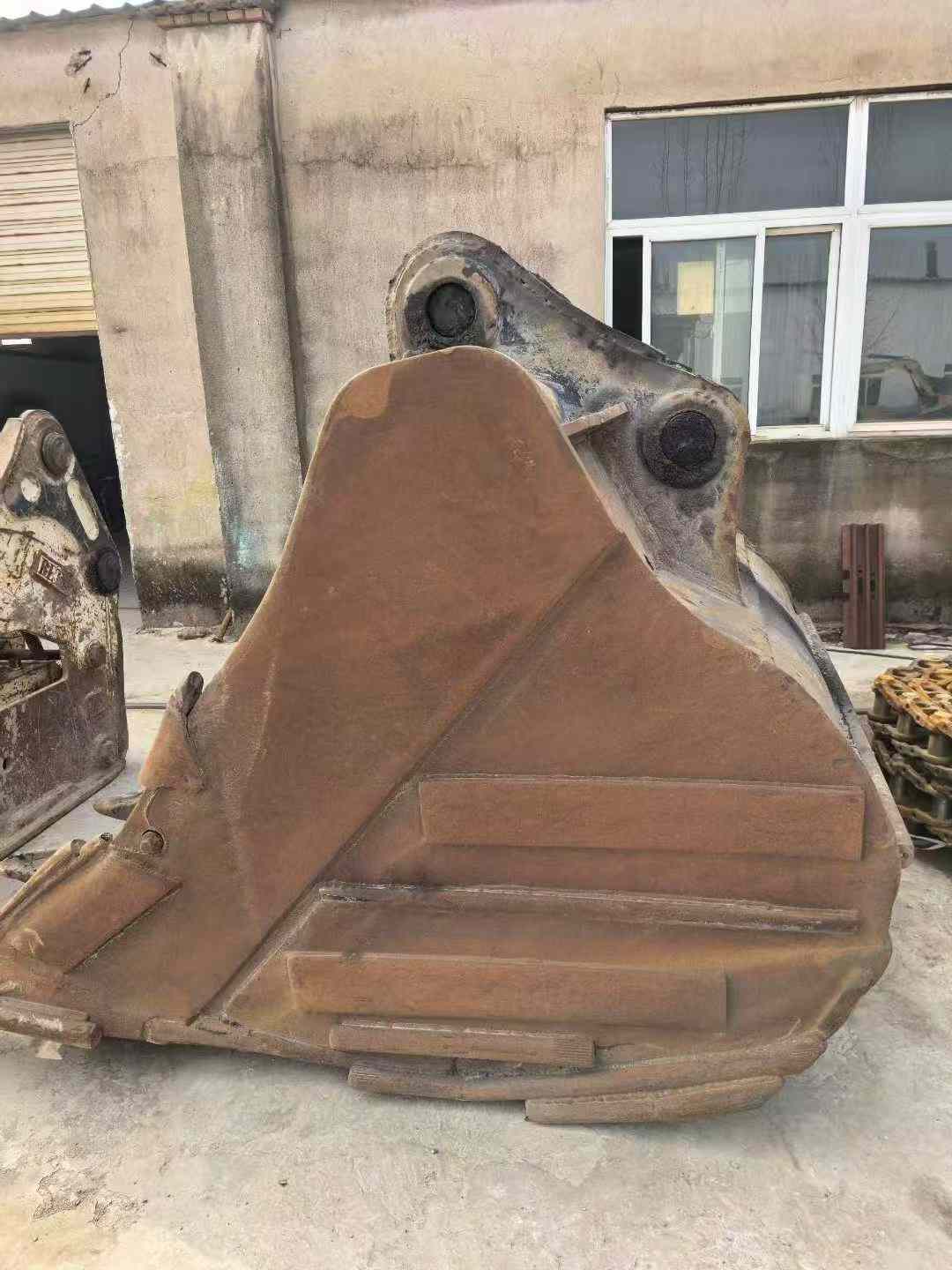

- 5.0-6.5 m³ bucket capacity for productive loading cycles
- 880 mm ground clearance protects undercarriage components
- 7.7 rpm rotation speed enables efficient positioning
- Traditional power system proven for reliability
- Currently located in Jiangsu, China
Designed for operators who demand responsive controls and consistent performance in heavy-duty applications, this SY870H combines Chinese manufacturing value with professional-grade specifications.
| Specifications | Value |
|---|---|
| No. | 1029655 |
| Tonnage (tons) | 87 |
| Working weight (kg) | 78600 |
| Bucket capacity (m³) | 5.0-6.5 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 377/1800 |
| Ground specific pressure (Kpa) | 114 |
| Rotation speed (rpm) | 7.7 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 432/469 |
| Rod digging force (kN) | 370/402 |
| Travel speed (km/h) | 4.5/2.9 |
| Total transport length (mm) | 13002 |
| Total transport width (mm) | 4320 |
| Total transport height (mm) | 4742 |
| Full cab height (mm) | 3795 |
| Minimum ground clearance (mm) | 880 |
| Minimum turning radius of front working device (mm) | 5586 |
| Back end turning radius (mm) | 4220 |
| Onboard width (mm) | 3460 |
| Total track length (mm) | 5946 |
| Track gauge (mm) | 3380 (Operation) /2780 (Transportation) |
| Track plate width (mm) | 650 |
| Track ground length (mm) | 4770 |
| Maximum height at minimum turning radius (mm) | 9802 |
| Maximum digging radius (mm) | 11703 |
| Maximum digging depth (mm) | 7247 |
| Maximum excavation height (mm) | 10910 |
| Maximum unloading height (mm) | 7047 |
| Maximum vertical digging depth (mm) | 6792 |
