Product Description

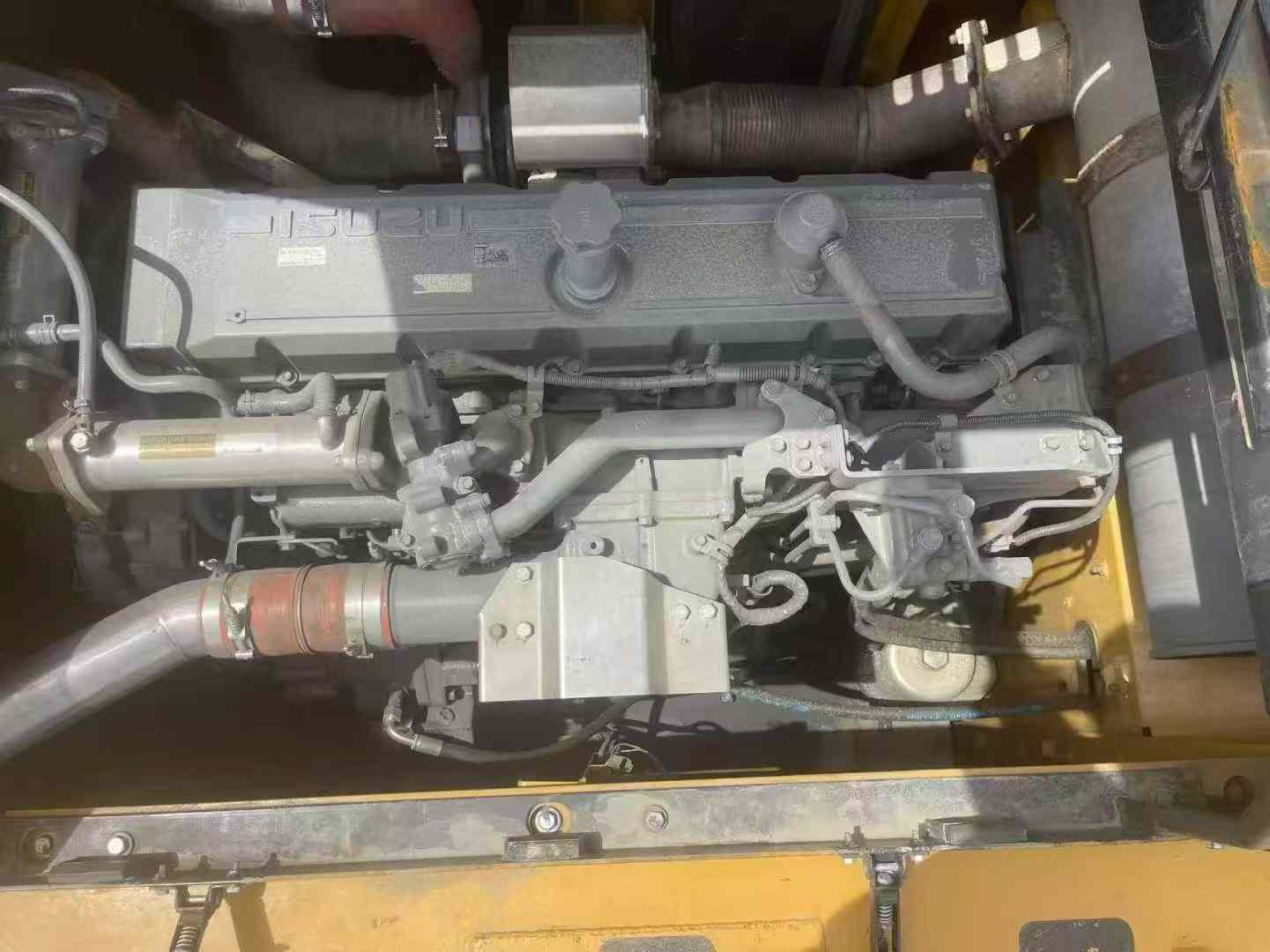

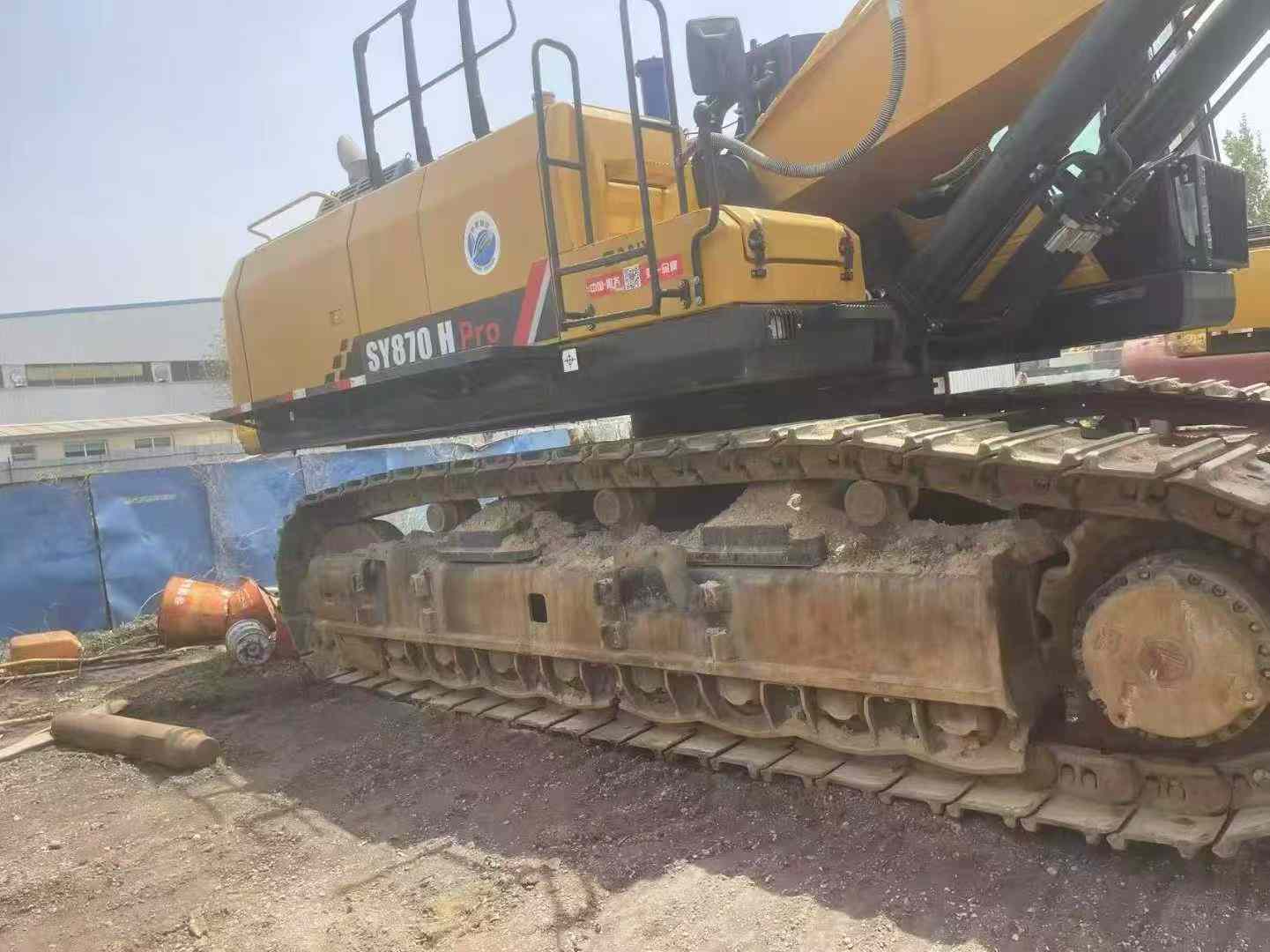

Engineered for high-production mining and quarry operations, this 2016 Sany SY870H hydraulic excavator delivers 87 tons of proven performance backed by one of China's most trusted heavy equipment manufacturers. Operating weight of 78,600 kg combines with a robust 377 kW engine to handle demanding excavation tasks with bucket capacities ranging from 5.0 to 6.5 m³. Sany's comprehensive global parts network ensures minimal downtime, while the brand's strong resale values protect your investment over the equipment's lifecycle.
- Location: Qingdao, Shandong, China
- Maximum Digging Reach: 11,703 mm
- Maximum Digging Depth: 7,247 mm
- Bucket Digging Force: 432/469 kN
- Travel Speed: 4.5/2.9 km/h
- Track Gauge: 3,380 mm (operation) / 2,780 mm (transport)
- Climbing Ability: 70%
Parts availability through Sany's established dealer network makes maintenance straightforward and cost-effective. Available for immediate inspection in Qingdao—contact Fair Trade Machinery for detailed specifications and shipping quotes.
| Specifications | Value |
|---|---|
| No. | 1032565 |
| Tonnage (tons) | 87 |
| Working weight (kg) | 78600 |
| Bucket capacity (m³) | 5.0-6.5 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 377/1800 |
| Ground specific pressure (Kpa) | 114 |
| Rotation speed (rpm) | 7.7 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 432/469 |
| Rod digging force (kN) | 370/402 |
| Travel speed (km/h) | 4.5/2.9 |
| Total transport length (mm) | 13002 |
| Total transport width (mm) | 4320 |
| Total transport height (mm) | 4742 |
| Full cab height (mm) | 3795 |
| Minimum ground clearance (mm) | 880 |
| Minimum turning radius of front working device (mm) | 5586 |
| Back end turning radius (mm) | 4220 |
| Onboard width (mm) | 3460 |
| Total track length (mm) | 5946 |
| Track gauge (mm) | 3380 (Operation) /2780 (Transportation) |
| Track plate width (mm) | 650 |
| Track ground length (mm) | 4770 |
| Maximum height at minimum turning radius (mm) | 9802 |
| Maximum digging radius (mm) | 11703 |
| Maximum digging depth (mm) | 7247 |
| Maximum excavation height (mm) | 10910 |
| Maximum unloading height (mm) | 7047 |
| Maximum vertical digging depth (mm) | 6792 |
