Product Description

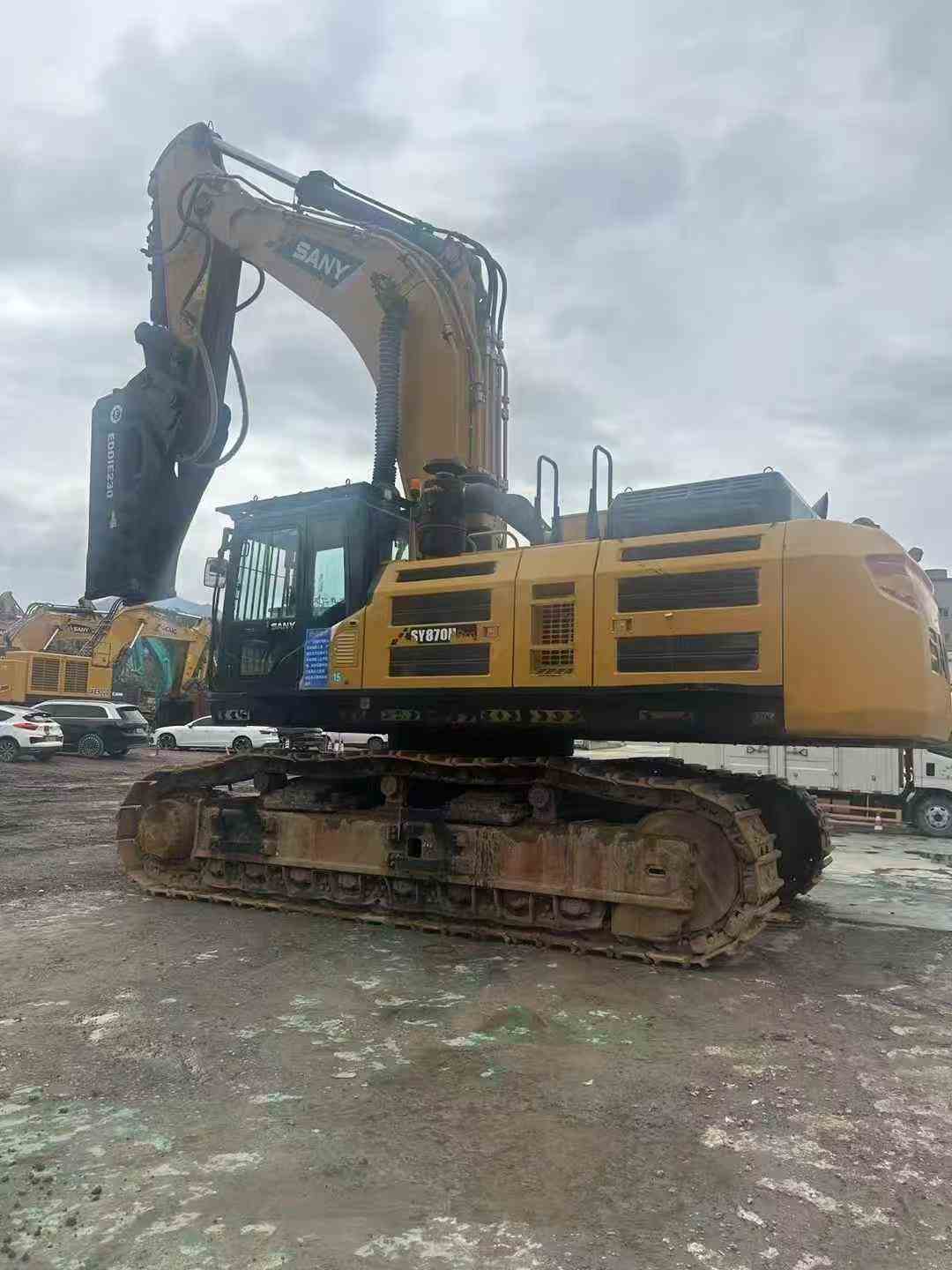

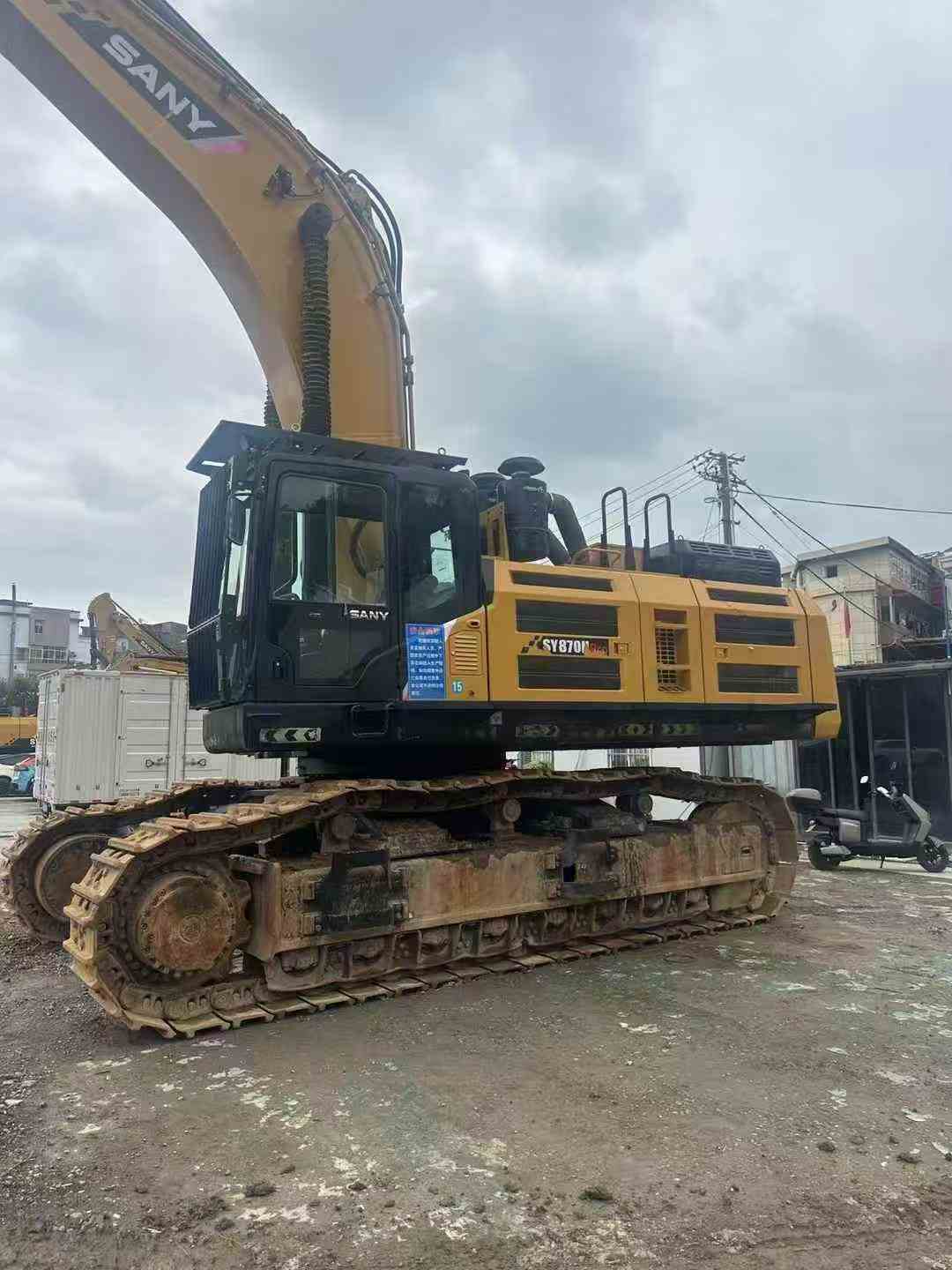

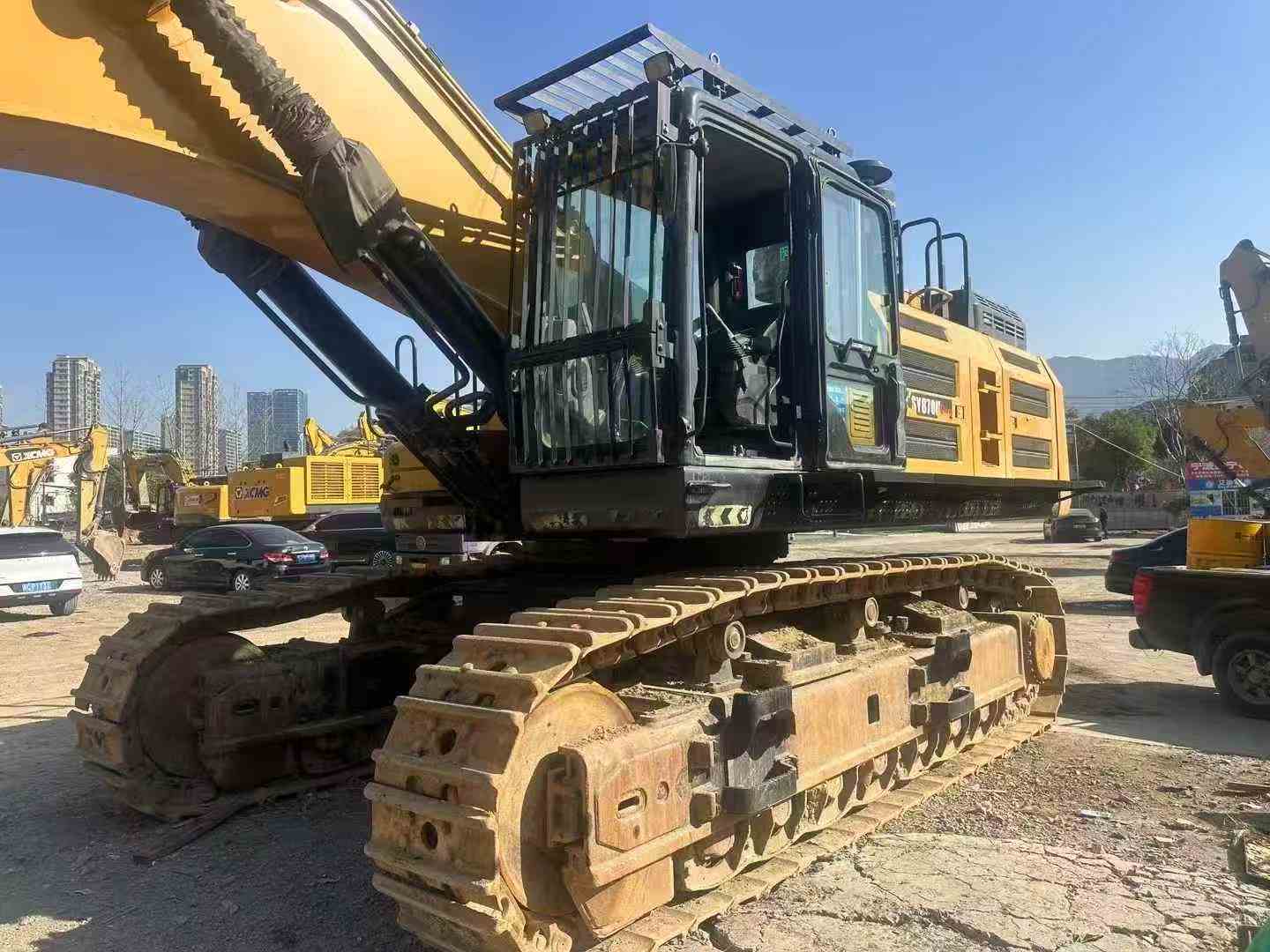

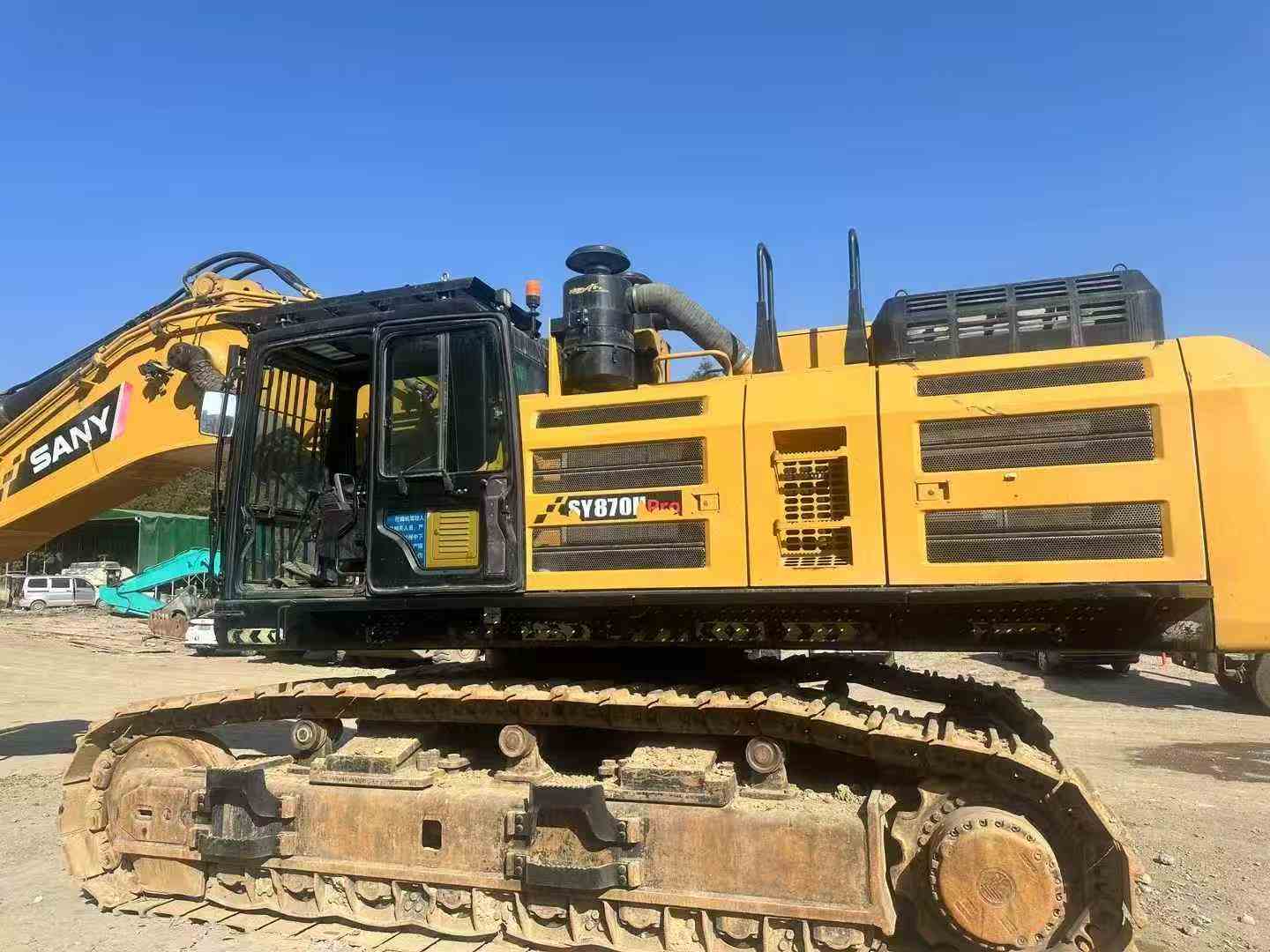

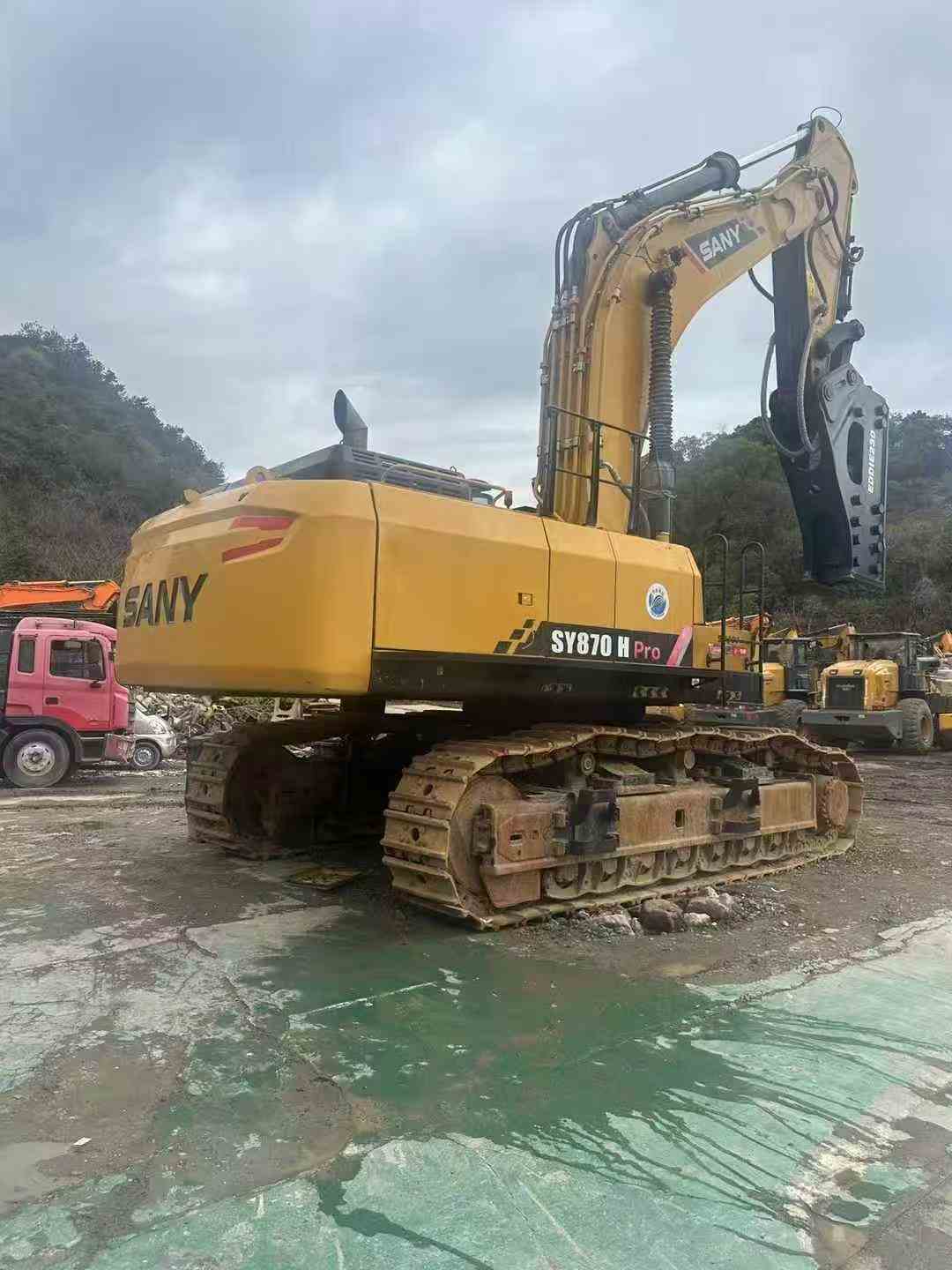

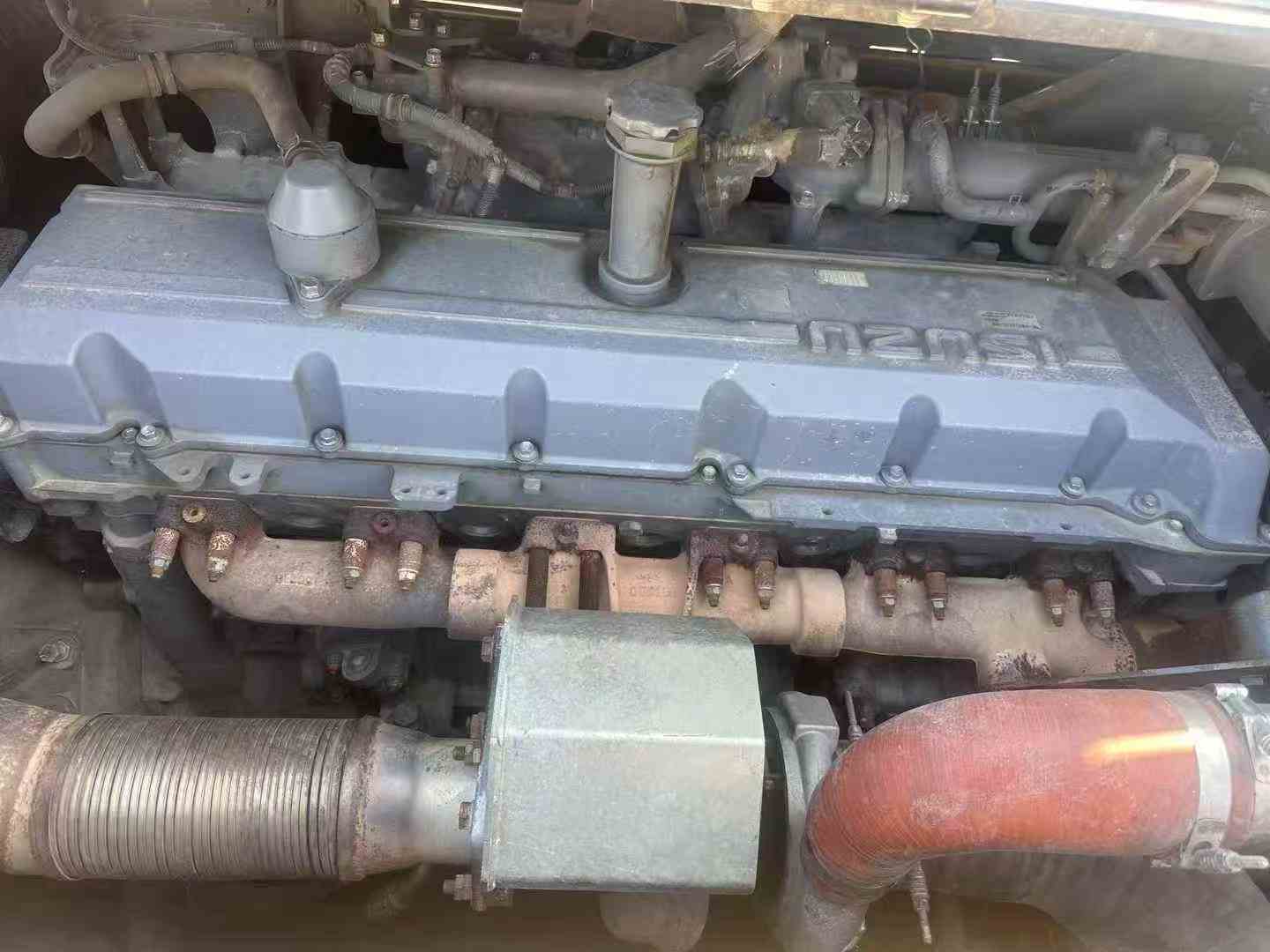

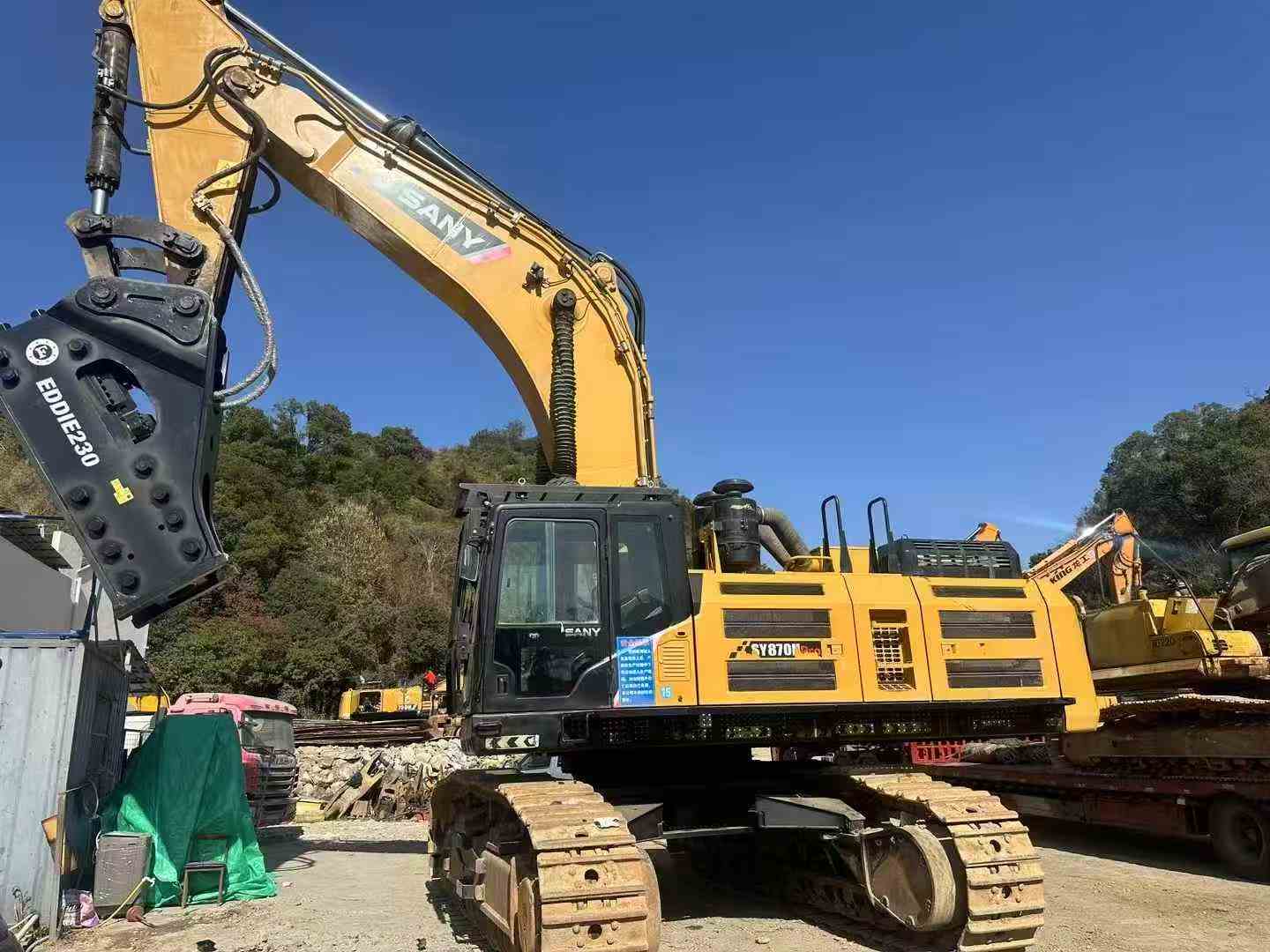

With a working weight of 78,600 kg and a powerful 377 kW engine, the 2016 Sany SY870H excavator is an ideal addition to any contractor's fleet. Designed for heavy-duty tasks, it offers a bucket capacity ranging from 5.0 to 6.5 m³, ensuring efficient material handling. This robust machine, made in China, features a backhoe bucket with impressive digging forces of up to 469 kN, making it suitable for demanding excavation projects.
- Ground specific pressure: 114 Kpa
- Rotation speed: 7.7 rpm
- Climbing ability: 70%
- Travel speed: 4.5/2.9 km/h
- Total transport dimensions: 13002 mm (L) x 4320 mm (W) x 4742 mm (H)
For contractors looking to expand their capabilities, the SY870H provides reliable performance and versatility. Its comprehensive specifications, including a maximum digging depth of 7247 mm and a maximum unloading height of 7047 mm, make it a valuable asset for a wide range of construction and excavation tasks.
| Specifications | Value |
|---|---|
| No. | 1033416 |
| Tonnage (tons) | 87 |
| Working weight (kg) | 78600 |
| Bucket capacity (m³) | 5.0-6.5 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 377/1800 |
| Ground specific pressure (Kpa) | 114 |
| Rotation speed (rpm) | 7.7 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 432/469 |
| Rod digging force (kN) | 370/402 |
| Travel speed (km/h) | 4.5/2.9 |
| Total transport length (mm) | 13002 |
| Total transport width (mm) | 4320 |
| Total transport height (mm) | 4742 |
| Full cab height (mm) | 3795 |
| Minimum ground clearance (mm) | 880 |
| Minimum turning radius of front working device (mm) | 5586 |
| Back end turning radius (mm) | 4220 |
| Onboard width (mm) | 3460 |
| Total track length (mm) | 5946 |
| Track gauge (mm) | 3380 (Operation) /2780 (Transportation) |
| Track plate width (mm) | 650 |
| Track ground length (mm) | 4770 |
| Maximum height at minimum turning radius (mm) | 9802 |
| Maximum digging radius (mm) | 11703 |
| Maximum digging depth (mm) | 7247 |
| Maximum excavation height (mm) | 10910 |
| Maximum unloading height (mm) | 7047 |
| Maximum vertical digging depth (mm) | 6792 |
