Product Description

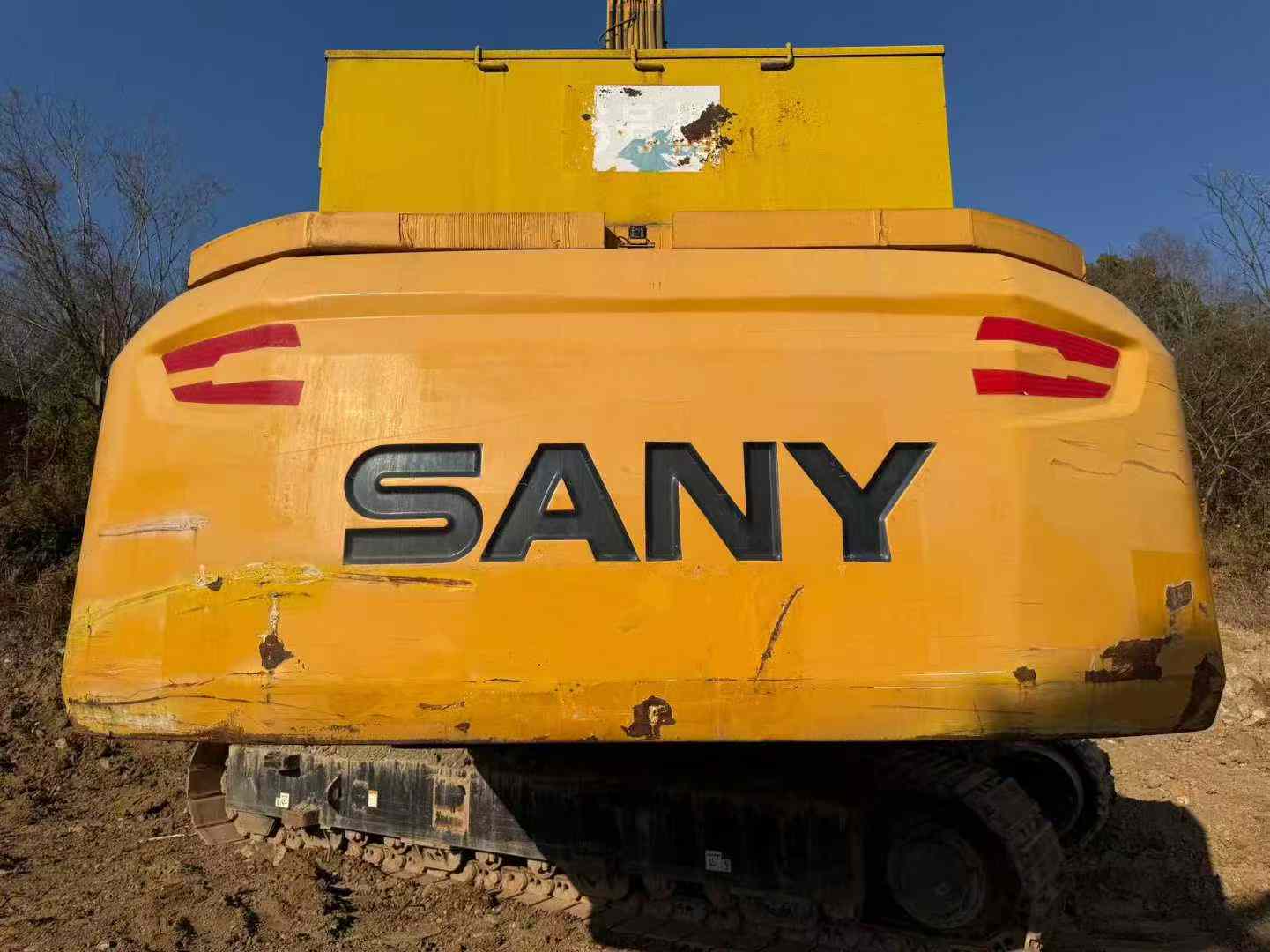

Built for high-output performance, this 2022 Sany SY870H excavator delivers 377 kW of rated power across demanding construction, mining, and demolition operations. With an 87-ton operating weight and bucket capacity ranging from 5.0 to 6.5 m³, this machine handles heavy material movement, deep foundation work, and large-scale earthmoving with precision. Maximum digging depth reaches 7,247 mm, while maximum digging radius extends to 11,703 mm—providing extensive reach for trench excavation, slope grading, and bulk loading tasks.
- Bucket digging force: 432/469 kN for breaking compacted soil and rock
- Ground specific pressure: 114 kPa for stable operation on varied terrain
- Travel speed: 4.5/2.9 km/h for efficient site repositioning
- 70% climbing ability tackles steep grades and uneven ground
- Currently located in Jiangsu, China—ready for international shipping
Factory-backed Sany engineering ensures component durability and serviceability. This backhoe-configured excavator arrives job-ready for contractors requiring immediate deployment on infrastructure projects, quarry operations, or commercial development sites.
| Specifications | Value |
|---|---|
| No. | 1023692 |
| Tonnage (tons) | 87 |
| Working weight (kg) | 78600 |
| Bucket capacity (m³) | 5.0-6.5 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 377/1800 |
| Ground specific pressure (Kpa) | 114 |
| Rotation speed (rpm) | 7.7 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 432/469 |
| Rod digging force (kN) | 370/402 |
| Travel speed (km/h) | 4.5/2.9 |
| Total transport length (mm) | 13002 |
| Total transport width (mm) | 4320 |
| Total transport height (mm) | 4742 |
| Full cab height (mm) | 3795 |
| Minimum ground clearance (mm) | 880 |
| Minimum turning radius of front working device (mm) | 5586 |
| Back end turning radius (mm) | 4220 |
| Onboard width (mm) | 3460 |
| Total track length (mm) | 5946 |
| Track gauge (mm) | 3380 (Operation) /2780 (Transportation) |
| Track plate width (mm) | 650 |
| Track ground length (mm) | 4770 |
| Maximum height at minimum turning radius (mm) | 9802 |
| Maximum digging radius (mm) | 11703 |
| Maximum digging depth (mm) | 7247 |
| Maximum excavation height (mm) | 10910 |
| Maximum unloading height (mm) | 7047 |
| Maximum vertical digging depth (mm) | 6792 |
