Product Description

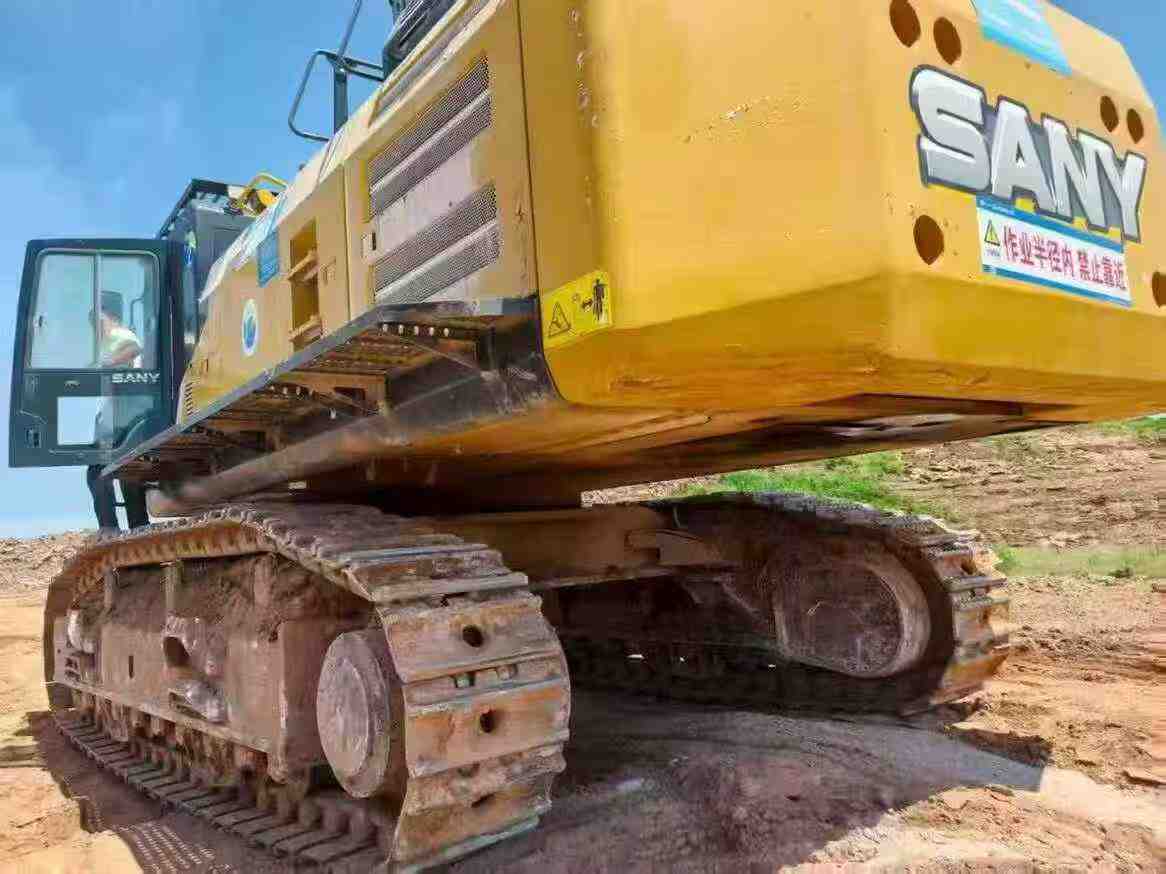

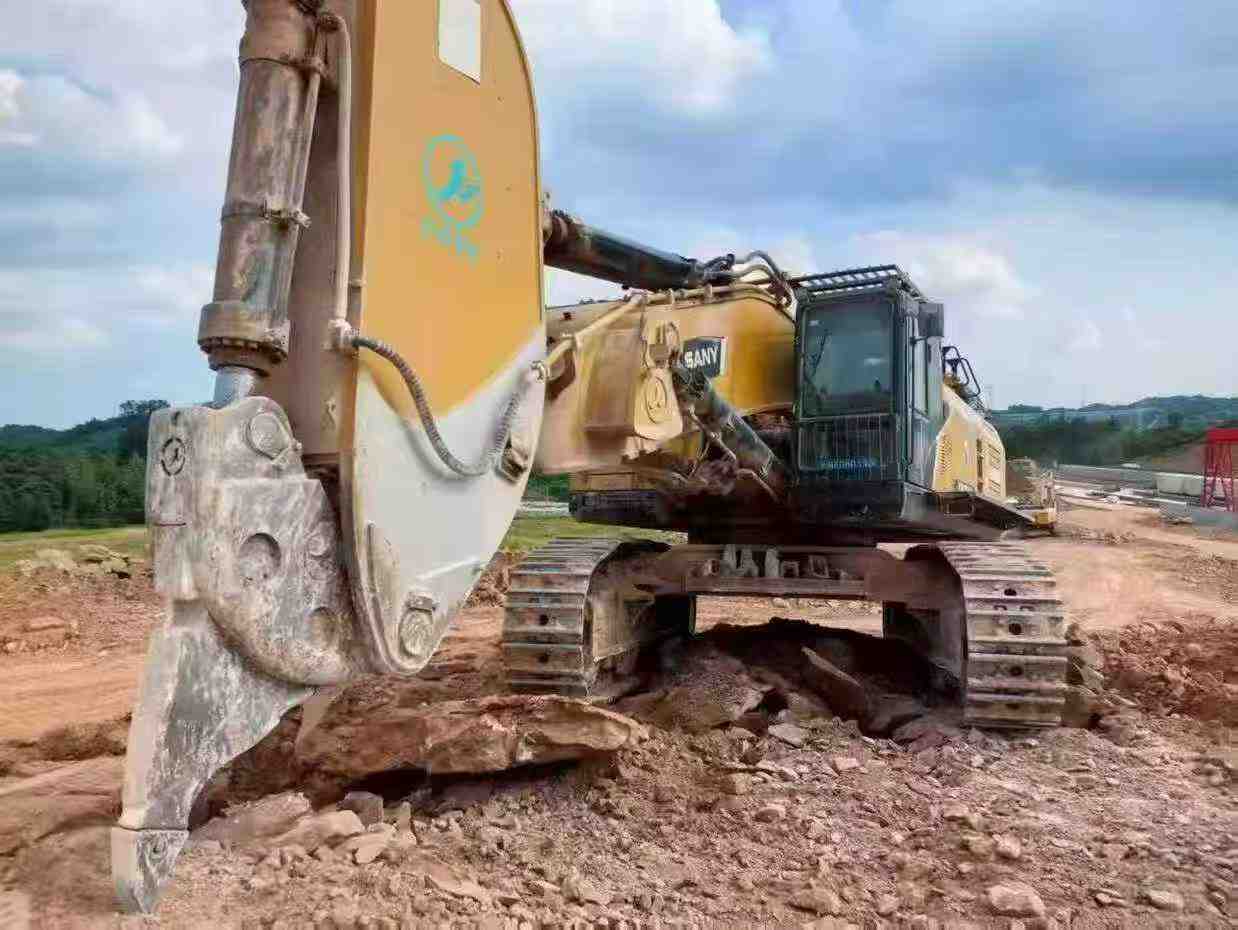

With a working weight of 96,300 kg and a bucket capacity ranging from 5.5 to 6.5 m³, the Sany SY950H excavator is designed for robust performance. In 四川泸州, this 2021 model offers exceptional handling and stability, ensuring operators can tackle challenging terrains with ease. The powerful 503 kW engine at 1800 rpm delivers the necessary force for demanding tasks, while the 4.0/2.7 km/h travel speed provides flexibility on the job site.
- Superior visibility from the cabin enhances operator confidence and safety
- Ground specific pressure of 132 Kpa ensures minimal ground disturbance
- Impressive climbing ability of 70% tackles steep inclines effortlessly
- Bucket and rod digging forces of 495 kN and 365 kN, respectively, for efficient excavation
- Compact design with a total transport width of 4460/3700 mm for easy maneuverability
| Specifications | Value |
|---|---|
| No. | 1033908 |
| Tonnage (tons) | 95 |
| Working weight (kg) | 96300 |
| Bucket capacity (m³) | 5.5~6.5 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 503/1800 |
| Ground specific pressure (Kpa) | 132 |
| Rotation speed (rpm) | 7 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 495 |
| Rod digging force (kN) | 365 |
| Travel speed (km/h) | 4.0/2.7 |
| Total transport length (mm) | 13840 |
| Total transport width (mm) | 4460/3700 |
| Total transport height (mm) | 5300 |
| Minimum ground clearance (mm) | 945 |
| Minimum turning radius of front working device (mm) | 5010 |
| Back end turning radius (mm) | 4700 |
| Total track length (mm) | 6350 |
| Track gauge (mm) | 2750/3510 |
| Track plate width (mm) | 650 |
| Track ground length (mm) | 5070 |
| Maximum height at minimum turning radius (mm) | 10580 |
| Maximum digging radius (mm) | 12280 |
| Maximum digging depth (mm) | 6740 |
| Maximum excavation height (mm) | 12310 |
| Maximum unloading height (mm) | 8345 |
| Maximum vertical digging depth (mm) | 4250 |
