Product Description

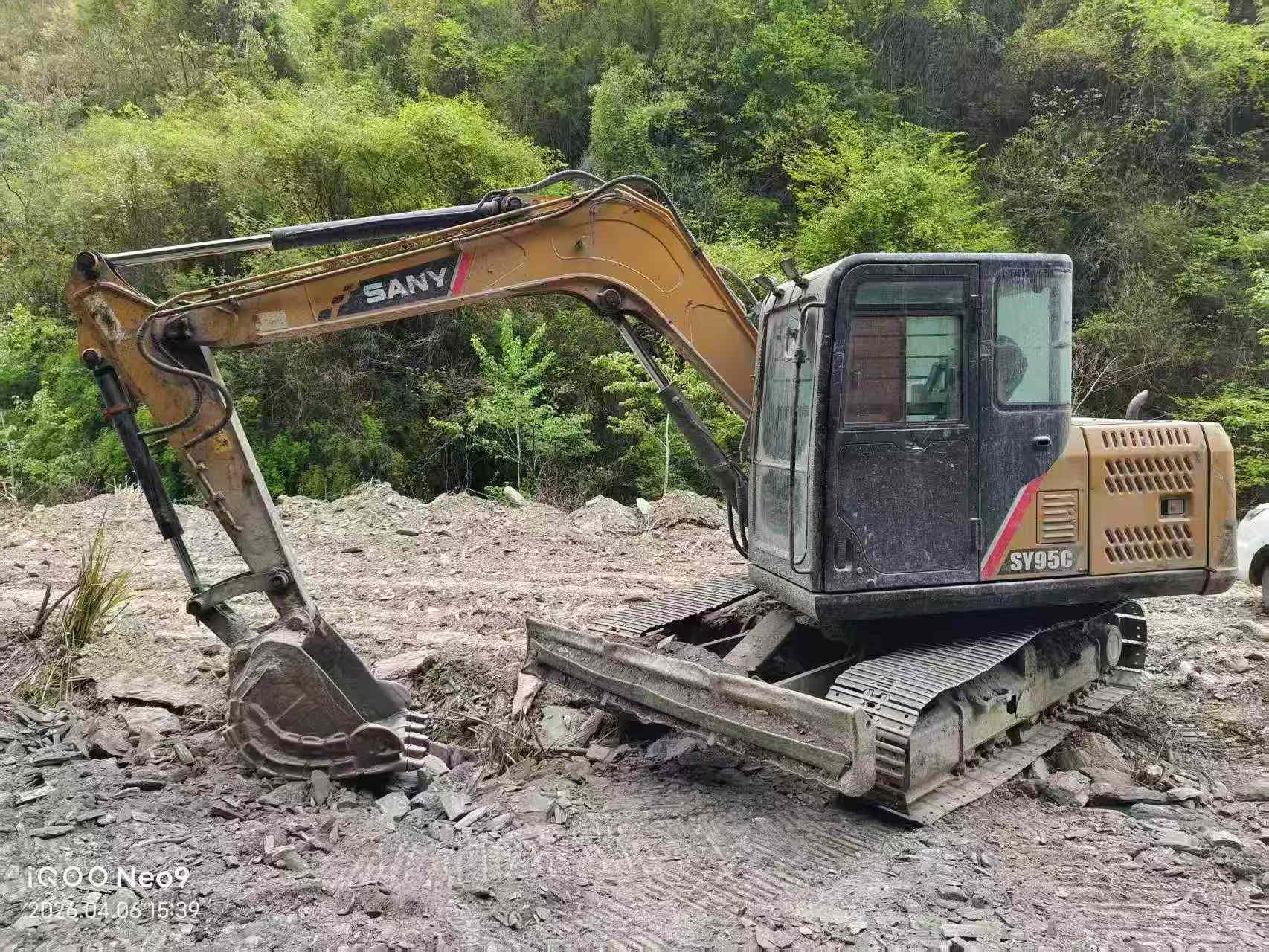

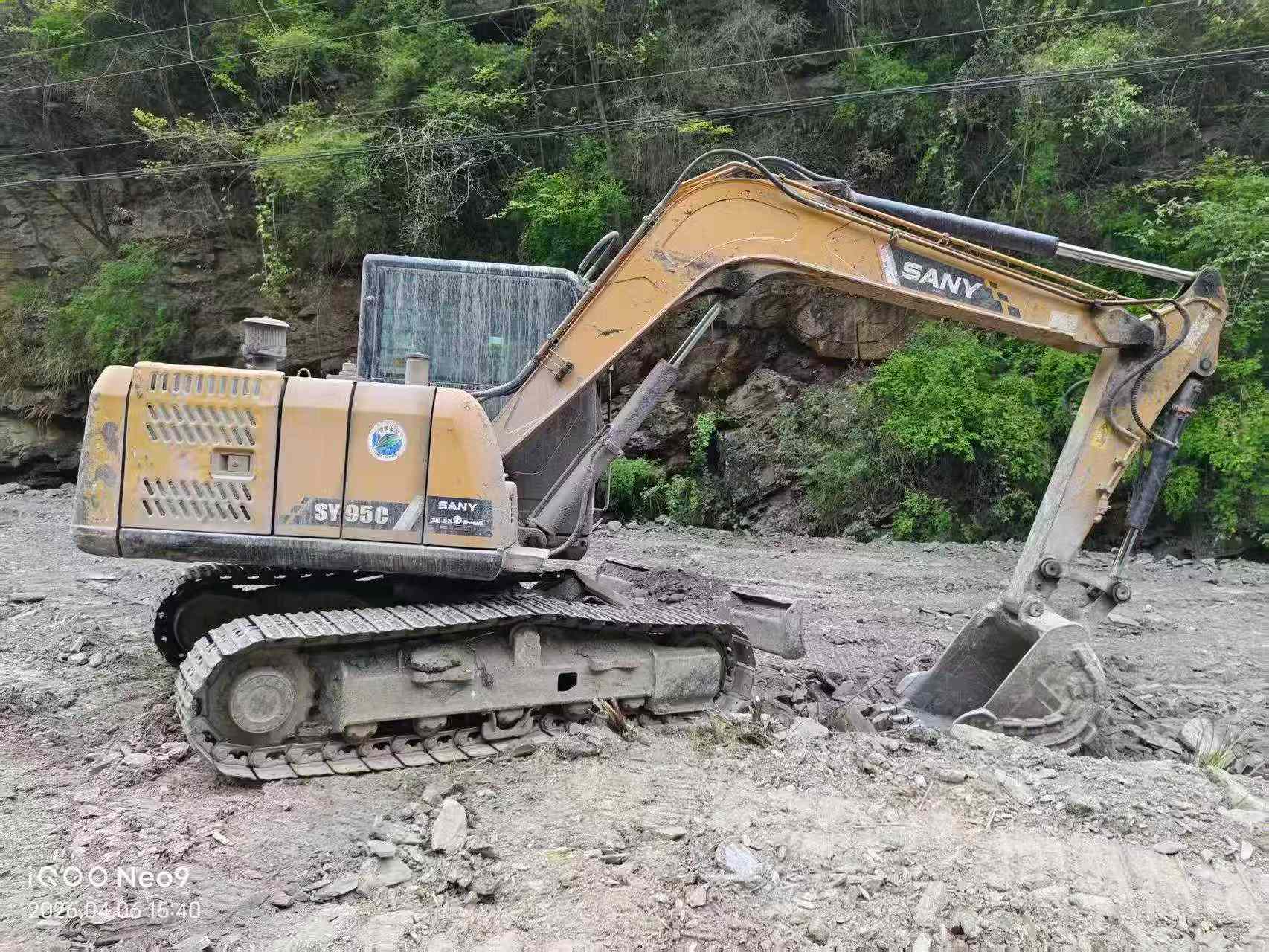

Expand your operational capacity with this 2016 Sany SY95C excavator, currently available in Shaoxing, Zhejiang. Built for contractors managing multiple job sites, this 9-ton machine delivers reliable performance as a versatile fleet addition or dependable backup unit. Powered by a Kubota V3800DI-T-E3B engine generating 60.7 kW at 2200 rpm, it provides consistent output for demanding excavation tasks.
With a maximum digging depth of 4,330 mm and digging radius of 6,660 mm, this compact excavator handles trenching, grading, and material handling with precision. The bucket capacity ranges from 0.2 to 0.45 m³, adapting to varied project requirements. Bucket digging force reaches 63.6 kN, while the arm delivers 46.8 kN for tough ground conditions.
- Working weight: 9,180 kg with minimal ground pressure (38.6 kPa)
- Transport dimensions: 6,560 mm (L) × 2,260 mm (W) × 2,650 mm (H)
- Fuel capacity: 160 L for extended shifts
- Hydraulic tank: 120 L for smooth operation
- Climbing ability: 70% (35°) grade capability
Manufactured in China, this water-cooled machine integrates seamlessly into existing fleets requiring proven Sany engineering and Kubota reliability.
| Specifications | Value |
|---|---|
| No. | 1050553 |
| Tonnage (tons) | 9 |
| Working weight (kg) | 9180 |
| Bucket capacity (m³) | 0.2-0.45 (0.39) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

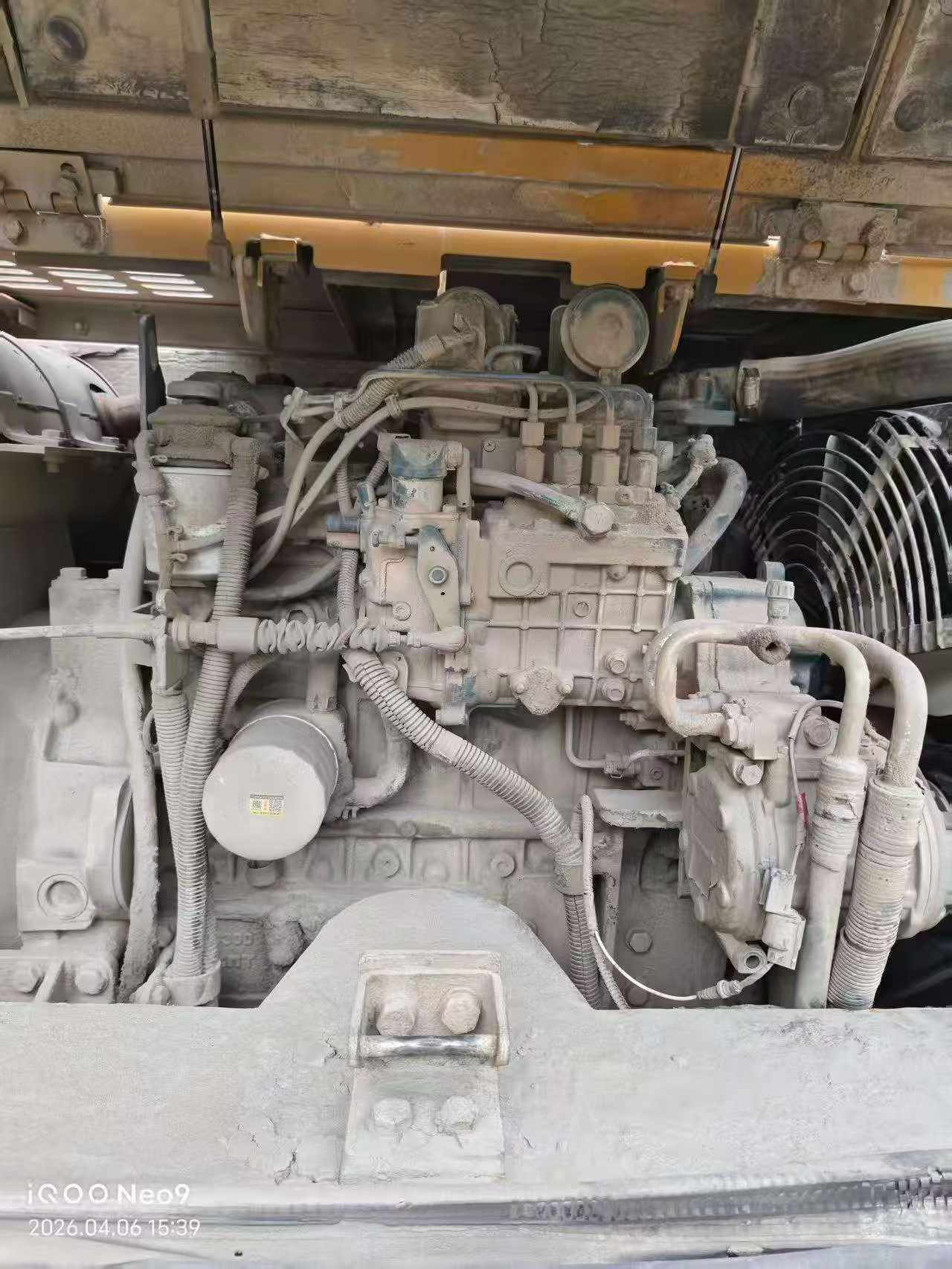

| Engine type | Kubota V3800DI-T-E3B |
| Rated power (kw/rpm) | 60.7/2200 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 305.4/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.769 |
| Ground specific pressure (Kpa) | 38.6 |
| Rotation speed (rpm) | 11.2 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 63.6 |
| Rod digging force (kN) | 46.8 |
| Travel speed (km/h) | 5.0/2.9 |
| Fuel Tank (L) | 160 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 6560 |
| Total transport width (mm) | 2260 |
| Total transport height (mm) | 2650 |
| Minimum ground clearance (mm) | 360 |
| Minimum turning radius of front working device (mm) | 1990 |
| Back end turning radius (mm) | 1885 |
| Onboard width (mm) | 2160 |
| Total track length (mm) | 2980 |
| Track gauge (mm) | 1810 |
| Track plate width (mm) | 450 |
| Maximum height at minimum turning radius (mm) | 5700 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 41 |
| Maximum digging radius (mm) | 6660 |
| Maximum digging depth (mm) | 4330 |
| Maximum excavation height (mm) | 7260 |
| Maximum unloading height (mm) | 5210 |
| Maximum vertical digging depth (mm) | 3080 |
| Bulldozer lift or depth (mm) | 330/330 |
| Dodging plate width × height (mm) | 420 (height) |
