Product Description
Discover the reliability and efficiency of the 2019 Sany SY95C excavator, currently located in Hunan, China. This machine has been meticulously maintained and is known for its robust performance, making it an ideal choice for a variety of construction and excavation projects. The SY95C model is celebrated for its durability and operational ease, ensuring that your project timelines are met with precision and without unnecessary downtime. Comprehensive details, including high-quality images and video demonstrations, are available to provide a thorough understanding of the machine's condition and capabilities.
- Year: 2019
- Brand: Sany
- Model: SY95C
- Location: Hunan, China
| Specifications | Value |
|---|---|
| No. | 1094499 |
| Tonnage (tons) | 9 |
| Working weight (kg) | 9180 |
| Bucket capacity (m³) | 0.2-0.45 (0.39) |
| power | Traditional power |
| manufacturer | Made in China |

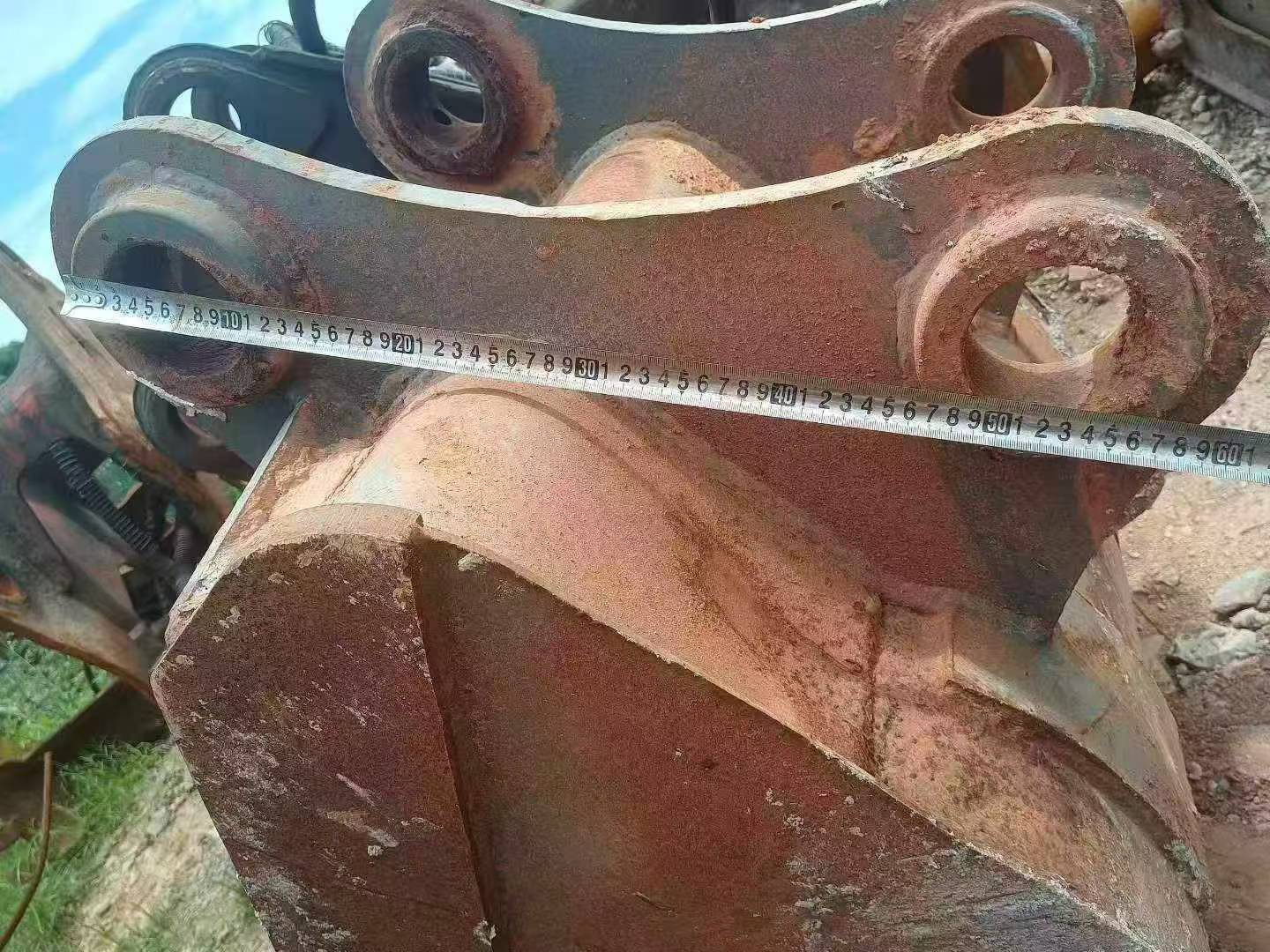

| bucket | backhoe |

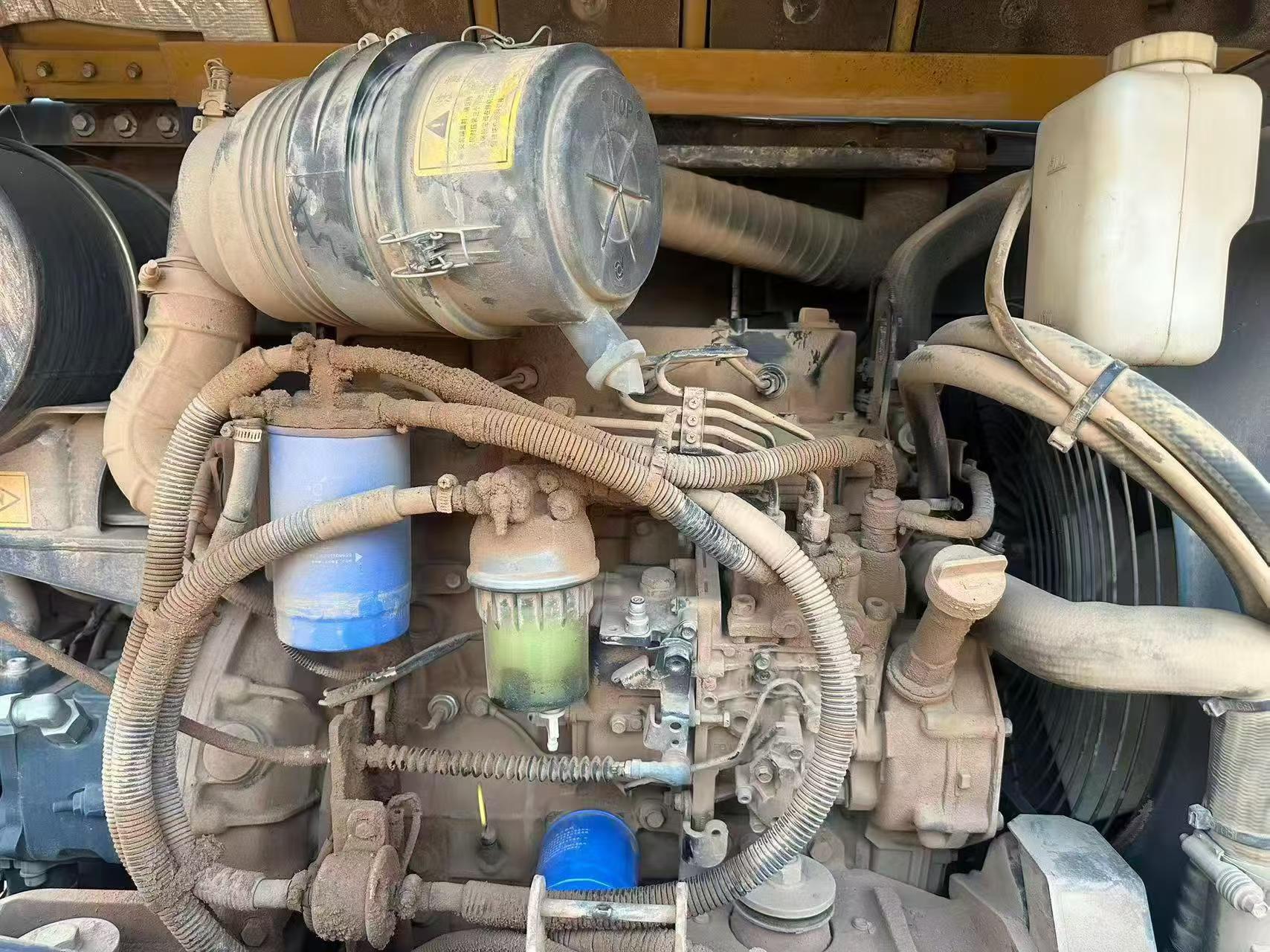

| Engine type | Kubota V3800DI-T-E3B |
| Rated power (kw/rpm) | 60.7/2200 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 305.4/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.769 |
| Ground specific pressure (Kpa) | 38.6 |
| Rotation speed (rpm) | 11.2 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 63.6 |
| Rod digging force (kN) | 46.8 |
| Travel speed (km/h) | 5.0/2.9 |
| Fuel Tank (L) | 160 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 6560 |
| Total transport width (mm) | 2260 |
| Total transport height (mm) | 2650 |
| Minimum ground clearance (mm) | 360 |
| Minimum turning radius of front working device (mm) | 1990 |
| Back end turning radius (mm) | 1885 |
| Onboard width (mm) | 2160 |
| Total track length (mm) | 2980 |
| Track gauge (mm) | 1810 |
| Track plate width (mm) | 450 |
| Maximum height at minimum turning radius (mm) | 5700 |

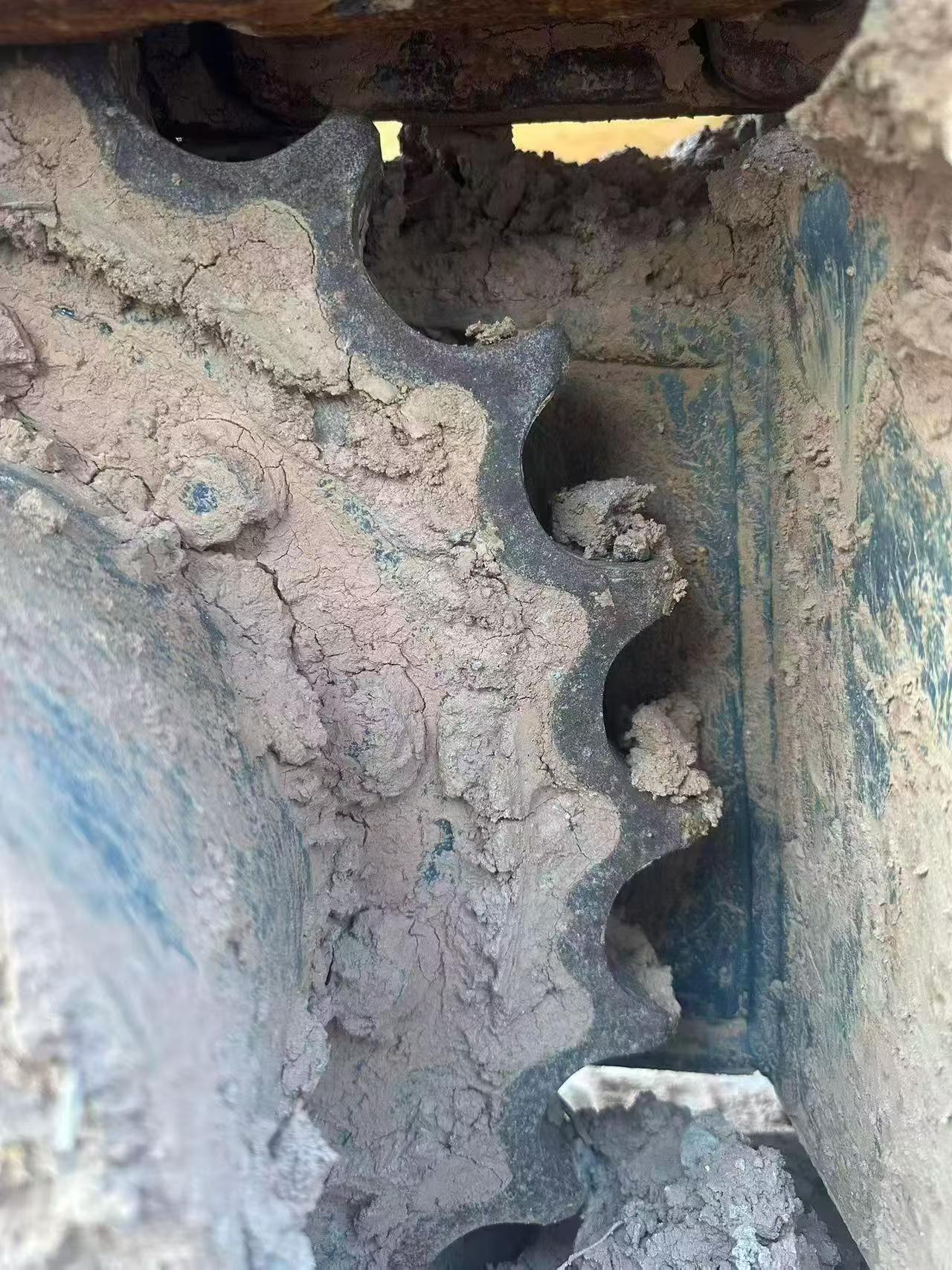

| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 41 |
| Maximum digging radius (mm) | 6660 |
| Maximum digging depth (mm) | 4330 |
| Maximum excavation height (mm) | 7260 |
| Maximum unloading height (mm) | 5210 |
| Maximum vertical digging depth (mm) | 3080 |
| Bulldozer lift or depth (mm) | 330/330 |
| Dodging plate width × height (mm) | 420 (height) |
