Product Description

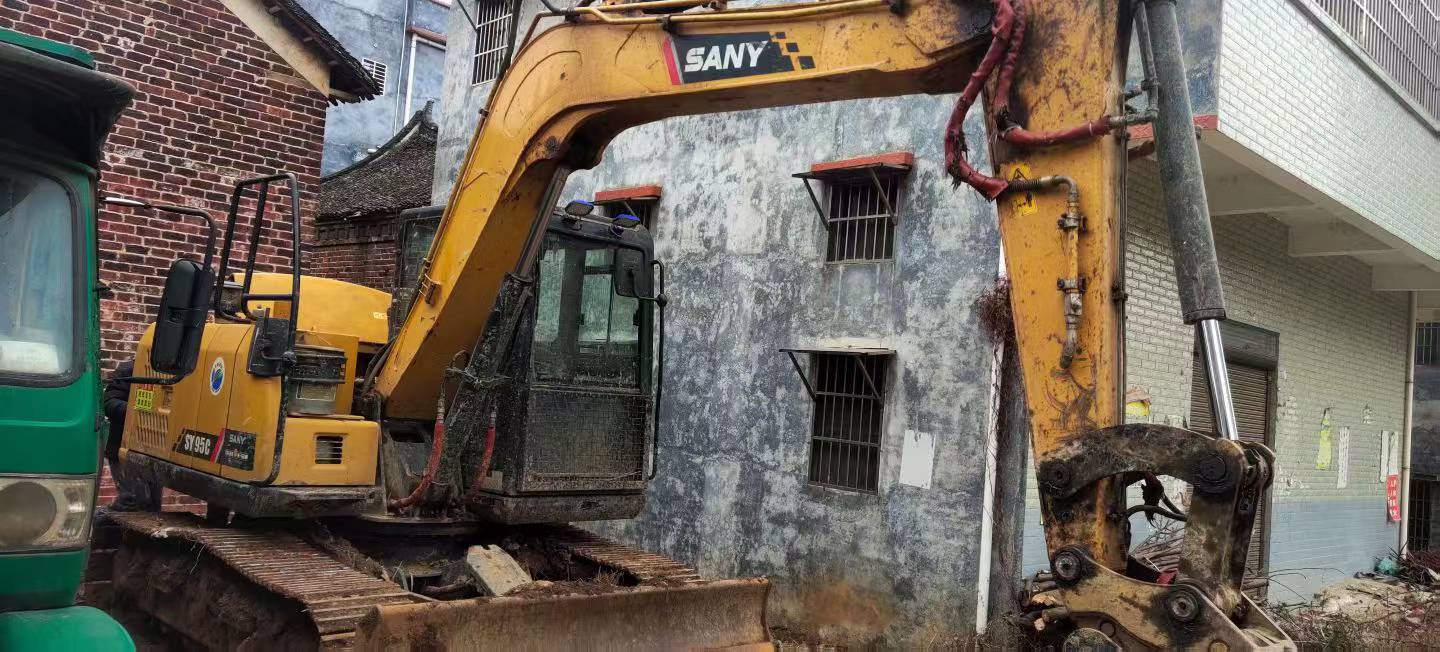

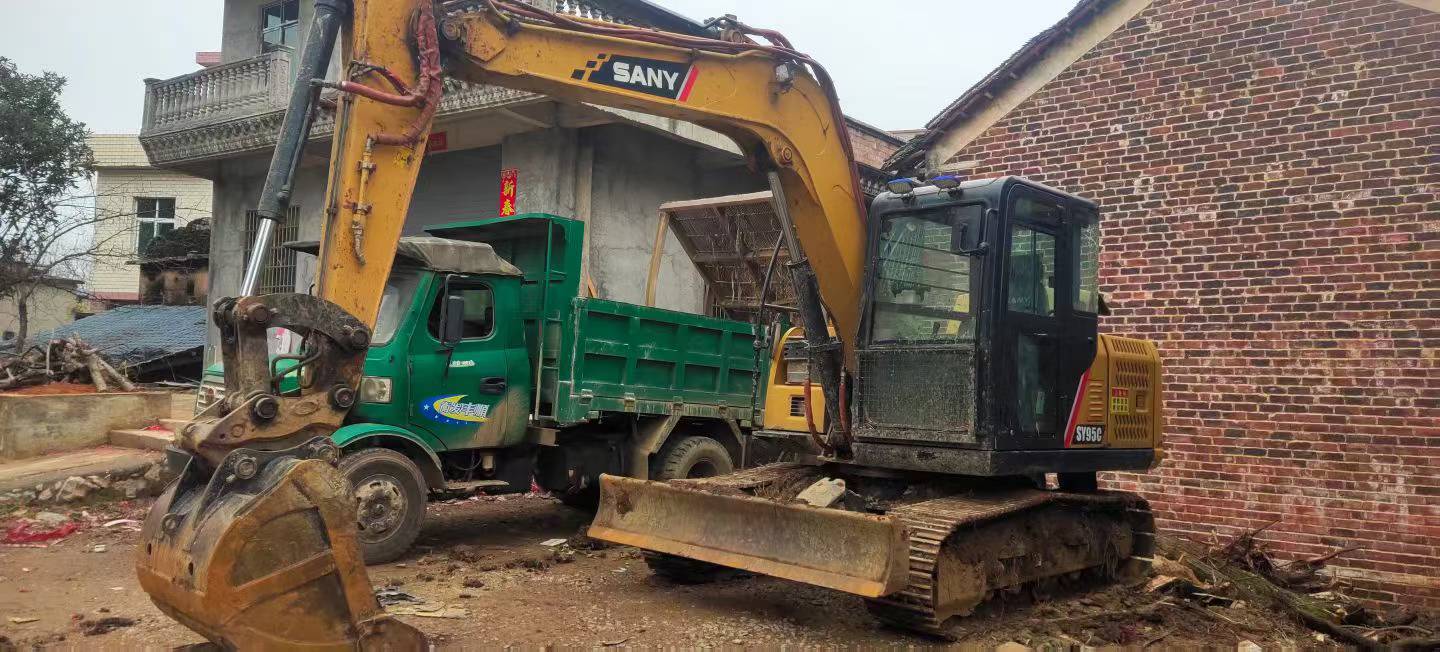

Built for precision and power, this 2020 Sany SY95C compact excavator delivers consistent performance across digging, grading, and demolition applications. Operating at 9 tons with a Kubota V3800DI-T-E3B engine producing 60.7 kW, this machine combines reliable water-cooled power with proven hydraulic efficiency. Maximum digging depth reaches 4,330 mm while maintaining a bucket digging force of 63.6 kN—ideal for foundation work, trenching, and material handling on confined job sites.

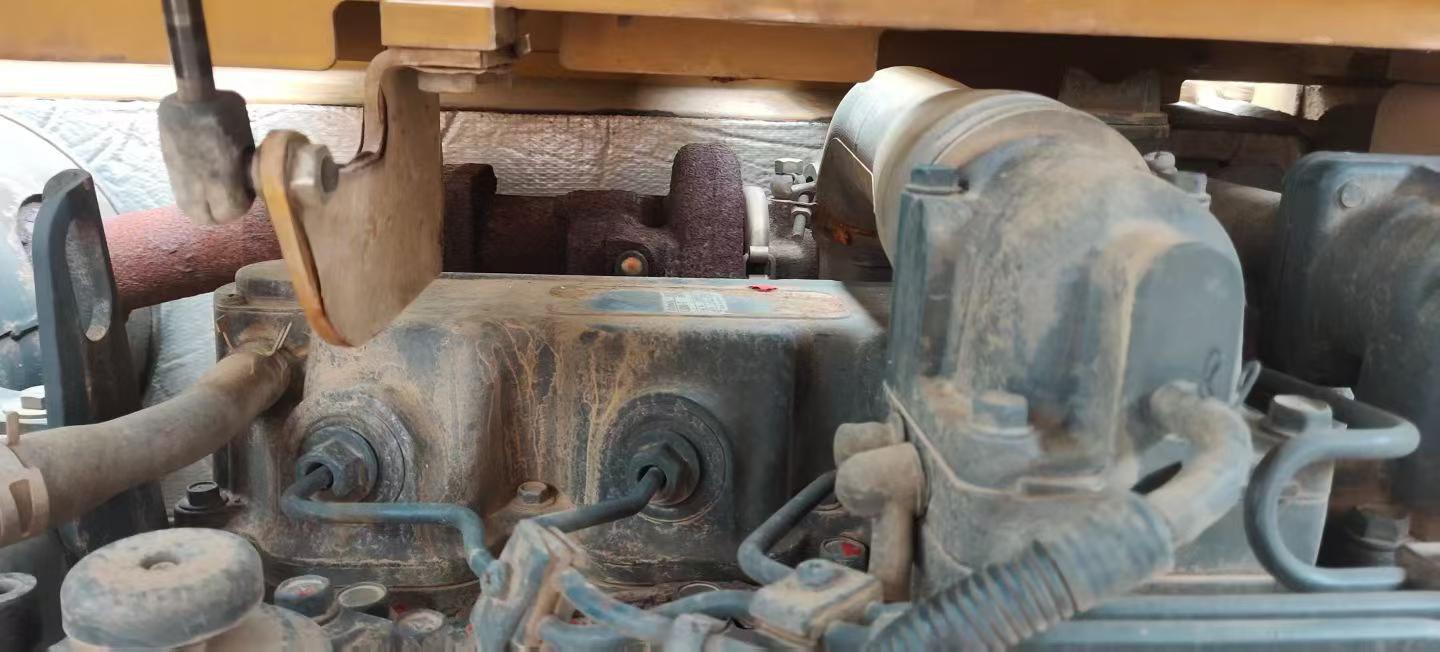

- Kubota diesel engine: 60.7 kW at 2,200 rpm with 305.4 N·m peak torque
- Digging reach extends to 6,660 mm with 5,210 mm unloading height
- Compact transport dimensions: 6,560 mm length, 2,260 mm width

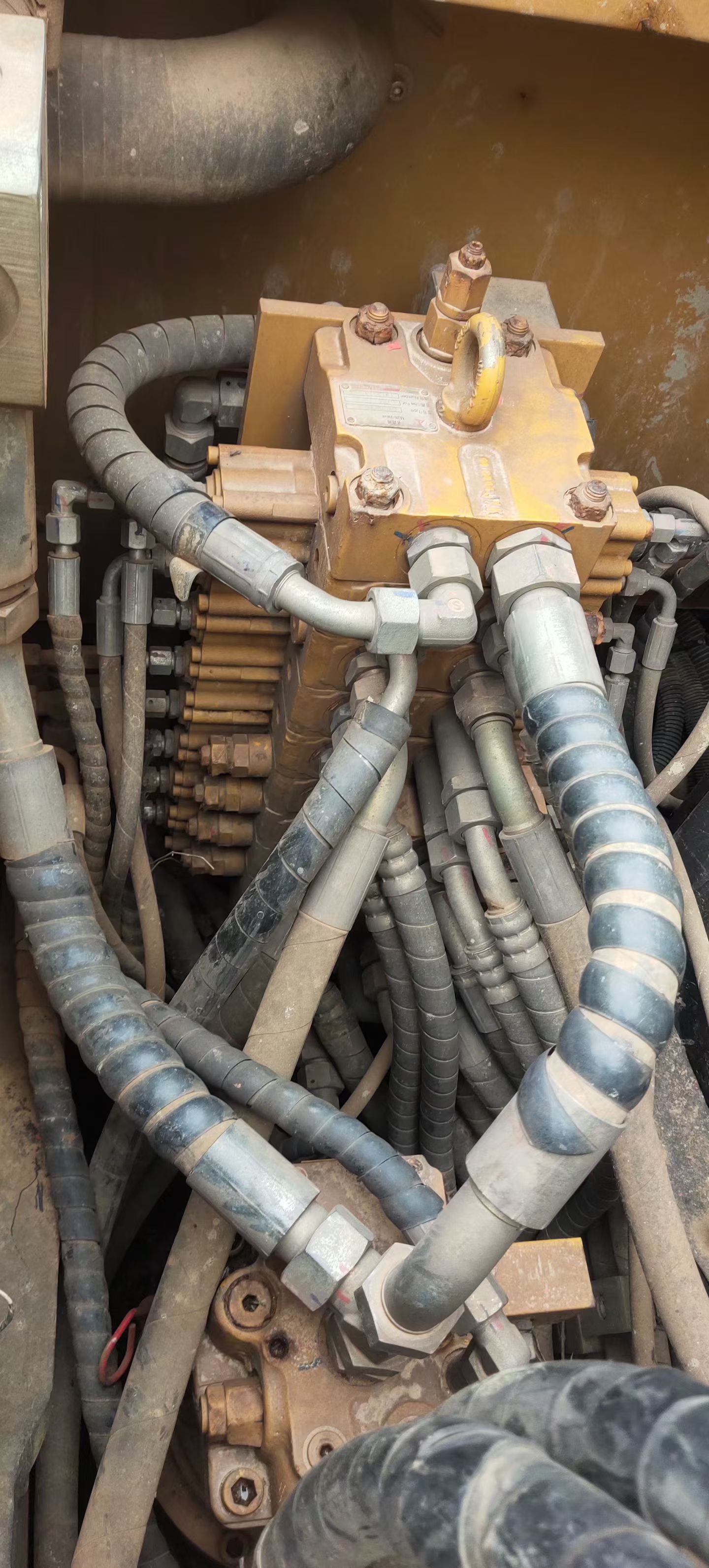

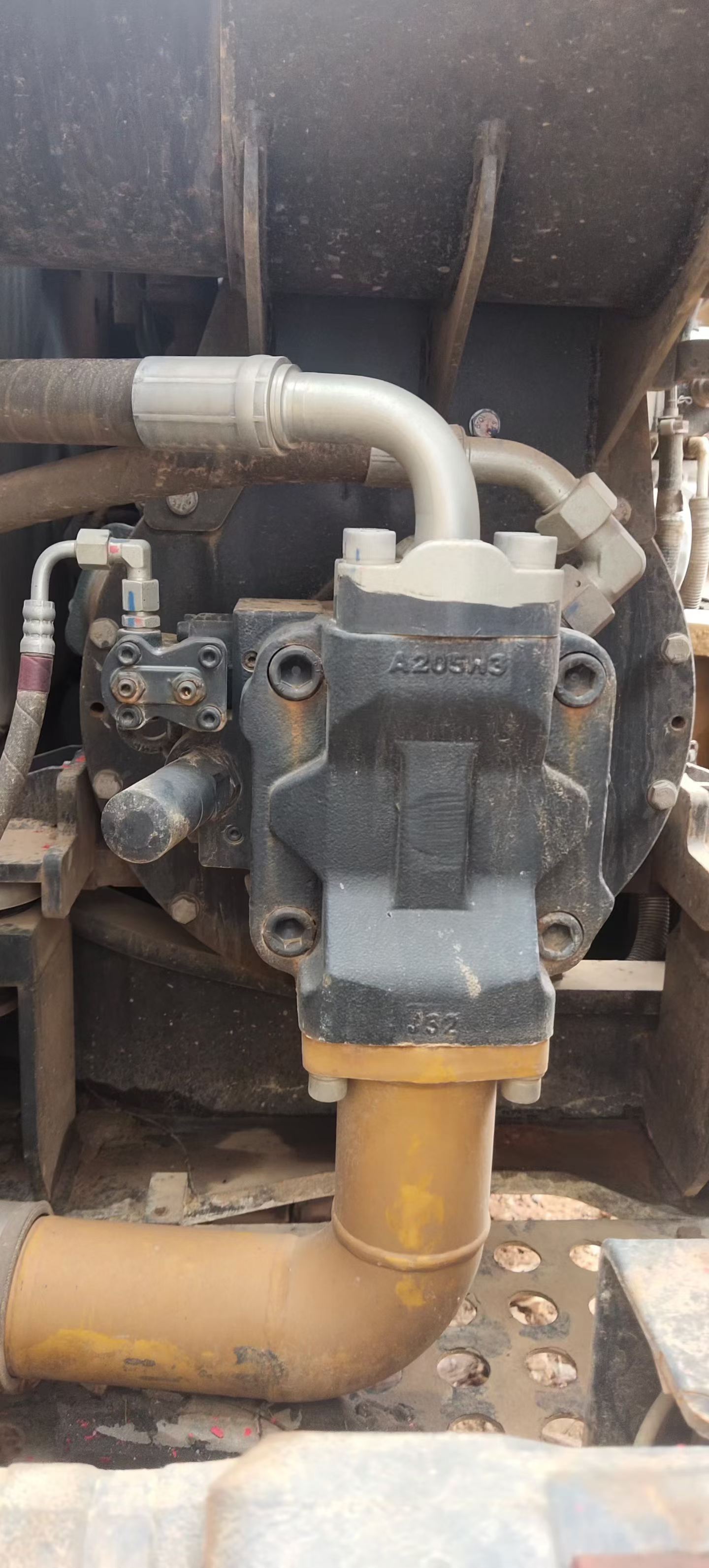

- Robust hydraulics: 63.6 kN bucket force, 46.8 kN arm force
- 70% gradeability and 11.2 rpm rotation speed for maneuverability
- Currently located in Hunan, China—ready for immediate deployment
This excavator arrives site-ready with standard backhoe configuration and 0.39 m³ bucket capacity. Designed for contractors requiring dependable performance in urban construction, utility installation, and landscaping projects where space constraints demand compact dimensions without sacrifi
| Specifications | Value |
|---|---|
| No. | 1019499 |
| Tonnage (tons) | 9 |
| Working weight (kg) | 9180 |
| Bucket capacity (m³) | 0.2-0.45 (0.39) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Kubota V3800DI-T-E3B |
| Rated power (kw/rpm) | 60.7/2200 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 305.4/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.769 |
| Ground specific pressure (Kpa) | 38.6 |
| Rotation speed (rpm) | 11.2 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 63.6 |
| Rod digging force (kN) | 46.8 |
| Travel speed (km/h) | 5.0/2.9 |
| Fuel Tank (L) | 160 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 6560 |
| Total transport width (mm) | 2260 |
| Total transport height (mm) | 2650 |
| Minimum ground clearance (mm) | 360 |
| Minimum turning radius of front working device (mm) | 1990 |
| Back end turning radius (mm) | 1885 |
| Onboard width (mm) | 2160 |
| Total track length (mm) | 2980 |
| Track gauge (mm) | 1810 |
| Track plate width (mm) | 450 |
| Maximum height at minimum turning radius (mm) | 5700 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 41 |
| Maximum digging radius (mm) | 6660 |
| Maximum digging depth (mm) | 4330 |
| Maximum excavation height (mm) | 7260 |
| Maximum unloading height (mm) | 5210 |
| Maximum vertical digging depth (mm) | 3080 |
| Bulldozer lift or depth (mm) | 330/330 |
| Dodging plate width × height (mm) | 420 (height) |
