2022 Sany SY95C

1/9

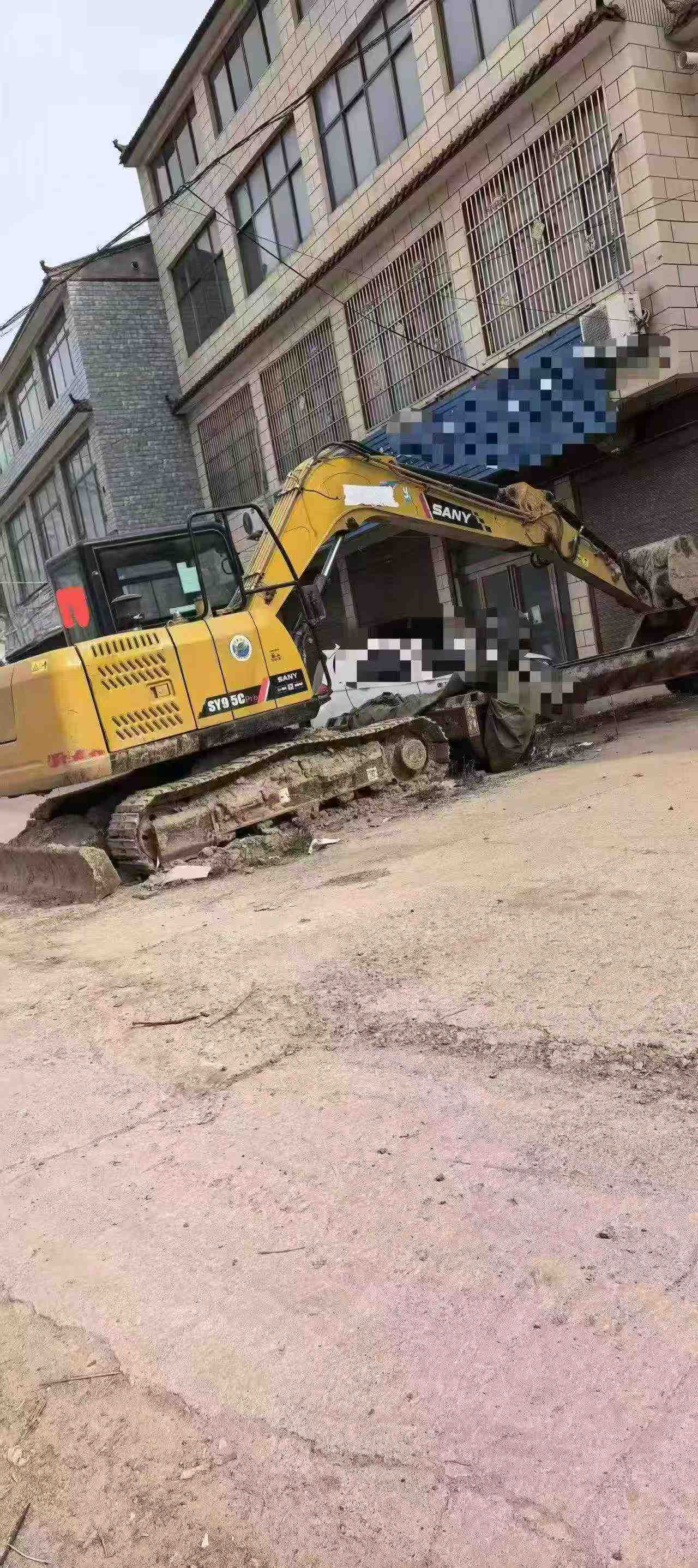

Buy Sany SY95C Used Excavator / 1

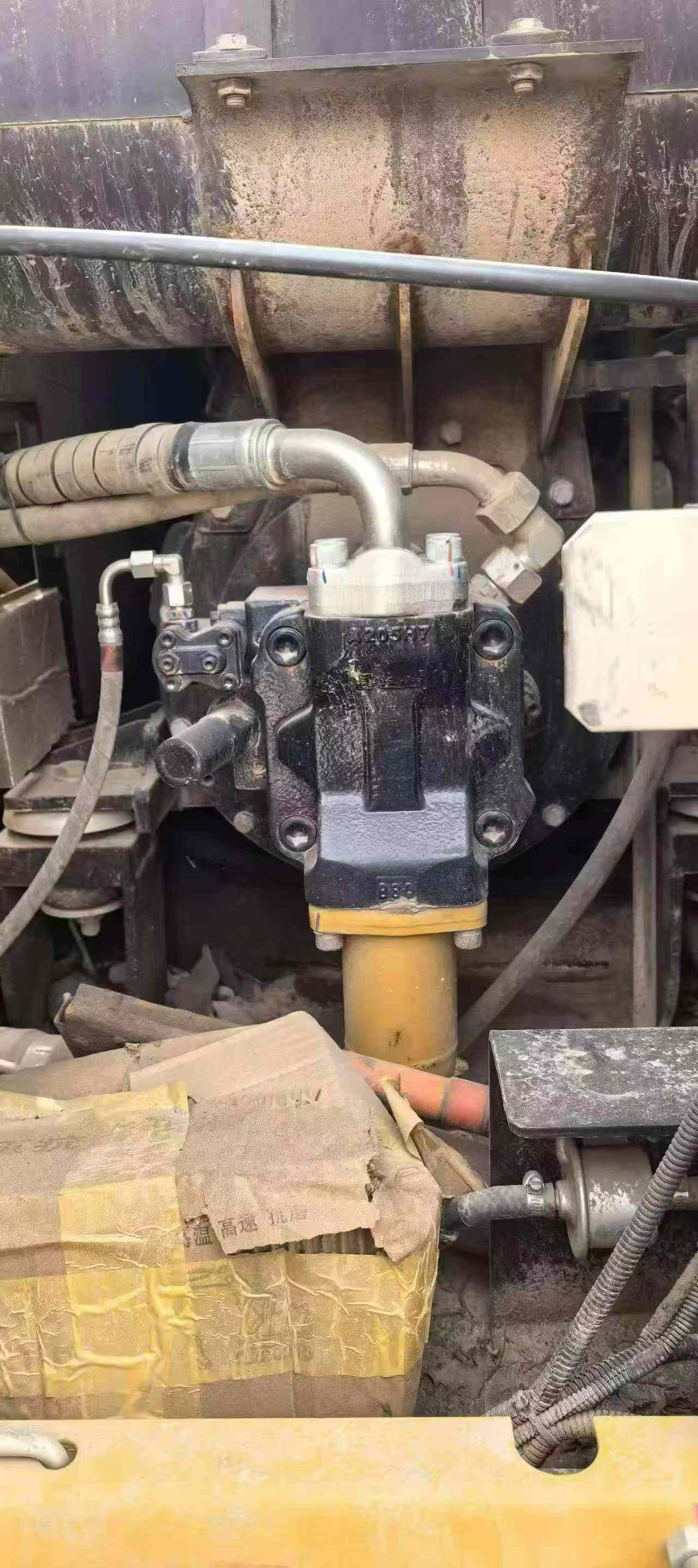

Buy Sany SY95C Used Excavator / 2

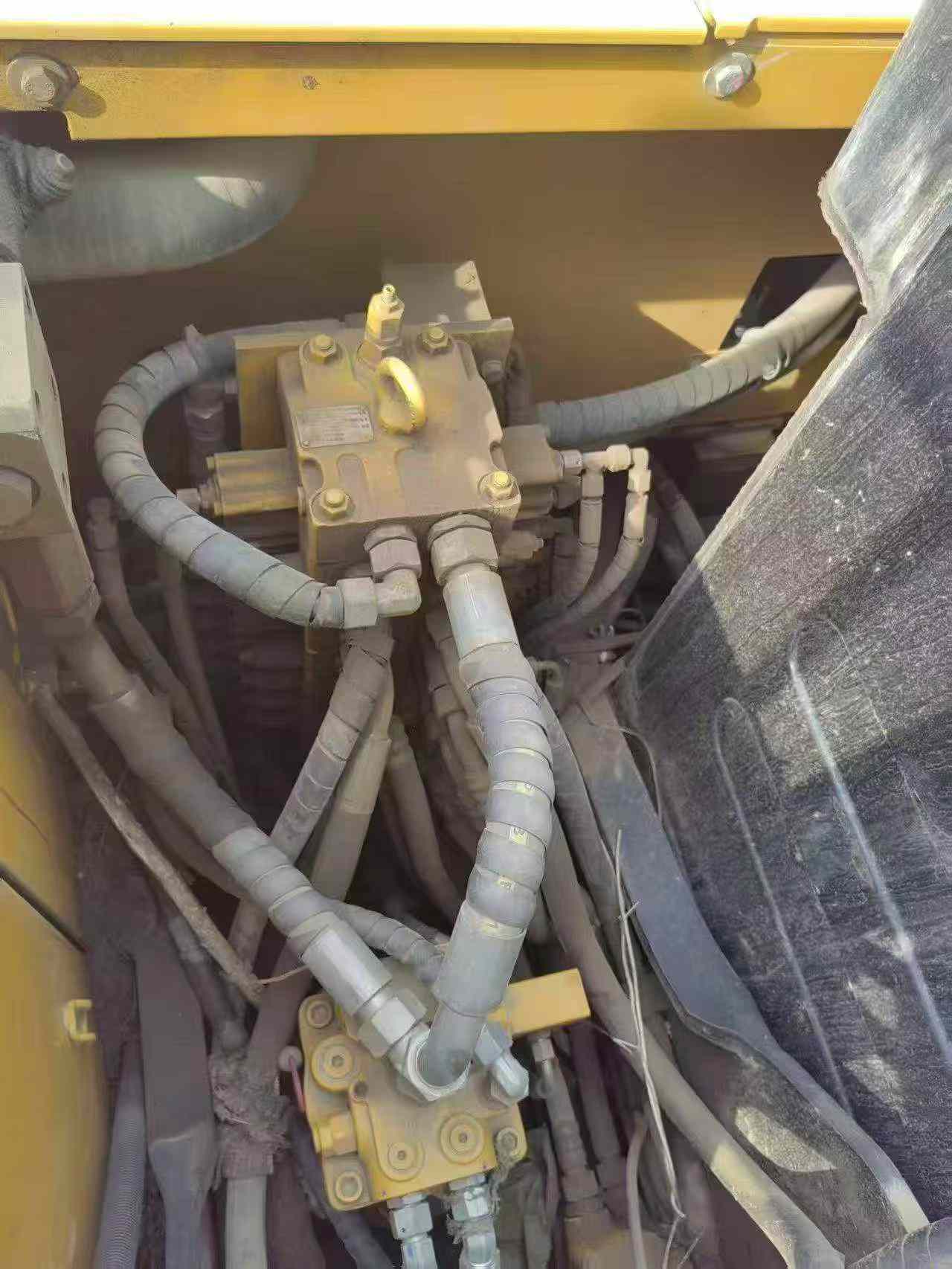

Buy Sany SY95C Used Excavator / 3

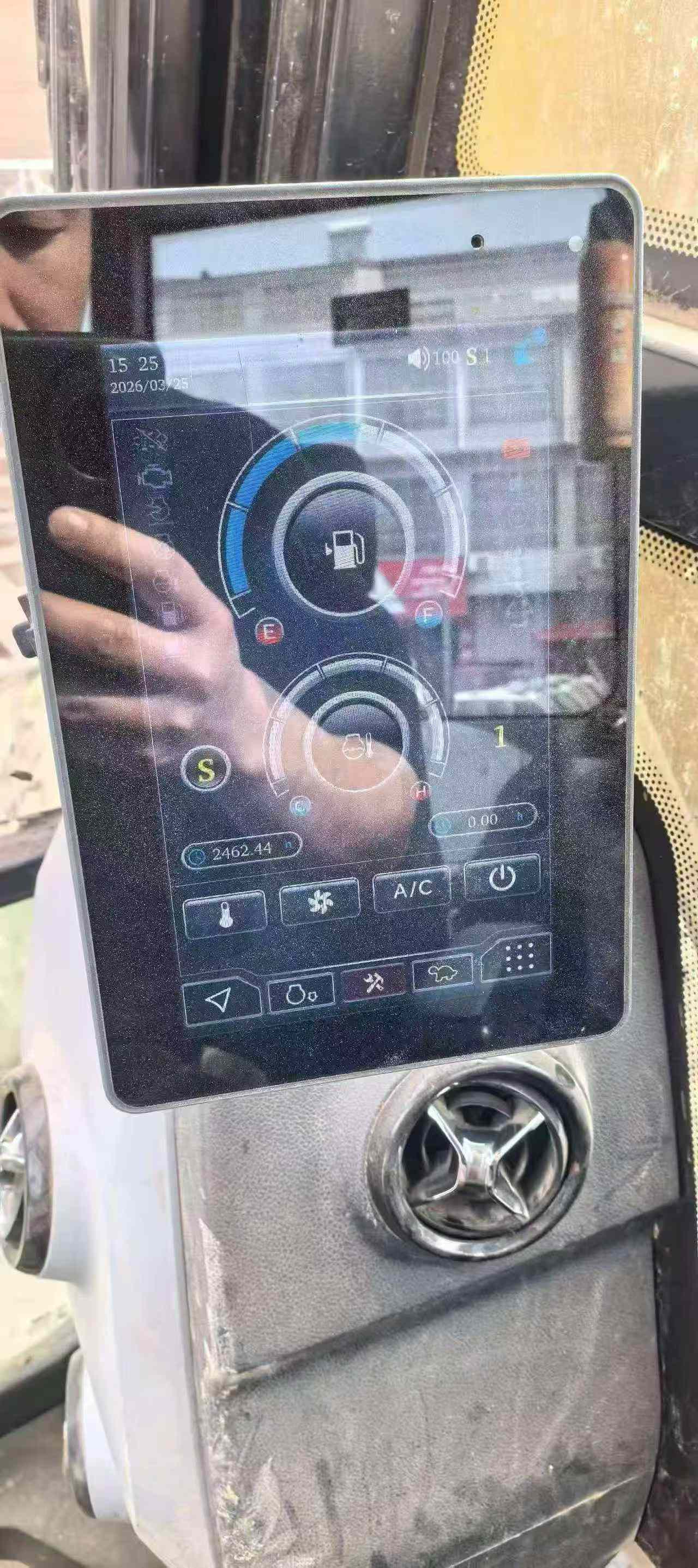

Buy Sany SY95C Used Excavator / 4
Buy Sany SY95C Used Excavator / 5

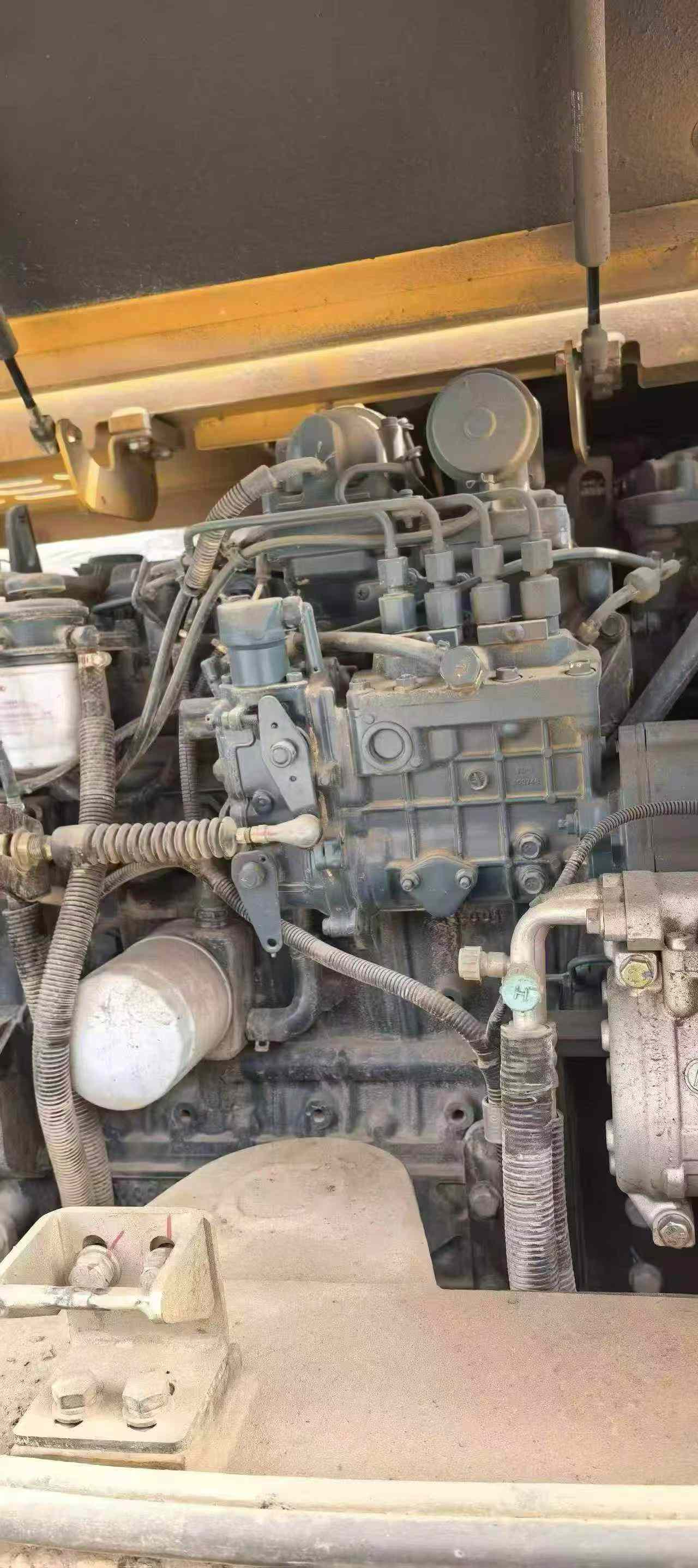

Buy Sany SY95C Used Excavator / 6

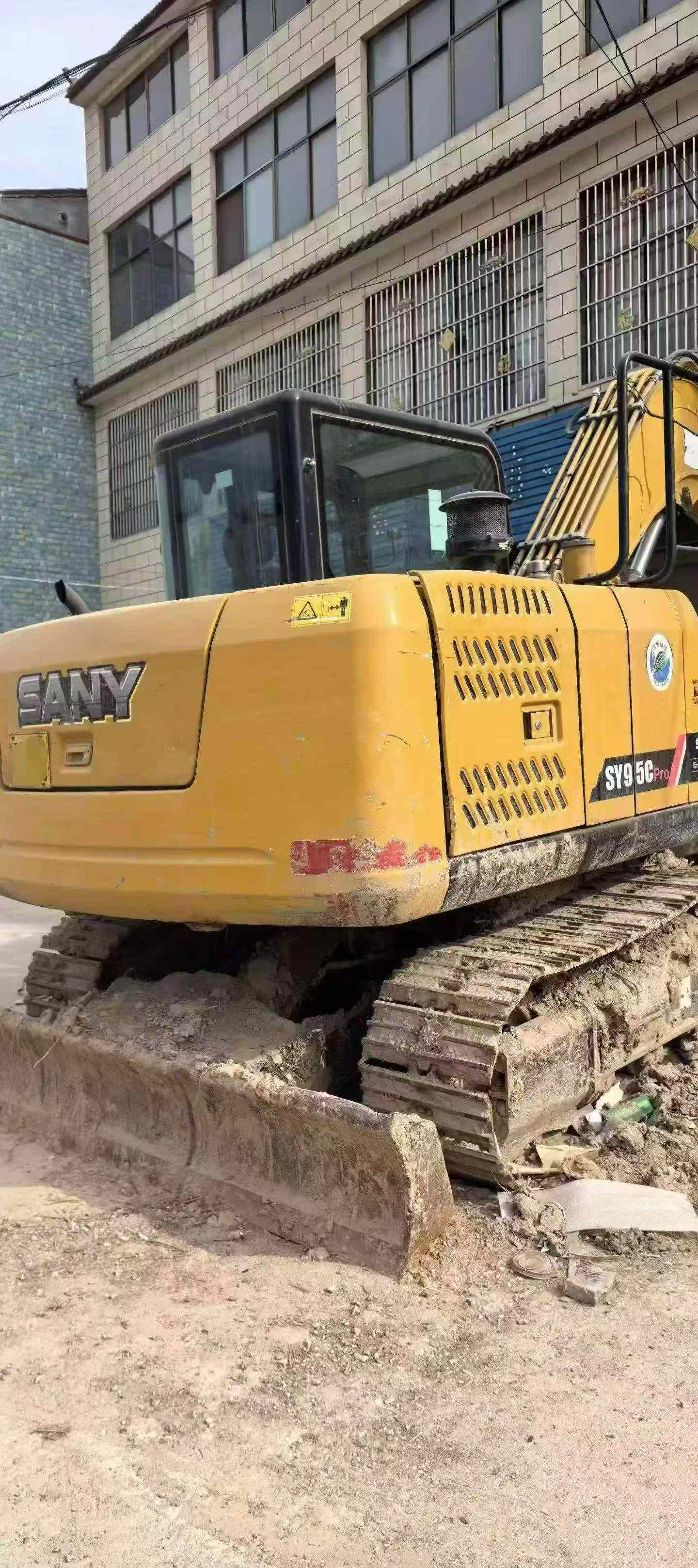

Buy Sany SY95C Used Excavator / 7

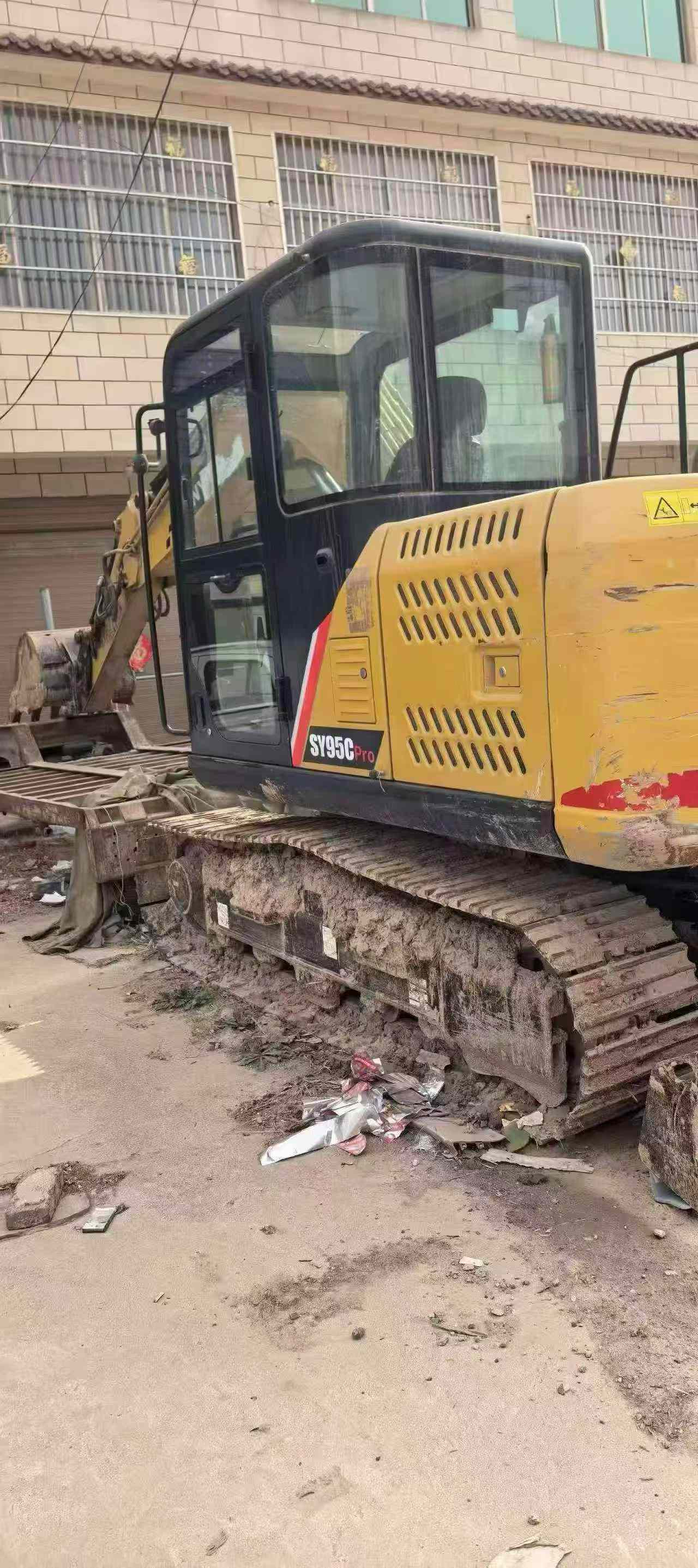

Buy Sany SY95C Used Excavator / 8

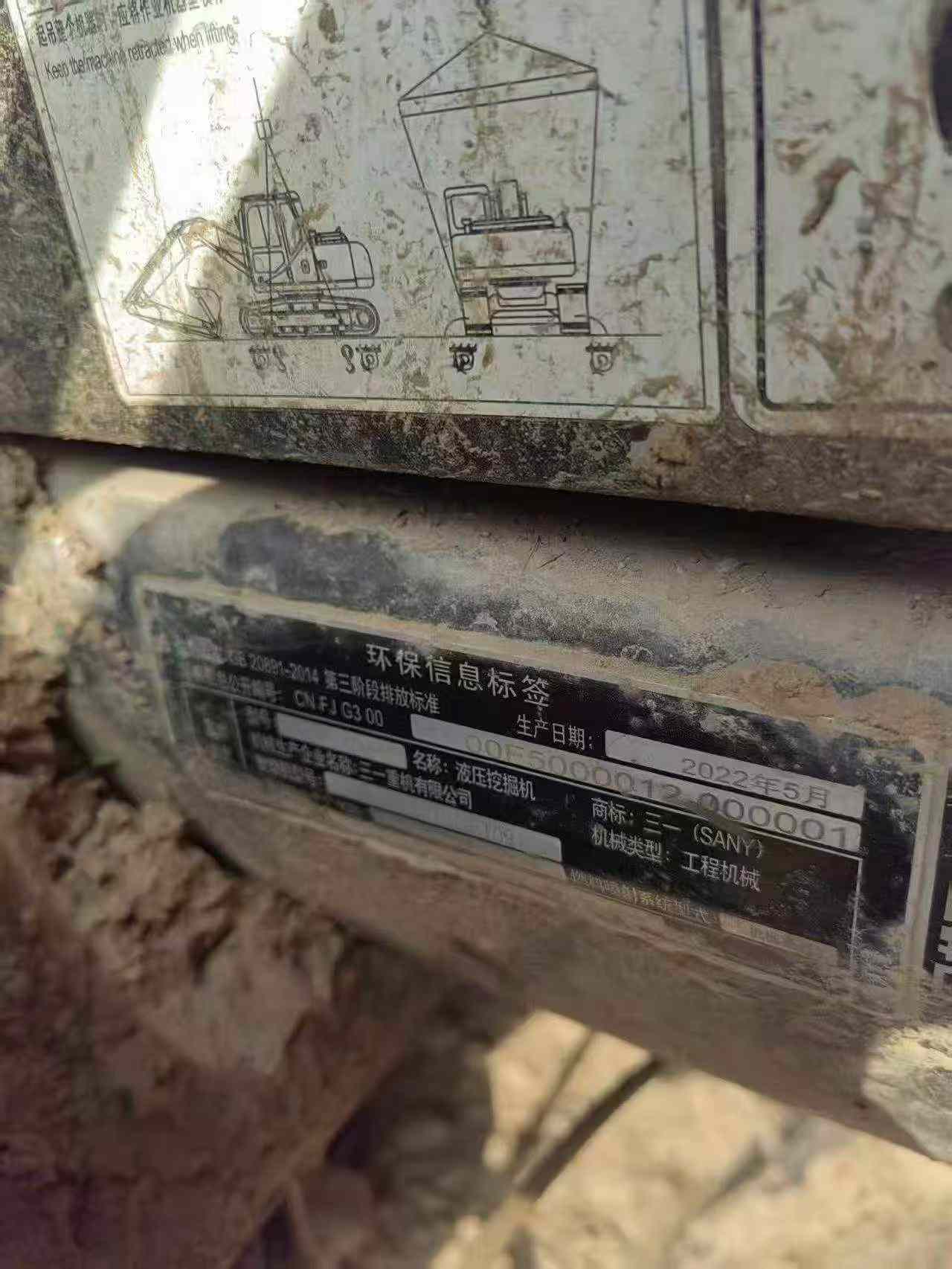

Buy Sany SY95C Used Excavator / 9

Product Description

Available now in Zhejiang Shaoxing, this 2022 Sany SY95C mini excavator delivers immediate deployment without factory wait times. Rated at 9 tons operating weight with a Kubota V3800DI-T-E3B engine producing 60.7 kW, this machine combines compact dimensions with robust digging performance. Skip months of lead time and move directly to site operations with a unit that's inspection-ready and priced for fast acquisition.

Engineered for versatile applications, this water-cooled excavator offers 6660 mm maximum digging reach and 4330 mm maximum depth. Transport dimensions of 6560 × 2260 × 2650 mm facilitate easy logistics across regional and international routes. With 0.39 m³ bucket capacity, 63.6 kN bucket digging force, and 11.2 rpm rotation speed, productivity begins the moment it arrives at your jobsite.

  • Operating weight: 9,180 kg with 450 mm track plates
  • Kubota diesel engine: 60.7 kW at 2,200 rpm, 305.4 N·m torque
  • Maximum digging height: 7,260 mm; unloading height: 5,210 mm
  • Fuel capacity: 160 L; hydraulic tank: 120 L
  • Fast deployment from Shaoxing—contact for immediate shipping arrangements
SpecificationsValue
No.1047249
Tonnage (tons)9
Working weight (kg)9180
Bucket capacity (m³)0.2-0.45 (0.39)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeKubota V3800DI-T-E3B
Rated power (kw/rpm)60.7/2200
Cooling modewater-cooling
Maximum torque (N.m)305.4/1600
Number of cylinders (PCS)4
Displacement (L)3.769
Ground specific pressure (Kpa)38.6
Rotation speed (rpm)11.2
Climbing ability (%)70% (35°)
Bucket digging force (kN)63.6
Rod digging force (kN)46.8
Travel speed (km/h)5.0/2.9
Fuel Tank (L)160
Hydraulic Tank (L)120
Engine Oil changes (L)12
Total transport length (mm)6560
Total transport width (mm)2260
Total transport height (mm)2650
Minimum ground clearance (mm)360
Minimum turning radius of front working device (mm)1990
Back end turning radius (mm)1885
Onboard width (mm)2160
Total track length (mm)2980
Track gauge (mm)1810
Track plate width (mm)450
Maximum height at minimum turning radius (mm)5700
Number of sprockets (single side) (each)1
Number of wheels (single side) (each)5
Number of track plates (single side) (PCS)41
Maximum digging radius (mm)6660
Maximum digging depth (mm)4330
Maximum excavation height (mm)7260
Maximum unloading height (mm)5210
Maximum vertical digging depth (mm)3080
Bulldozer lift or depth (mm)330/330
Dodging plate width × height (mm)420 (height)
see more

Overview

No.1047249

Brand Name:

Sany

Model Number:

SY95C

Year:

2022

Location:

Zhejiang China

Pub Date
