Product Description

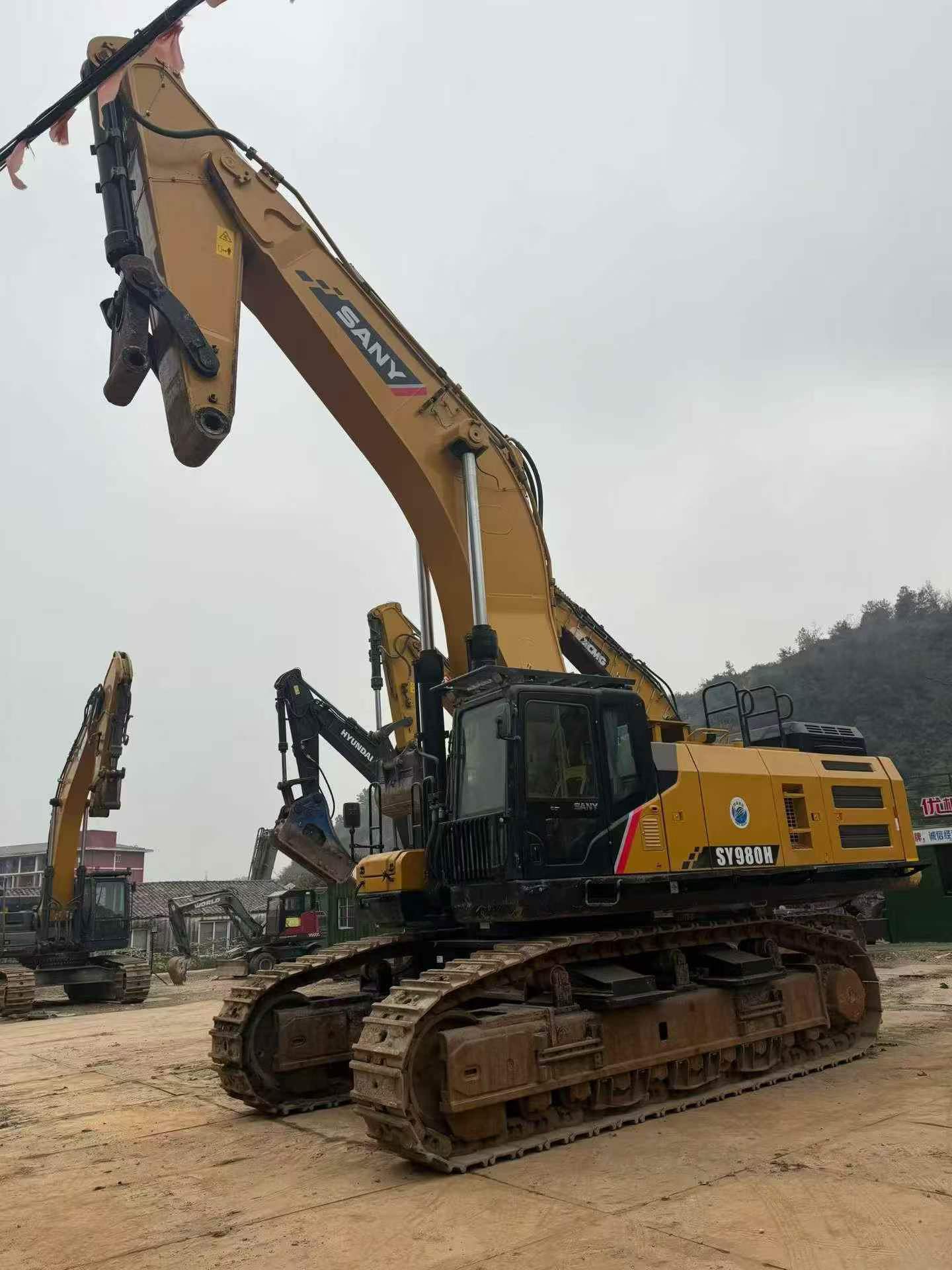

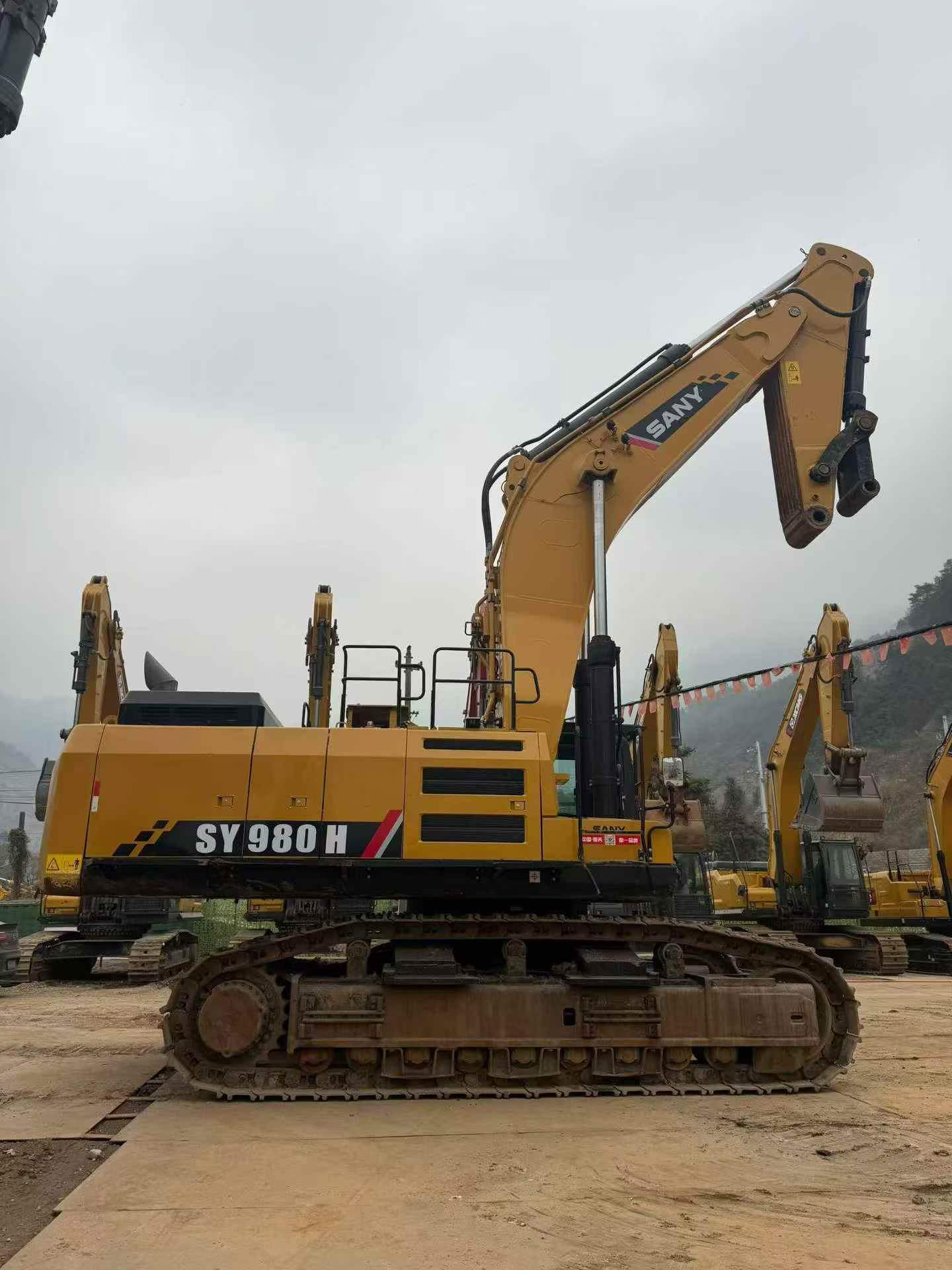

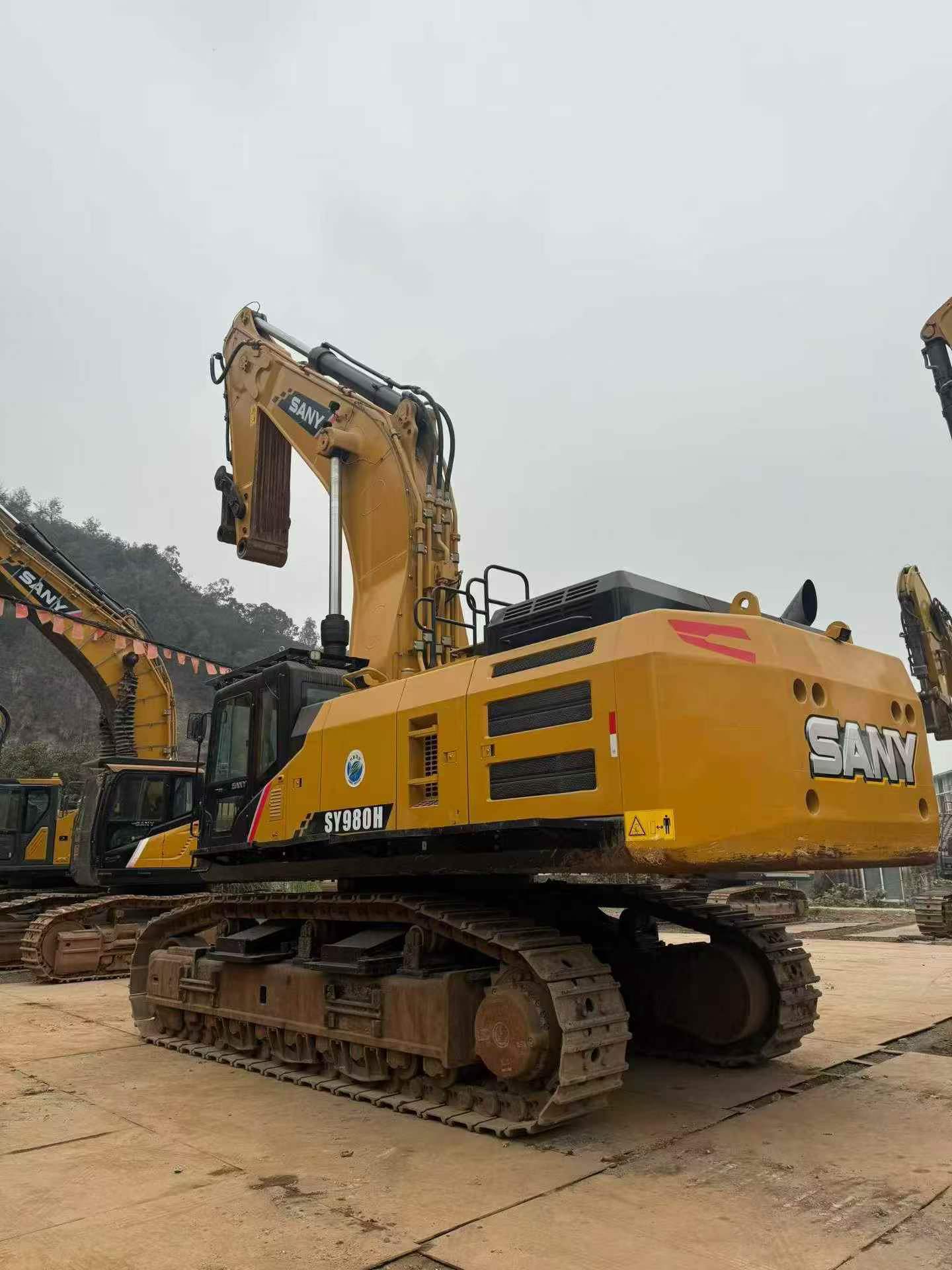

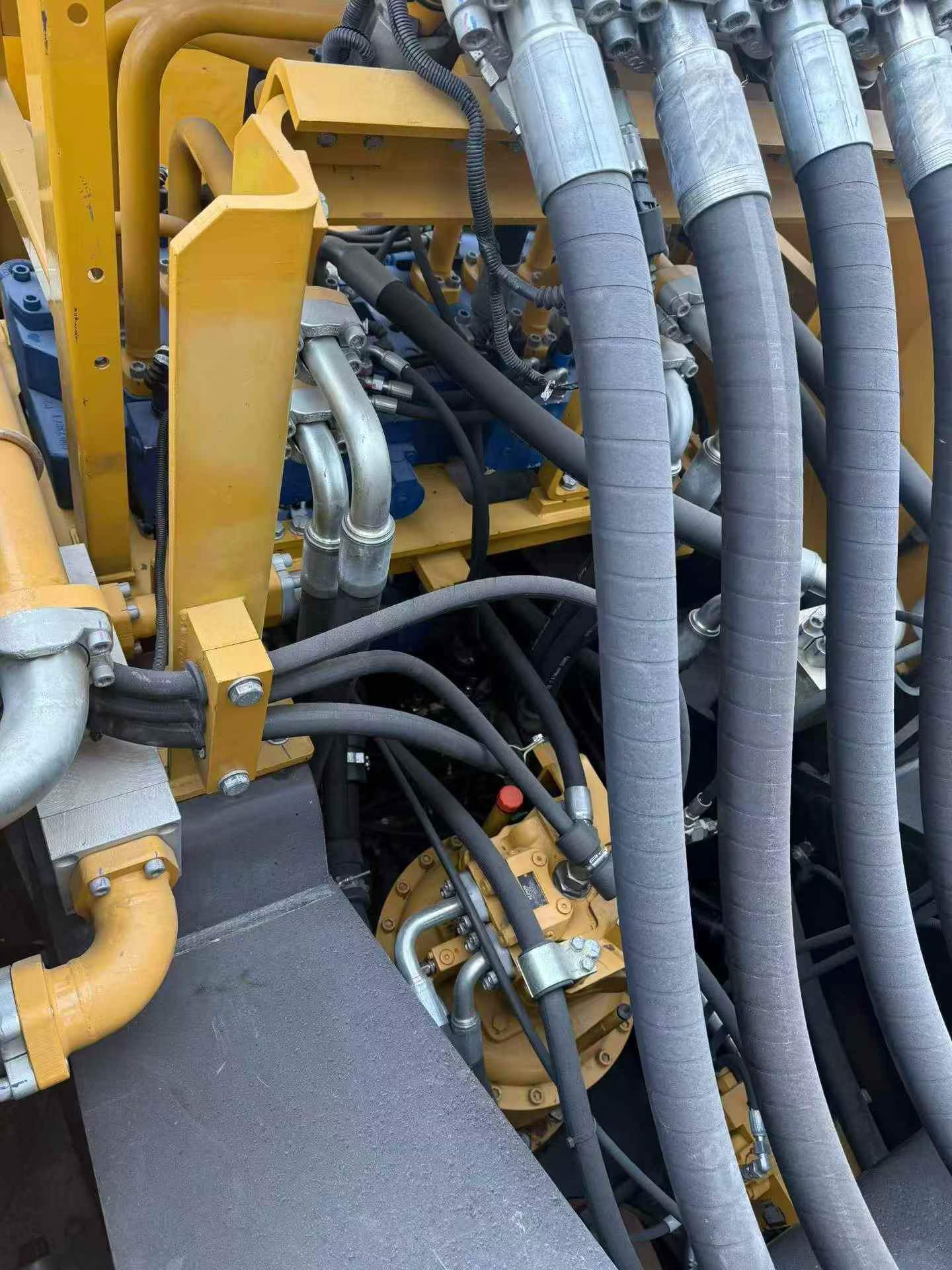

Discover the 2021 Sany SY980H, a robust and reliable heavy machine currently located in Zhejiang, China. With a genuine operational record of 8,000 hours, this nearly 100-ton excavator is in impeccable condition, offering unparalleled performance and durability. This model comes with a warranty, ensuring peace of mind for your investment. Whether you need it equipped with a hammer or a bucket, this versatile machine is ready to meet your project demands. For more details and to discuss your specific requirements, please contact us directly.
- Year: 2021
- Brand: Sany
- Model: SY980H
- Operational Hours: 8,000
- Location: Zhejiang, China
- Warranty Included
- Options for Hammer or Bucket
| Specifications | Value |
|---|---|
| No. | 1088590 |
| Tonnage (tons) | 98 |
| Working weight (kg) | 95800 |
| Bucket capacity (m³) | 5.5~6.5 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 425/1800 |
| Maximum torque (N.m) | 945 |
| Ground specific pressure (Kpa) | 132 |
| Rotation speed (rpm) | 7 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 495 |
| Rod digging force (kN) | 446 |
| Travel speed (km/h) | 3.4/2.3 |
| Total transport length (mm) | 13840 |
| Total transport width (mm) | 3700/4460 |
| Total transport height (mm) | 5300 |
| Full cab height (mm) | 3880 |
| Minimum ground clearance (mm) | 945 |
| Minimum turning radius of front working device (mm) | 5010 |
| Back end turning radius (mm) | 4700 |
| Onboard width (mm) | 3480 |
| Total track length (mm) | 6350 |
| Track gauge (mm) | 2750 (Operations) /3510 (Transportation) |
| Track plate width (mm) | 650 |
| Track ground length (mm) | 5070 |
| Maximum height at minimum turning radius (mm) | 10580 |
| Maximum digging radius (mm) | 12280 |
| Maximum digging depth (mm) | 6740 |
| Maximum excavation height (mm) | 12310 |
| Maximum unloading height (mm) | 8345 |
| Maximum vertical digging depth (mm) | 4250 |
