Product Description

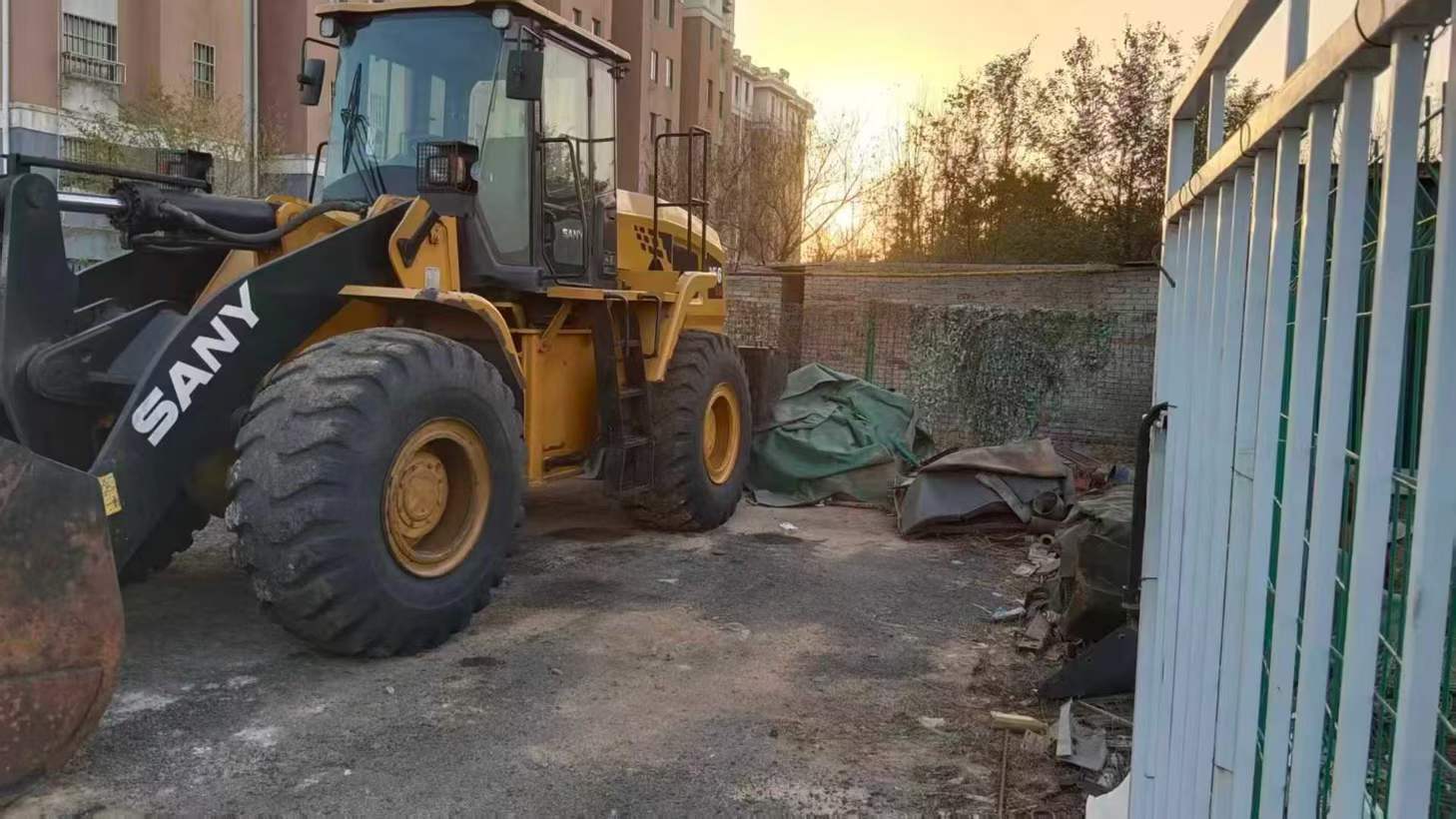

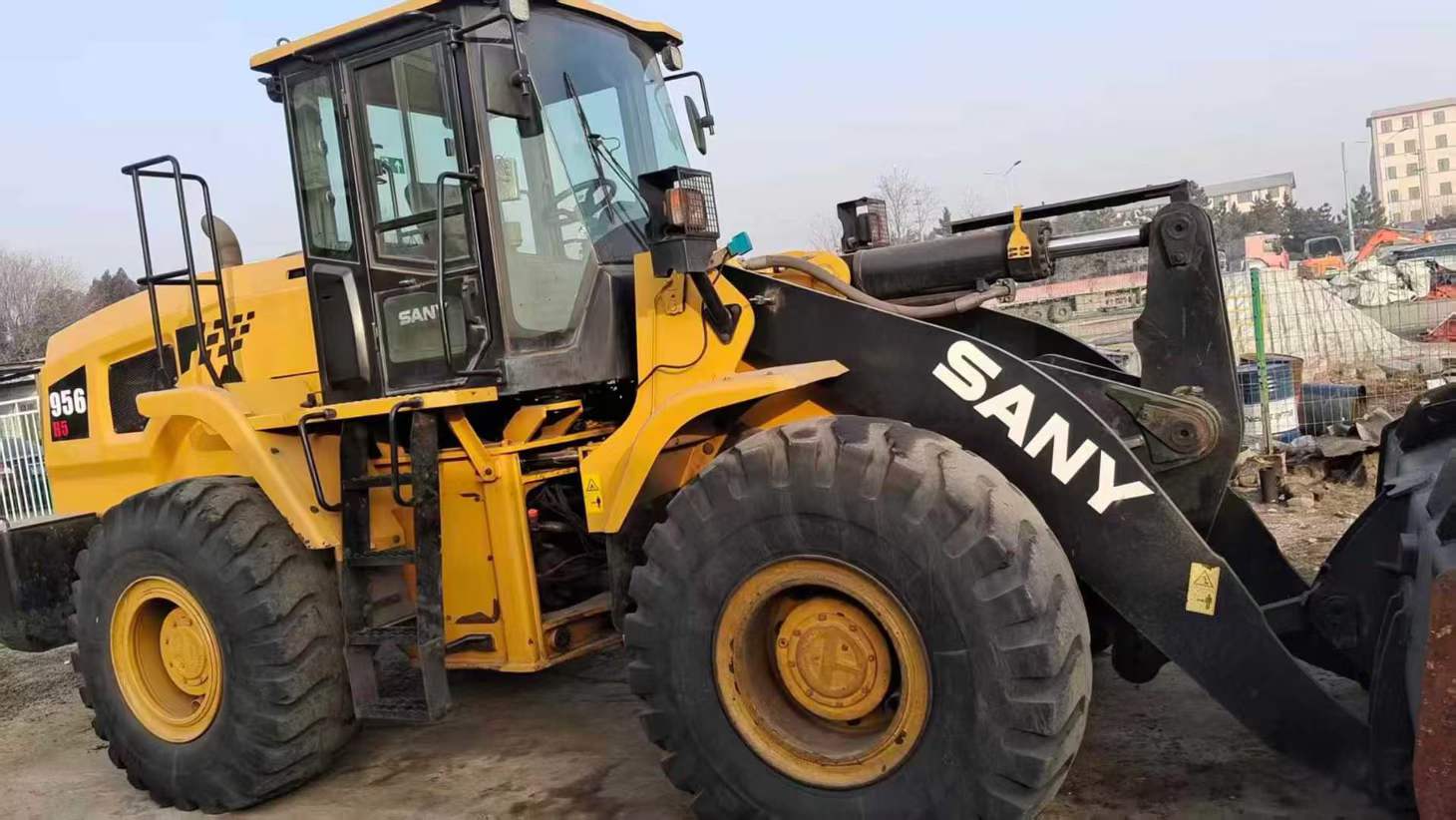

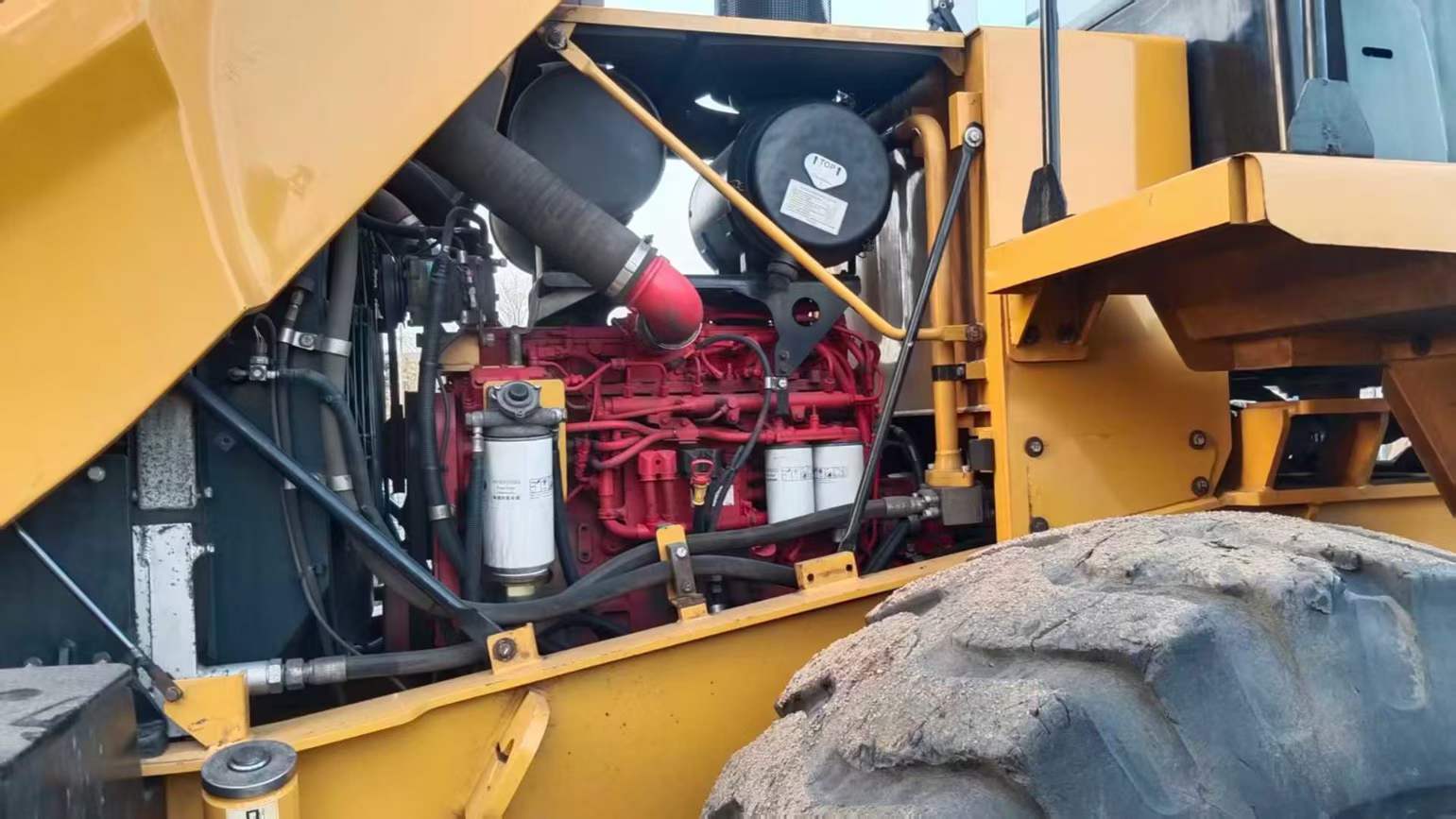

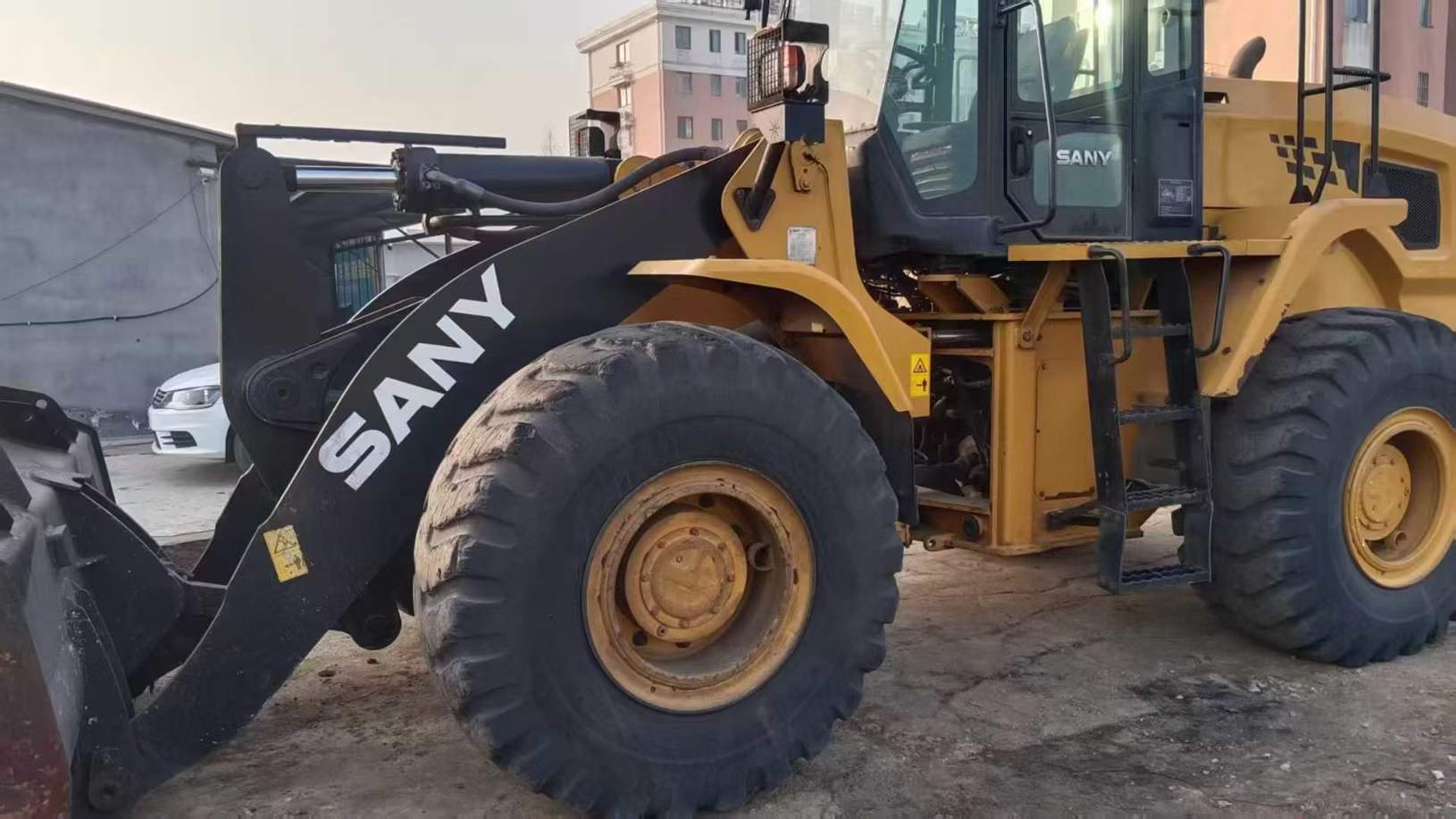

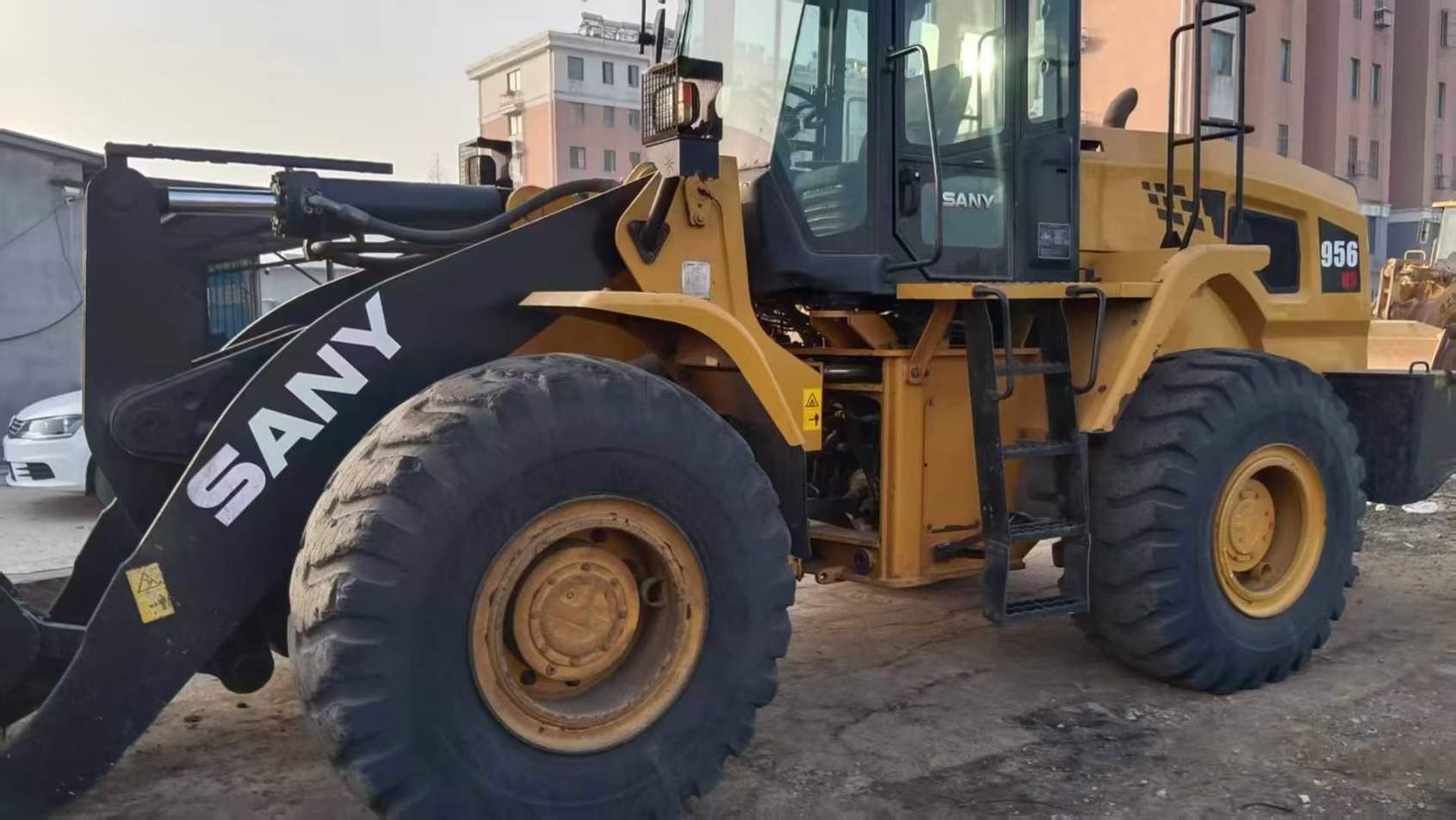

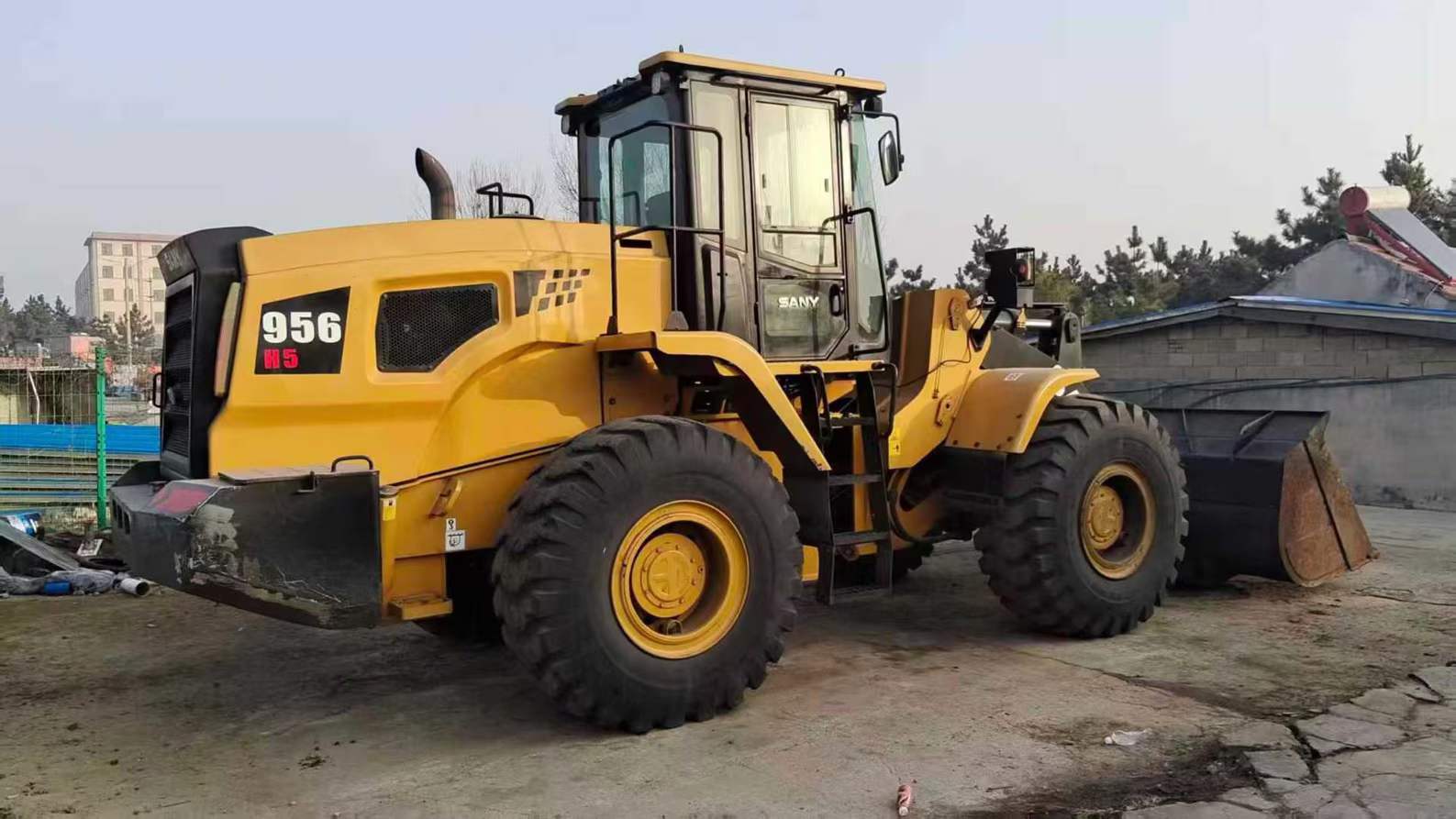

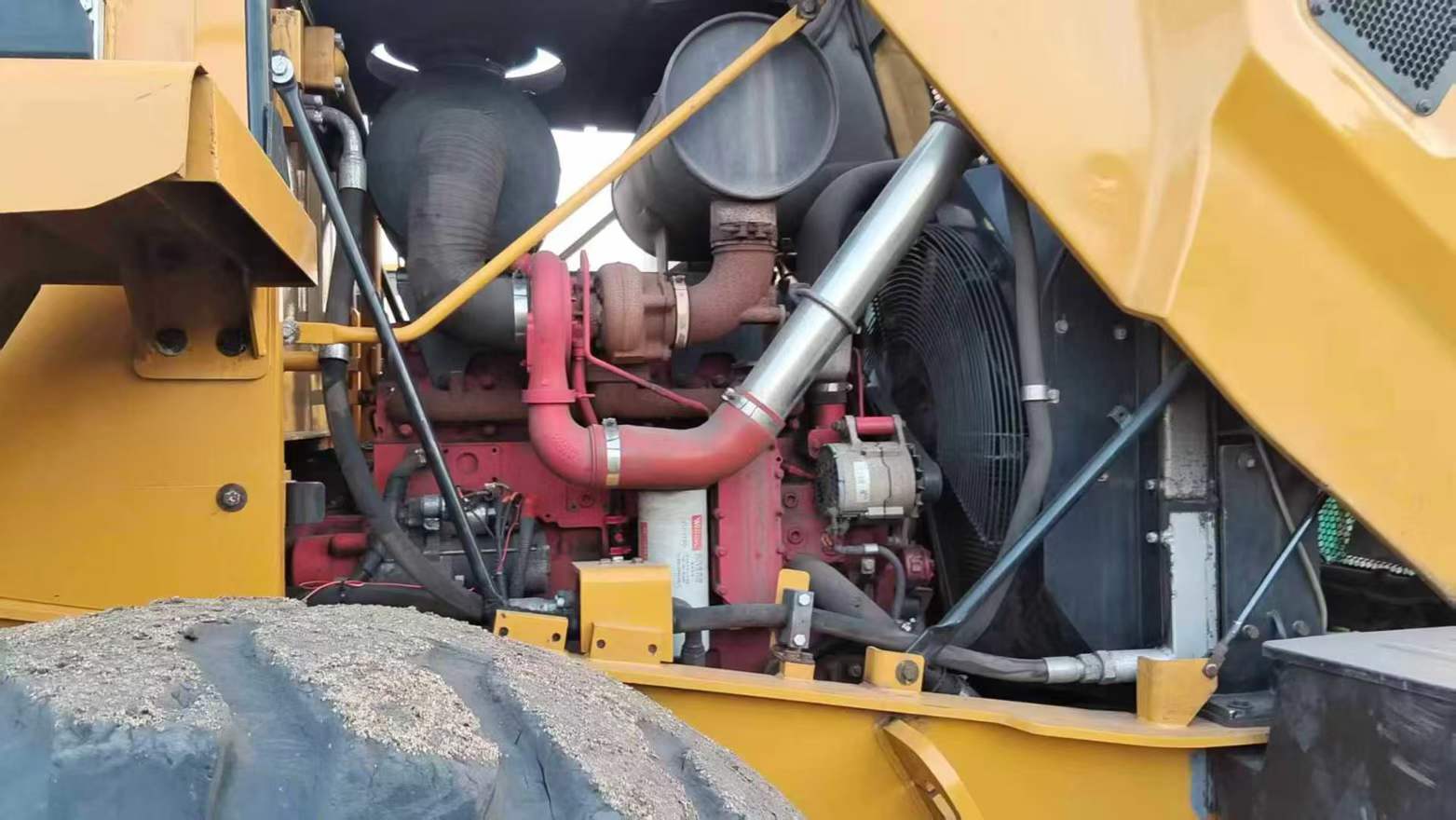

With a robust QSL8.9-C220-III engine delivering 164 kW of power, this 2016 Sany SYL956H loader is an ideal fleet addition for contractors seeking reliable performance and durability. Located in 山东菏泽, it boasts a maximum torque of 1000 N.m, ensuring efficient operation under heavy loads. Its 5000 kg rated load capacity and 180 kN digging force make it suitable for a variety of demanding tasks. The machine's 300 L fuel tank and 220 L hydraulic tank support extended operational hours, reducing downtime. At 8055 mm in length and 3480 mm in width, it maneuvers with ease, thanks to a 5800 mm minimum turning radius. This loader is designed to integrate seamlessly into your existing fleet, providing the backup you need to keep projects on schedule.
| Specifications | Value |
|---|---|
| No. | 1002786 |
| Engine type | QSL8.9-C220-III |
| Rated power (kw/rpm) | 164/2200 |
| Maximum torque (N.m) | 1000 |
| Exhaust volume (L) | 1.642 |
| Bucket capacity (m³) | |
| Rated load (tons) | |
| Rated load (kg) | 5000 |
| Digging force (lifting force) (kN) | 180 |
| Machine operating weight (kg) | |
| Max - Unloading height (mm) | |
| Unloading distance (mm) | 1215 |
| Maximum tractive force (kN) | 170 |
| Distance from rear axle to hinge point (mm) | 1600 |
| Fuel Tank (L) | 300 |
| Hydraulic Tank (L) | 220 |
| Coolant (L) | 45 |
| Wheelbase (mm) | 3200 |
| Wheel base (mm) | 2200 |
| Minimum ground clearance (mm) | |
| Machine length (mm) | 8055 |
| Machine width (mm) | 3480 |
| Machine height (mm) | 2825 |
| Bucket width (mm) | 3000 |
| Steering Angle | |
| Minimum turning radius of outer wheel center line | 5800 |
| Turning radius - Outside of bucket (mm) | |
| Ternary sum (s) | |
| Maximum speed (km/h) | 7.1 |
