Product Description

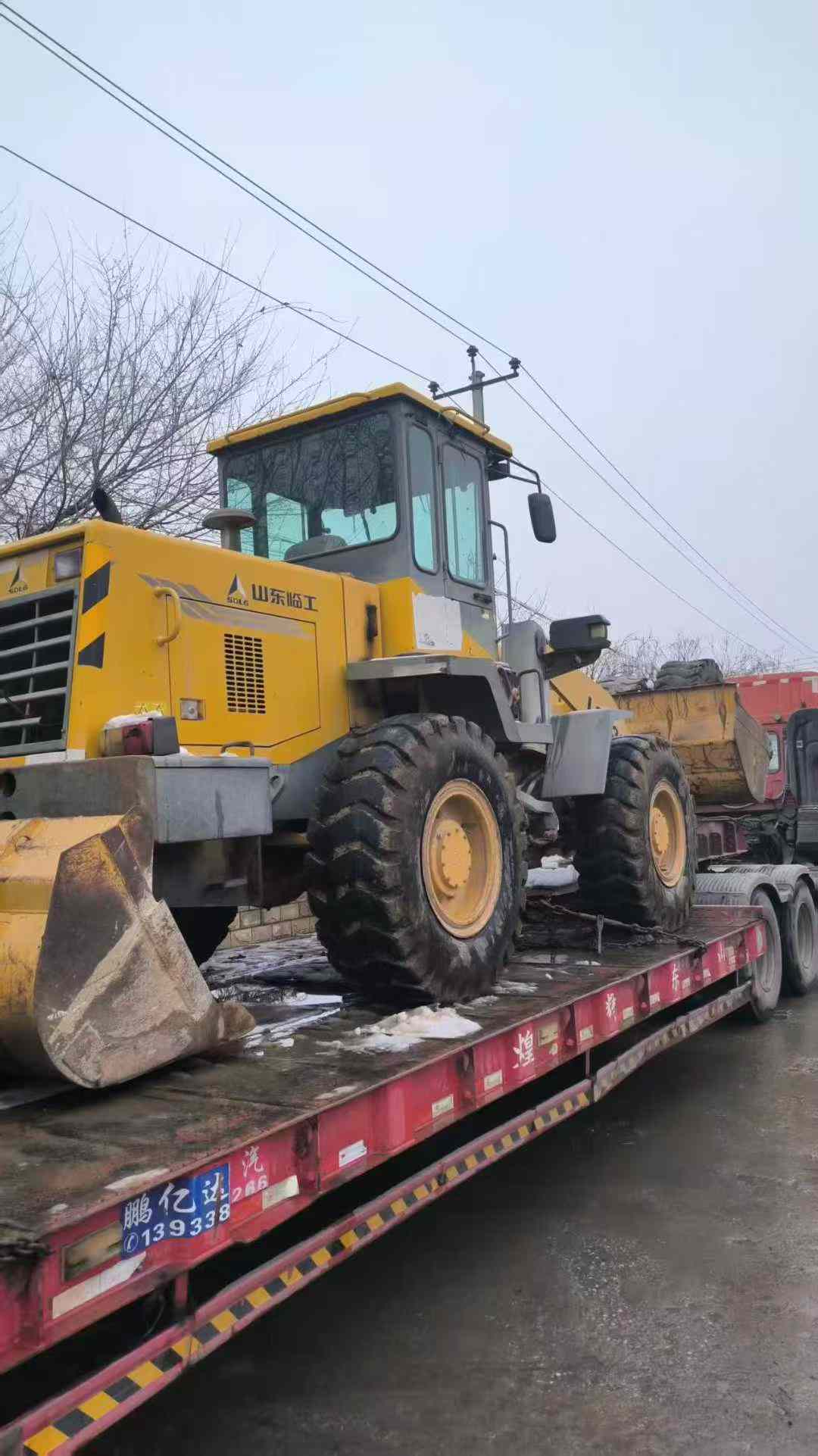

Secure proven performance without the premium price tag with this 2007 SDLG L933 wheel loader, currently available in Baoding, Hebei. Engineered for mid-range construction and material handling operations, this machine delivers 92kW of rated power at 2300 rpm with a robust 530 N·m maximum torque, providing reliable productivity across demanding jobsites.
Key specifications include:
- Rated load capacity: 3,000 kg with 96 kN digging force
- Operating weight: 10,150 kg for optimal stability
- Maximum unloading height: 2,950 mm with 1,050 mm reach
- Compact dimensions: 7,100 mm length, 2,520 mm width, 3,240 mm height
- Top speed: 41 km/h for efficient site mobility
- Fuel capacity: 160L for extended operating shifts
Investing in quality used equipment means accessing industrial-grade capabilities at a fraction of new equipment costs. This L933 represents smart capital allocation for contractors seeking dependable loader performance while preserving budget for additional fleet assets or operational expenses.
| Specifications | Value |
|---|---|
| No. | 1020973 |
| Engine type | |
| Rated power (kw/rpm) | 92/2300 |
| Maximum torque (N.m) | 530 |
| Exhaust volume (L) | 6.494/6.75 |
| Bucket capacity (m³) | |
| Rated load (tons) | |
| Rated load (kg) | 3000 |
| Digging force (lifting force) (kN) | 96 |
| Machine operating weight (kg) | 10150 |
| Max - Unloading height (mm) | 2950 |
| Unloading distance (mm) | 1050 |
| Maximum tractive force (kN) | 96 |
| Fuel Tank (L) | 160 |
| Hydraulic Tank (L) | 136/130 |
| Engine Oil (L) | 17/18 |
| Wheelbase (mm) | 2850 |
| Wheel base (mm) | 1865 |
| Minimum ground clearance (mm) | 375 |
| Machine length (mm) | 7100 |
| Machine width (mm) | 2520 |
| Machine height (mm) | 3240 |
| Steering Angle | 36 |
| Minimum turning radius of outer wheel center line | 5375 |
| Turning radius - Outside of bucket (mm) | 6180 |
| Ternary sum (s) | 9 |
| Speed 1 gear (km/h) | |
| Speed 2 (km/h) | |
| Speed 3 (km/h) | |
| Speed 4 (km/h) | |
| Maximum speed (km/h) | 41 |
