Product Description
This 2014 SDLG L952 wheel loader with extended boom configuration offers reliable performance for material handling operations. Manufactured by one of China's established construction equipment brands, this model features enhanced reach capabilities through its extended arm design, making it particularly suitable for loading trucks, stockpiling materials, and general earthmoving tasks.
Currently located in Henan, China, this machine represents a cost-effective solution for operations requiring dependable loading capacity. The L952 is known for its robust construction and straightforward maintenance requirements, characteristics that have made SDLG equipment popular in demanding work environments worldwide.
- Year of Manufacture: 2014
- Model: SDLG L952
- Configuration: Extended boom
- Location: Henan Province, China
- Suitable for: Loading, material handling, earthmoving applications
Available for inspection by serious buyers. Contact us for detailed specifications, current condition assessment, and competitive export pricing.
| Specifications | Value |
|---|---|
| No. | 1070488 |

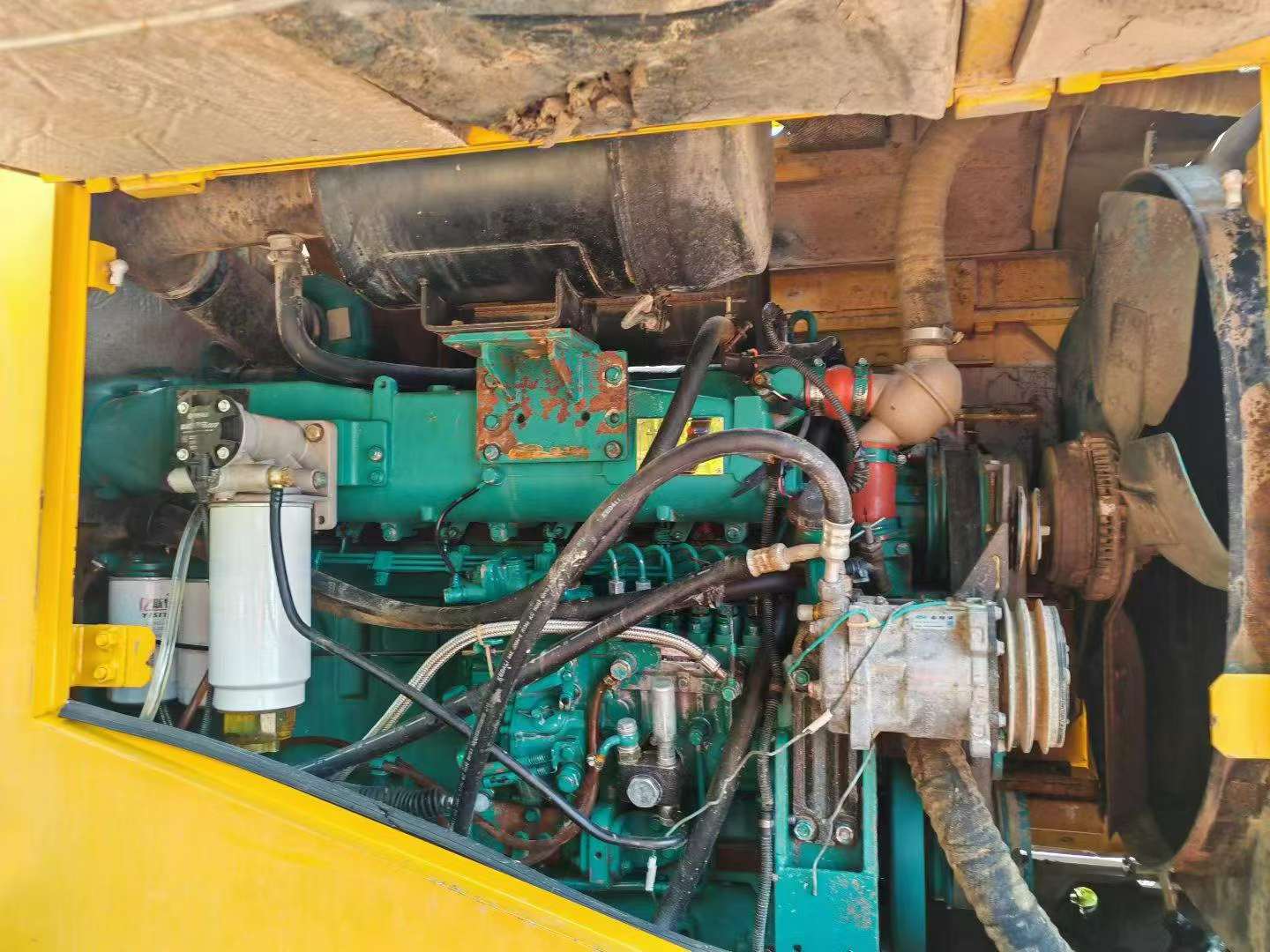

| Engine type | WP10G220E343 |
| Rated power (kw/rpm) | 162/2000 |
| Cooling mode | |
| Maximum torque (N.m) | 980 |
| Working form | |
| Exhaust volume (L) | 9.726 |
| Bucket capacity (m³) | |
| Rated load (tons) | |
| Rated load (kg) | 5000 |
| Digging force (lifting force) (kN) | 170 |
| Machine operating weight (kg) | 16600 |
| Max - Unloading height (mm) | 3080 |
| Unloading distance (mm) | 1105 |
| Maximum tractive force (kN) | 155 |
| Fuel Tank (L) | 260 |
| Hydraulic Tank (L) | 240 |
| Engine Oil (L) | 20 |
| Wheelbase (mm) | 2930 |
| Wheel base (mm) | 2250 |
| Minimum ground clearance (mm) | 534 |
| Machine length (mm) | 7800 |
| Machine width (mm) | 3024 |
| Machine height (mm) | 3368 |
| Steering Angle | 35 |
| Minimum turning radius of outer wheel center line | 5904 |
| Ternary sum (s) | 10.2 |
| Speed 1 gear (km/h) | |
| Speed 2 (km/h) | |
| Maximum speed (km/h) | 38 |
