Product Description
Strengthen your fleet capacity with this 2016 SDLG LG952H wheel loader, currently available in Baoding, Hebei. Built around a robust WD10G220E23 engine delivering 162kW at 2000 rpm and 890 N·m of maximum torque, this machine provides reliable backup power when your primary equipment is deployed elsewhere. The 5000 kg rated load capacity and 2.8 m³ bucket handle substantial material volumes, while the 160 kN digging force ensures consistent performance across diverse jobsite conditions.
- Operating weight: 16,400 kg for stable material handling
- Maximum unloading height: 3,070 mm with 1,190 mm reach
- Dual-speed transmission: 0-13 km/h (1st gear), 0-38 km/h (2nd gear)
- 28° maximum climbing ability for challenging terrain
- 246L fuel tank and 240L hydraulic reservoir minimize downtime
- Compact dimensions: 7,663 mm length, 3,024 mm width
For contractors managing multiple projects simultaneously, this loader integrates seamlessly into existing operations. The proven SDLG platform reduces training requirements while maintaining productivity standards across your equipment roster. Contact us regarding this Baoding-based unit to expand your operational flexibility
| Specifications | Value |
|---|---|
| No. | 1009132 |

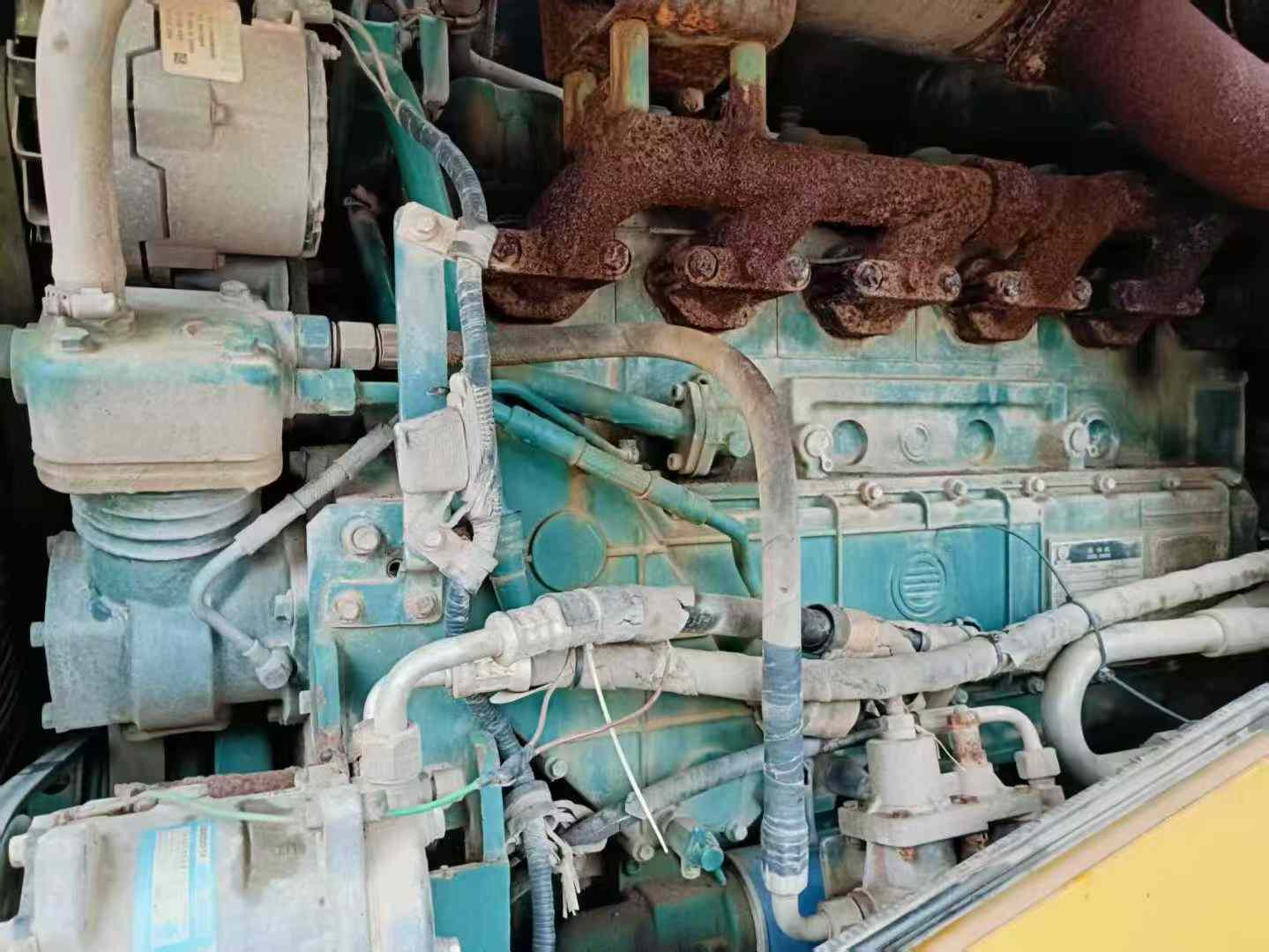

| Engine type | WD10G220E23 |
| Rated power (kw/rpm) | 162/2000 |
| Cylinder diameter × stroke (mm) | |
| Maximum torque (N.m) | 890 |
| Theoretical fuel consumption (L/h) | |
| Exhaust volume (L) | 9726 |

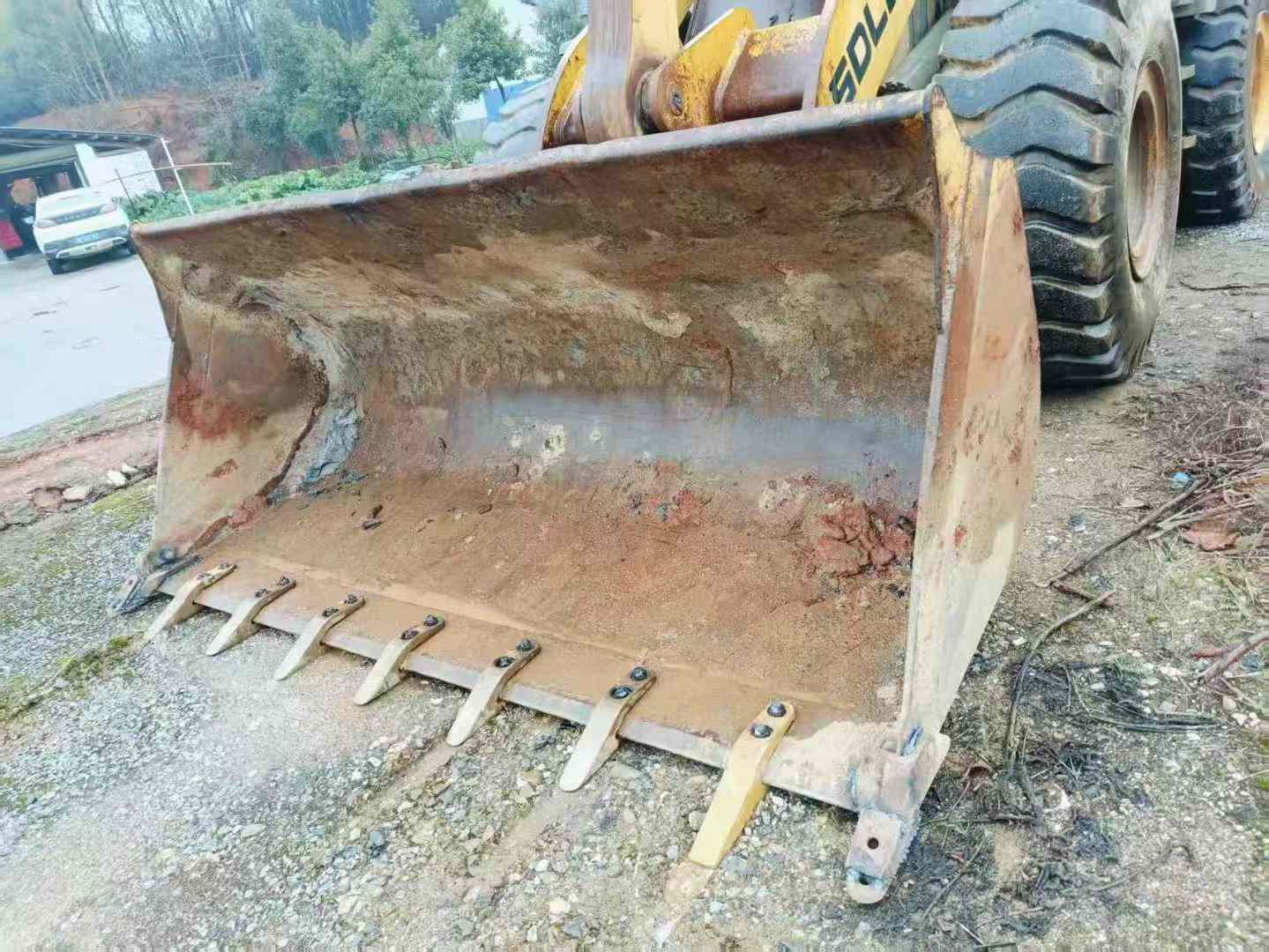

| Bucket capacity (m³) | 2.8 |
| Rated load (tons) | |
| Rated load (kg) | 5000 |
| Digging force (lifting force) (kN) | 160 |
| Machine operating weight (kg) | 16400 |
| Max - Unloading height (mm) | 3070 |
| Unloading distance (mm) | 1190 |
| Maximum tractive force (kN) | |
| Maximum climbing ability (°) | 28 |
| Fuel Tank (L) | 246 |
| Hydraulic Tank (L) | 240 |
| Wheel base (mm) | 2250 |
| Minimum ground clearance (mm) | 435 |
| Machine length (mm) | 7663 |
| Machine width (mm) | 3024 |
| Machine height (mm) | 3349 |
| Speed 1 gear (km/h) | 0-13 |
| Speed 2 (km/h) | 0-38 |
