Product Description

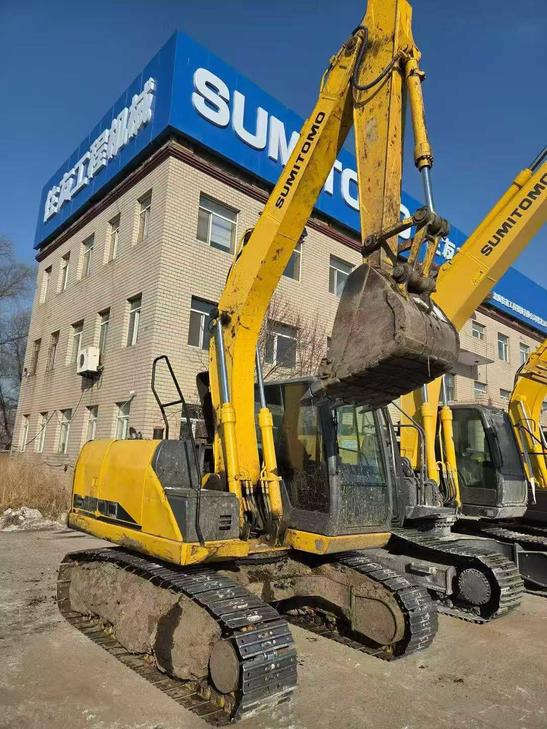

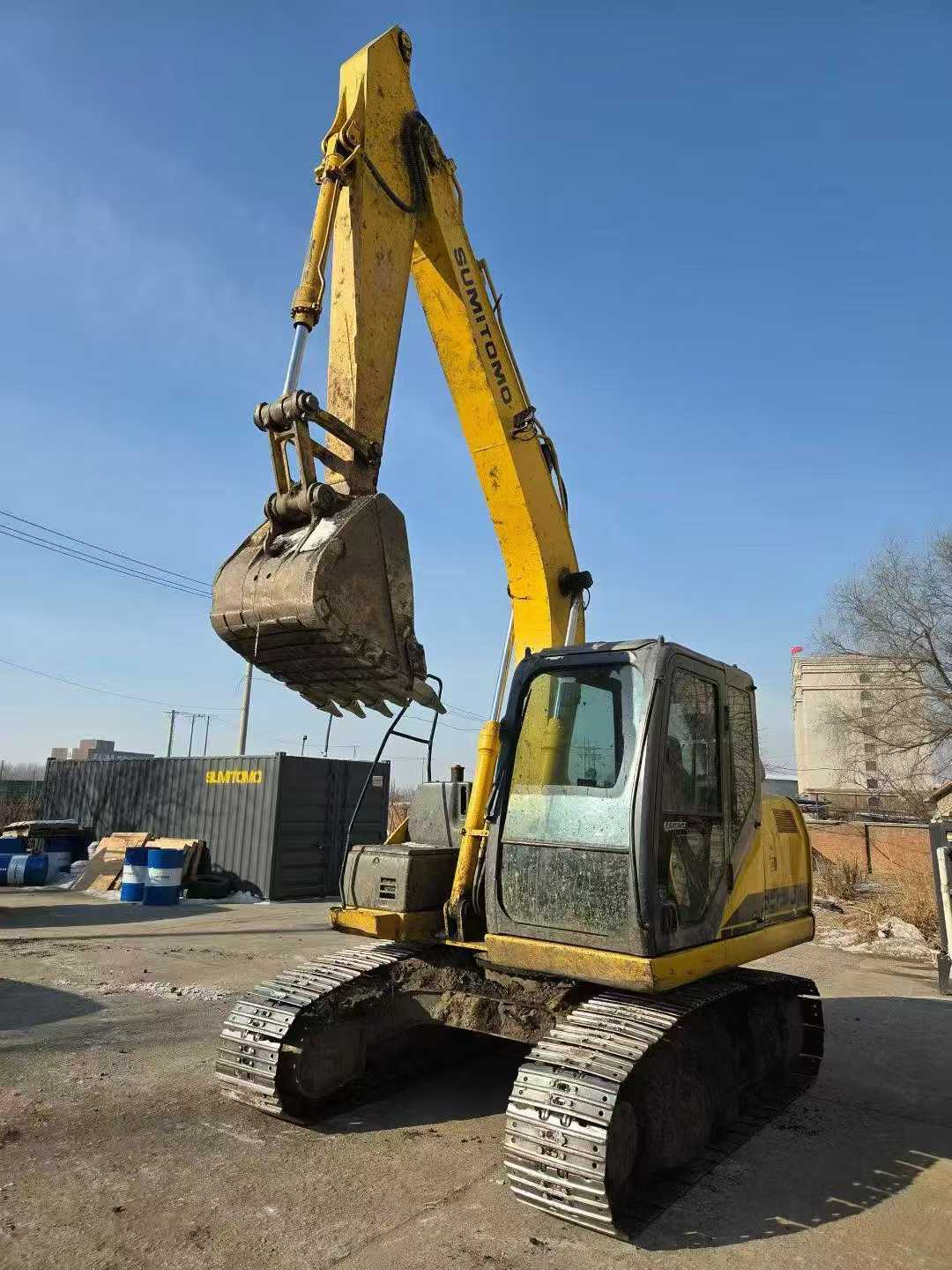

Maximize your ROI with this 2012 Sumitomo SH130-3 excavator from Putian, Fujian—a proven 13-ton workhorse delivering professional-grade performance without the premium price tag. Powered by a robust Isuzu AJ-4JJ1X turbocharged diesel engine producing 70.9 kW, this machine handles demanding excavation tasks with an impressive 8,310 mm maximum digging radius and 5,540 mm digging depth. Built through joint venture manufacturing standards, it combines Japanese engineering reliability with cost-effective operation.
- Working weight: 12,300 kg with 0.5 m³ bucket capacity

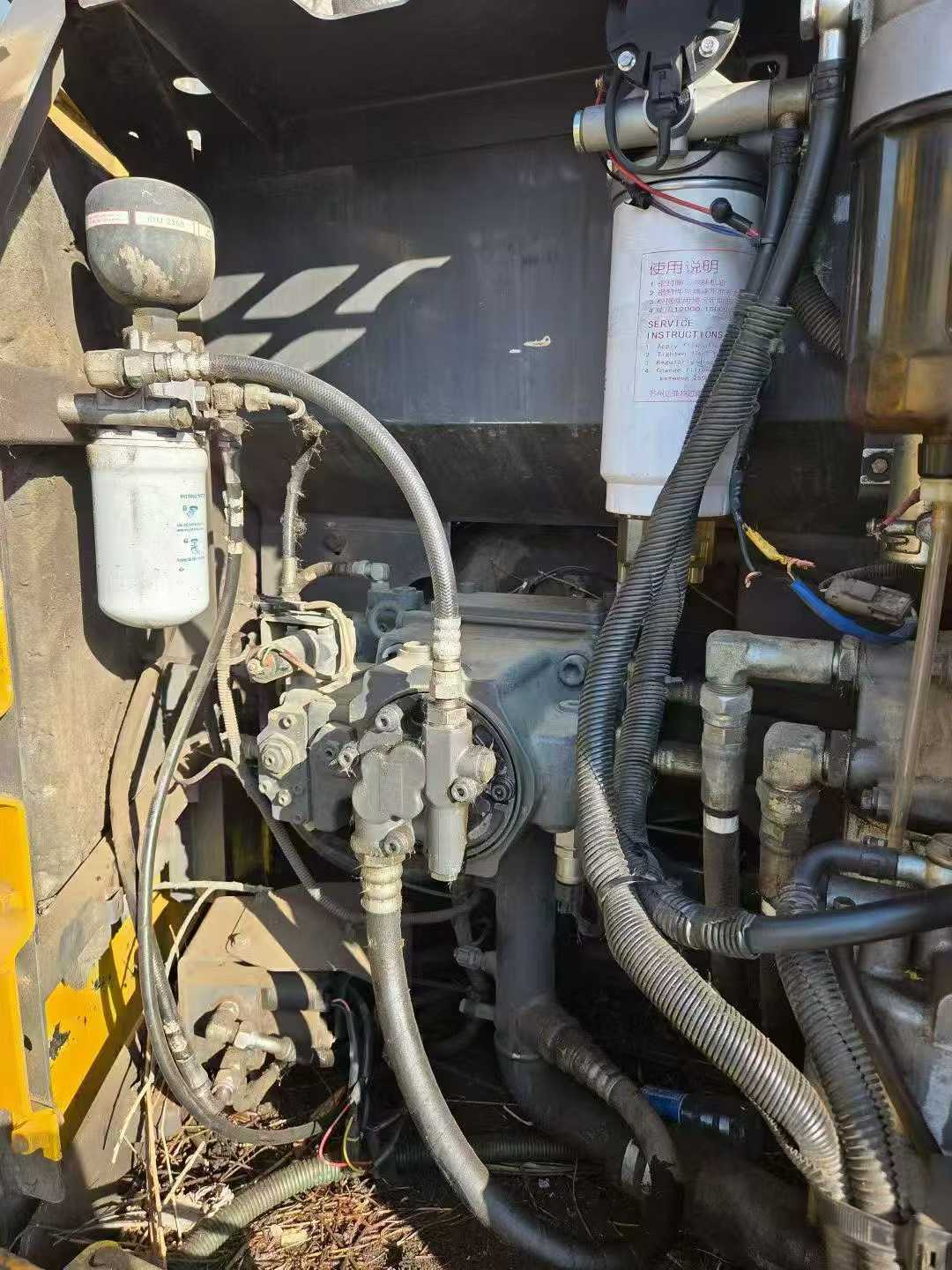

- Dual variable axial piston pumps ensure responsive hydraulic performance
- Water-cooled 4-cylinder engine (2.999 L displacement) for extended durability
- 70% climbing ability tackles challenging terrain confidently
- Compact transport dimensions (7,620 × 2,540 × 2,790 mm) simplify logistics
- 260 L fuel tank supports full-day operations
Acquiring pre-owned equipment like this SH130-3 cuts capital expenditure by 50-70% compared to new models while maintaining the productivity your projects demand. Currently located in Fujian Province, ready for immediate deployment.
| Specifications | Value |
|---|---|
| No. | 1030436 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 12300 |
| Bucket capacity (m³) | 0.5 |
| Boom length (mm) | 5850 |
| Rod length (mm) | 2500 |
| Country of origin | Xiamen (in Fujian Province) |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu AJ-4JJ1X |
| Rated power (kw/rpm) | 70.9/2000 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.999 |
| Working form | Four-stroke, direct injection, fully electronically controlled, turbocharged diesel engine with intercooling |
| Ground specific pressure (Kpa) | 40 |
| Rotation speed (rpm) | 14.3 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | |
| Rod digging force (kN) | |
| Travel speed (km/h) | 3.4/5.6 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | Quantitative axial piston motor |
| Type of walking hydraulic motor | Variable axial piston motor |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable axial piston pump ×2+ gear pump |
| Fuel Tank (L) | 260 |
| Hydraulic Tank (L) | 157 |
| Total transport length (mm) | 7620 |
| Total transport width (mm) | 2540 |
| Total transport height (mm) | 2790 |
| Full cab height (mm) | 2790 |
| Counterweight ground clearance (mm) | 895 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 2340 |
| Back end turning radius (mm) | 2130 |
| Total track length (mm) | 3500 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2490 |
| Track ground length (mm) | 2790 |
| Maximum digging radius (mm) | 8310 |
| Maximum digging depth (mm) | 5540 |
| Maximum excavation height (mm) | 8770 |
| Maximum unloading height (mm) | 6390 |
| Maximum vertical digging depth (mm) | 4950 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
