2013 Sumitomo SH130-3

1/7

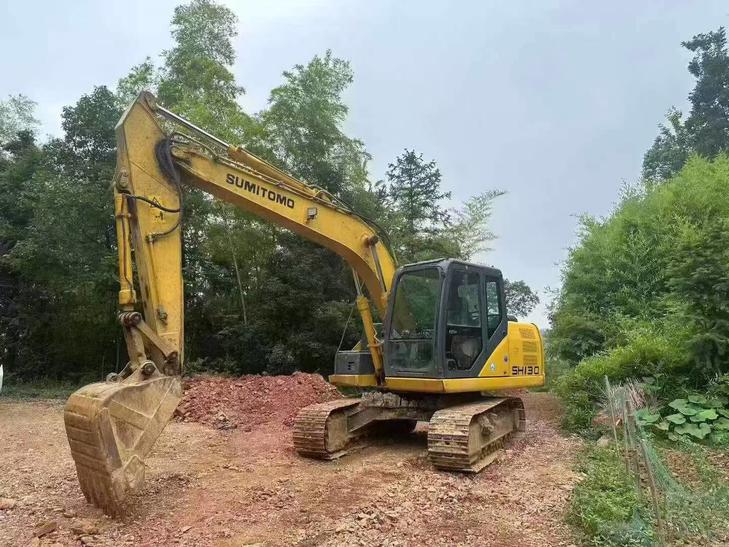

Buy Sumitomo SH130-3 Used Excavator / 1
Buy Sumitomo SH130-3 Used Excavator / 2
Buy Sumitomo SH130-3 Used Excavator / 3
Buy Sumitomo SH130-3 Used Excavator / 4
Buy Sumitomo SH130-3 Used Excavator / 5
Buy Sumitomo SH130-3 Used Excavator / 6
Buy Sumitomo SH130-3 Used Excavator / 7

Product Description

2013 Sumitomo SH130-3 hydraulic excavator available from Hunan, China. This mid-size crawler excavator from Sumitomo's proven SH-3 series offers reliable performance for construction, demolition, and earthmoving applications. The SH130-3 features a 13-ton operating weight class with efficient fuel consumption and responsive hydraulic systems characteristic of Japanese engineering.

Key features include:

  • Year of manufacture: 2013
  • Model: SH130-3
  • Operating weight: approximately 13 tons
  • Suitable for medium-duty excavation and material handling
  • Current location: Hunan Province, China
  • Asking price: RMB 148,000

This used excavator represents a cost-effective solution for contractors seeking dependable equipment from a respected manufacturer. Inspection recommended prior to purchase. Contact seller for detailed service history, operating hours, and arrangement of on-site evaluation.

SpecificationsValue
No.1085367
Tonnage (tons)13
Working weight (kg)12300
Bucket capacity (m³)0.5
Boom length (mm)5850
Rod length (mm)2500
Country of originXiamen (in Fujian Province)
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeIsuzu AJ-4JJ1X
Rated power (kw/rpm)70.9/2000
Cooling modewater-cooling
Number of cylinders (PCS)4
Displacement (L)2.999
Working formFour-stroke, direct injection, fully electronically controlled, turbocharged diesel engine with intercooling
Ground specific pressure (Kpa)40
Rotation speed (rpm)14.3
Climbing ability (%)70
Bucket digging force (kN)
Rod digging force (kN)
Travel speed (km/h)3.4/5.6
Main overflow set pressure (Mpa)34.3
Rotary hydraulic motor typeQuantitative axial piston motor
Type of walking hydraulic motorVariable axial piston motor
Hydraulic crushing pipeline is standardno
Main pump typeVariable axial piston pump ×2+ gear pump
Fuel Tank (L)260
Hydraulic Tank (L)157
Total transport length (mm)7620
Total transport width (mm)2540
Total transport height (mm)2790
Full cab height (mm)2790
Counterweight ground clearance (mm)895
Minimum ground clearance (mm)440
Minimum turning radius of front working device (mm)2340
Back end turning radius (mm)2130
Total track length (mm)3500
Track gauge (mm)1990
Track plate width (mm)500
Total track width (mm)2490
Track ground length (mm)2790
Maximum digging radius (mm)8310
Maximum digging depth (mm)5540
Maximum excavation height (mm)8770
Maximum unloading height (mm)6390
Maximum vertical digging depth (mm)4950
Bulldozer lift or depth (mm)No bulldozer
Dodging plate width × height (mm)No bulldozer
see more

Overview

No.1085367

Brand Name:

Sumitomo

Model Number:

SH130-3

Year:

2013

Location:

Hunan China

Pub Date

Are you interested in this machine?

Please contact us
