Product Description

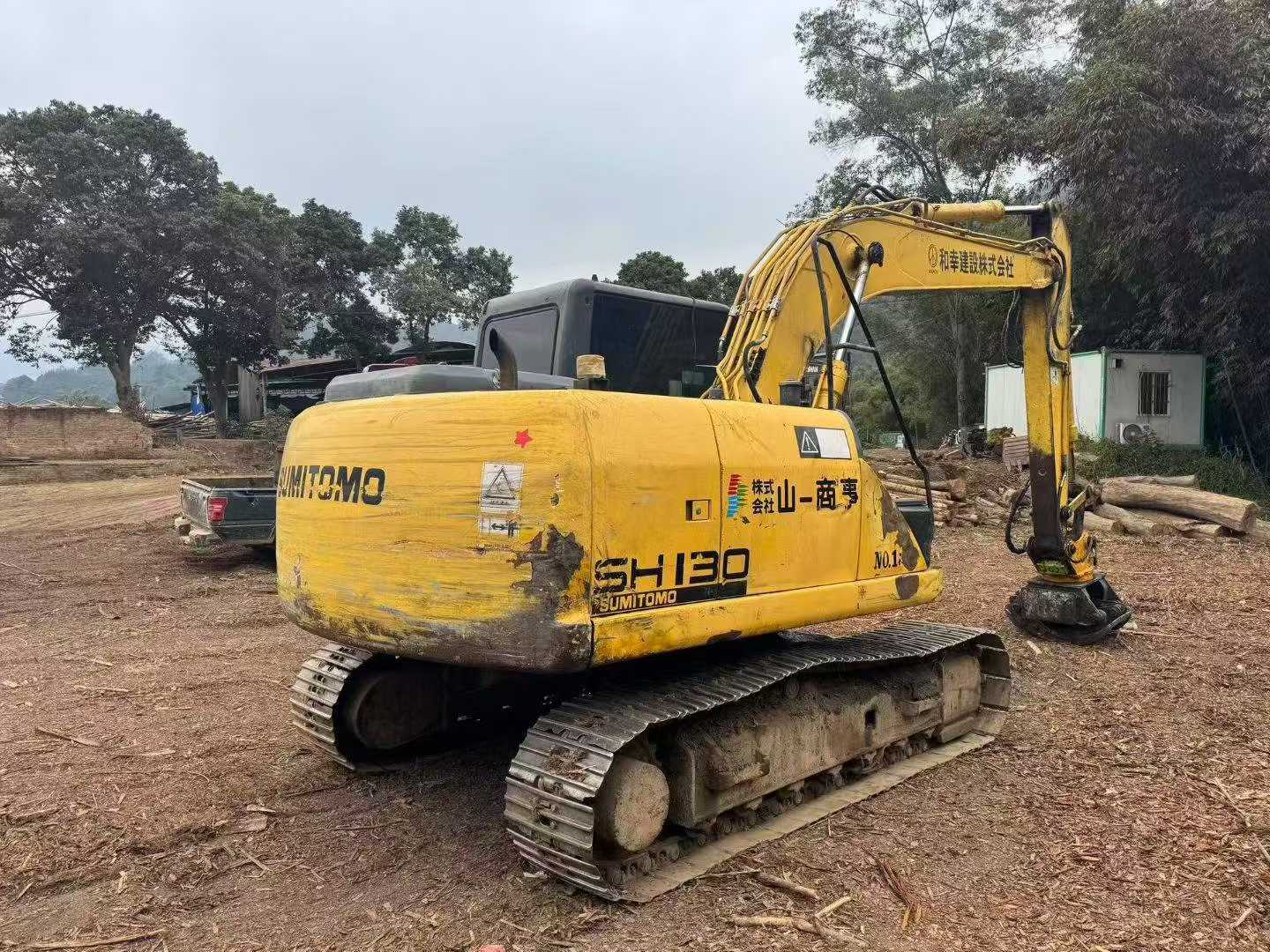

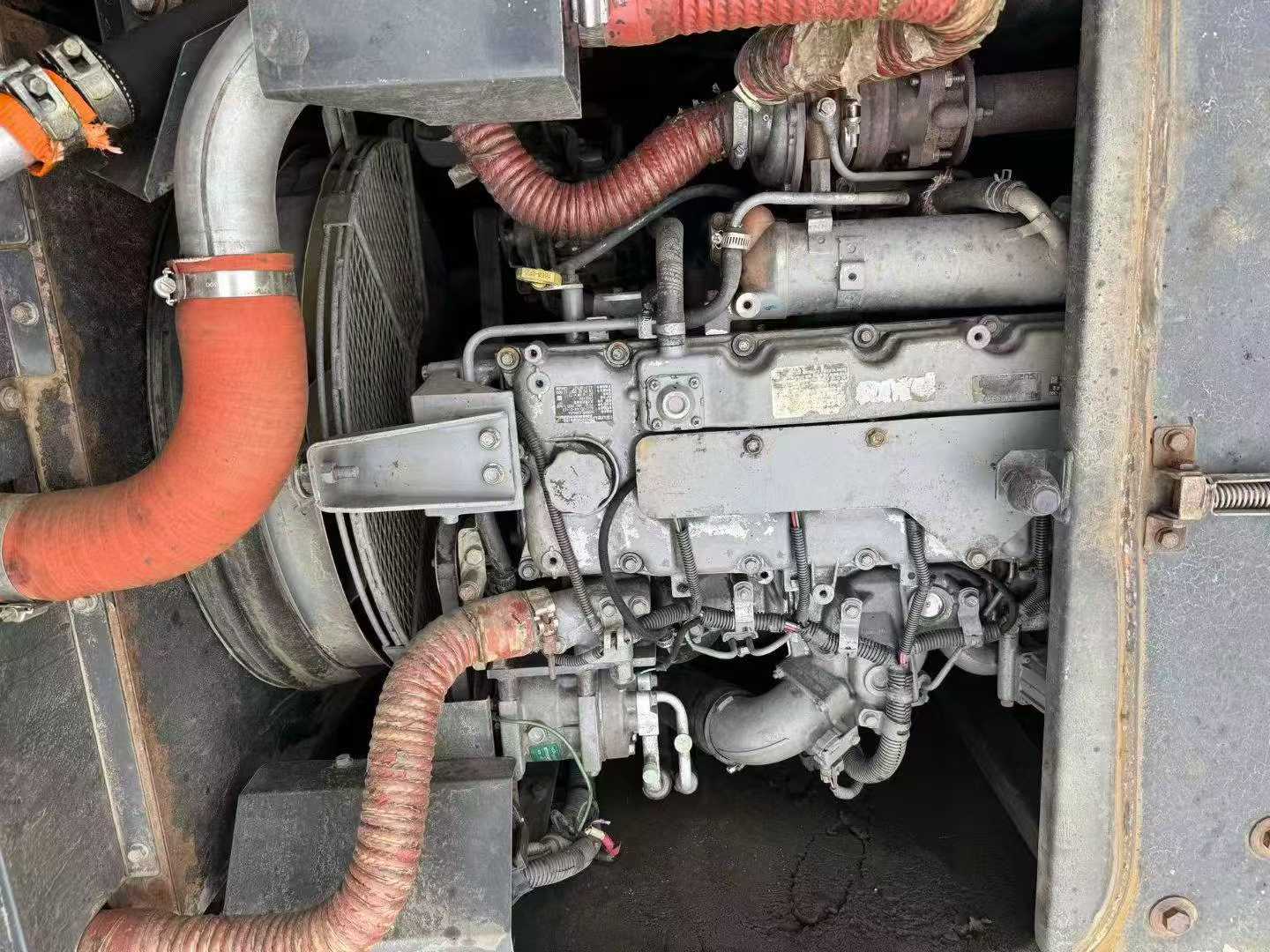

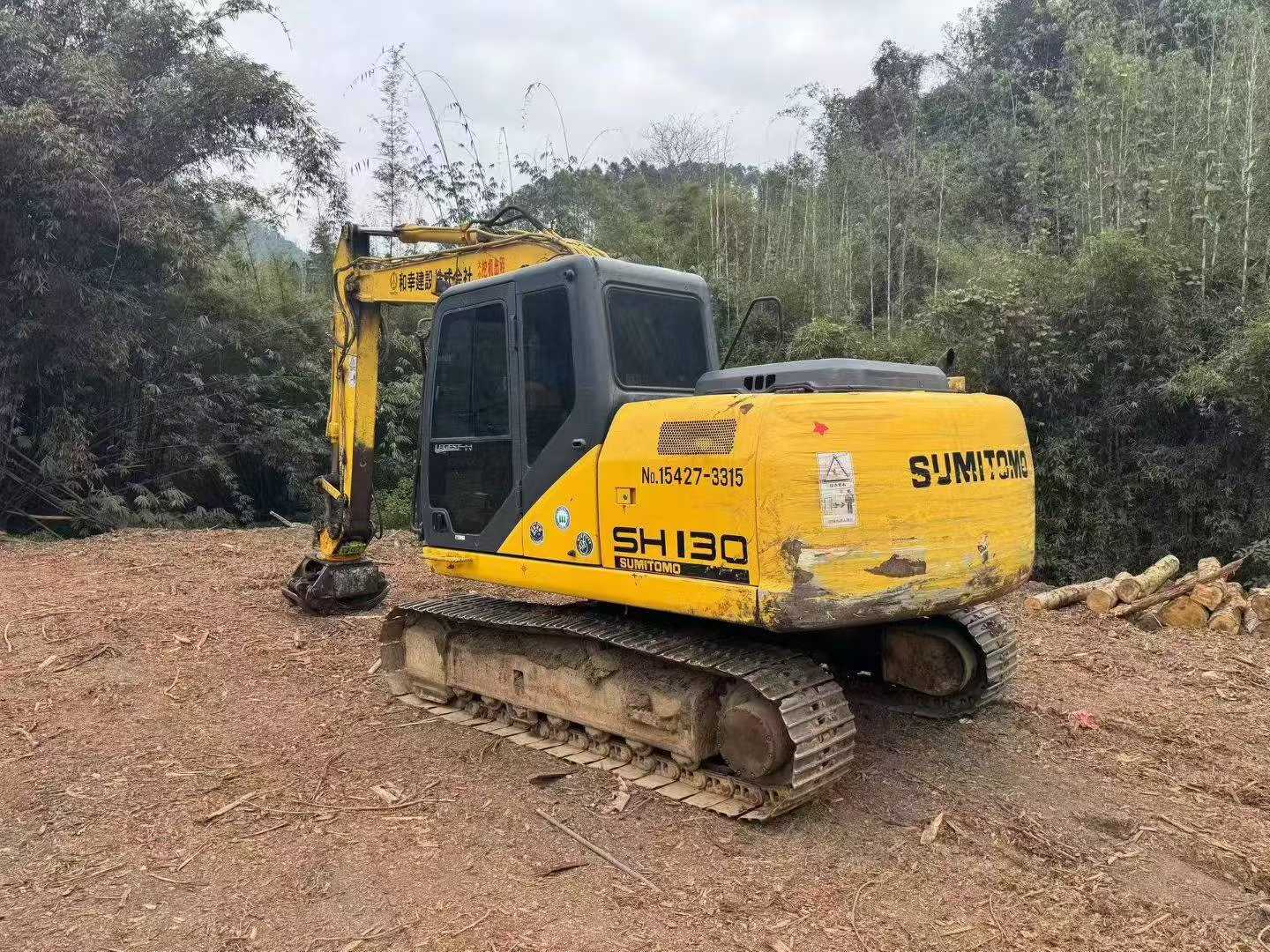

Maximize your equipment budget with this 2015 Sumitomo SH130-3 excavator, delivering professional-grade performance at a fraction of new equipment costs. Operating at 13 tons with a robust 12,300 kg working weight, this machine combines Japanese engineering excellence with practical efficiency for demanding jobsites. Powered by an Isuzu AJ-4JJ1X turbocharged diesel engine producing 70.9 kW, it offers reliable output through a fully electronically controlled, water-cooled system.
Key specifications include:
- 0.5 m³ bucket capacity with 5,850 mm boom and 2,500 mm arm reach
- Maximum digging radius of 8,310 mm and depth of 5,540 mm

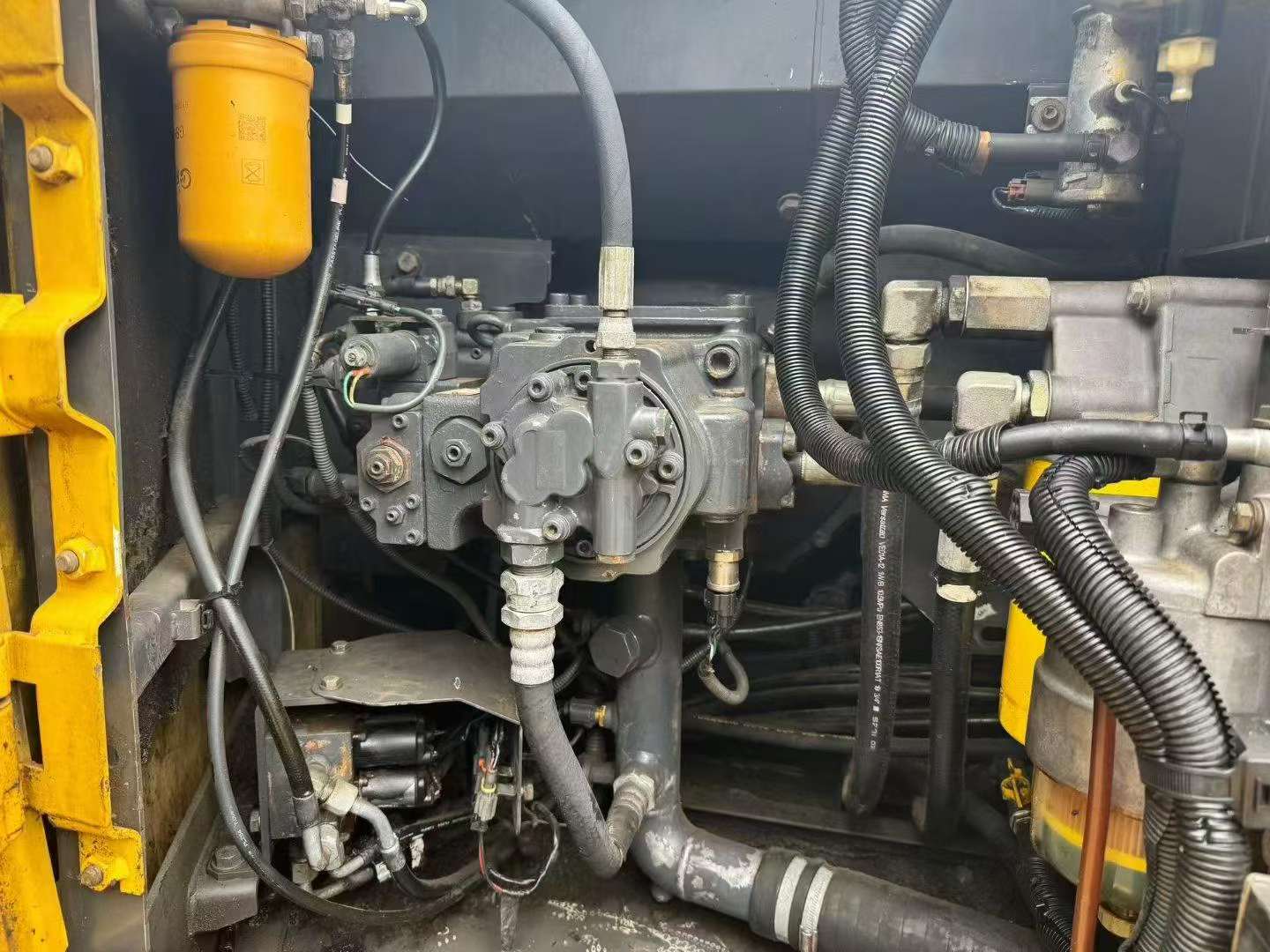

- Dual variable axial piston pumps for responsive hydraulic performance
- Travel speeds of 3.4/5.6 km/h with 70% climbing capability
- 260L fuel tank and 157L hydraulic reservoir for extended operation
Currently located in Guangxi, this joint venture-manufactured excavator represents smart capital allocation for contractors seeking proven reliability without premium pricing. Compact transport dimensions (7,620 × 2,540 × 2,790 mm) facilitate easy mobilization between projects while maintaining substantial working capabilities.
| Specifications | Value |
|---|---|
| No. | 1010832 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 12300 |
| Bucket capacity (m³) | 0.5 |
| Boom length (mm) | 5850 |
| Rod length (mm) | 2500 |
| Country of origin | Xiamen (in Fujian Province) |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu AJ-4JJ1X |
| Rated power (kw/rpm) | 70.9/2000 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.999 |
| Working form | Four-stroke, direct injection, fully electronically controlled, turbocharged diesel engine with intercooling |
| Ground specific pressure (Kpa) | 40 |
| Rotation speed (rpm) | 14.3 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | |
| Rod digging force (kN) | |
| Travel speed (km/h) | 3.4/5.6 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | Quantitative axial piston motor |
| Type of walking hydraulic motor | Variable axial piston motor |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable axial piston pump ×2+ gear pump |
| Fuel Tank (L) | 260 |
| Hydraulic Tank (L) | 157 |
| Total transport length (mm) | 7620 |
| Total transport width (mm) | 2540 |
| Total transport height (mm) | 2790 |
| Full cab height (mm) | 2790 |
| Counterweight ground clearance (mm) | 895 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 2340 |
| Back end turning radius (mm) | 2130 |
| Total track length (mm) | 3500 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2490 |
| Track ground length (mm) | 2790 |
| Maximum digging radius (mm) | 8310 |
| Maximum digging depth (mm) | 5540 |
| Maximum excavation height (mm) | 8770 |
| Maximum unloading height (mm) | 6390 |
| Maximum vertical digging depth (mm) | 4950 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
