Product Description

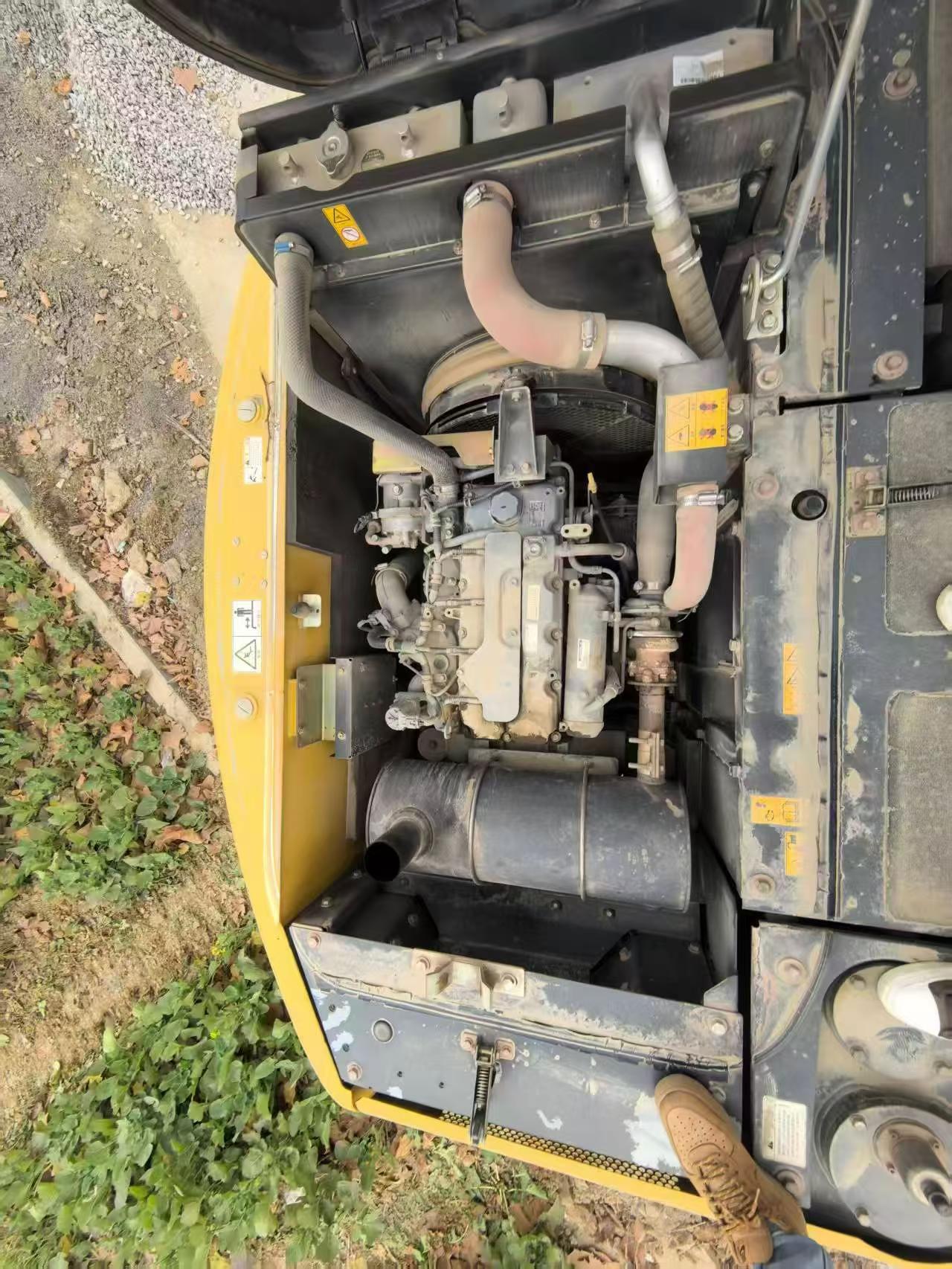

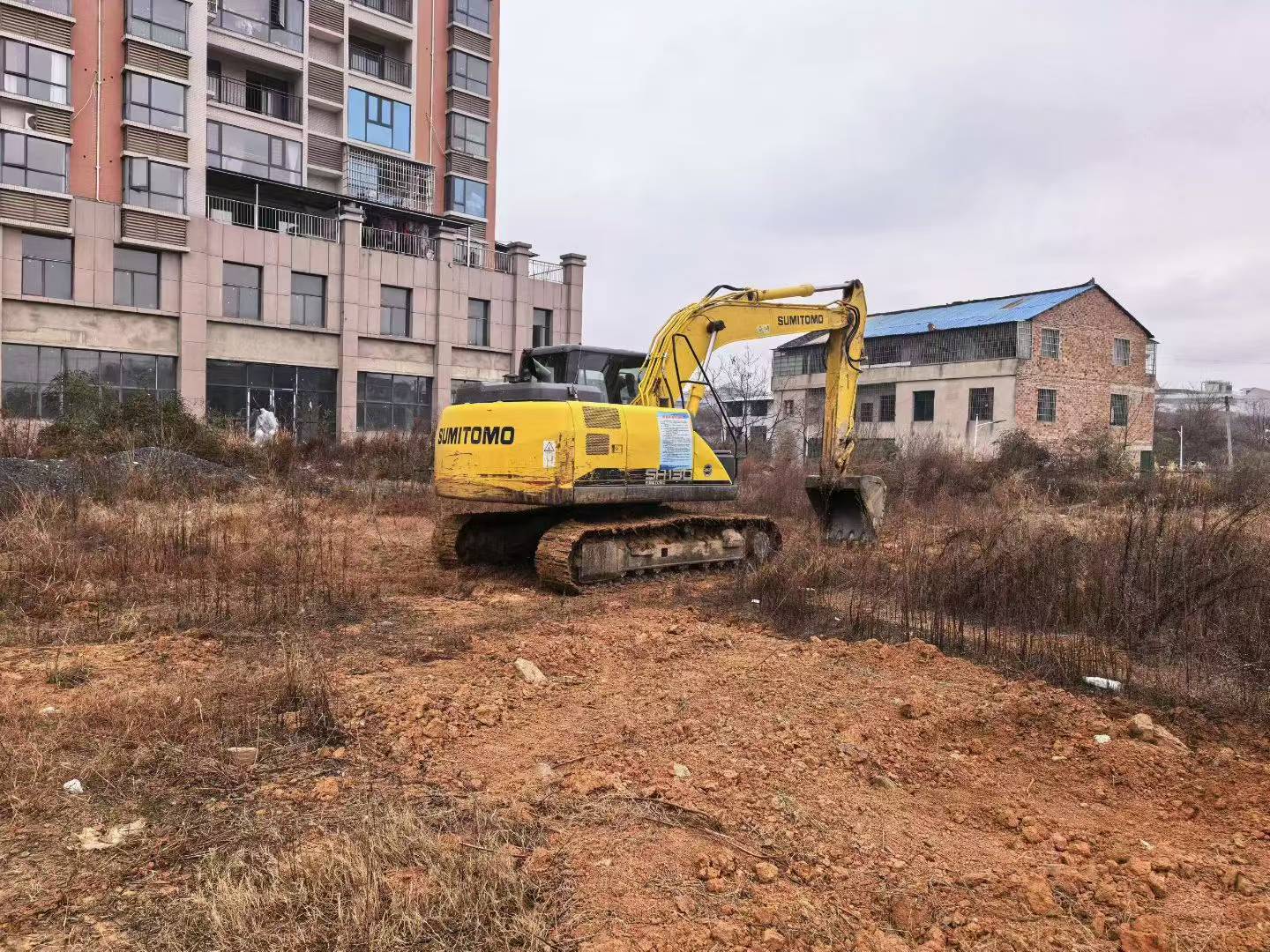

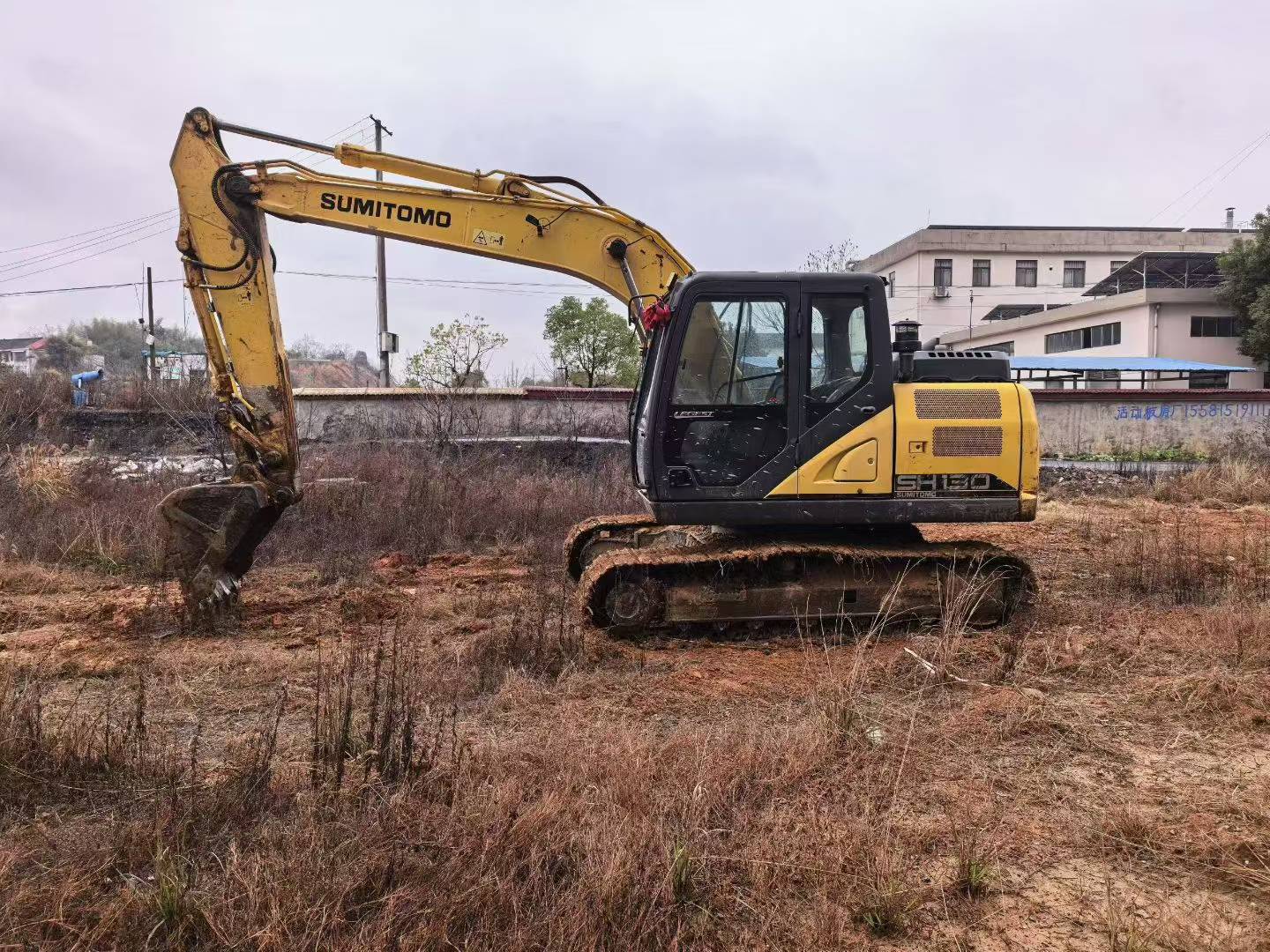

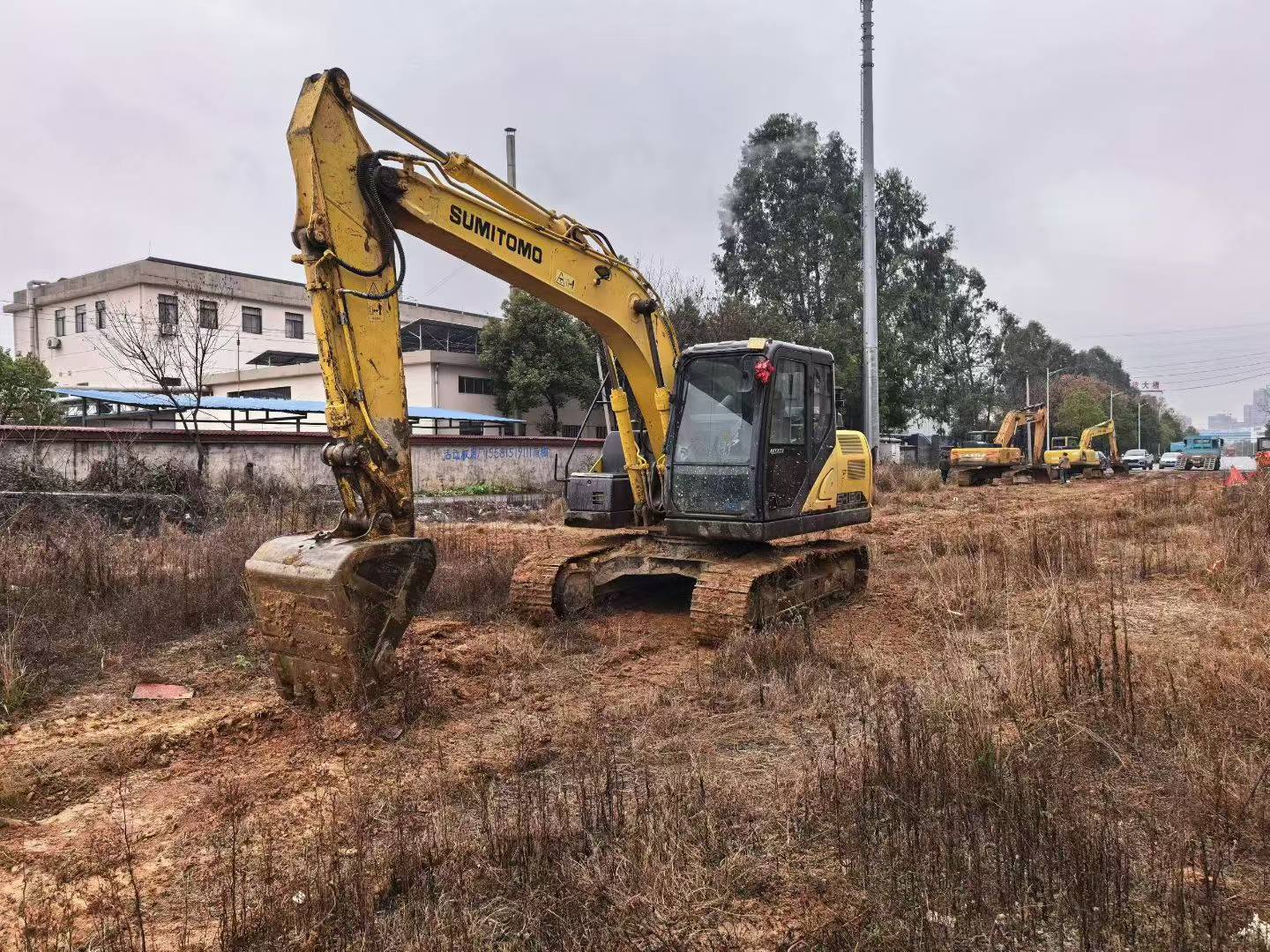

Built to endure the toughest jobsite conditions, this 2019 Sumitomo SH130-3 excavator stands as a proven workhorse in the 13-ton class. Operating from Putian, Fujian, this machine demonstrates the reliability that comes from Sumitomo's joint-venture engineering excellence. Powered by a robust Isuzu AJ-4JJ1X engine delivering 70.9kW at 2000rpm, this four-stroke, turbocharged diesel unit with intercooling provides consistent performance across demanding applications.
Key specifications include:
- Working weight: 12,300 kg with 0.5 m³ bucket capacity
- Maximum digging reach: 8,310 mm with 5,540 mm depth capability

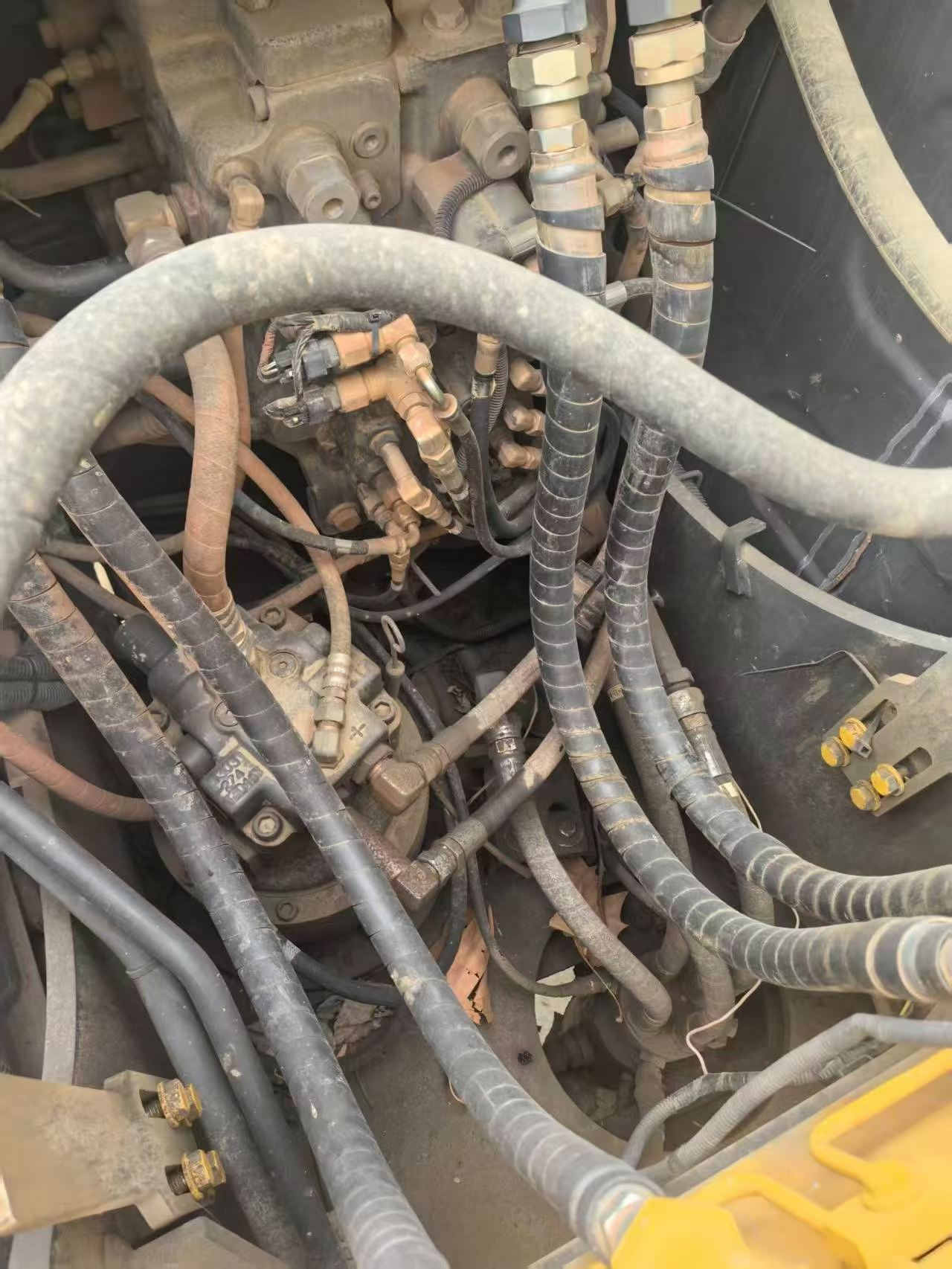

- Dual variable axial piston pumps ensuring hydraulic efficiency
- Water-cooled 2.999L displacement engine for extended operation
- Impressive 70% climbing ability and 14.3 rpm rotation speed
- Compact transport dimensions: 7,620 × 2,540 × 2,790 mm
With four years of proven field performance since manufacture, this excavator represents dependable productivity. Its 260L fuel capacity and 157L hydraulic tank support extended work cycles, while the quantitative axial piston rotary motor delivers precise control for experienced operators seeking reliable equipme
| Specifications | Value |
|---|---|
| No. | 999371 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 12300 |
| Bucket capacity (m³) | 0.5 |
| Boom length (mm) | 5850 |
| Rod length (mm) | 2500 |
| Country of origin | Xiamen (in Fujian Province) |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu AJ-4JJ1X |
| Rated power (kw/rpm) | 70.9/2000 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.999 |
| Working form | Four-stroke, direct injection, fully electronically controlled, turbocharged diesel engine with intercooling |
| Ground specific pressure (Kpa) | 40 |
| Rotation speed (rpm) | 14.3 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | |
| Rod digging force (kN) | |
| Travel speed (km/h) | 3.4/5.6 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | Quantitative axial piston motor |
| Type of walking hydraulic motor | Variable axial piston motor |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable axial piston pump ×2+ gear pump |
| Fuel Tank (L) | 260 |
| Hydraulic Tank (L) | 157 |
| Total transport length (mm) | 7620 |
| Total transport width (mm) | 2540 |
| Total transport height (mm) | 2790 |
| Full cab height (mm) | 2790 |
| Counterweight ground clearance (mm) | 895 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 2340 |
| Back end turning radius (mm) | 2130 |
| Total track length (mm) | 3500 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2490 |
| Track ground length (mm) | 2790 |
| Maximum digging radius (mm) | 8310 |
| Maximum digging depth (mm) | 5540 |
| Maximum excavation height (mm) | 8770 |
| Maximum unloading height (mm) | 6390 |
| Maximum vertical digging depth (mm) | 4950 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
