Product Description
This 2020 Sumitomo SH130-3 hydraulic excavator is available for immediate deployment from Guangdong, China. Priced at approximately CNY 140,000+, this unit represents strong value for contractors seeking a proven mid-size machine ready for active jobsite use.
The SH130-3 is a 13-tonne class excavator built on Sumitomo's established hydraulic platform, known for responsive control and reliable cycle times in earthmoving, foundation, and utility applications. This example is described by the seller as performing at a high standard with no mechanical issues flagged — suitable for direct deployment without delay.
- Year: 2020
- Brand: Sumitomo
- Model: SH130-3
- Operating weight class: approx. 13 tonnes
- Current location: Guangdong Province, China
- Asking price: CNY 140,000+
- Condition: Used — seller reports no performance deficiencies
- Availability: Ready for immediate site deployment
Buyers are advised to conduct independent inspection and verify hours, undercarriage condition, and service records prior to purchase. Suitable for domestic transfer or export — contact us to discuss logistics and viewing arrangements.
| Specifications | Value |
|---|---|
| No. | 1141475 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 12300 |
| Bucket capacity (m³) | 0.5 |
| Boom length (mm) | 5850 |
| Rod length (mm) | 2500 |
| Country of origin | Xiamen (in Fujian Province) |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

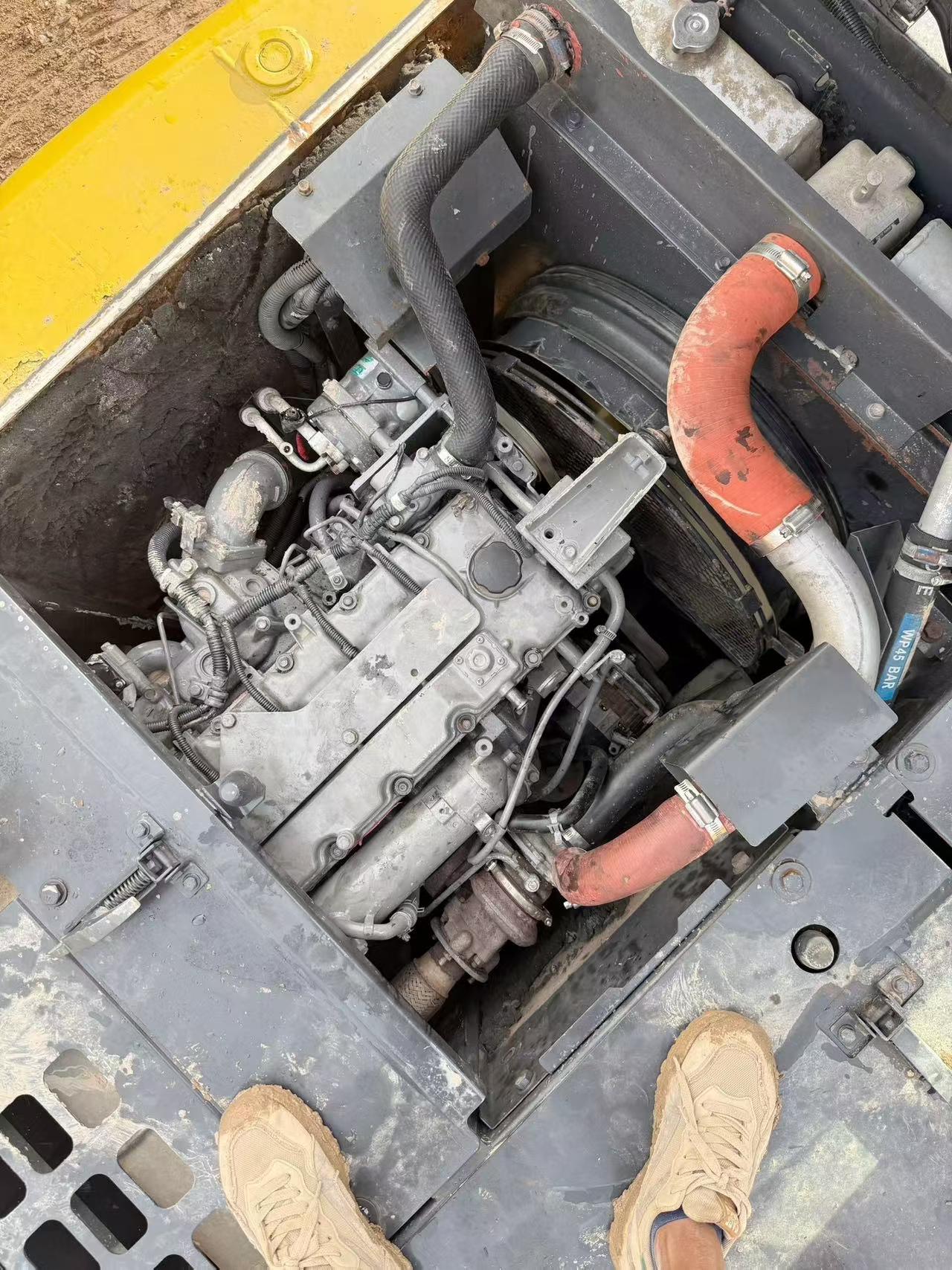

| Engine type | Isuzu AJ-4JJ1X |
| Rated power (kw/rpm) | 70.9/2000 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.999 |
| Working form | Four-stroke, direct injection, fully electronically controlled, turbocharged diesel engine with intercooling |
| Ground specific pressure (Kpa) | 40 |
| Rotation speed (rpm) | 14.3 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | |
| Rod digging force (kN) | |
| Travel speed (km/h) | 3.4/5.6 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | Quantitative axial piston motor |
| Type of walking hydraulic motor | Variable axial piston motor |
| Hydraulic crushing pipeline is standard | no |

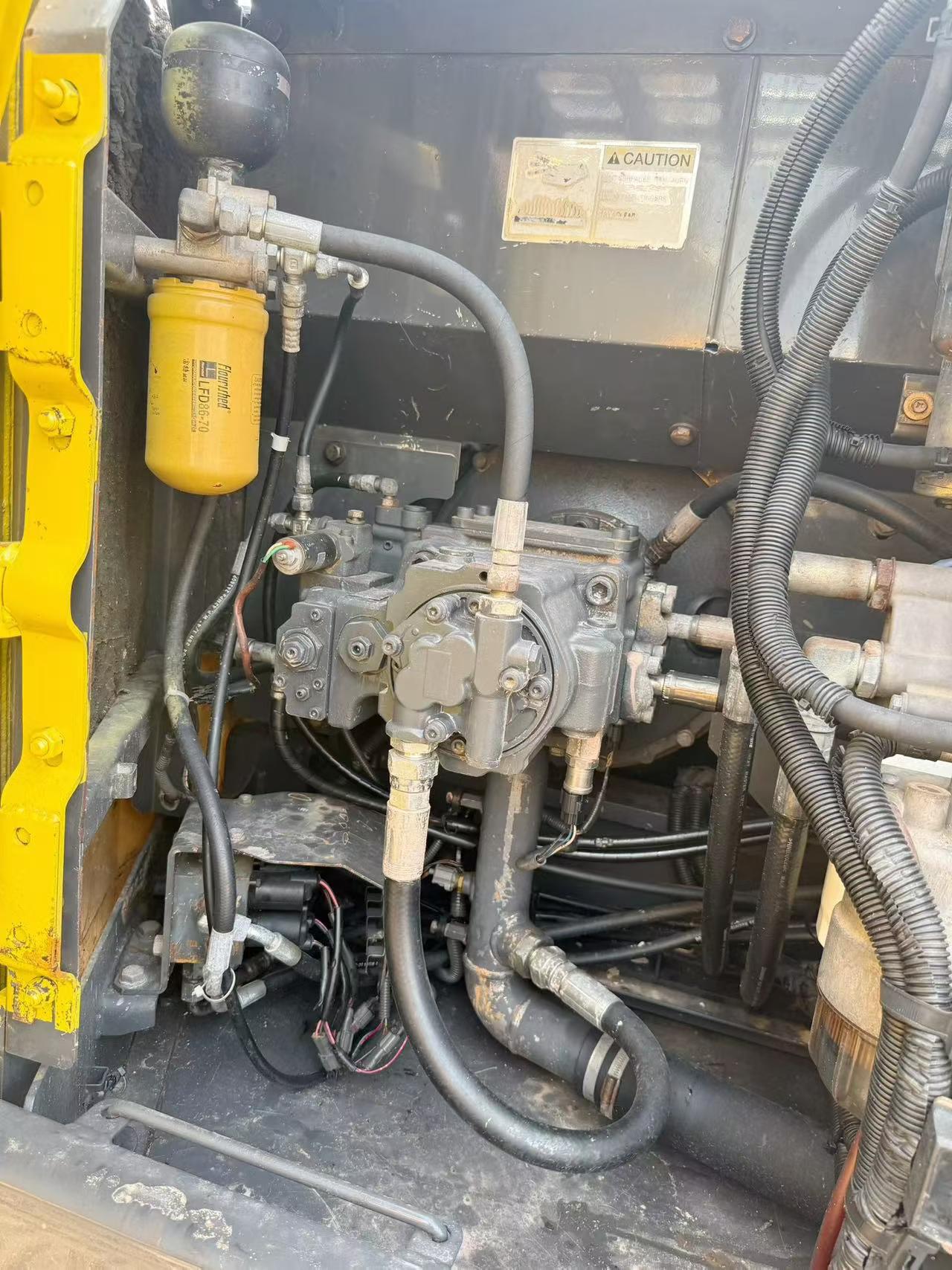

| Main pump type | Variable axial piston pump ×2+ gear pump |
| Fuel Tank (L) | 260 |
| Hydraulic Tank (L) | 157 |
| Total transport length (mm) | 7620 |
| Total transport width (mm) | 2540 |
| Total transport height (mm) | 2790 |
| Full cab height (mm) | 2790 |
| Counterweight ground clearance (mm) | 895 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 2340 |
| Back end turning radius (mm) | 2130 |
| Total track length (mm) | 3500 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2490 |
| Track ground length (mm) | 2790 |
| Maximum digging radius (mm) | 8310 |
| Maximum digging depth (mm) | 5540 |
| Maximum excavation height (mm) | 8770 |
| Maximum unloading height (mm) | 6390 |
| Maximum vertical digging depth (mm) | 4950 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
