Product Description

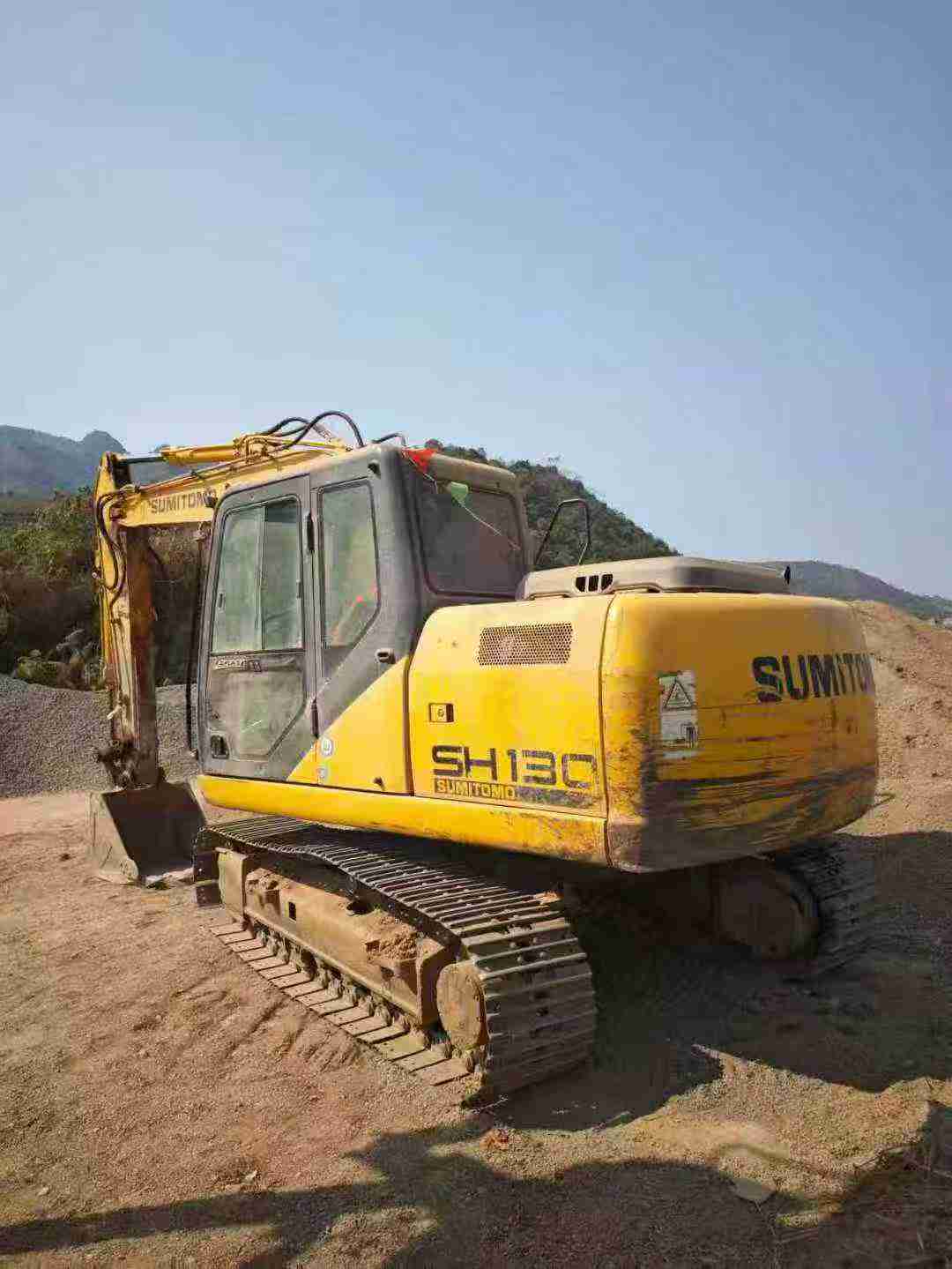

Expand your fleet capacity with this reliable 2016 Sumitomo SH130-5 excavator, currently located in Shaoxing, Zhejiang. Operating at 13 tons with a 12,500 kg working weight, this mid-size machine delivers consistent performance across residential, utility, and light commercial projects. Powered by a 70.9 kW engine and equipped with a 0.55 m³ backhoe bucket, it handles trenching, foundation work, and material handling with proven efficiency.
Key Specifications:
- Maximum digging depth: 5,550 mm | Maximum reach: 8,320 mm
- Bucket digging force: 90 kN | Stick digging force: 62 kN
- Compact transport dimensions: 7,620 mm (L) × 2,500 mm (W) × 2,820 mm (H)

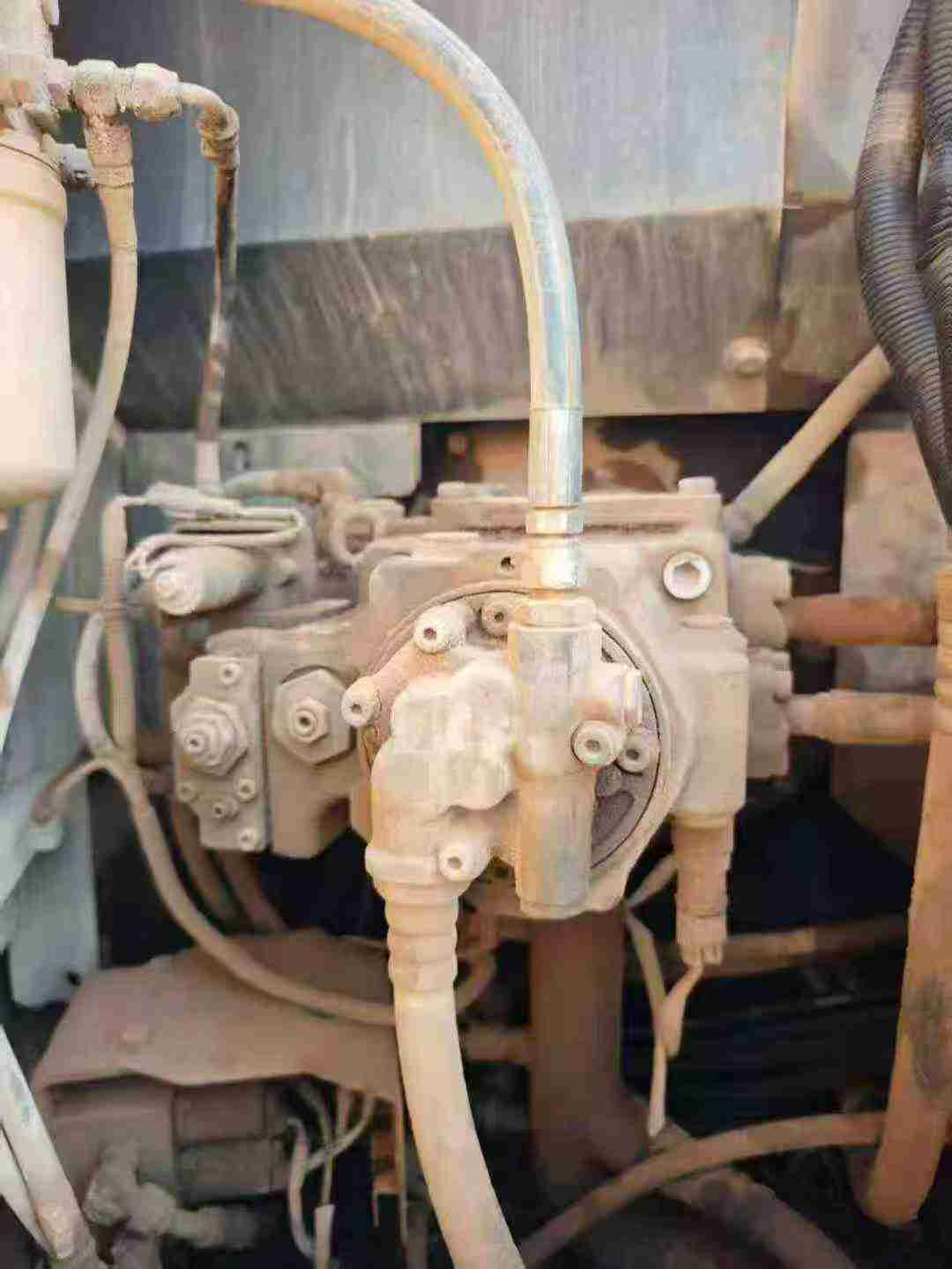

- Variable capacity piston pump hydraulic system for responsive control
- 70% grading ability with 40 kPa ground pressure for versatile terrain access
Joint venture manufacturing ensures parts availability and serviceability. Ideal as a supplementary unit during peak demand or as a dependable backup when your primary machines are deployed. Ready for immediate integration into existing Sumitomo fleets or mixed-brand operations requiring proven 13-ton performance.
| Specifications | Value |
|---|---|
| No. | 1017724 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 12500 |
| Bucket capacity (m³) | 0.55 |
| Boom length (mm) | 4630 |
| Rod length (mm) | 2500 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | |
| Rated power (kw/rpm) | 70.9//2000 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.999 |
| Ground specific pressure (Kpa) | 40 |
| Rotation speed (rpm) | 14.3 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 90 |
| Rod digging force (kN) | 62 |
| Travel speed (km/h) | 3.4/5.6 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | |
| Type of walking hydraulic motor | Variable capacity piston pump |
| Main pump type | |
| Fuel Tank (L) | 260 |
| Hydraulic Tank (L) | 82 |
| Hydraulic System (L) | 157 |
| Total transport length (mm) | 7620 |
| Total transport width (mm) | 2500 |
| Total transport height (mm) | 2820 |
| Full cab height (mm) | 2820 |
| Counterweight ground clearance (mm) | 895 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 2340 |
| Back end turning radius (mm) | 2130 |
| Total track length (mm) | 3500 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2490 |
| Maximum digging radius (mm) | 8320 |
| Maximum digging depth (mm) | 5550 |
| Maximum excavation height (mm) | 8780 |
| Maximum unloading height (mm) | 6380 |
| Maximum vertical digging depth (mm) | 4960 |
