Product Description

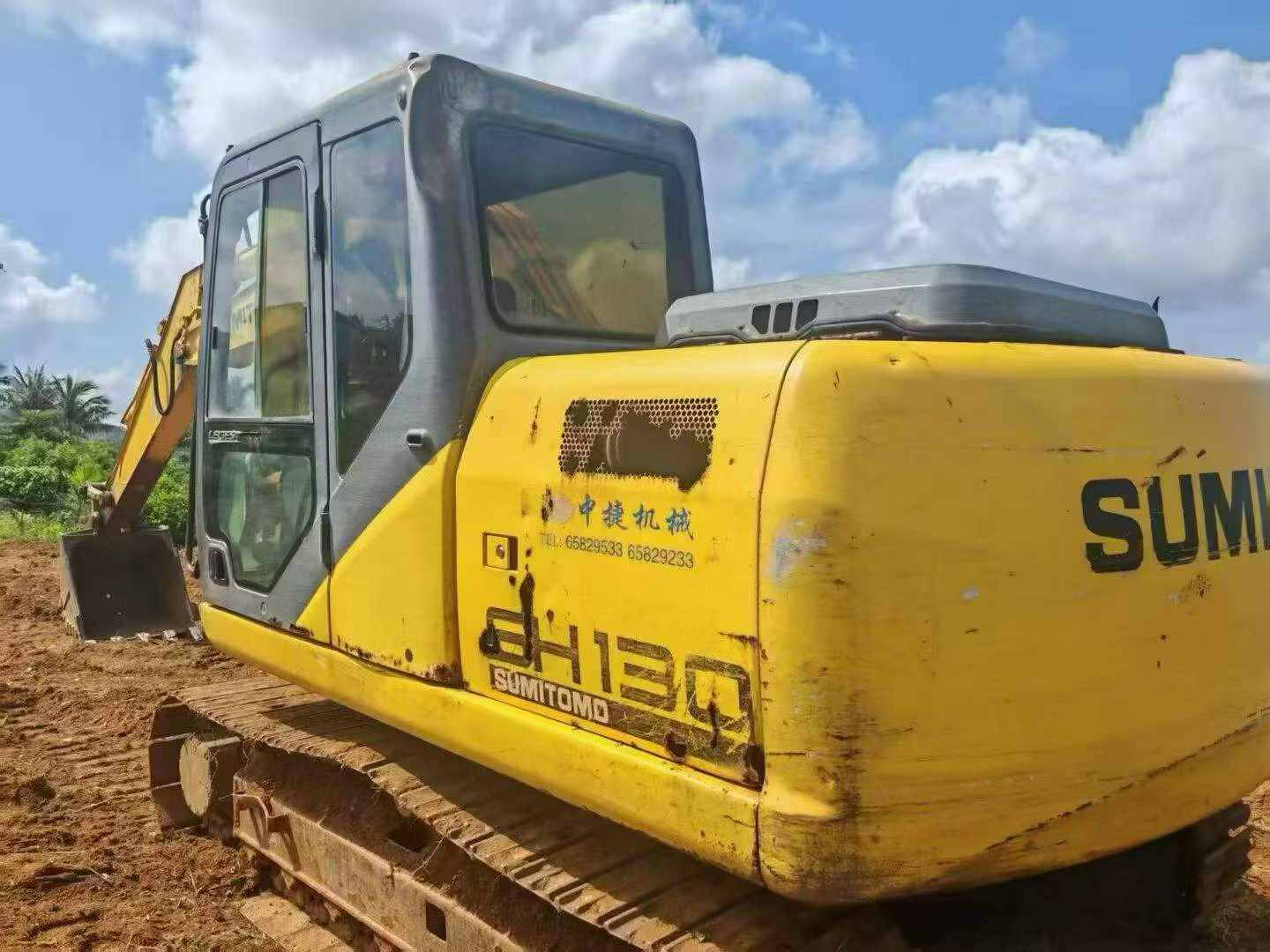

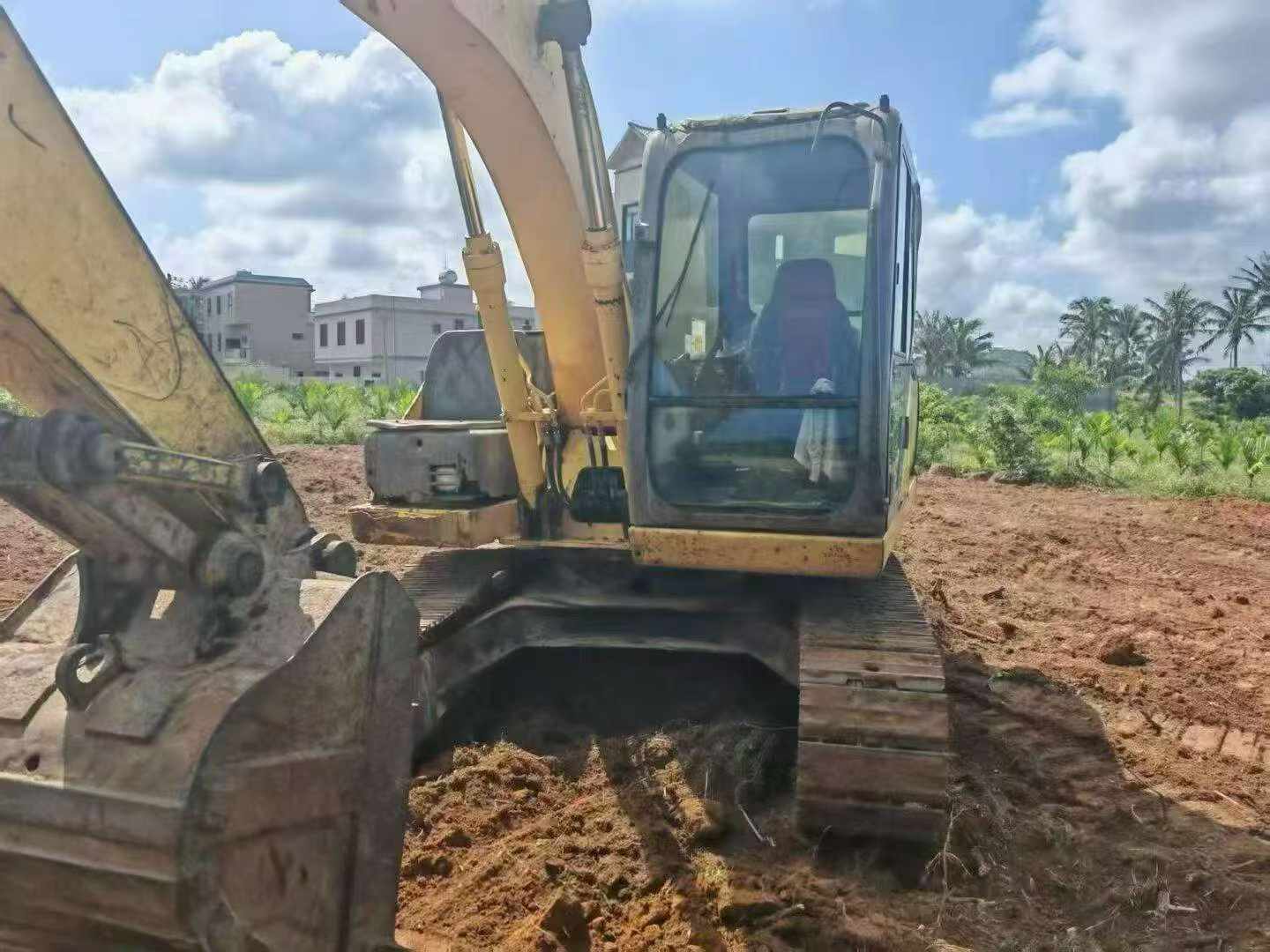

Discover the reliability and efficiency of the 2020 Sumitomo SH130-5, a robust excavator designed for demanding construction and excavation tasks. Located in Guangdong, China, this machine is ready to meet your project needs with its powerful performance and durability. Ideal for medium to large-scale operations, the SH130-5 offers a perfect balance of power, speed, and precision, making it a versatile addition to any fleet.
- Year: 2020
- Brand: Sumitomo
- Model: SH130-5
- Location: Guangdong, China
| Specifications | Value |
|---|---|
| No. | 1056848 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 12500 |
| Bucket capacity (m³) | 0.55 |
| Boom length (mm) | 4630 |
| Rod length (mm) | 2500 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | |
| Rated power (kw/rpm) | 70.9//2000 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.999 |
| Ground specific pressure (Kpa) | 40 |
| Rotation speed (rpm) | 14.3 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 90 |
| Rod digging force (kN) | 62 |
| Travel speed (km/h) | 3.4/5.6 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | |
| Type of walking hydraulic motor | Variable capacity piston pump |
| Main pump type | |
| Fuel Tank (L) | 260 |
| Hydraulic Tank (L) | 82 |
| Hydraulic System (L) | 157 |
| Total transport length (mm) | 7620 |
| Total transport width (mm) | 2500 |
| Total transport height (mm) | 2820 |
| Full cab height (mm) | 2820 |
| Counterweight ground clearance (mm) | 895 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 2340 |
| Back end turning radius (mm) | 2130 |
| Total track length (mm) | 3500 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2490 |
| Maximum digging radius (mm) | 8320 |
| Maximum digging depth (mm) | 5550 |
| Maximum excavation height (mm) | 8780 |
| Maximum unloading height (mm) | 6380 |
| Maximum vertical digging depth (mm) | 4960 |
