Product Description

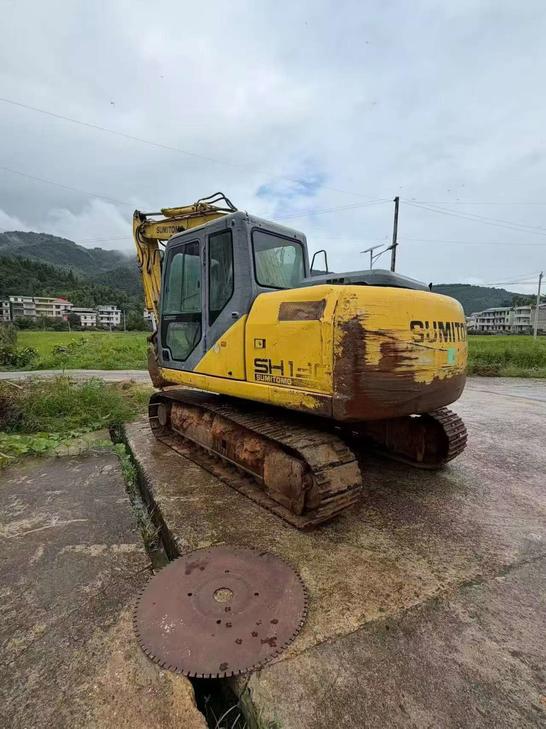

Discover the reliability and efficiency of the 2020 Sumitomo SH130-5, now available in Zhejiang, China. This excavator is a testament to Sumitomo's commitment to quality and durability, making it an excellent choice for demanding construction and excavation projects. With a robust design and advanced features, this machine ensures optimal performance and ease of operation. The SH130-5 comes with comprehensive documentation, providing full transparency on its maintenance and operational history. Ideal for contractors looking for a dependable, second-hand excavator, this unit is ready for immediate deployment and is equipped to handle a wide range of tasks efficiently.
- Year: 2020
- Brand: Sumitomo
- Model: SH130-5
- Location: Zhejiang, China
- Documentation: Available, including maintenance records
| Specifications | Value |
|---|---|
| No. | 1133539 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 12500 |
| Bucket capacity (m³) | 0.55 |
| Boom length (mm) | 4630 |
| Rod length (mm) | 2500 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | |
| Rated power (kw/rpm) | 70.9//2000 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.999 |
| Ground specific pressure (Kpa) | 40 |
| Rotation speed (rpm) | 14.3 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 90 |
| Rod digging force (kN) | 62 |
| Travel speed (km/h) | 3.4/5.6 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | |
| Type of walking hydraulic motor | Variable capacity piston pump |
| Main pump type | |
| Fuel Tank (L) | 260 |
| Hydraulic Tank (L) | 82 |
| Hydraulic System (L) | 157 |
| Total transport length (mm) | 7620 |
| Total transport width (mm) | 2500 |
| Total transport height (mm) | 2820 |
| Full cab height (mm) | 2820 |
| Counterweight ground clearance (mm) | 895 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 2340 |
| Back end turning radius (mm) | 2130 |
| Total track length (mm) | 3500 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2490 |
| Maximum digging radius (mm) | 8320 |
| Maximum digging depth (mm) | 5550 |
| Maximum excavation height (mm) | 8780 |
| Maximum unloading height (mm) | 6380 |
| Maximum vertical digging depth (mm) | 4960 |
