Product Description

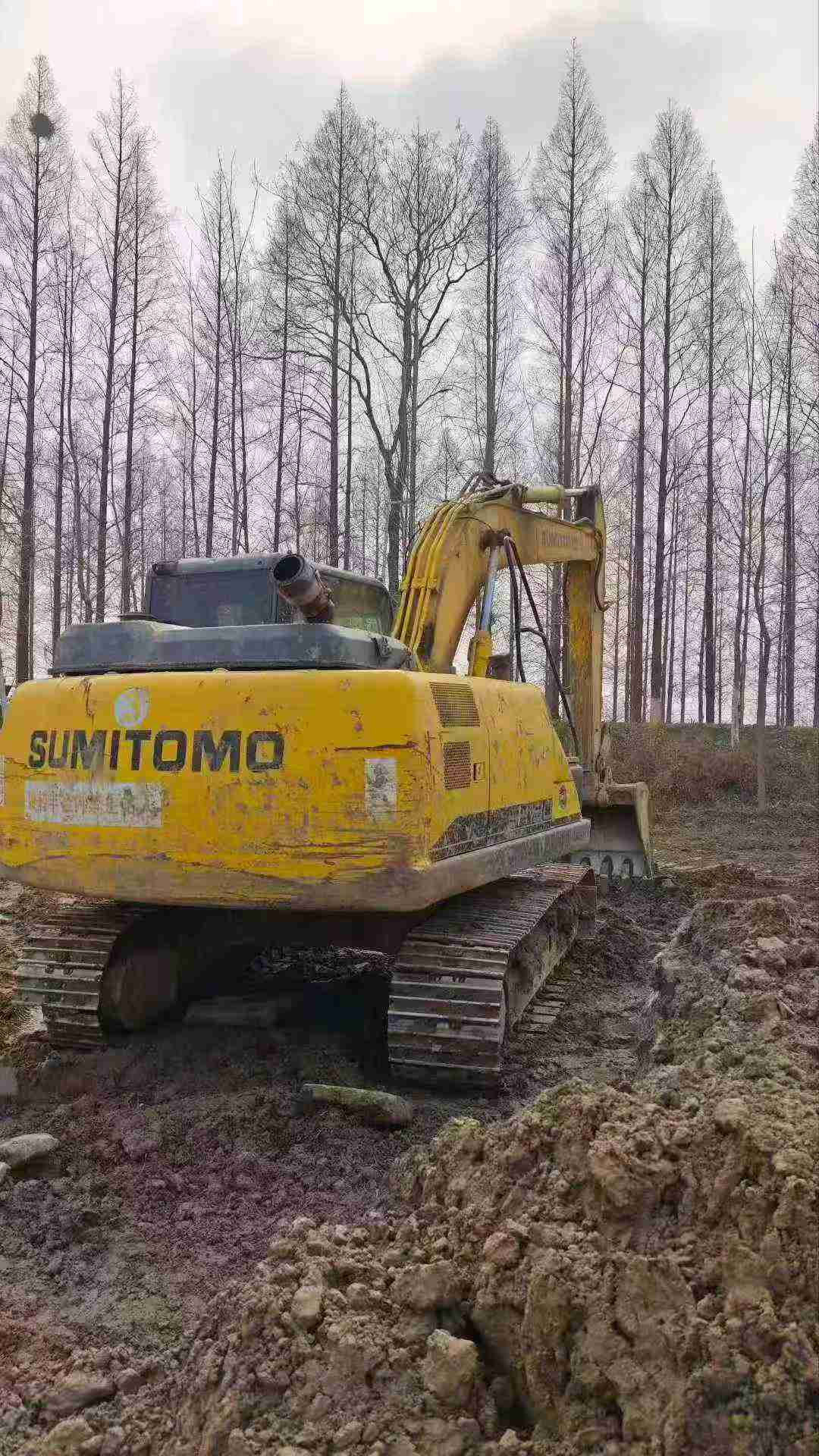

Available now in 四川泸州, this 2016 Sumitomo SH130-6 excavator delivers immediate deployment without factory wait times. Built as a joint venture/import machine, this 13-ton workhorse combines proven Japanese engineering with practical field performance. Powered by a 70.9kW engine at 2000 rpm, it generates 91kN bucket digging force and reaches a maximum digging depth of 5540mm with its 4600mm boom and 2500mm stick configuration.
- Working weight: 12,700kg with 0.5-0.55m³ bucket capacity
- Maximum digging radius: 8310mm for versatile reach
- Travel speed: 5.6 km/h high / 3.4 km/h low for efficient site mobility
- Hydraulic system: 34.3/36.3 Mpa with 157L total capacity
- Transport dimensions: 7620mm × 2540mm × 2820mm
Skip extended lead times and get your project moving. Fast deployment to your site in 四川泸州 means reduced downtime and immediate productivity. Contact us today for inspection and delivery coordination.
| Specifications | Value |
|---|---|
| No. | 1022796 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 12700 |
| Bucket capacity (m³) | 0.5-0.55 |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2500 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | |
| Rated power (kw/rpm) | 70.9/2000 |
| Displacement (L) | 2.999 |
| Rotation speed (rpm) | 14.1 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 91 |
| Rod digging force (kN) | 62 |
| Travel speed (km/h) | 5.6/3.4 |
| Main overflow set pressure (Mpa) | 34.3/36.3 |
| Rotary hydraulic motor type | |
| Type of walking hydraulic motor | Variable capacity piston pump |
| Main pump type | |
| Working Hydraulic Circuit (Mpa) | 34.3/36.3 |
| Fuel Tank (L) | 260 |
| Hydraulic Tank (L) | 82 |
| Hydraulic System (L) | 157 |
| Total transport length (mm) | 7620 |
| Total transport width (mm) | 2540 |
| Total transport height (mm) | 2820 |
| Counterweight ground clearance (mm) | 890 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 2340 |
| Back end turning radius (mm) | 2130 |
| Total track length (mm) | 3500 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2490 |
| Maximum digging radius (mm) | 8310 |
| Maximum digging depth (mm) | 5540 |
| Maximum excavation height (mm) | 8770 |
| Maximum unloading height (mm) | 6390 |
| Maximum vertical digging depth (mm) | 4590 |
