Product Description

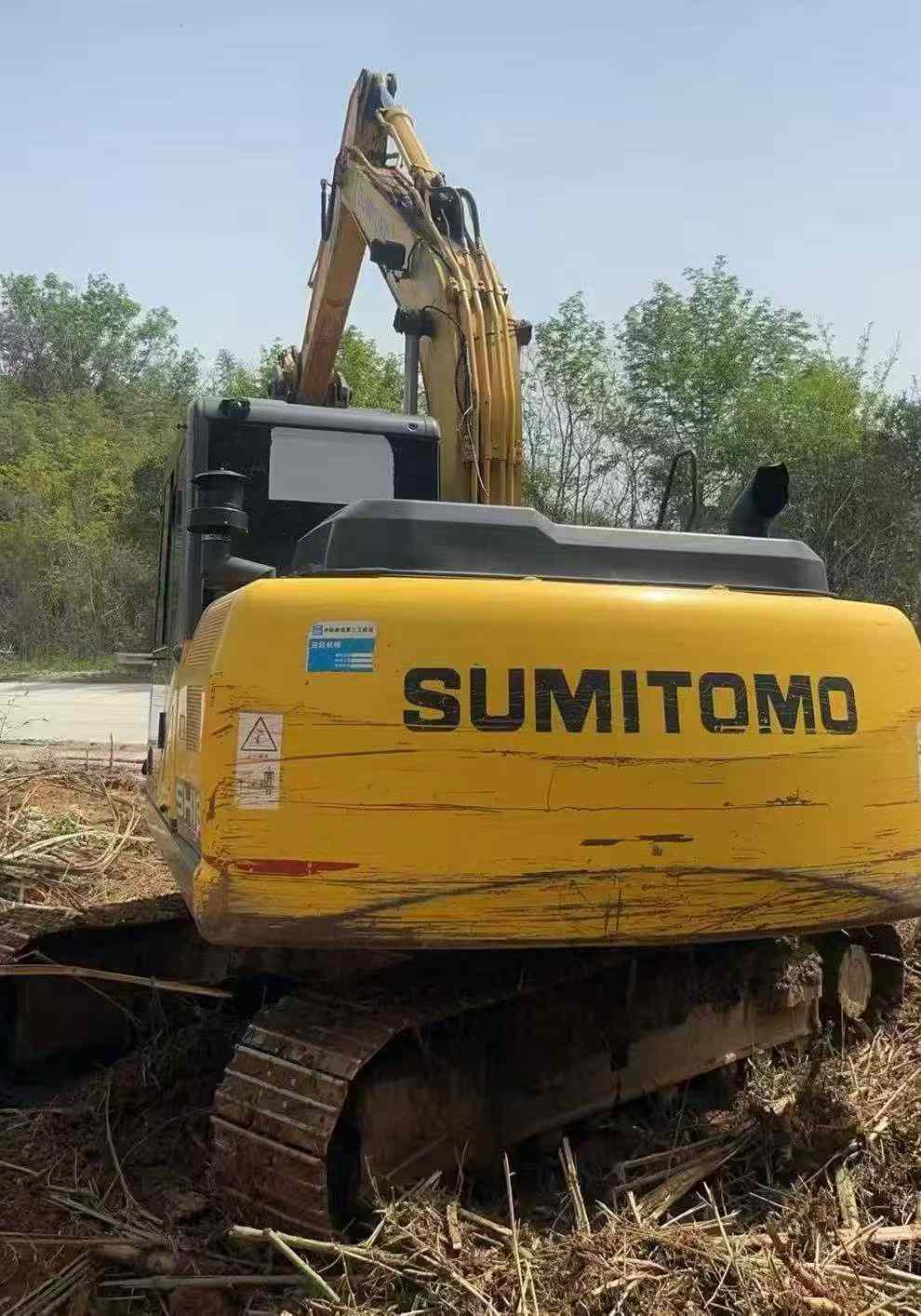

Built for immediate deployment on demanding jobsites, this 2019 Sumitomo SH130-6 excavator delivers reliable performance across digging, grading, and material handling operations. With a 13-ton operating weight and 70.9 kW rated power at 2000 rpm, this machine handles medium-duty excavation tasks with consistent efficiency. Currently located in Putian, Fujian, it's ready to mobilize to your project without delay.
Equipped with a 0.5-0.55 m³ backhoe bucket and a 4600mm boom paired with a 2500mm arm, this joint venture-manufactured excavator reaches a maximum digging depth of 5540mm and an impressive digging radius of 8310mm. Hydraulic performance includes 91 kN bucket digging force and 62 kN arm digging force, supported by a 34.3/36.3 MPa main overflow pressure system. The variable capacity piston pump ensures responsive control during precision work.
Key specifications include:
- Working weight: 12,700 kg with proven stability
- Travel speed: 5.6/3.4 km/h for efficient site mobility
- 70% climbing ability tackles sloped terrain
- 260L fuel tank and 157L hydraulic system for extended operation
- Compact transport dimensions: 7620mm × 2540mm × 2820mm
Site-ready cond
| Specifications | Value |
|---|---|
| No. | 1050099 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 12700 |
| Bucket capacity (m³) | 0.5-0.55 |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2500 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | |
| Rated power (kw/rpm) | 70.9/2000 |
| Displacement (L) | 2.999 |
| Rotation speed (rpm) | 14.1 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 91 |
| Rod digging force (kN) | 62 |
| Travel speed (km/h) | 5.6/3.4 |
| Main overflow set pressure (Mpa) | 34.3/36.3 |
| Rotary hydraulic motor type | |
| Type of walking hydraulic motor | Variable capacity piston pump |
| Main pump type | |
| Working Hydraulic Circuit (Mpa) | 34.3/36.3 |
| Fuel Tank (L) | 260 |
| Hydraulic Tank (L) | 82 |
| Hydraulic System (L) | 157 |
| Total transport length (mm) | 7620 |
| Total transport width (mm) | 2540 |
| Total transport height (mm) | 2820 |
| Counterweight ground clearance (mm) | 890 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 2340 |
| Back end turning radius (mm) | 2130 |
| Total track length (mm) | 3500 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2490 |
| Maximum digging radius (mm) | 8310 |
| Maximum digging depth (mm) | 5540 |
| Maximum excavation height (mm) | 8770 |
| Maximum unloading height (mm) | 6390 |
| Maximum vertical digging depth (mm) | 4590 |
