HOME>>Sumitomo>>Sumitomo SH130-6

2021 Sumitomo SH130-6

1/9
Buy Sumitomo SH130-6 Used Excavator / 1

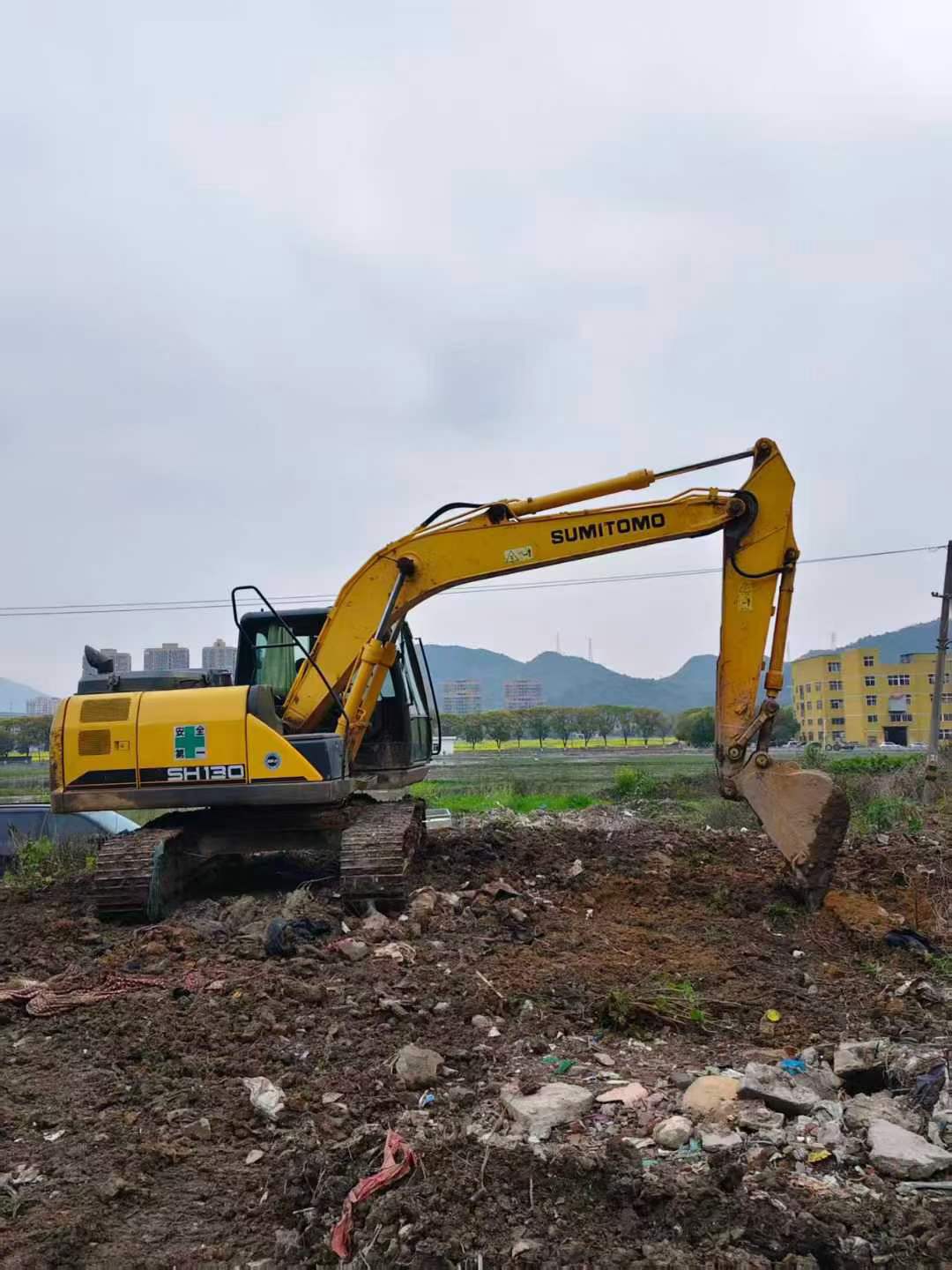

Buy Sumitomo SH130-6 Used Excavator / 2
Buy Sumitomo SH130-6 Used Excavator / 3

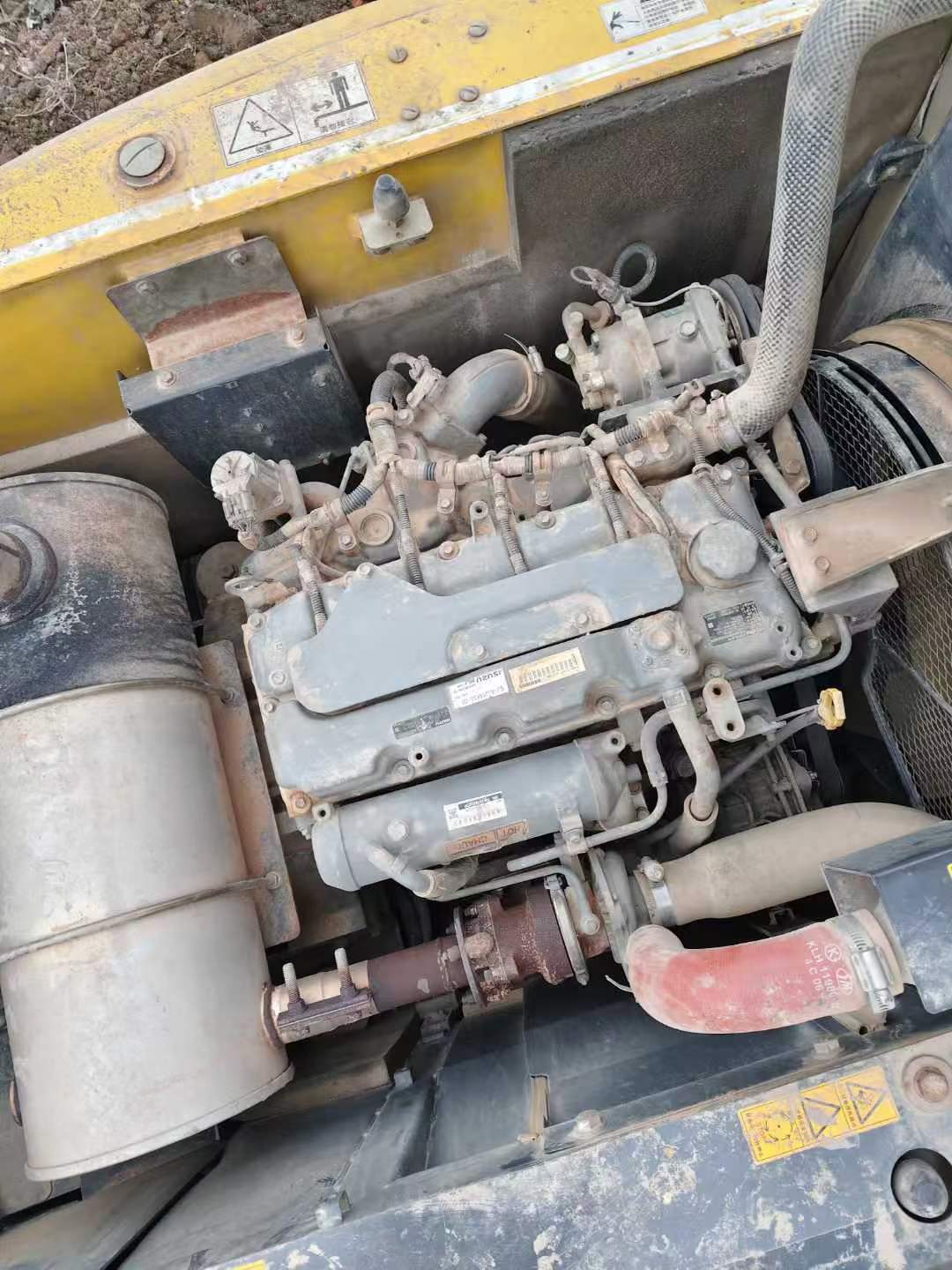

Buy Sumitomo SH130-6 Used Excavator / 4

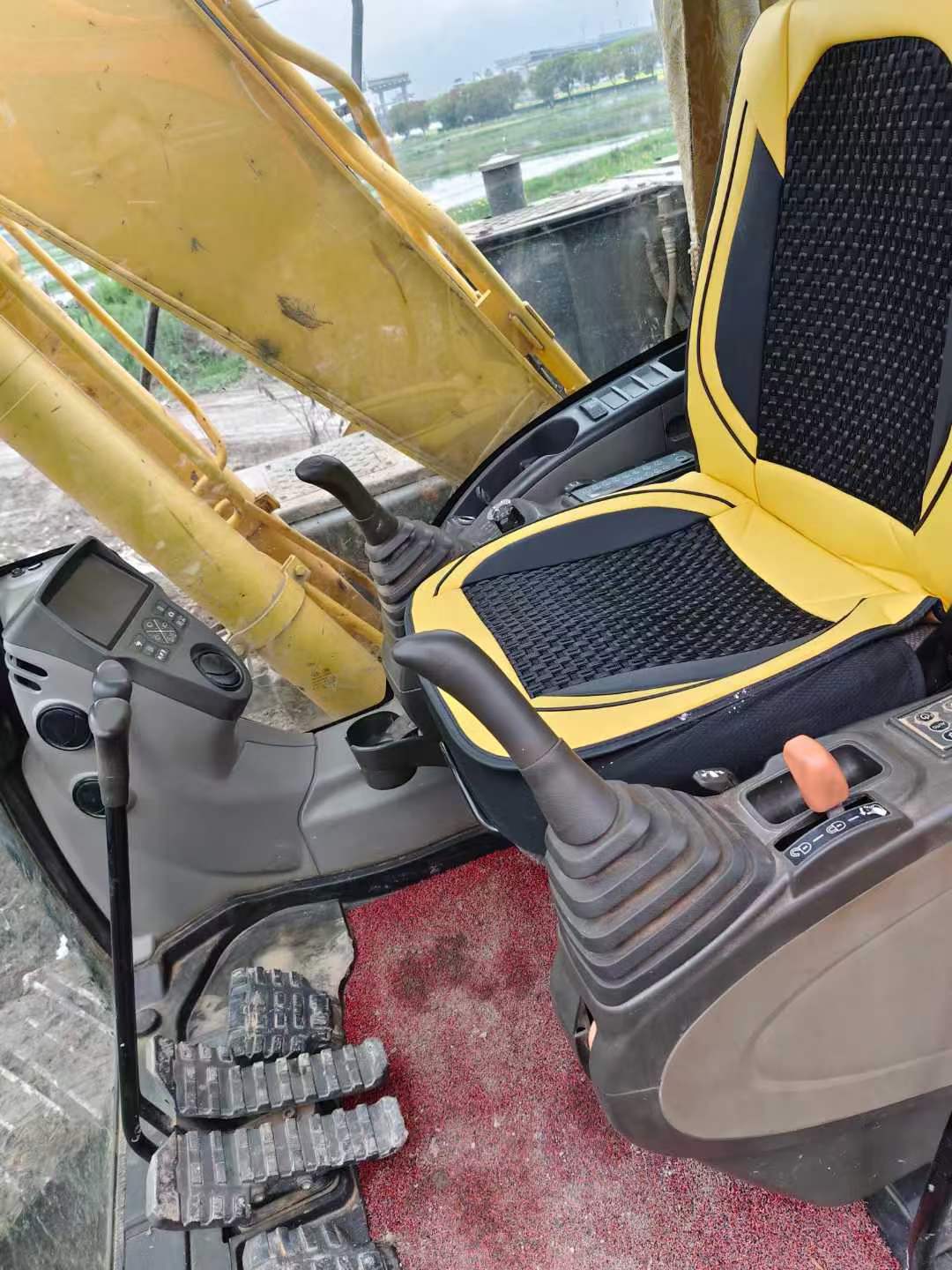

Buy Sumitomo SH130-6 Used Excavator / 5

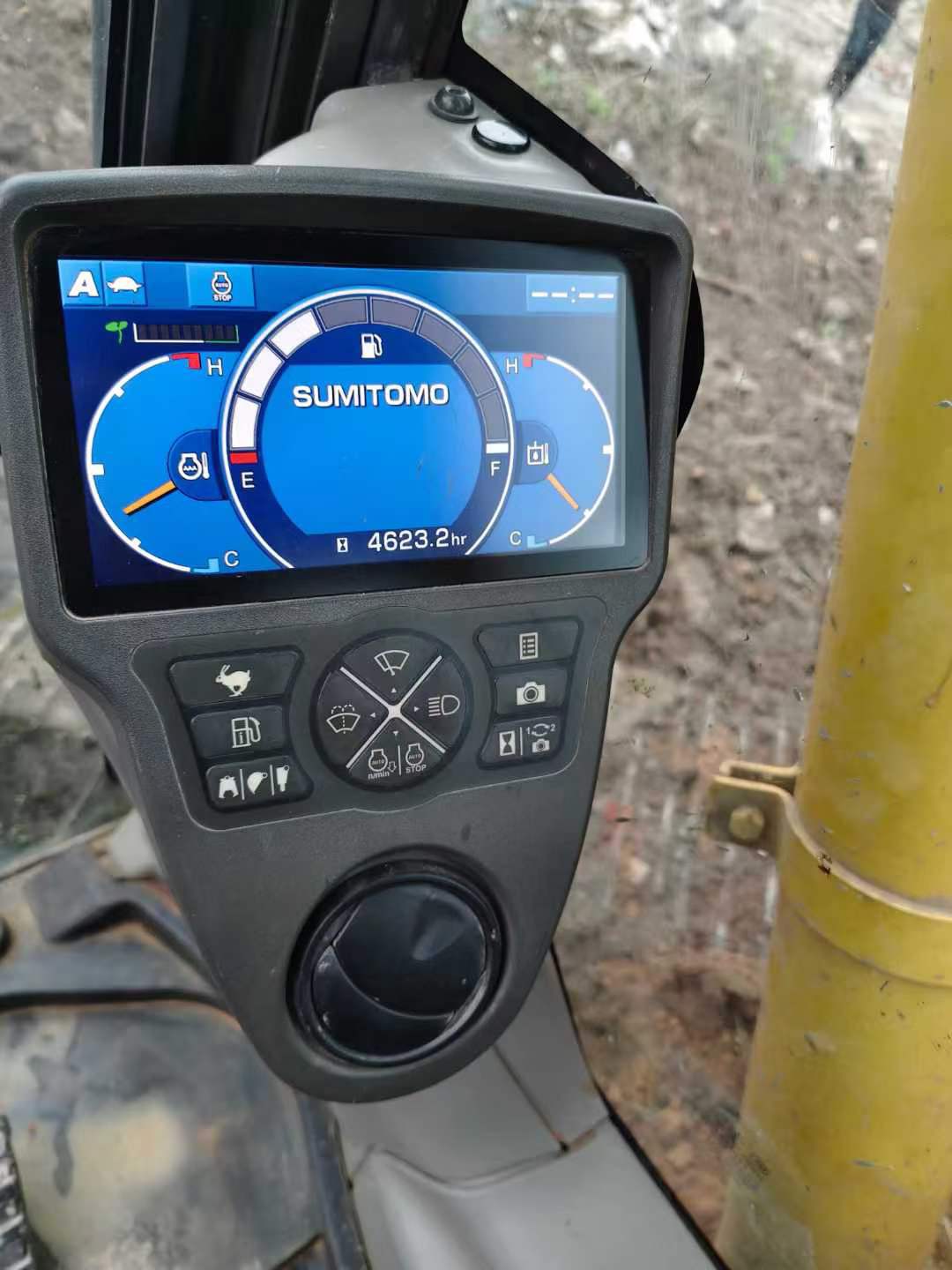

Buy Sumitomo SH130-6 Used Excavator / 6

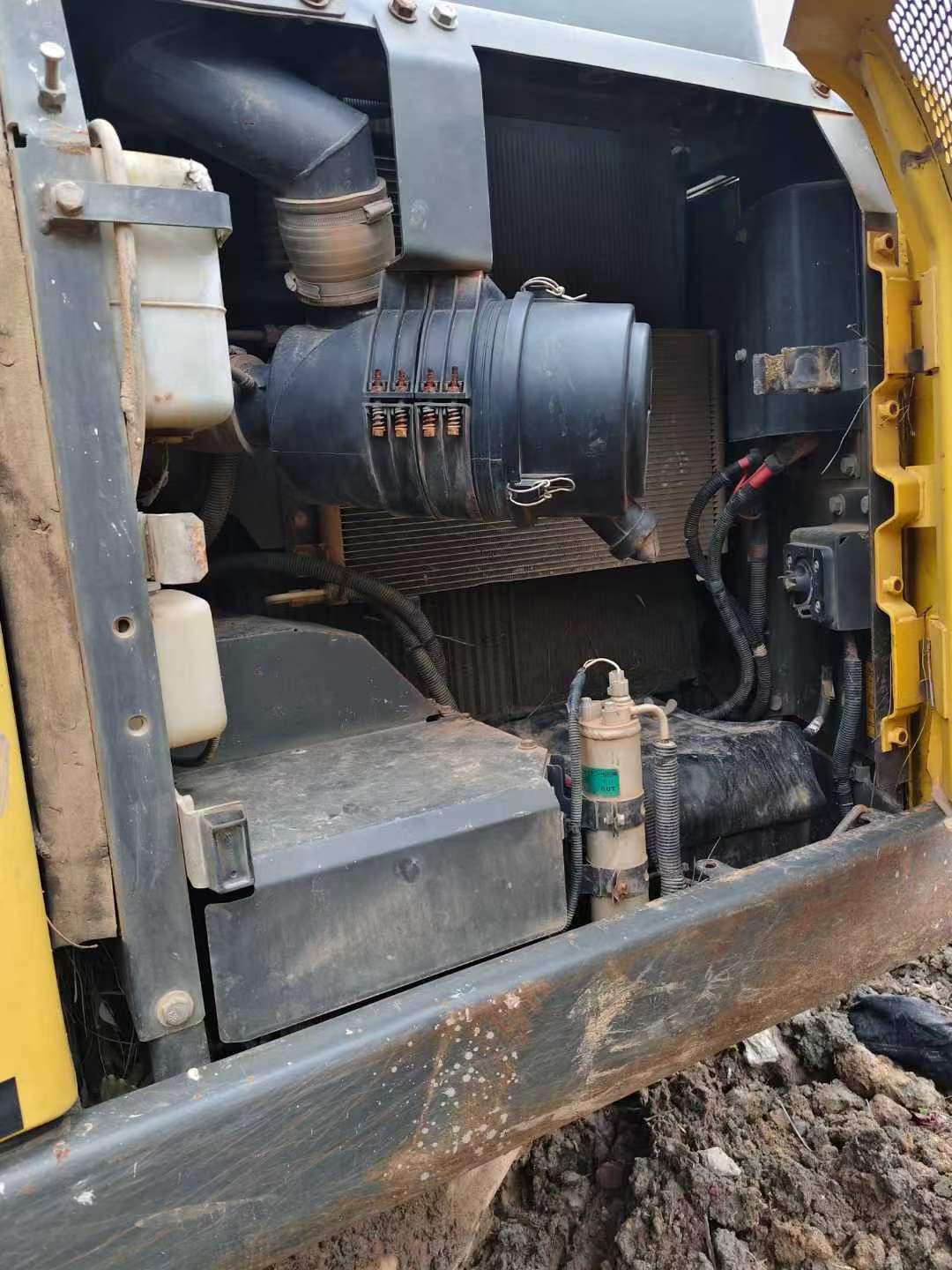

Buy Sumitomo SH130-6 Used Excavator / 7

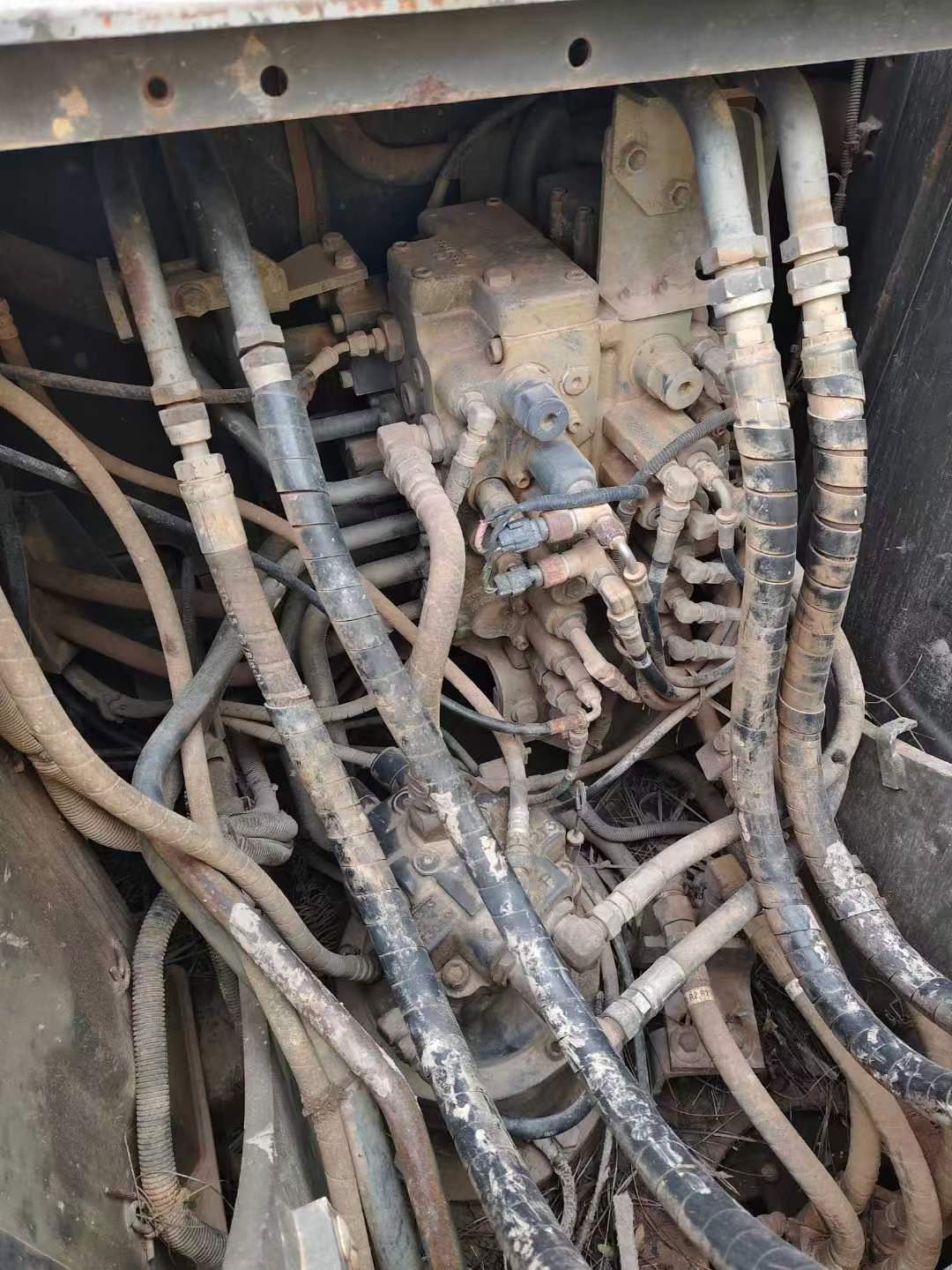

Buy Sumitomo SH130-6 Used Excavator / 8
Buy Sumitomo SH130-6 Used Excavator / 9

Product Description

Built to endure the toughest jobsites, this 2021 Sumitomo SH130-6 excavator delivers reliable performance backed by proven Japanese engineering. With a 13-ton operating weight and 70.9 kW rated power, this machine tackles medium-duty excavation, trenching, and material handling with consistent productivity. The 4600mm boom and 2500mm arm provide an impressive 8310mm maximum digging reach and 5540mm digging depth, making it ideal for foundation work, utility installation, and site preparation.

Key specifications include:

  • Working weight: 12,700 kg with 0.5-0.55 m³ bucket capacity
  • Powerful digging forces: 91 kN bucket force, 62 kN arm force
  • 70% climbing ability for challenging terrain navigation
  • 260L fuel tank and 157L hydraulic system for extended operation
  • Compact transport dimensions: 7620mm × 2540mm × 2820mm
  • Currently located in Wenzhou, Zhejiang, ready for global export

Designed for longevity and backed by Sumitomo's reputation for durability, this proven workhorse represents exceptional value for contractors seeking dependable equipment without compromise.

SpecificationsValue
No.1042593
Tonnage (tons)13
Working weight (kg)12700
Bucket capacity (m³)0.5-0.55
Boom length (mm)4600
Rod length (mm)2500
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine type
Rated power (kw/rpm)70.9/2000
Displacement (L)2.999
Rotation speed (rpm)14.1
Climbing ability (%)70
Bucket digging force (kN)91
Rod digging force (kN)62
Travel speed (km/h)5.6/3.4
Main overflow set pressure (Mpa)34.3/36.3
Rotary hydraulic motor type
Type of walking hydraulic motorVariable capacity piston pump
Main pump type
Working Hydraulic Circuit (Mpa)34.3/36.3
Fuel Tank (L)260
Hydraulic Tank (L)82
Hydraulic System (L)157
Total transport length (mm)7620
Total transport width (mm)2540
Total transport height (mm)2820
Counterweight ground clearance (mm)890
Minimum ground clearance (mm)440
Minimum turning radius of front working device (mm)2340
Back end turning radius (mm)2130
Total track length (mm)3500
Track plate width (mm)500
Total track width (mm)2490
Maximum digging radius (mm)8310
Maximum digging depth (mm)5540
Maximum excavation height (mm)8770
Maximum unloading height (mm)6390
Maximum vertical digging depth (mm)4590
see more

Overview

No.1042593

Brand Name:

Sumitomo

Model Number:

SH130-6

Year:

2021

Location:

Zhejiang China

Pub Date
