Product Description

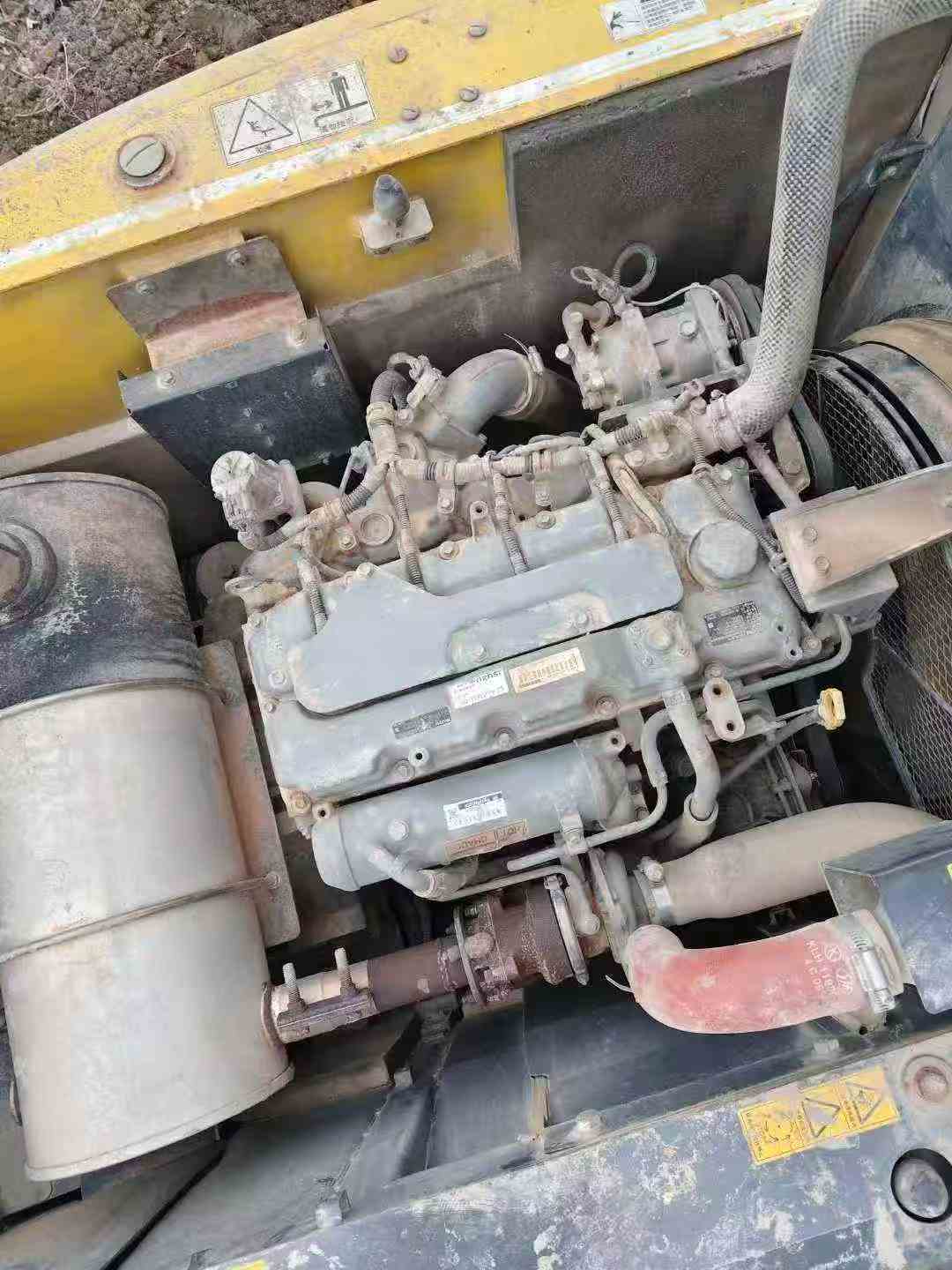

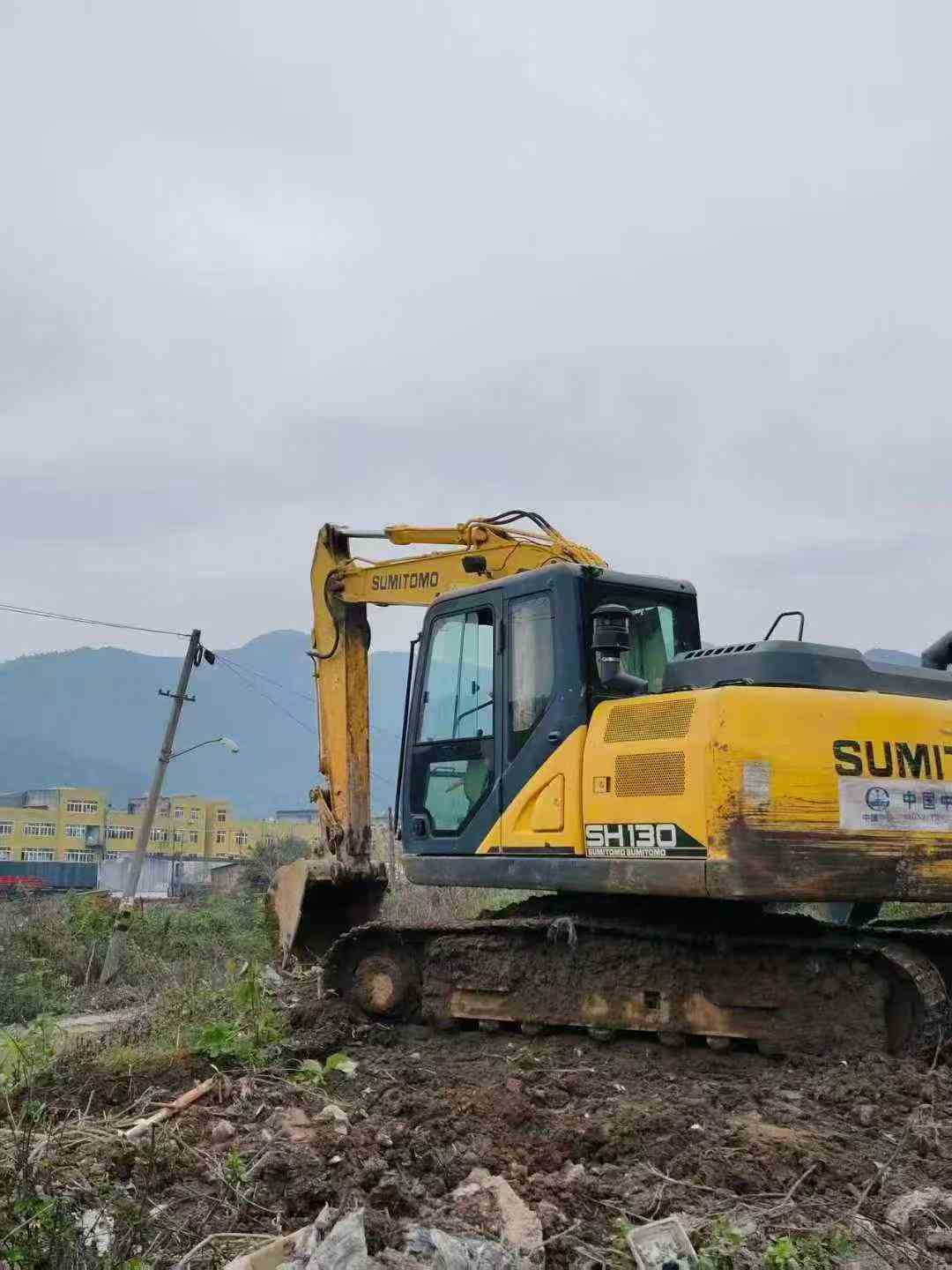

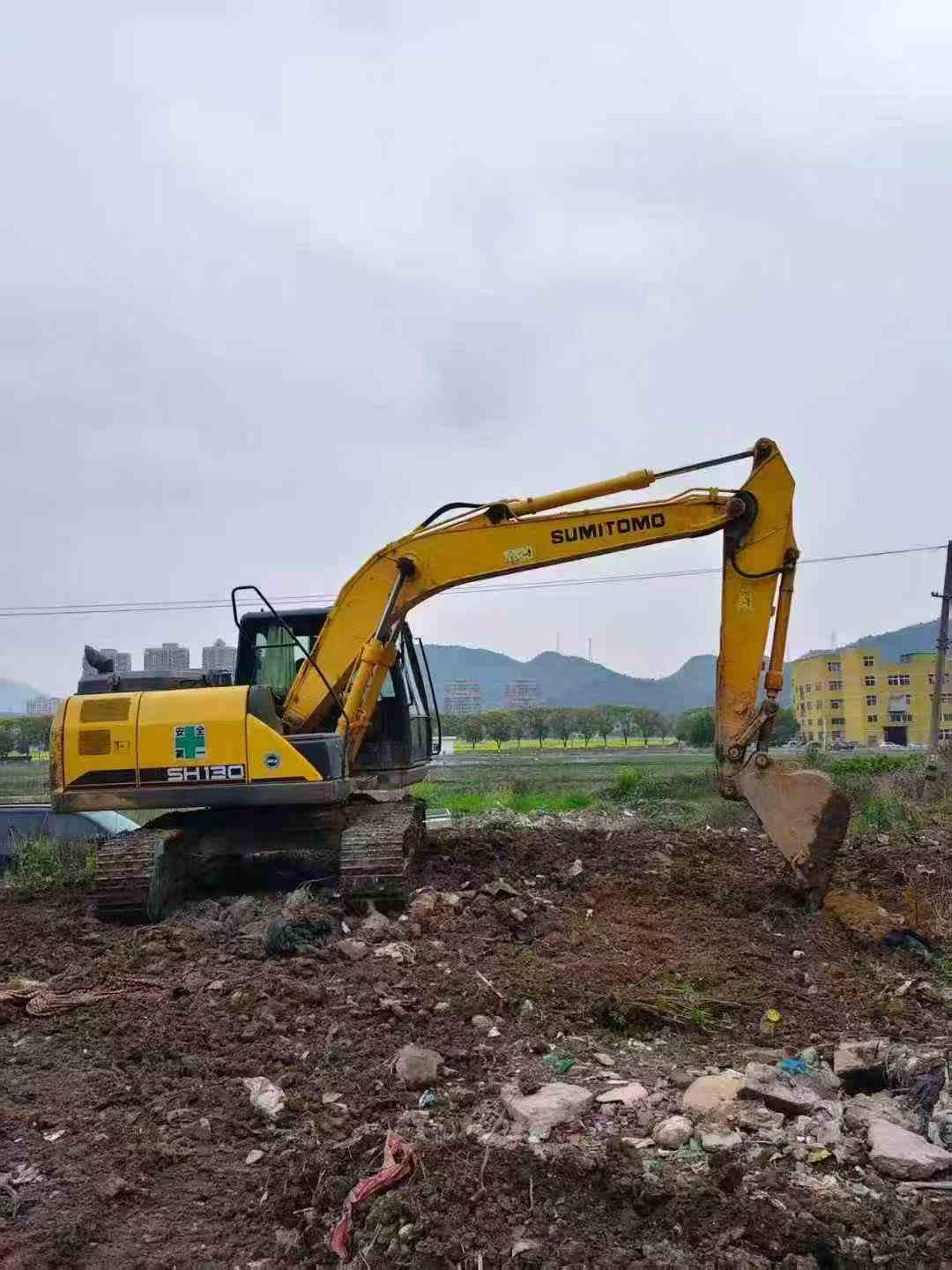

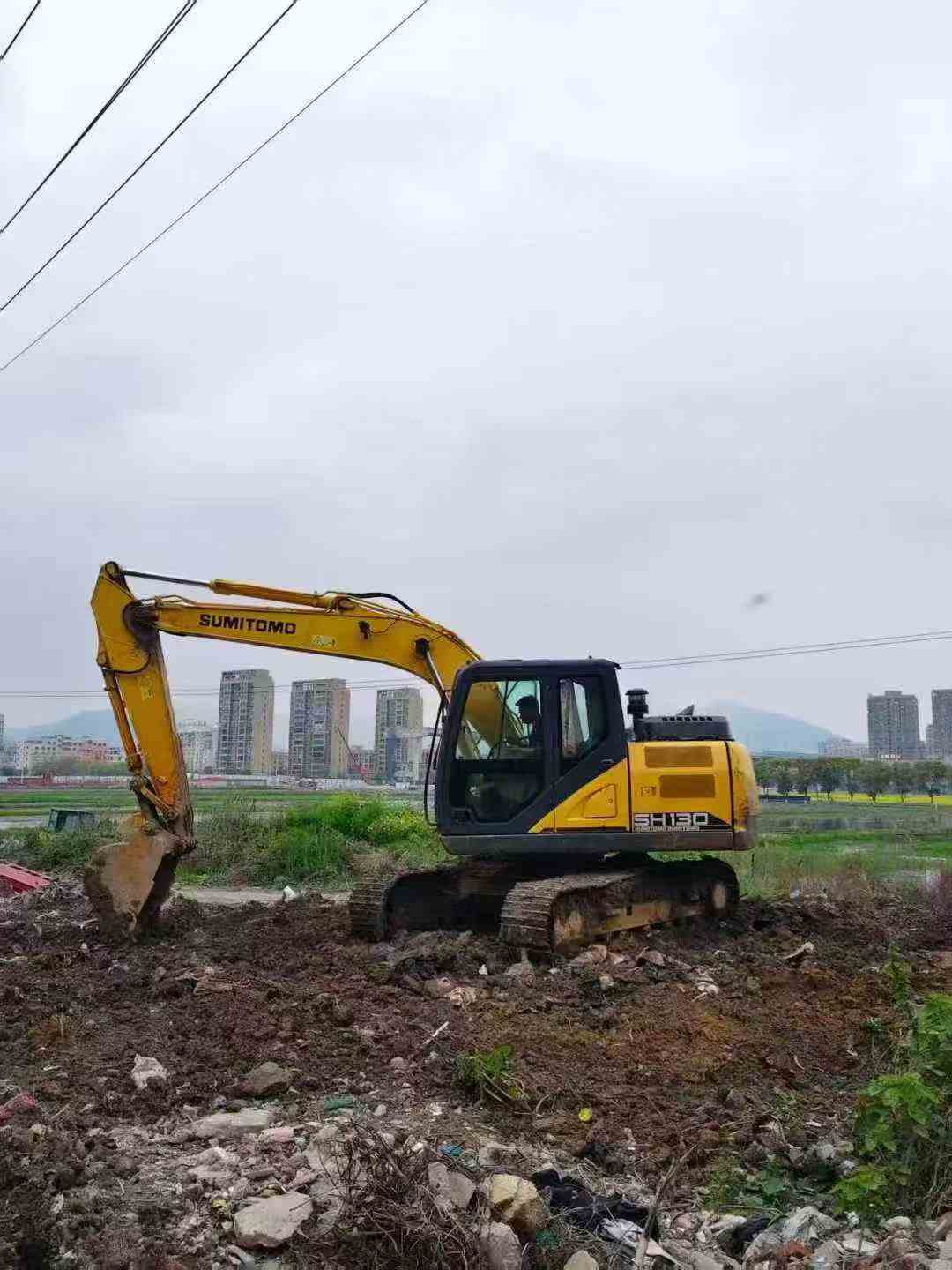

Built for contractors who need reliable backup capacity or a proven fleet addition, this 2021 Sumitomo SH130-6 delivers consistent 13-ton performance straight out of Zhejiang, China. With a 70.9 kW engine running at 2,000 RPM and a 2.999L displacement, it handles demanding dig cycles without straining your fuel budget — the 260L tank keeps it running through long shifts.
Rated at 91 kN bucket digging force and 62 kN rod digging force, this unit punches well above its weight class for foundation work, utility trenching, and site prep. A maximum digging depth of 5,540 mm and 8,310 mm reach radius give your crew the flexibility to tackle varied site conditions without repositioning constantly.
- Working weight: 12,700 kg | Bucket capacity: 0.50–0.55 m³
- Max digging depth: 5,540 mm | Max reach radius: 8,310 mm
- Travel speed: 5.6 / 3.4 km/h | Climbing ability: 70%
- Hydraulic system: 157L total | Main pressure: 34.3 / 36.3 MPa
- Transport dimensions: 7,620 × 2,540 × 2,820 mm
- Track plate width: 500 mm | Back-end turning radius: 2,130 mm
Compact enough to mobilize quickly between sites, yet capable enough to carry a full day's workload — this SH130-6 slots into any mid-size fleet without disruption. Currently available in Zhejiang, China.
| Specifications | Value |
|---|---|
| No. | 1042807 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 12700 |
| Bucket capacity (m³) | 0.5-0.55 |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2500 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | |
| Rated power (kw/rpm) | 70.9/2000 |
| Displacement (L) | 2.999 |
| Rotation speed (rpm) | 14.1 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 91 |
| Rod digging force (kN) | 62 |
| Travel speed (km/h) | 5.6/3.4 |
| Main overflow set pressure (Mpa) | 34.3/36.3 |
| Rotary hydraulic motor type | |
| Type of walking hydraulic motor | Variable capacity piston pump |
| Main pump type | |
| Working Hydraulic Circuit (Mpa) | 34.3/36.3 |
| Fuel Tank (L) | 260 |
| Hydraulic Tank (L) | 82 |
| Hydraulic System (L) | 157 |
| Total transport length (mm) | 7620 |
| Total transport width (mm) | 2540 |
| Total transport height (mm) | 2820 |
| Counterweight ground clearance (mm) | 890 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 2340 |
| Back end turning radius (mm) | 2130 |
| Total track length (mm) | 3500 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2490 |
| Maximum digging radius (mm) | 8310 |
| Maximum digging depth (mm) | 5540 |
| Maximum excavation height (mm) | 8770 |
| Maximum unloading height (mm) | 6390 |
| Maximum vertical digging depth (mm) | 4590 |
