2021 Sumitomo SH130-6

1/9
Buy Sumitomo SH130-6 Used Excavator / 1

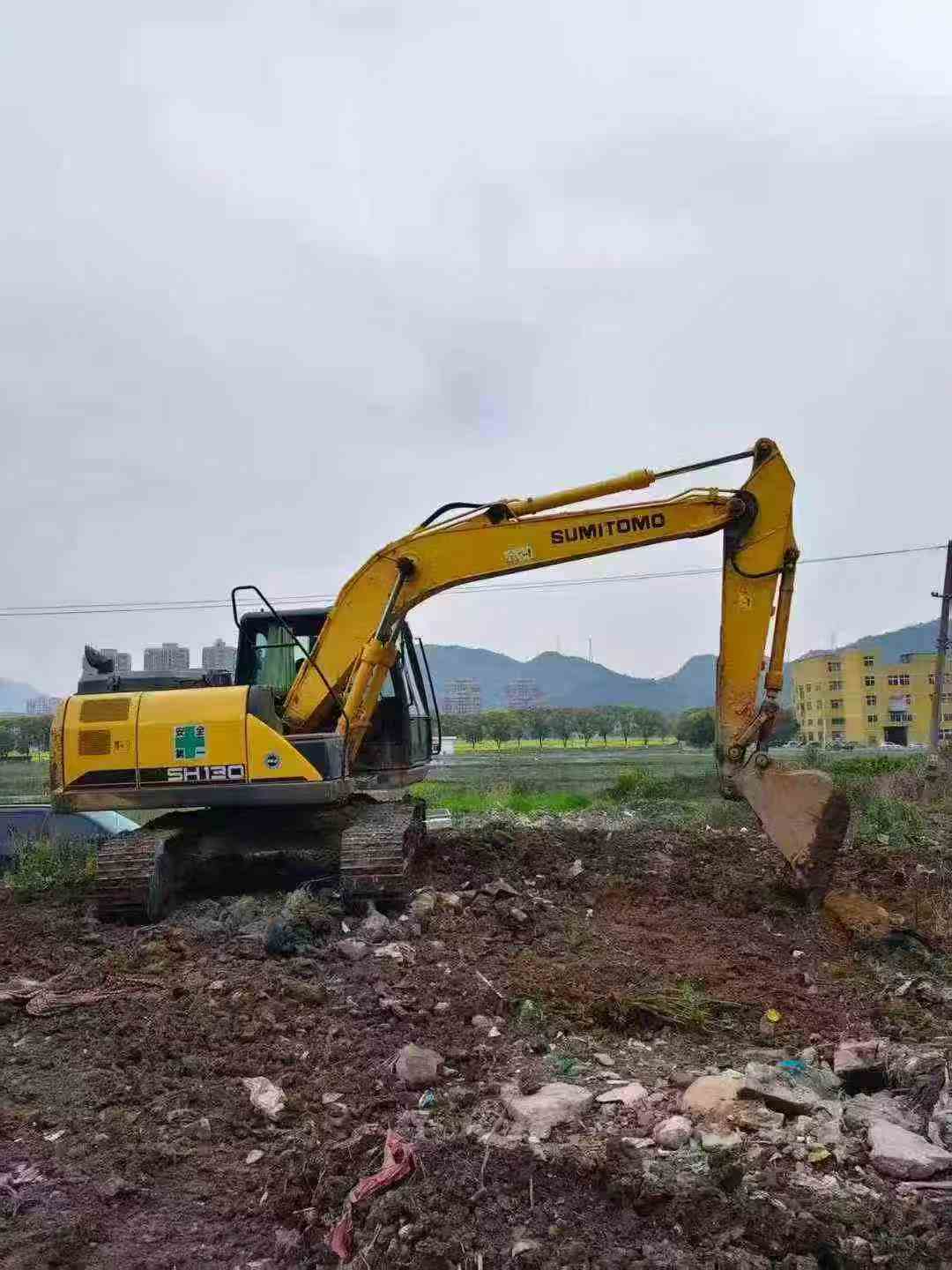

Buy Sumitomo SH130-6 Used Excavator / 2

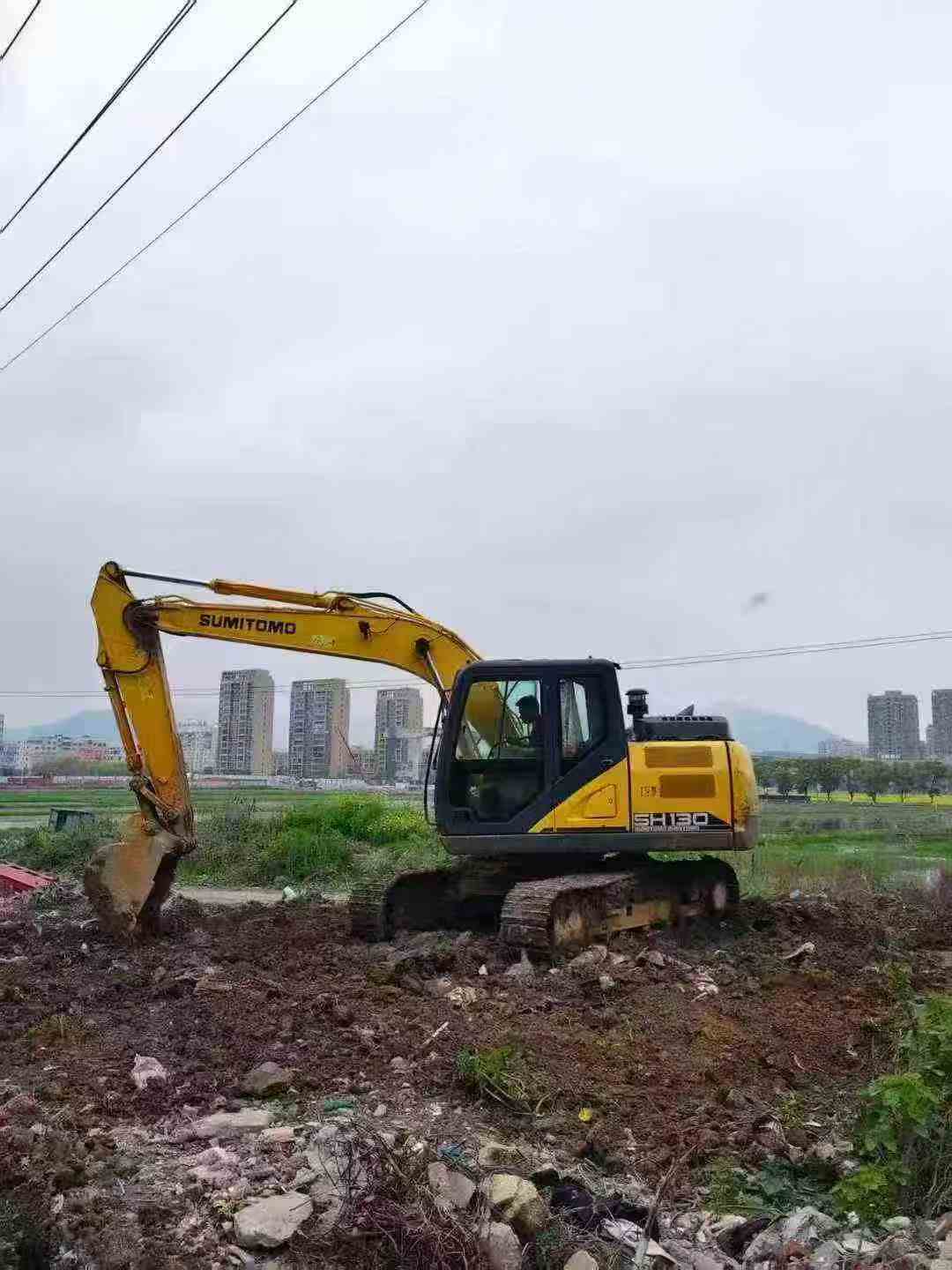

Buy Sumitomo SH130-6 Used Excavator / 3

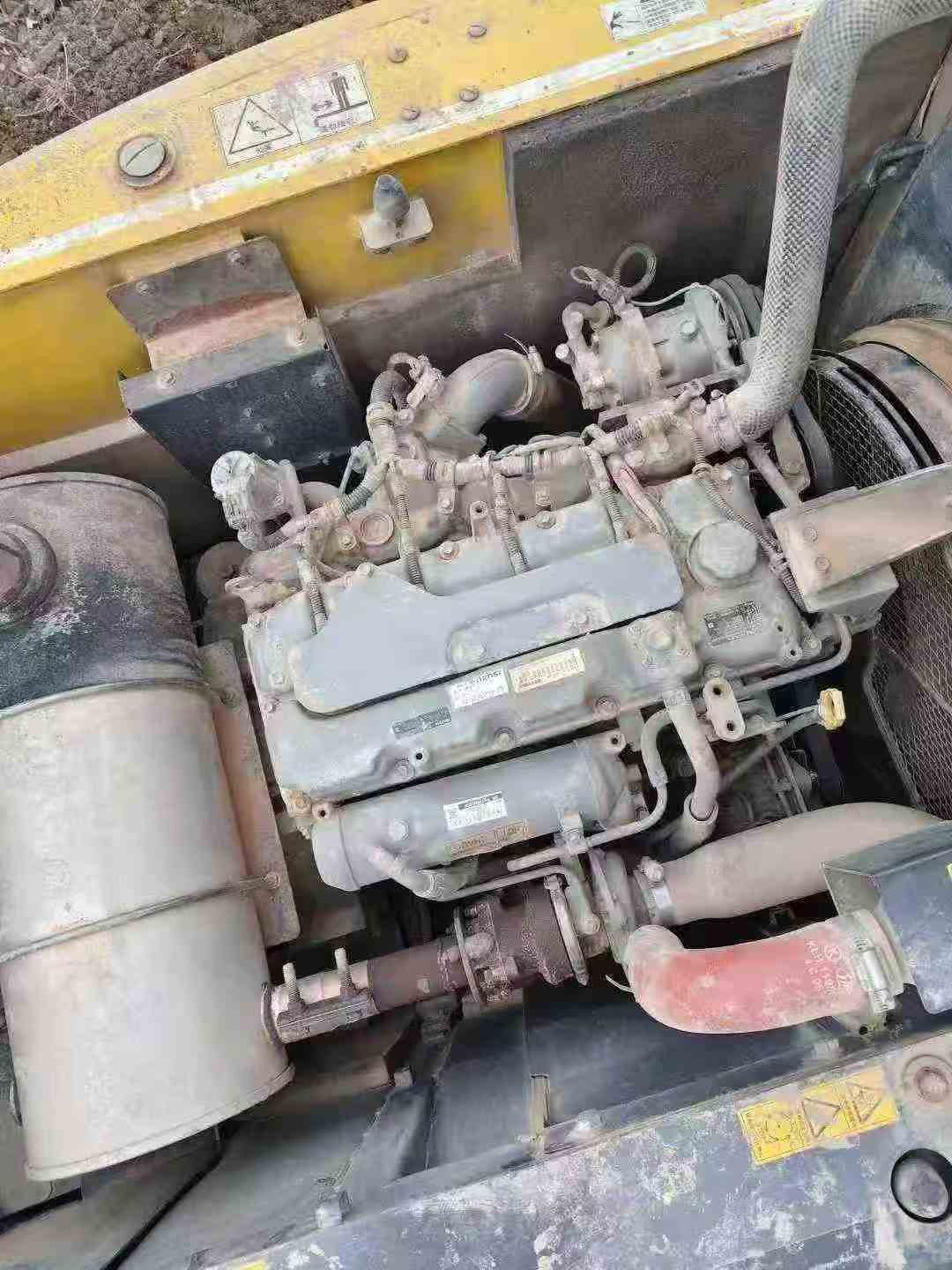

Buy Sumitomo SH130-6 Used Excavator / 4

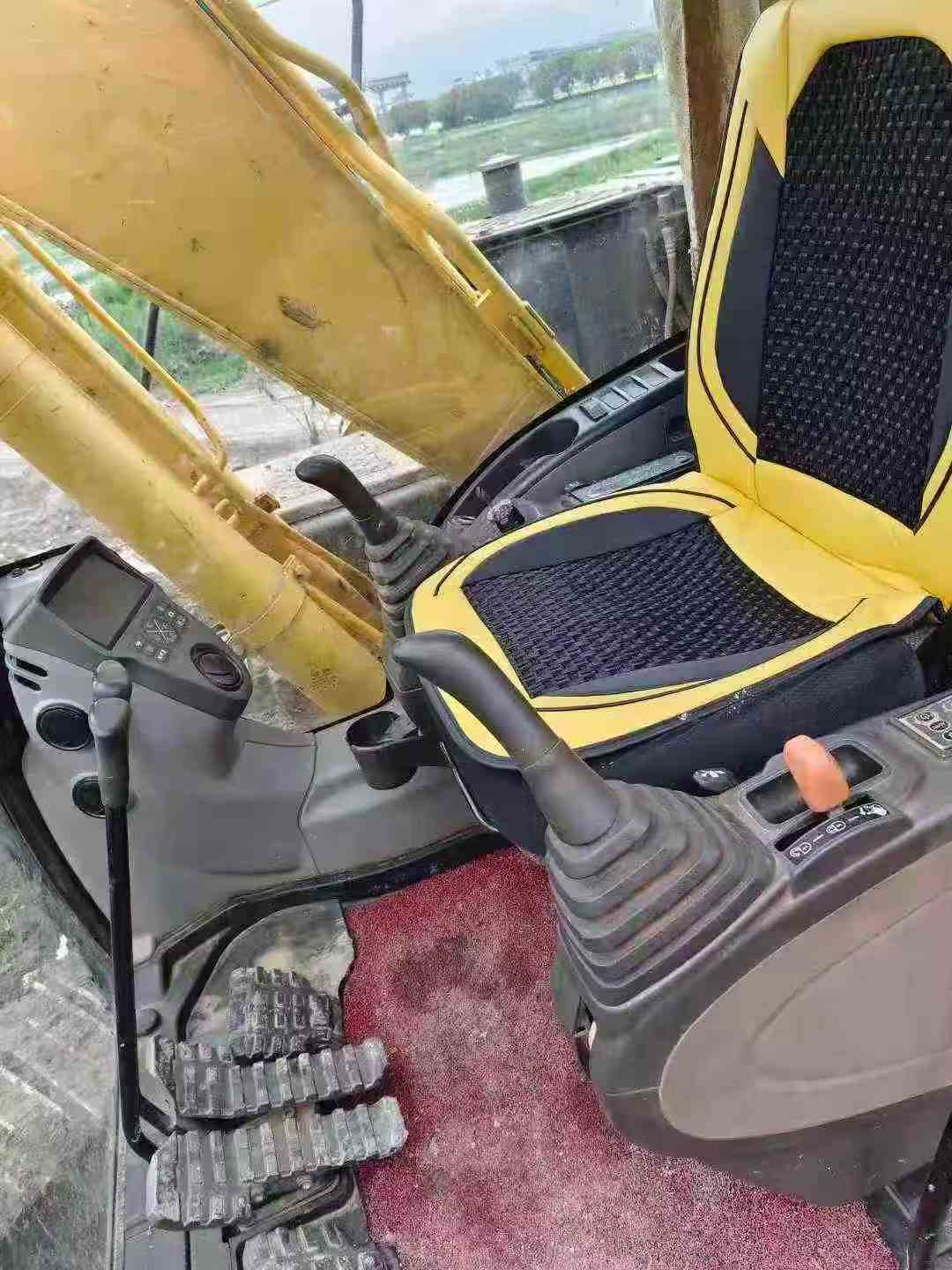

Buy Sumitomo SH130-6 Used Excavator / 5

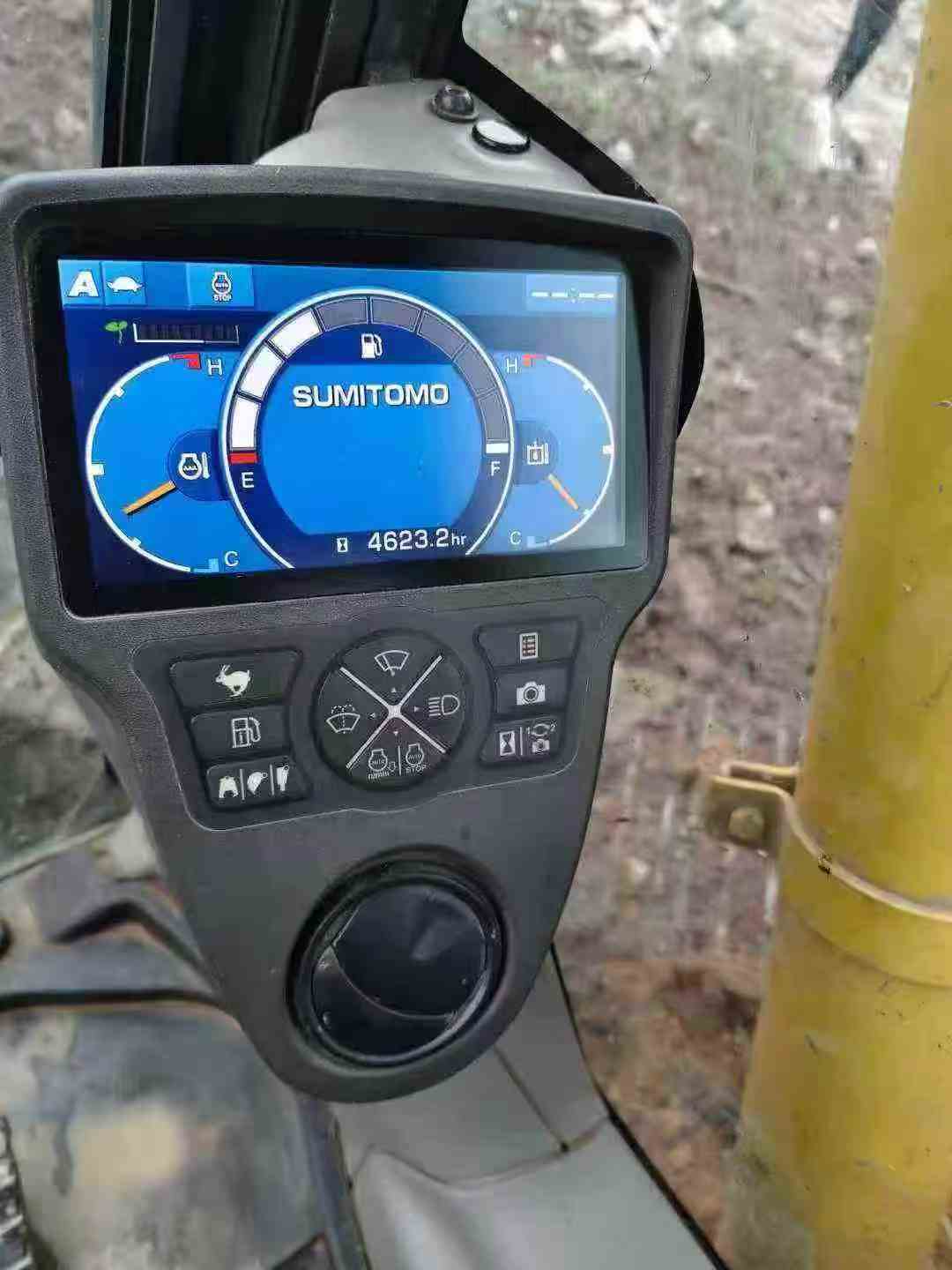

Buy Sumitomo SH130-6 Used Excavator / 6

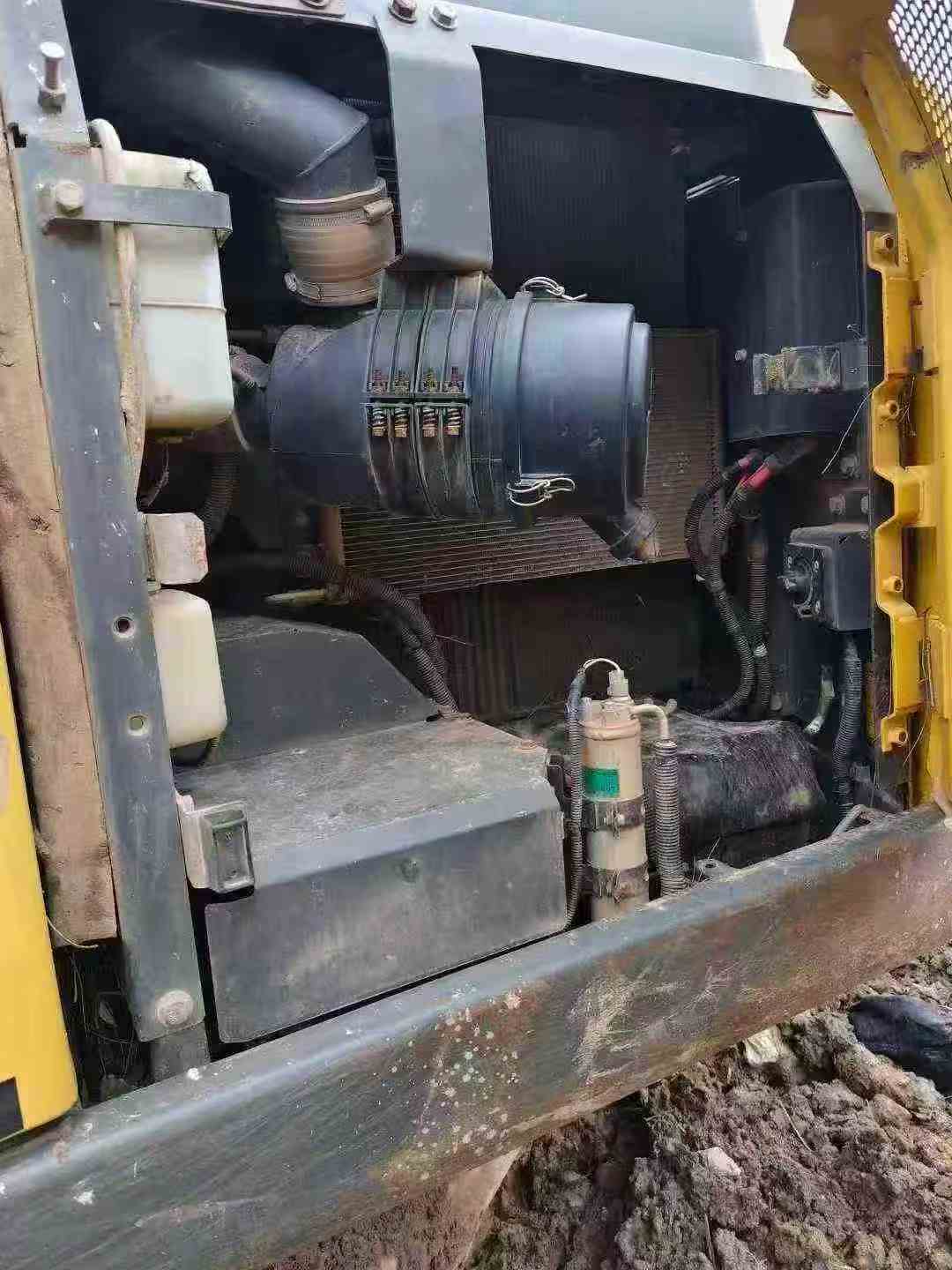

Buy Sumitomo SH130-6 Used Excavator / 7

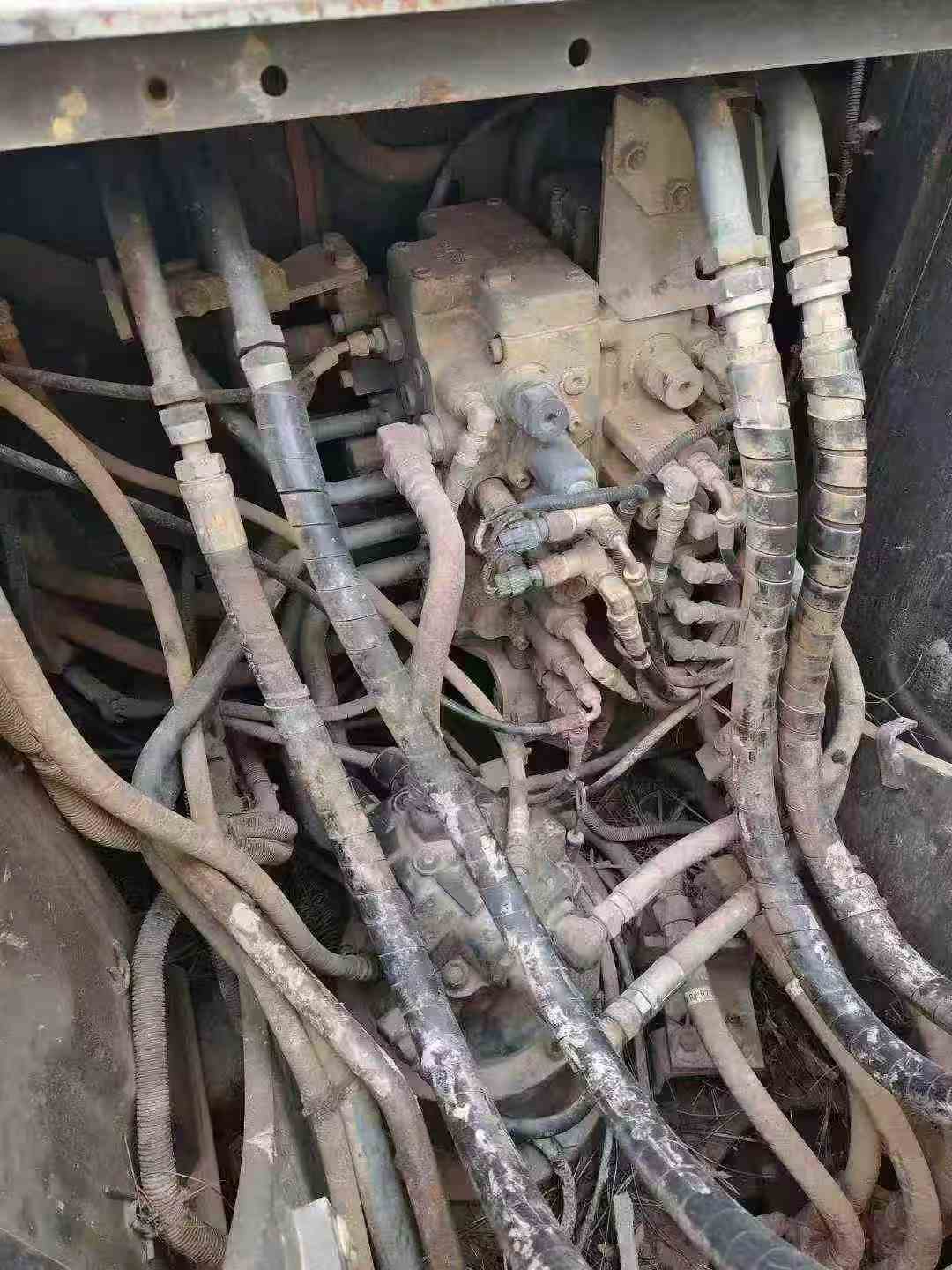

Buy Sumitomo SH130-6 Used Excavator / 8

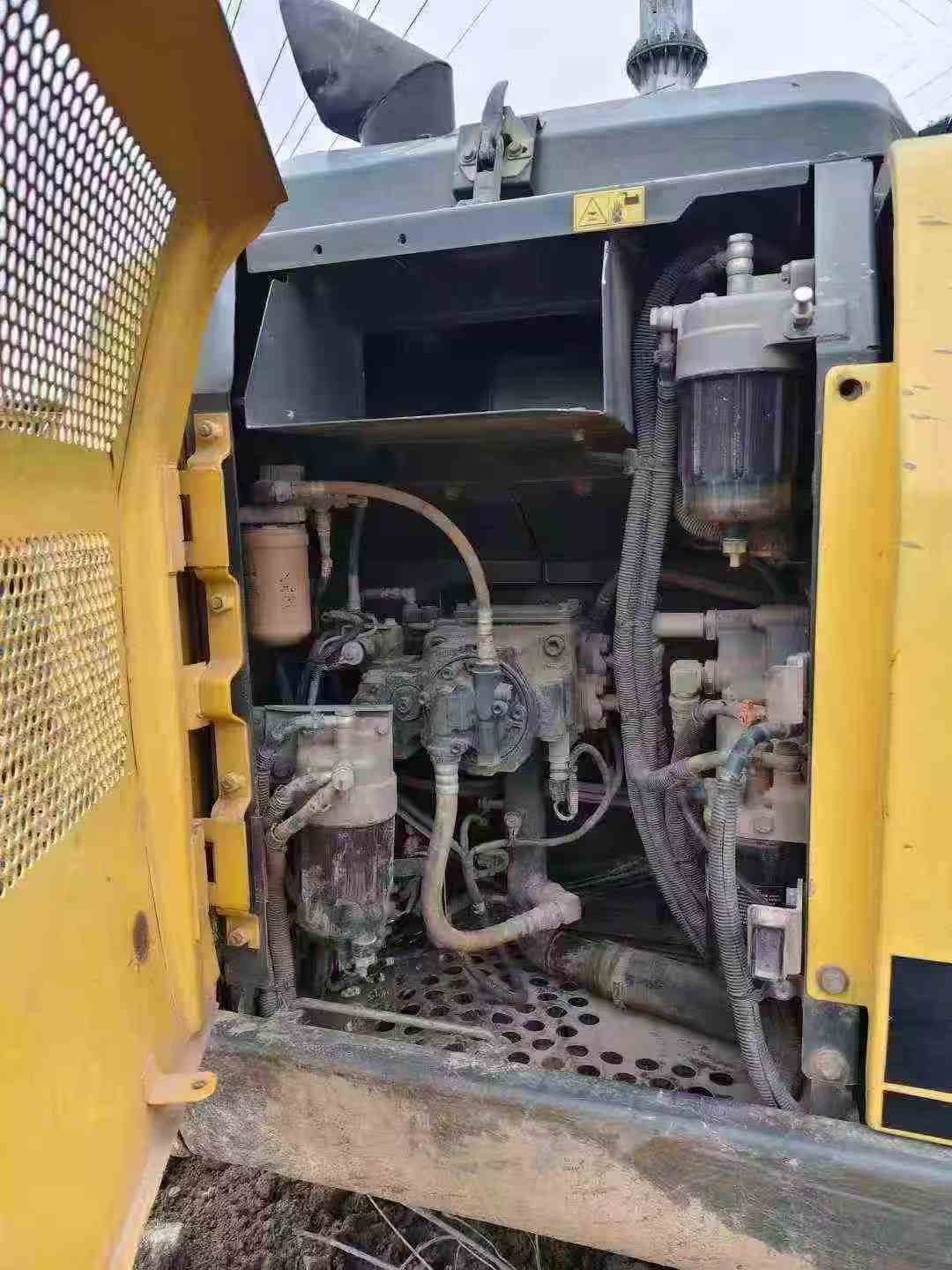

Buy Sumitomo SH130-6 Used Excavator / 9

Product Description

Available now from our Zhejiang facility, this 2021 Sumitomo SH130-6 hydraulic excavator eliminates factory lead times and accelerates your project timeline. Skip the wait—deploy a proven 13-ton workhorse directly to your site with minimal downtime. Engineered for versatility, this joint-venture machine combines 70.9 kW of rated power with a robust 0.5 m³ bucket capacity, delivering 91 kN bucket digging force and 8,310 mm maximum reach across demanding applications.

  • Operational Specs: 12,700 kg working weight, 5,540 mm maximum digging depth, 70% gradeability
  • Hydraulic Performance: 34.3/36.3 MPa system pressure, 157 L total hydraulic capacity, variable piston pump technology
  • Mobility: 5.6 km/h travel speed, 2,340 mm minimum front turning radius, 500 mm track plates
  • Fuel Efficiency: 260 L fuel tank, 2.999 L displacement engine at 2,000 rpm
  • Transport Dimensions: 7,620 × 2,540 × 2,820 mm

Fast deployment from Zhejiang means reduced logistics complexity and immediate ROI. Secure this ready-to-work excavator before your competitors do.

SpecificationsValue
No.1045219
Tonnage (tons)13
Working weight (kg)12700
Bucket capacity (m³)0.5-0.55
Boom length (mm)4600
Rod length (mm)2500
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine type
Rated power (kw/rpm)70.9/2000
Displacement (L)2.999
Rotation speed (rpm)14.1
Climbing ability (%)70
Bucket digging force (kN)91
Rod digging force (kN)62
Travel speed (km/h)5.6/3.4
Main overflow set pressure (Mpa)34.3/36.3
Rotary hydraulic motor type
Type of walking hydraulic motorVariable capacity piston pump
Main pump type
Working Hydraulic Circuit (Mpa)34.3/36.3
Fuel Tank (L)260
Hydraulic Tank (L)82
Hydraulic System (L)157
Total transport length (mm)7620
Total transport width (mm)2540
Total transport height (mm)2820
Counterweight ground clearance (mm)890
Minimum ground clearance (mm)440
Minimum turning radius of front working device (mm)2340
Back end turning radius (mm)2130
Total track length (mm)3500
Track plate width (mm)500
Total track width (mm)2490
Maximum digging radius (mm)8310
Maximum digging depth (mm)5540
Maximum excavation height (mm)8770
Maximum unloading height (mm)6390
Maximum vertical digging depth (mm)4590
see more

Overview

No.1045219

Brand Name:

Sumitomo

Model Number:

SH130-6

Year:

2021

Location:

Zhejiang China

Pub Date
