Product Description

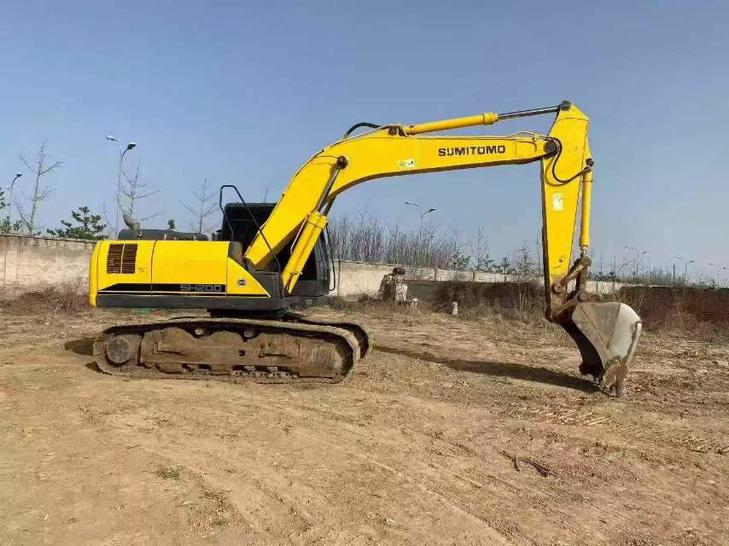

Discover the reliability and performance of the 2019 Sumitomo SH180LC-6, now available in Peking, China. This used excavator has been meticulously maintained and is in excellent condition, having been a single-owner machine. The SH180LC-6 is known for its robust design and efficient operation, making it a preferred choice for demanding construction and excavation projects. This particular unit retains its original paint and shows minimal signs of use, ensuring that you receive a machine that not only performs well but also looks impressive on any job site.
- Year: 2019
- Brand: Sumitomo
- Model: SH180LC-6
- Location: Peking, China
- Single owner, with records available for verification
- Original paint, indicating minimal wear and tear
| Specifications | Value |
|---|---|
| No. | 1120711 |
| Tonnage (tons) | 18 |
| Working weight (kg) | 17700 |
| Bucket capacity (m³) | 0.8 |
| Boom length (mm) | 5150 |
| Rod length (mm) | 2620 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | |
| Rated power (kw/rpm) | 89.2 / 2200 |
| Displacement (L) | 2.999 |
| Ground specific pressure (Kpa) | 42 |
| Rotation speed (rpm) | 11.4 |
| Climbing ability (%) | 70 (35 °) |
| Bucket digging force (kN) | |
| Rod digging force (kN) | |
| Travel speed (km/h) | 5.2 / 2.7 |
| Rotary hydraulic motor type | |
| Type of walking hydraulic motor | Variable capacity piston pump |
| Main pump type | |
| Working Hydraulic Circuit (Mpa) | 34.3 / 36.3 |
| Fuel Tank (L) | 300 |
| Hydraulic Tank (L) | 90 |
| Hydraulic System (L) | 165 |
| Total transport length (mm) | 8440 |
| Total transport width (mm) | 2590 |
| Total transport height (mm) | 2960 |
| Full cab height (mm) | 2940 |
| Counterweight ground clearance (mm) | 1020 |
| Minimum ground clearance (mm) | 420 |
| Minimum turning radius of front working device (mm) | 2990 |
| Back end turning radius (mm) | 2450 |
| Onboard width (mm) | 2540 |
| Total track length (mm) | 3990 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2590 |
| Track ground length (mm) | 3190 |
| Maximum digging radius (mm) | 9080 |
| Maximum digging depth (mm) | 6100 |
| Maximum excavation height (mm) | 9270 |
| Maximum unloading height (mm) | 6570 |
| Maximum vertical digging depth (mm) | 5100 |
