Product Description

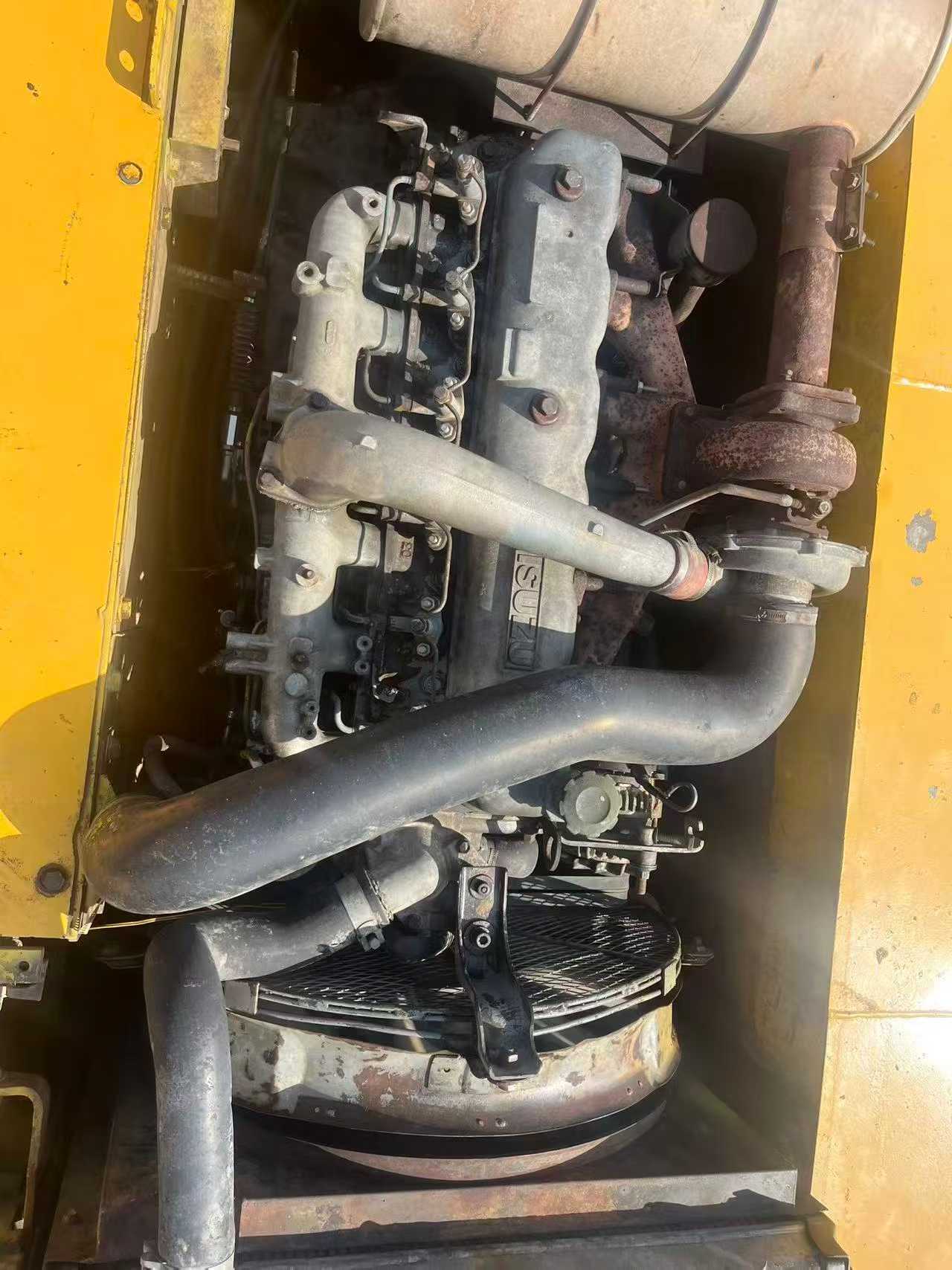

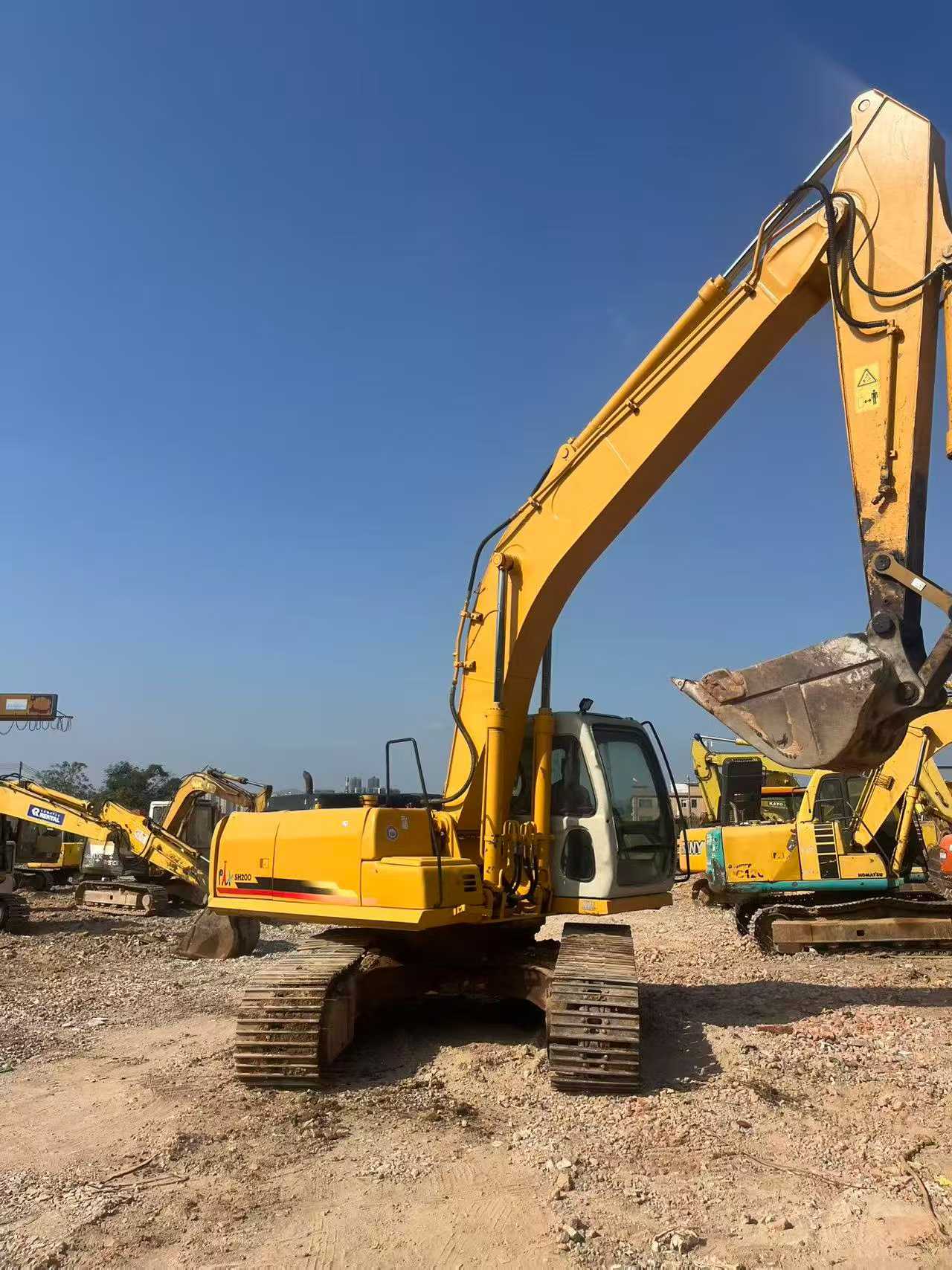

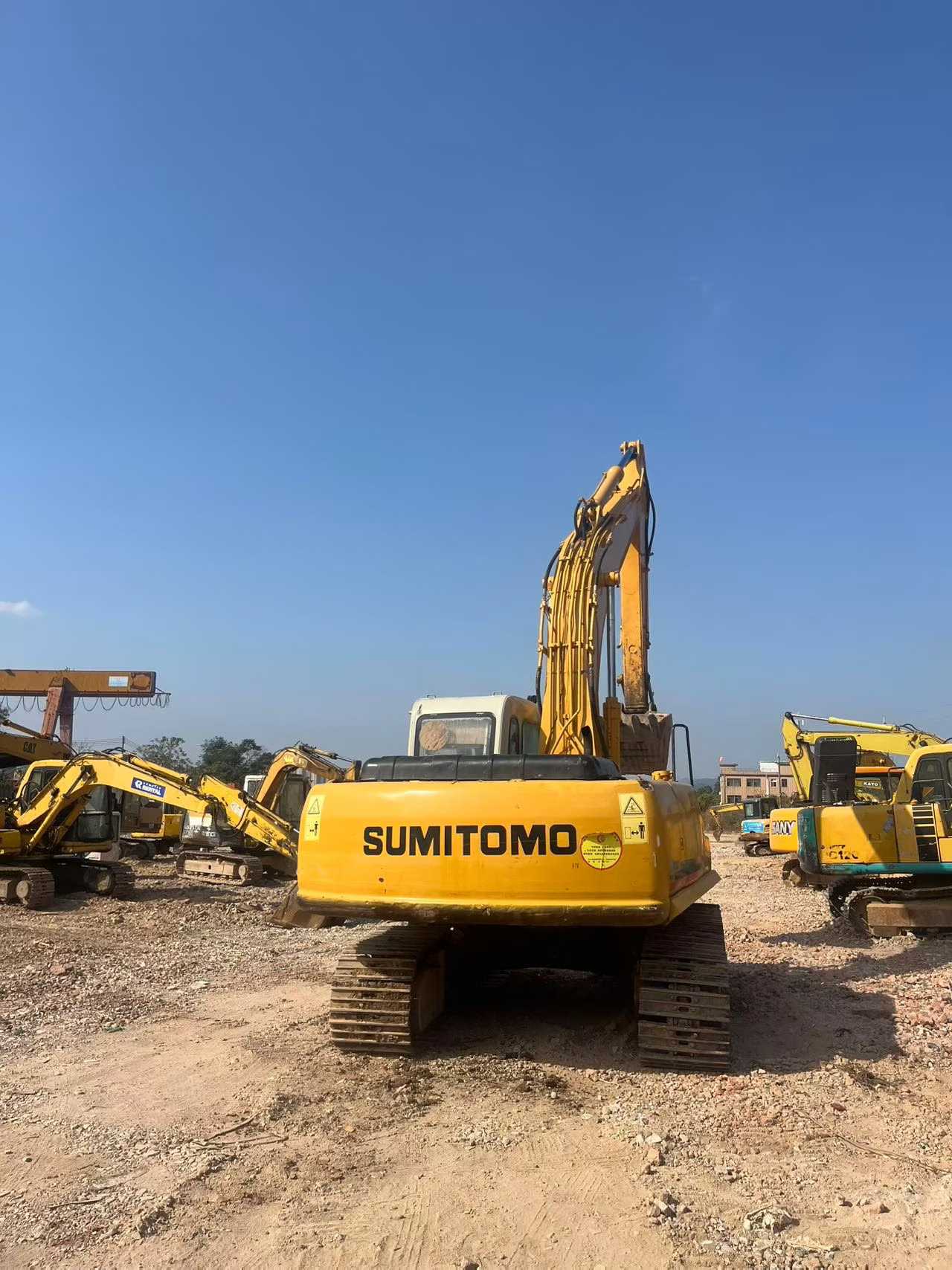

Cut capital costs without sacrificing capability with this 2016 Sumitomo SH200-3 excavator—a proven 20-ton workhorse delivering exceptional value for demanding excavation projects. Powered by a robust ISUZU BB-6BG1T engine producing 103kW at 1950rpm, this machine combines reliable performance with the engineering precision Sumitomo is known for. With an impressive 9960mm maximum digging radius and 6710mm maximum digging depth, it handles large-scale earthmoving operations with ease while consuming significantly less budget than new equipment.
- Operating Weight: 19,100kg with 0.8m³ bucket capacity
- Digging Force: 130kN bucket force, 93.5kN arm force for tough materials
- Hydraulic System: 34.3MPa main overflow pressure ensures responsive control
- Fuel Efficiency: 340L fuel tank, 206L hydraulic tank for extended operation
- Mobility: 70% (35°) climbing ability, 5.5km/h maximum travel speed
- Compact Transport: 9390mm length, 2800mm width for manageable logistics
Currently located in Shenzhen, Guangdong, this water-cooled, 6-cylinder machine represents smart procurement—d
| Specifications | Value |
|---|---|
| No. | 1011343 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 19100 |
| Bucket capacity (m³) | 0.8 |
| Country of origin | |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU BB-6BG1T |
| Rated power (kw/rpm) | 103/1950 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.494 |
| Rotation speed (rpm) | 11.9 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 130 |
| Rod digging force (kN) | 93.5 |
| Travel speed (km/h) | 3.3/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | |
| Type of walking hydraulic motor | |
| Main pump type | |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 206 |
| Total transport length (mm) | 9390 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2910 |
| Full cab height (mm) | 2910 |
| Minimum ground clearance (mm) | 460 |
| Minimum turning radius of front working device (mm) | 3620 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4180 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Maximum digging radius (mm) | 9960 |
| Maximum digging depth (mm) | 6710 |
| Maximum excavation height (mm) | 9650 |
| Maximum unloading height (mm) | 6840 |
| Maximum vertical digging depth (mm) | 6080 |
