Product Description

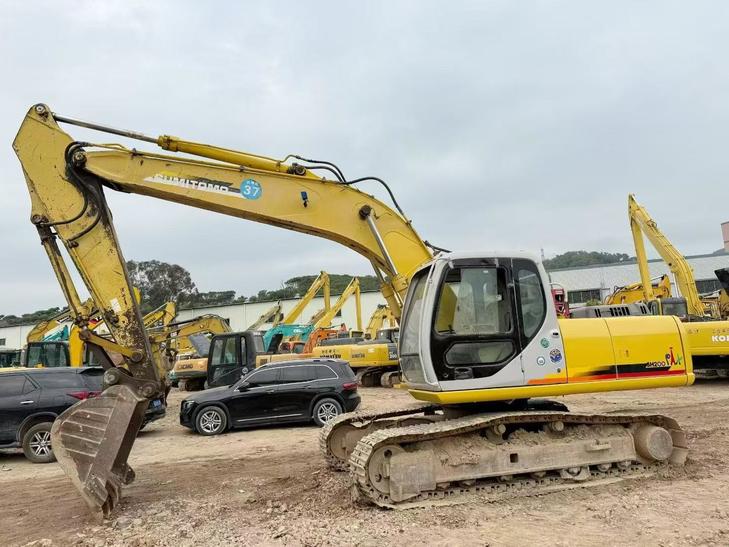

Strengthen your fleet with this 2016 Sumitomo SH200-3 excavator, a proven 20-ton workhorse engineered for contractors who demand consistent performance across multiple job sites. Powered by a reliable ISUZU BB-6BG1T engine delivering 103kw at 1950rpm, this machine provides the muscle needed for demanding excavation, trenching, and material handling operations. With an impressive 9960mm maximum digging radius and 6710mm digging depth, it tackles substantial earthmoving tasks while maintaining the agility required for confined work areas.
- Operating weight: 19,100kg with 0.8m³ bucket capacity
- Robust hydraulic system: 130kN bucket digging force, 93.5kN arm force
- Water-cooled 6-cylinder engine with 6.494L displacement
- 340L fuel tank supports extended operation between refills
- 70% gradeability (35°) handles challenging terrain
- Currently located in Huizhou, Guangdong – ready for immediate deployment
Perfect as a backup unit during peak season or to expand capacity without the premium of new equipment. This joint venture-manufactured excavator combines proven Japanese engineering with practical specifications that integrate seamlessly into existing fleets. Minimize do
| Specifications | Value |
|---|---|
| No. | 1021480 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 19100 |
| Bucket capacity (m³) | 0.8 |
| Country of origin | |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU BB-6BG1T |
| Rated power (kw/rpm) | 103/1950 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.494 |
| Rotation speed (rpm) | 11.9 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 130 |
| Rod digging force (kN) | 93.5 |
| Travel speed (km/h) | 3.3/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | |
| Type of walking hydraulic motor | |
| Main pump type | |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 206 |
| Total transport length (mm) | 9390 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2910 |
| Full cab height (mm) | 2910 |
| Minimum ground clearance (mm) | 460 |
| Minimum turning radius of front working device (mm) | 3620 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4180 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Maximum digging radius (mm) | 9960 |
| Maximum digging depth (mm) | 6710 |
| Maximum excavation height (mm) | 9650 |
| Maximum unloading height (mm) | 6840 |
| Maximum vertical digging depth (mm) | 6080 |
