Product Description

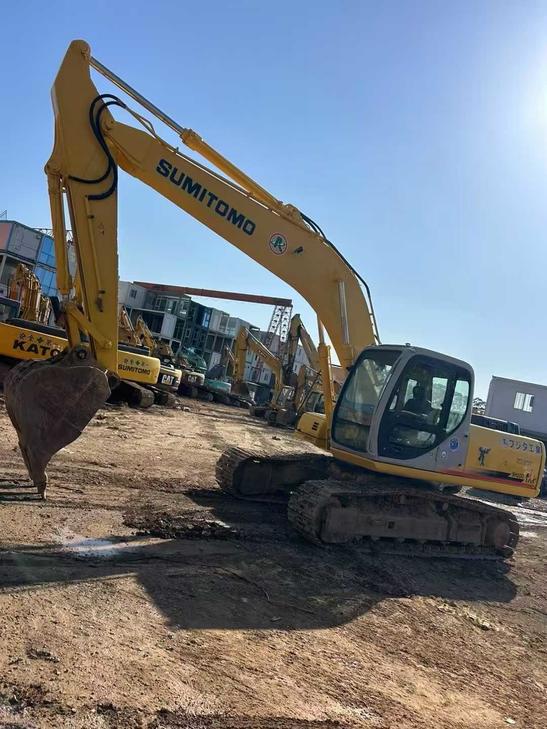

Backed by Sumitomo's joint venture engineering and a proven ISUZU BB-6BG1T engine, this 2016 SH200-3 excavator delivers 103kW of reliable power at a fraction of new equipment cost. Operating at 20 tons with a 0.8m³ bucket capacity, this water-cooled, 6-cylinder machine tackles demanding excavation work with 130kN bucket digging force and 93.5kN arm force—performance specs that rival current models without the premium price tag.
- Maximum digging reach of 9,960mm and depth of 6,710mm for versatile jobsite applications
- Impressive 70% (35°) climbing ability and 11.9 rpm rotation speed for challenging terrain
- 340L fuel tank and 206L hydraulic reservoir minimize downtime on extended shifts
- Currently located in Dongguan, Guangdong, ready for immediate deployment
- 19,100kg working weight optimizes stability without sacrificing transportability
With comprehensive hydraulic pressure rated at 34.3MPa and dual travel speeds (3.3/5.5 km/h), this SH200-3 represents smart capital allocation for contractors seeking proven capability. Invest in operational-ready equipment that preserves your budget for project growth instead of depreciation.
| Specifications | Value |
|---|---|
| No. | 1032893 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 19100 |
| Bucket capacity (m³) | 0.8 |
| Country of origin | |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU BB-6BG1T |
| Rated power (kw/rpm) | 103/1950 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.494 |
| Rotation speed (rpm) | 11.9 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 130 |
| Rod digging force (kN) | 93.5 |
| Travel speed (km/h) | 3.3/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | |
| Type of walking hydraulic motor | |
| Main pump type | |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 206 |
| Total transport length (mm) | 9390 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2910 |
| Full cab height (mm) | 2910 |
| Minimum ground clearance (mm) | 460 |
| Minimum turning radius of front working device (mm) | 3620 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4180 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Maximum digging radius (mm) | 9960 |
| Maximum digging depth (mm) | 6710 |
| Maximum excavation height (mm) | 9650 |
| Maximum unloading height (mm) | 6840 |
| Maximum vertical digging depth (mm) | 6080 |
