Product Description

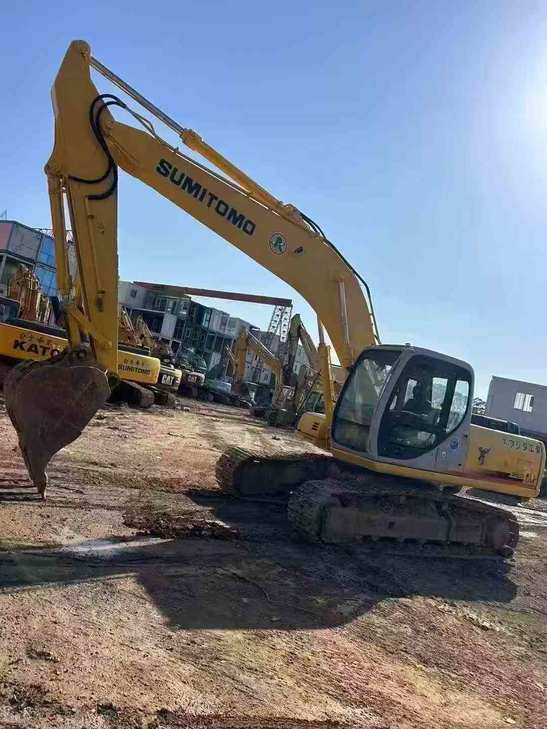

Built for contractors who need reliable capacity without downtime, this 2020 Sumitomo SH200-3 20-ton excavator is a proven fleet addition available from Guangdong, China. Powered by an ISUZU BB-6BG1T 6-cylinder engine producing 103 kW at 1,950 rpm, it delivers consistent hydraulic performance with a main system pressure of 34.3 MPa — enough to handle demanding dig cycles shift after shift.
With a bucket digging force of 130 kN and 0.8 m³ backhoe bucket, this unit punches well within its weight class. A 6,710 mm maximum digging depth and 9,960 mm maximum digging radius give operators the reach needed for trenching, foundation work, and site clearing without repositioning.
- Working weight: 19,100 kg | Fuel tank: 340 L for extended run time
- Travel speed: 3.3 / 5.5 km/h | Climbing ability: 70% (35°)
- Maximum digging depth: 6,710 mm | Maximum reach: 9,960 mm
- Maximum unloading height: 6,840 mm
- Water-cooled, 6.494 L displacement engine — straightforward to service
- Transport dimensions: 9,390 × 2,800 × 2,910 mm
When your primary machine is down or your workload spikes, this SH200-3 steps in without missing a beat. Stock is located in Guangdong — contact Fair Trade Machinery for inspection reports and shipping options.
| Specifications | Value |
|---|---|
| No. | 1073609 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 19100 |
| Bucket capacity (m³) | 0.8 |
| Country of origin | |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU BB-6BG1T |
| Rated power (kw/rpm) | 103/1950 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.494 |
| Rotation speed (rpm) | 11.9 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 130 |
| Rod digging force (kN) | 93.5 |
| Travel speed (km/h) | 3.3/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | |
| Type of walking hydraulic motor | |
| Main pump type | |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 206 |
| Total transport length (mm) | 9390 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2910 |
| Full cab height (mm) | 2910 |
| Minimum ground clearance (mm) | 460 |
| Minimum turning radius of front working device (mm) | 3620 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4180 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Maximum digging radius (mm) | 9960 |
| Maximum digging depth (mm) | 6710 |
| Maximum excavation height (mm) | 9650 |
| Maximum unloading height (mm) | 6840 |
| Maximum vertical digging depth (mm) | 6080 |
