Product Description

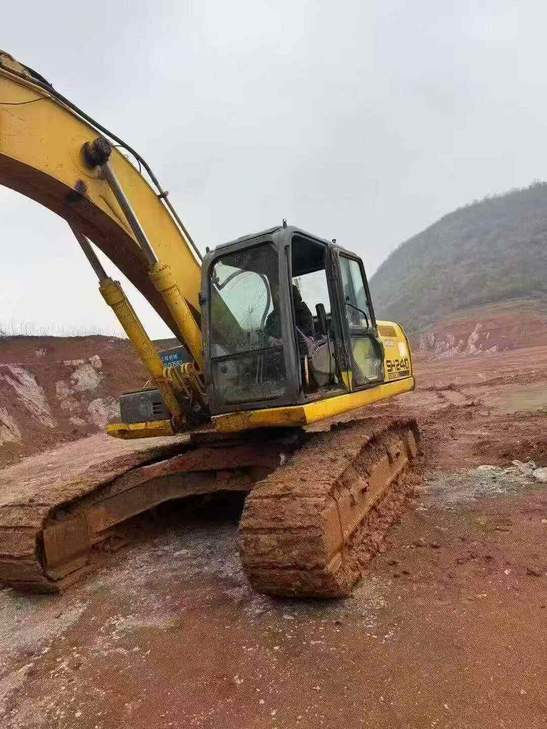

Built for high-output excavation and grading, this 2014 Sumitomo SH210-5 delivers 21-ton performance with a 117.3 kW engine and 0.9-1.0 m³ bucket capacity. Currently located in Luzhou, Sichuan, this joint venture/import machine combines proven hydraulic power with a robust undercarriage designed for demanding jobsites. With 142 kN bucket digging force and 103 kN rod digging force, it handles trenching, foundation work, and material loading without hesitation.
- Maximum digging reach of 9,900 mm and depth of 6,650 mm for versatile site coverage
- 5,700 mm boom and 2,900 mm rod configuration optimized for productivity
- Variable axial piston motor drive system with 3.4/5.6 km/h travel speeds
- 422 L/min main pump flow ensures responsive cycle times
- 20,600 kg working weight provides stability during heavy lifting and digging
- 70% climbing ability and 45 kPa ground pressure for challenging terrain
- 410 L fuel tank and 240 L hydraulic system capacity support extended shifts
Ready for immediate deployment in demolition, earthmoving, or infrastructure projects. This SH210-5 arrives site-ready with proven Sumitomo reliability.
| Specifications | Value |
|---|---|
| No. | 1041722 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20600 |
| Bucket capacity (m³) | 0.9-1.0 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | |
| Rated power (kw/rpm) | 117.3/1800 |
| Cylinder diameter × stroke (mm) | 115 x 125 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 5.193 |
| Ground specific pressure (Kpa) | 45 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 142 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 3.4/5.6 |
| Type of walking hydraulic motor | Variable axial piston motor |
| Maximum flow of main pump (l/min) | 422 |
| Main pump type | |
| Bucket cylinders - Number × diameter × stroke (mm) | |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 140 x 1460 |
| Boom cylinders - Number × diameter × stroke (mm) | |
| Fuel Tank (L) | 410 |
| Hydraulic Tank (L) | 147 |
| Engine Oil changes (L) | 23.1 |
| Coolant (L) | 26 |
| Hydraulic System (L) | 240 |
| Total transport length (mm) | 9400 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2970 |
| Counterweight ground clearance (mm) | 1040 |
| Minimum ground clearance (mm) | 460 |
| Minimum turning radius of front working device (mm) | 3600 |
| Back end turning radius (mm) | 2720 |
| Total track length (mm) | 4180 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3370 |
| Maximum digging radius (mm) | 9900 |
| Maximum digging depth (mm) | 6650 |
| Maximum excavation height (mm) | 9610 |
| Maximum unloading height (mm) | 6810 |
| Maximum vertical digging depth (mm) | 5960 |
