Product Description

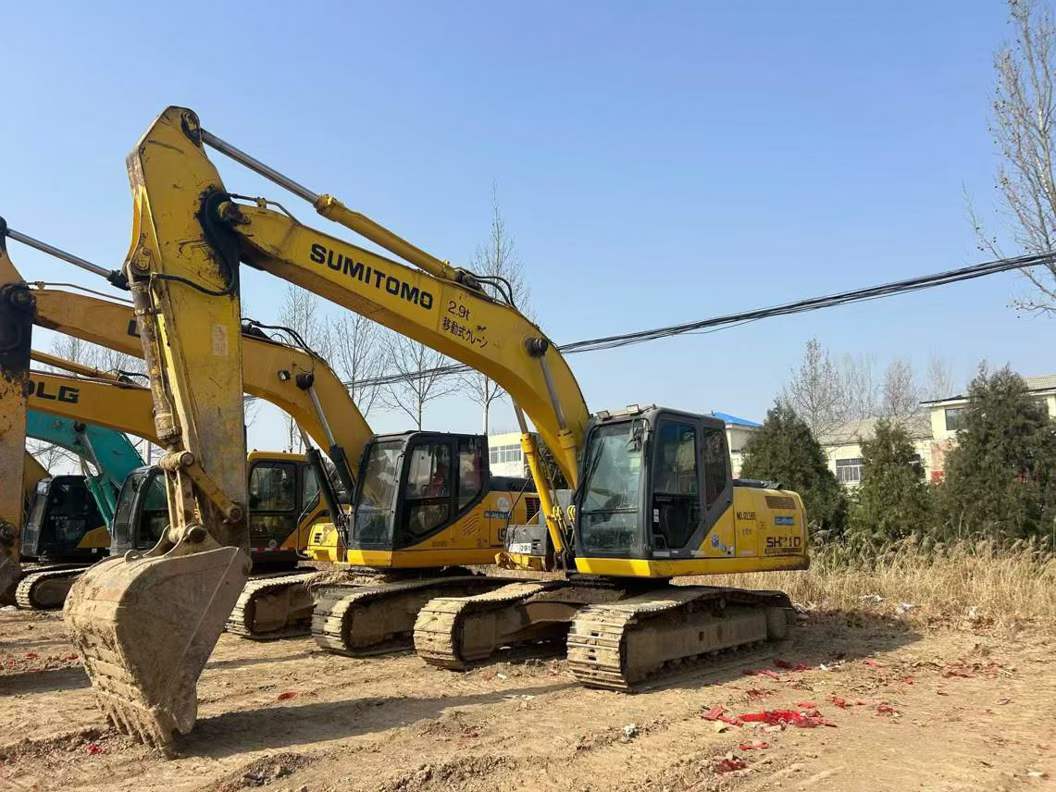

Backed by Sumitomo's legendary Japanese engineering, this 2016 SH210-5 excavator delivers proven reliability for mid-sized earthmoving operations. Operating at 21 tons with a robust 117.3 kW engine, this machine combines a 9.9-meter maximum digging radius with a 6.65-meter digging depth—ideal for construction sites, mining support, and infrastructure projects requiring consistent performance in demanding conditions.
Sumitomo's reputation translates directly into lower ownership costs. Parts availability through established global networks ensures minimal downtime, while the brand's resale value remains strong in secondary markets worldwide. Currently located in Dezhou, Shandong, this joint venture-manufactured unit features:
- 0.9-1.0 m³ bucket capacity with 142 kN digging force
- Variable axial piston motor delivering 422 L/min maximum flow
- 410L fuel tank supporting extended operational shifts
- 2800mm transport width for road-legal mobility
- 70% climbing ability for challenging terrain
With 20,600 kg working weight and dual travel speeds (3.4/5.6 km/h), this SH210-5 represents a calculated investment in productivity. Sumitomo's factory support and extensive dealer n
| Specifications | Value |
|---|---|
| No. | 1017113 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20600 |
| Bucket capacity (m³) | 0.9-1.0 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | |
| Rated power (kw/rpm) | 117.3/1800 |
| Cylinder diameter × stroke (mm) | 115 x 125 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 5.193 |
| Ground specific pressure (Kpa) | 45 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 142 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 3.4/5.6 |
| Type of walking hydraulic motor | Variable axial piston motor |
| Maximum flow of main pump (l/min) | 422 |
| Main pump type | |
| Bucket cylinders - Number × diameter × stroke (mm) | |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 140 x 1460 |
| Boom cylinders - Number × diameter × stroke (mm) | |
| Fuel Tank (L) | 410 |
| Hydraulic Tank (L) | 147 |
| Engine Oil changes (L) | 23.1 |
| Coolant (L) | 26 |
| Hydraulic System (L) | 240 |
| Total transport length (mm) | 9400 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2970 |
| Counterweight ground clearance (mm) | 1040 |
| Minimum ground clearance (mm) | 460 |
| Minimum turning radius of front working device (mm) | 3600 |
| Back end turning radius (mm) | 2720 |
| Total track length (mm) | 4180 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3370 |
| Maximum digging radius (mm) | 9900 |
| Maximum digging depth (mm) | 6650 |
| Maximum excavation height (mm) | 9610 |
| Maximum unloading height (mm) | 6810 |
| Maximum vertical digging depth (mm) | 5960 |
