Product Description
Featuring a robust 117.3 kW engine and a variable axial piston motor, the 2017 Sumitomo SH210-5 excavator delivers unparalleled performance and efficiency. With a maximum flow of 422 l/min from its main pump, this model ensures smooth and powerful operations. The 21-ton machine is equipped with a 0.9-1.0 m³ bucket, providing substantial digging force up to 142 kN, making it ideal for demanding construction tasks.

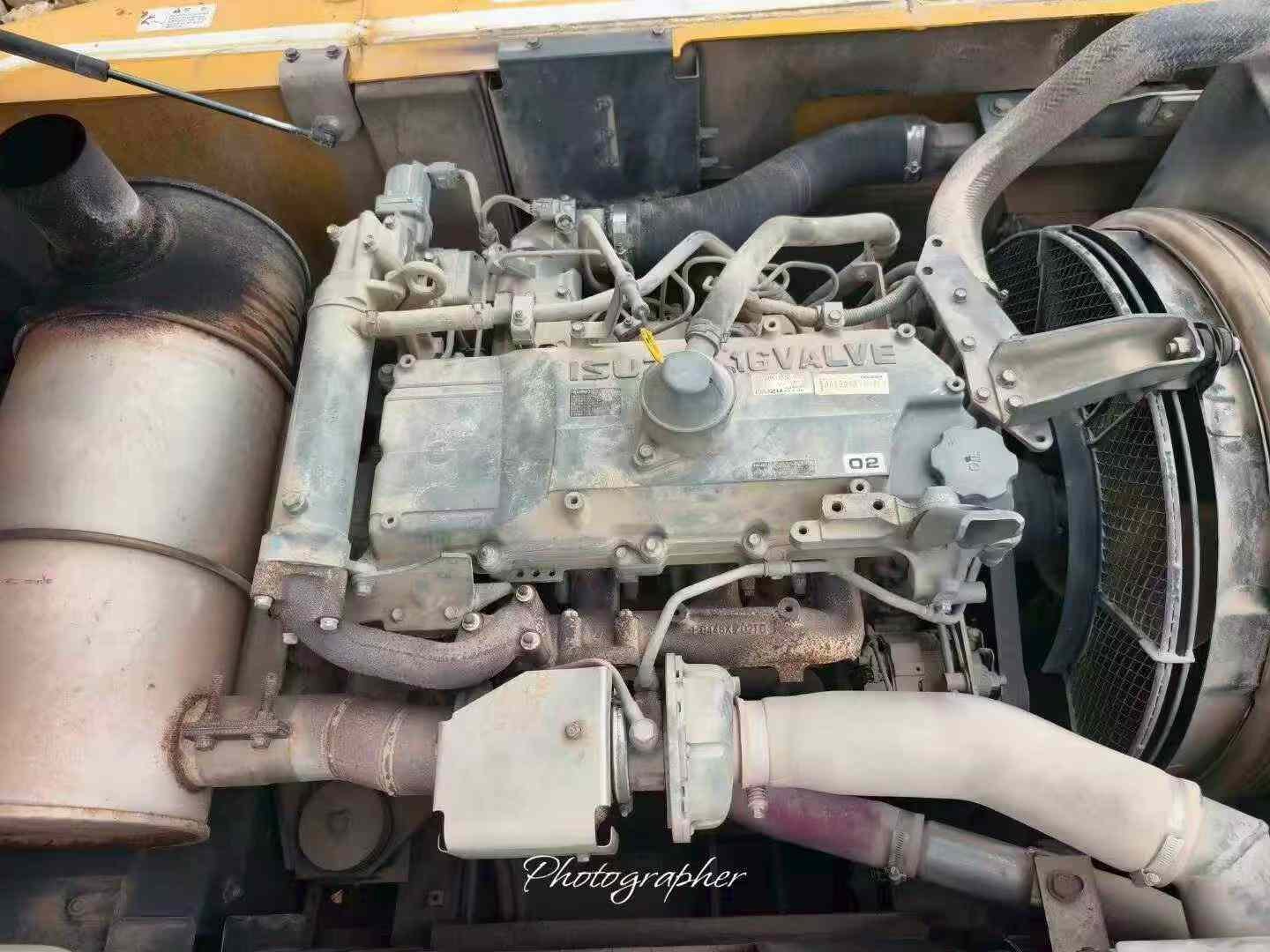

- Engine: 117.3 kW at 1800 rpm, 4-cylinder, 5.193 L displacement

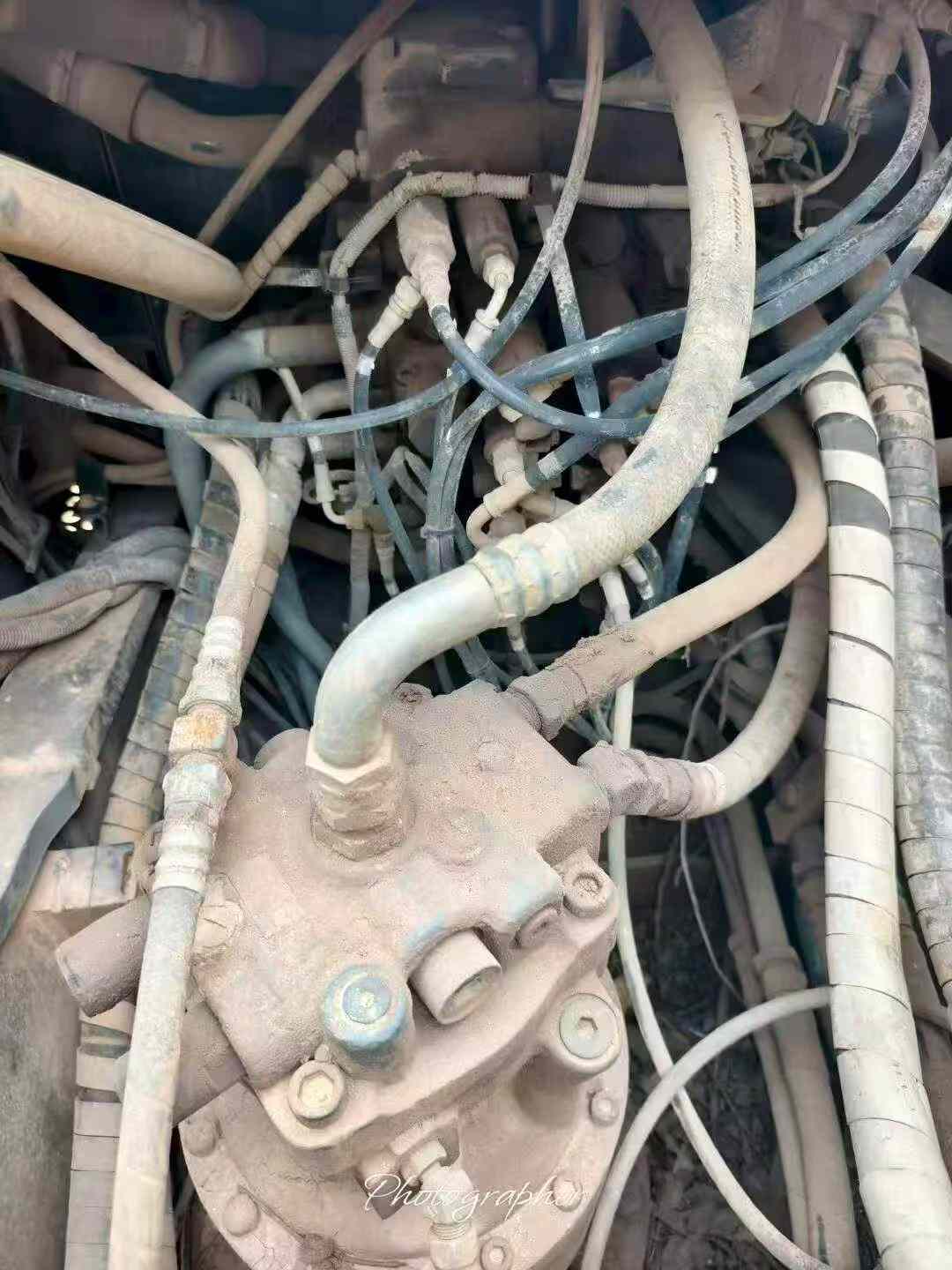

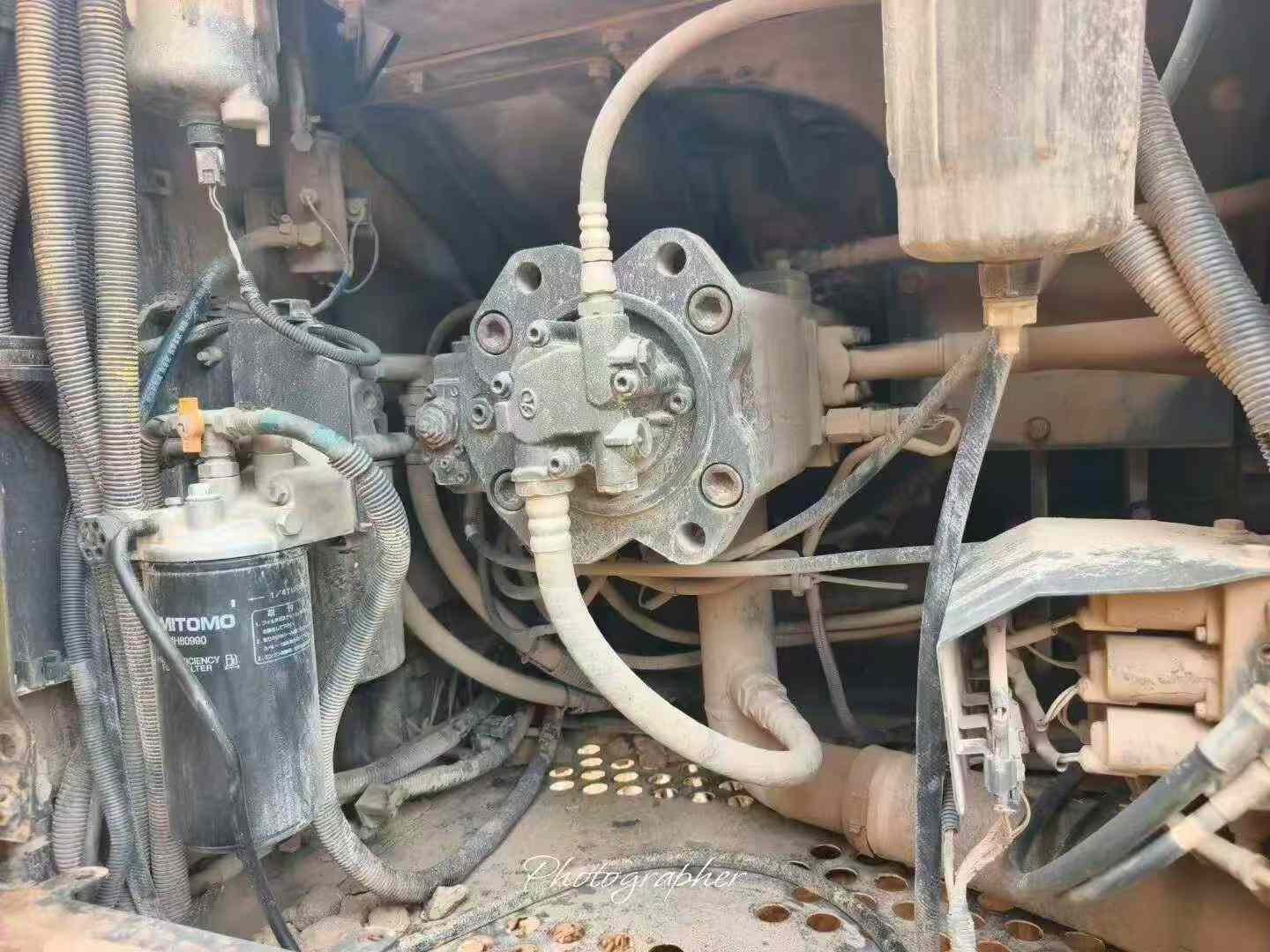

- Hydraulics: Variable axial piston motor, 422 l/min main pump flow
- Bucket: 0.9-1.0 m³ capacity, 142 kN digging force
- Reach: Maximum digging radius of 9900 mm, depth of 6650 mm
- Maneuverability: Minimum turning radius of 3600 mm, back end turning radius of 2720 mm
Designed with precision engineering, the SH210-5 offers a reliable and durable solution, backed by Sumitomo's commitment to quality and performance. Located in Zhejiang, China, this excavator is ready to tackle your toughest projects with ease.
| Specifications | Value |
|---|---|
| No. | 1056649 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20600 |
| Bucket capacity (m³) | 0.9-1.0 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | |
| Rated power (kw/rpm) | 117.3/1800 |
| Cylinder diameter × stroke (mm) | 115 x 125 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 5.193 |
| Ground specific pressure (Kpa) | 45 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 142 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 3.4/5.6 |
| Type of walking hydraulic motor | Variable axial piston motor |
| Maximum flow of main pump (l/min) | 422 |
| Main pump type | |
| Bucket cylinders - Number × diameter × stroke (mm) | |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 140 x 1460 |
| Boom cylinders - Number × diameter × stroke (mm) | |
| Fuel Tank (L) | 410 |
| Hydraulic Tank (L) | 147 |
| Engine Oil changes (L) | 23.1 |
| Coolant (L) | 26 |
| Hydraulic System (L) | 240 |
| Total transport length (mm) | 9400 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2970 |
| Counterweight ground clearance (mm) | 1040 |
| Minimum ground clearance (mm) | 460 |
| Minimum turning radius of front working device (mm) | 3600 |
| Back end turning radius (mm) | 2720 |

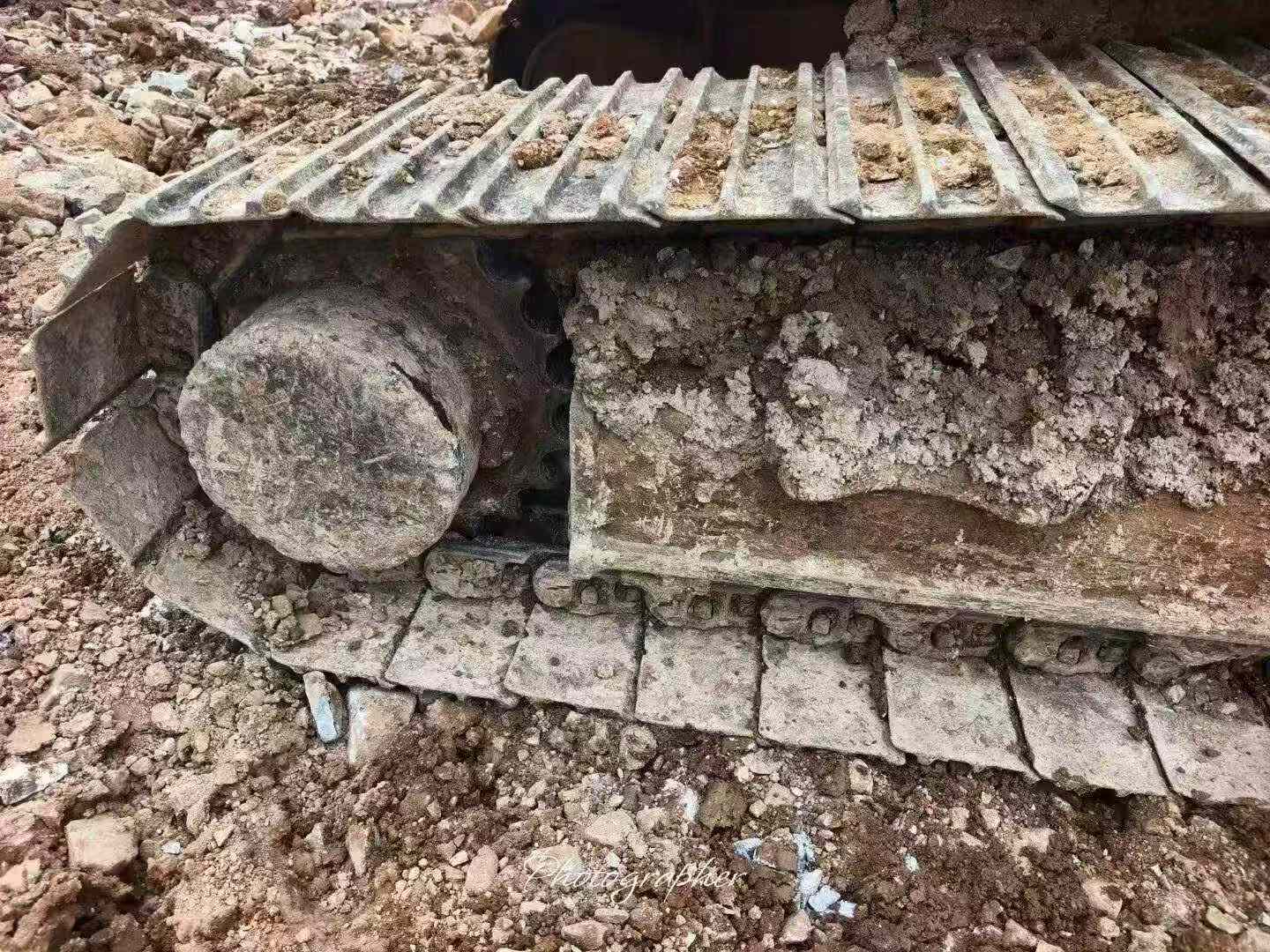

| Total track length (mm) | 4180 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3370 |
| Maximum digging radius (mm) | 9900 |
| Maximum digging depth (mm) | 6650 |
| Maximum excavation height (mm) | 9610 |
| Maximum unloading height (mm) | 6810 |
| Maximum vertical digging depth (mm) | 5960 |
